Post subject: Wah help needed.
Posted: Thu Dec 30, 2010 10:25 pm
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
ok guys i need your help.
i have an old dunlop (flop for some of us)
crybaby pedal. yrs ago i pulled the on/off
switch because it just stopped working.
well i put the pedal on the shelf and left it.
yrs go by and i just ordered a switch and its here.
problem is, i forgot which wire goes where.
i found several wiring diagrams on the net but none
have wire color codings. :roll: so does anybody
know where i can get a pic of the hookup, showing
what color wire goes where?

_________________
63supro
"The good thing is in a club situation, most of the patrons are trashed and really can't tell the difference."


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Wah help needed.
Posted: Thu Dec 30, 2010 10:53 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26419
Location: Tombstone Territory

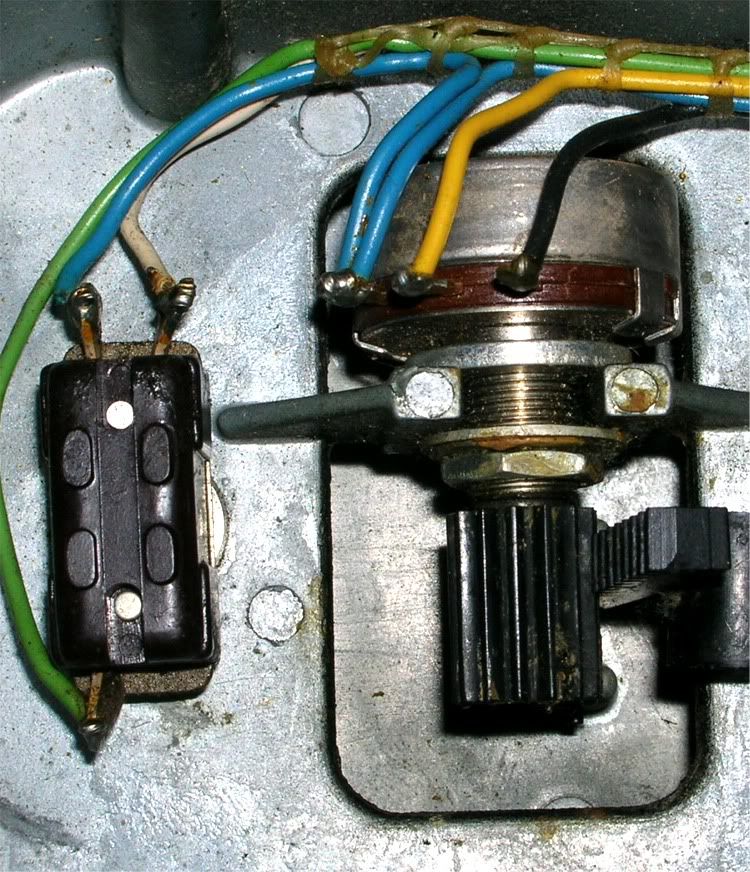

I dunno if these are any help or not but this is a Dunlop Cry Baby that I've owned for about twenty years. AFAIK, it's all original so the wire colors may be similar to yours......



HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Wah help needed.
Posted: Fri Dec 31, 2010 4:46 am
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
arjay

thank you for the reply.
mine has two blue wires, 1 purple, and 1 green. :(

_________________
63supro
"The good thing is in a club situation, most of the patrons are trashed and really can't tell the difference."


Top
Profile
Post subject: Re: Wah help needed.
Posted: Fri Dec 31, 2010 1:29 pm
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
nobody has a solution here?

_________________
63supro
"The good thing is in a club situation, most of the patrons are trashed and really can't tell the difference."


Top
Profile
Post subject: Re: Wah help needed.
Posted: Fri Dec 31, 2010 1:42 pm
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
thank you nevin. im greatful indeed.

_________________
63supro
"The good thing is in a club situation, most of the patrons are trashed and really can't tell the difference."


Top
Profile
Post subject: Re: Wah help needed.
Posted: Fri Dec 31, 2010 1:52 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Dec 31, 2008 9:31 am
Posts: 1282
Location: Hunterdon County NJ
Here's a pic.


The green goes to the single lug. The 2 blue goes to the lug near the toe. The purple goes to the lug nearer the heel.


Mr. Nevin beat me to it. :mrgreen:

_________________


Top
Profile
Post subject: Re: Wah help needed.
Posted: Fri Dec 31, 2010 1:58 pm
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
nevin, kong, you guys rock. thank you very much for doing this for me.
it will still be a day or two before i can get this thing together, but it will give me a chance to use the soldering station ms clause brought me.
i just hope the pedal still works lol.

_________________
63supro
"The good thing is in a club situation, most of the patrons are trashed and really can't tell the difference."


Top
Profile
Post subject: Re: Wah help needed.
Posted: Fri Dec 31, 2010 2:01 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Dec 31, 2008 9:31 am
Posts: 1282
Location: Hunterdon County NJ
If you have problems with the pot I put a black bear in mine and it works great.

http://www.smallbearelec.com/Detail.bok?no=582


_________________


Top
Profile
Post subject: Re: Wah help needed.
Posted: Fri Dec 31, 2010 2:32 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Jul 29, 2009 10:03 am
Posts: 9449
Location: NL Canada
North Star Audio makes great pots that have the same taper and value as the original Jen and Vox pedals from the 60s you can find them here: www.northstaraudio.net or you can email the owner directly tomlanik@earthlink.net .

_________________
'65 Strat,65 Mustang,65 Jaguar,4 more Strats,3 vintage Vox guitars,5 Vox amps,'69 Bassman with a '68 2-15 Bassman cab,36 guitars total-15asst'd amps total,2 vintage '60s Hammond organs & a myriad of effects-with a few rare vintage ones.


Top
Profile
Post subject: Re: Wah help needed.
Posted: Fri Dec 31, 2010 4:10 pm
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
cool links guys.

one thing i havent been able to find, EVER, and a challenge to the best
internet researcher, the little rubber gasket/o-ring looking thing the thumb screw
on Boss pedals rides up and down in. i cant find one nowhere.
its the same part theyve used on their pedals for decades too.
know what im talkin about?

_________________
63supro
"The good thing is in a club situation, most of the patrons are trashed and really can't tell the difference."


Top
Profile
Post subject: Re: Wah help needed.
Posted: Tue Jan 18, 2011 6:45 pm
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
man this sucks. i got a switch in today from dunlop and its a 6 lug switch, not at all like the ones in nevins and kongs pics. is it the wrong switch or an upgraded version im wondering? anybody know?

_________________
63supro
"The good thing is in a club situation, most of the patrons are trashed and really can't tell the difference."


Top
Profile
Post subject: Re: Wah help needed.
Posted: Tue Jan 18, 2011 8:47 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Nov 04, 2010 12:13 am
Posts: 1174
Possibly a DPDT. You can use a multi meter to check the 6 poles to see which ones are going to open the on and the off. BYOC's wah instructions has a layout of the wiring for their 3PDT switch where they use only the DPDT function of the switch.


Top
Profile
Post subject: Re: Wah help needed.
Posted: Tue Jan 18, 2011 8:51 pm
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
post a link?
if its the pic ive seen our wires arent to same color so i dont know whats what.

_________________
63supro
"The good thing is in a club situation, most of the patrons are trashed and really can't tell the difference."


Top
Profile
Post subject: Re: Wah help needed.
Posted: Tue Jan 18, 2011 11:55 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Dec 05, 2010 12:38 am
Posts: 392
i have some boss pedals but have never seen replacements for those rubber o ring things... what you could do is put a piece of fuel line over the actual screw... (the fuel line you get in them lil nitro rc cars... )... there are normaly 2 different sizez...try the thinner one... works on mine...

_________________
blues - its a religion...


Top
Profile
Post subject: Re: Wah help needed.
Posted: Wed Jan 19, 2011 12:07 am
Offline
Rock Star
Rock Star

Joined: Tue May 18, 2010 7:34 pm
Posts: 6911
i have a ton of it downstairs. killer idea. thanks bro
