Post subject:
Posted: Wed Jun 02, 2010 2:22 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
BastardN wrote:
Andy's Cat sent me this one.

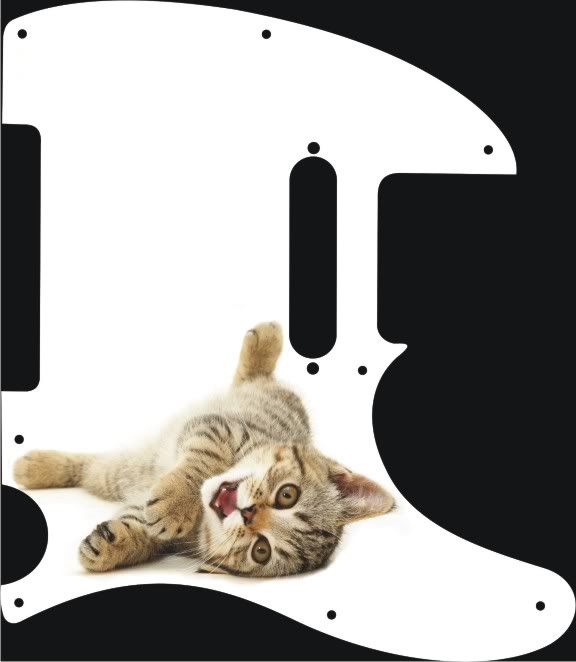

Hi BN: go with this one. For a "Hello Kitty" Telecaster. Obviously. 8)

Cheers - C


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Thu Jun 03, 2010 8:12 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Feb 19, 2010 4:55 pm
Posts: 723
Sweet thread BN, looking forward to how those dyes turned out :) Blue tele's ftw

_________________
My Rig: Guitar into Pedals then into Amps and out into Speakers.


Top
Profile
Post subject:
Posted: Sat Jun 05, 2010 1:20 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 22, 2007 7:00 pm
Posts: 1218
Thanks everyone for your takes on the pickguards.
I trust when it is finally dyed we can have another look.
( I really like the black Tele Hybrid one...)

Since the weather wasn't working with we I decided to try this in my work shop.

Here is the beginning of the samples of dye.

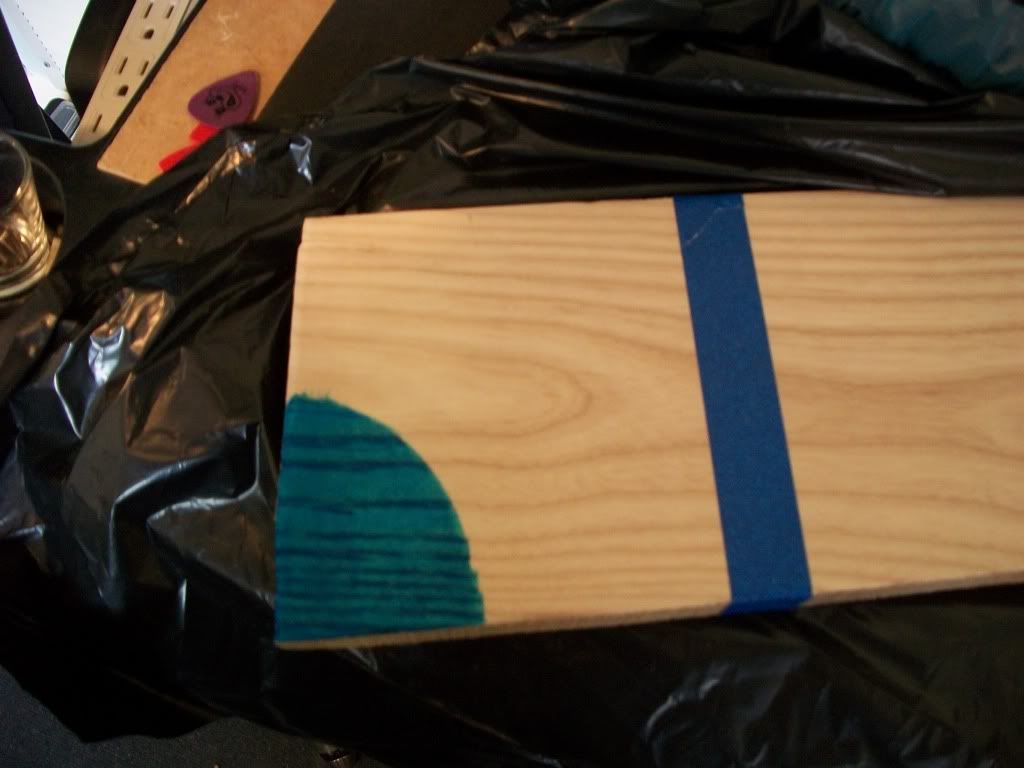

This is the Peacock Blue.....

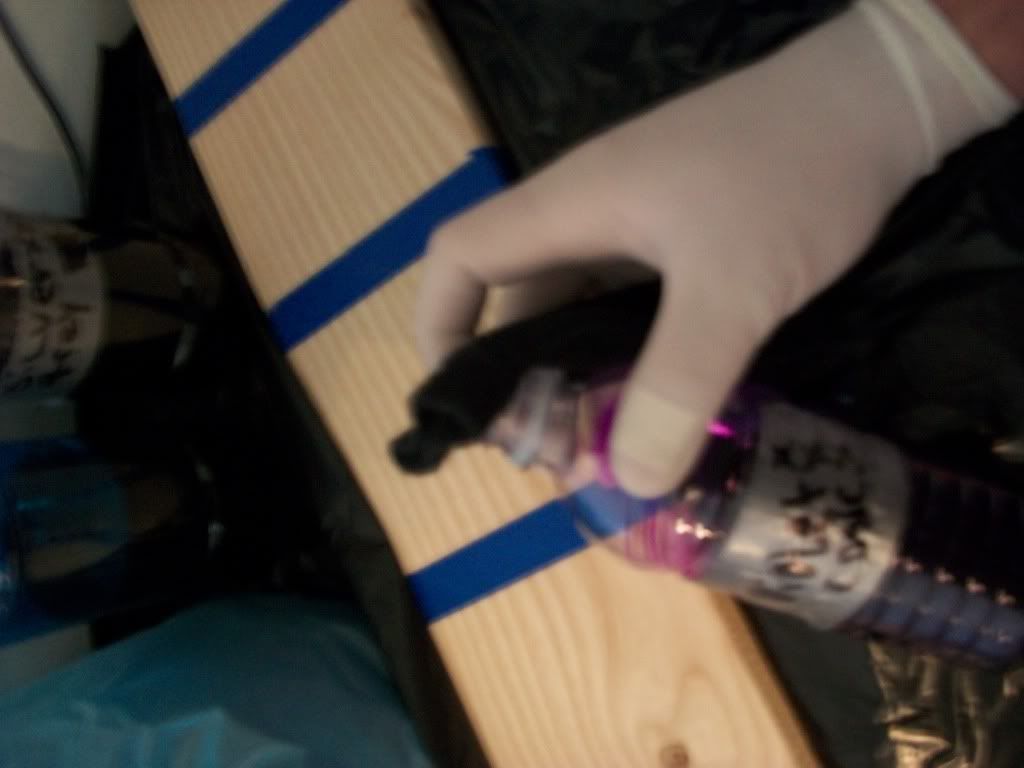

Here is the application..Violet..yes that is an old cotton sock..... :roll:

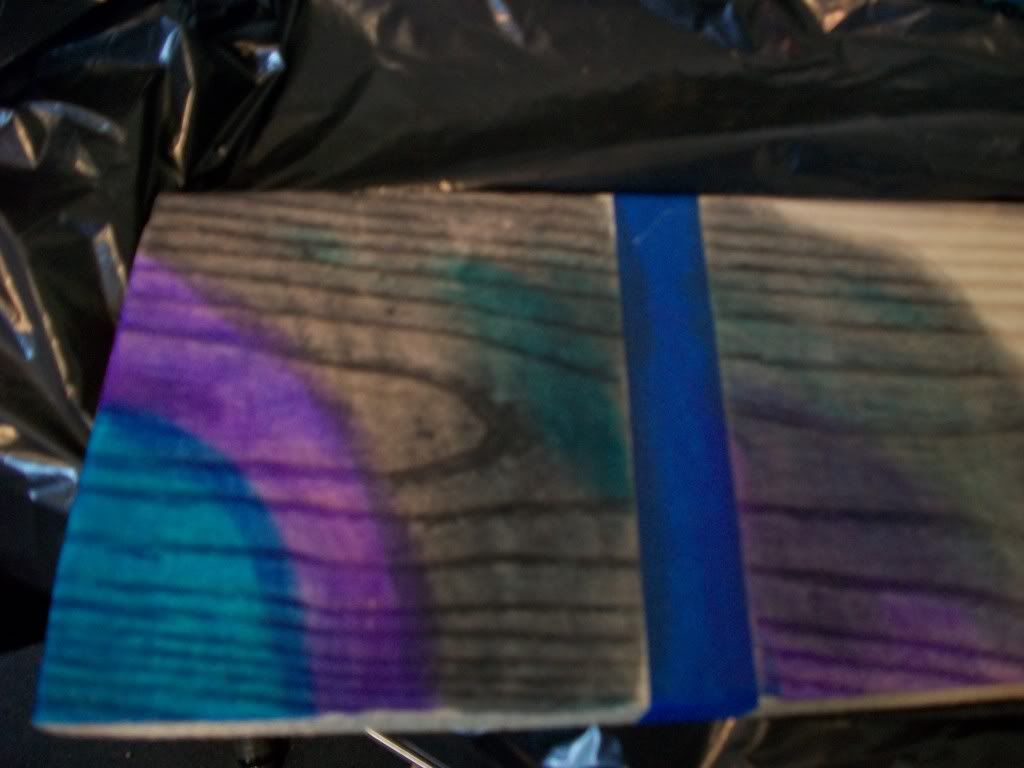

Here I wanted to see what the bleed through would look like if I overlapped the dyes with out the sanding in between each application of different colors.
Now I am thinking of using small Acrlic paint style brushes next time to see what kind of effect that will give.

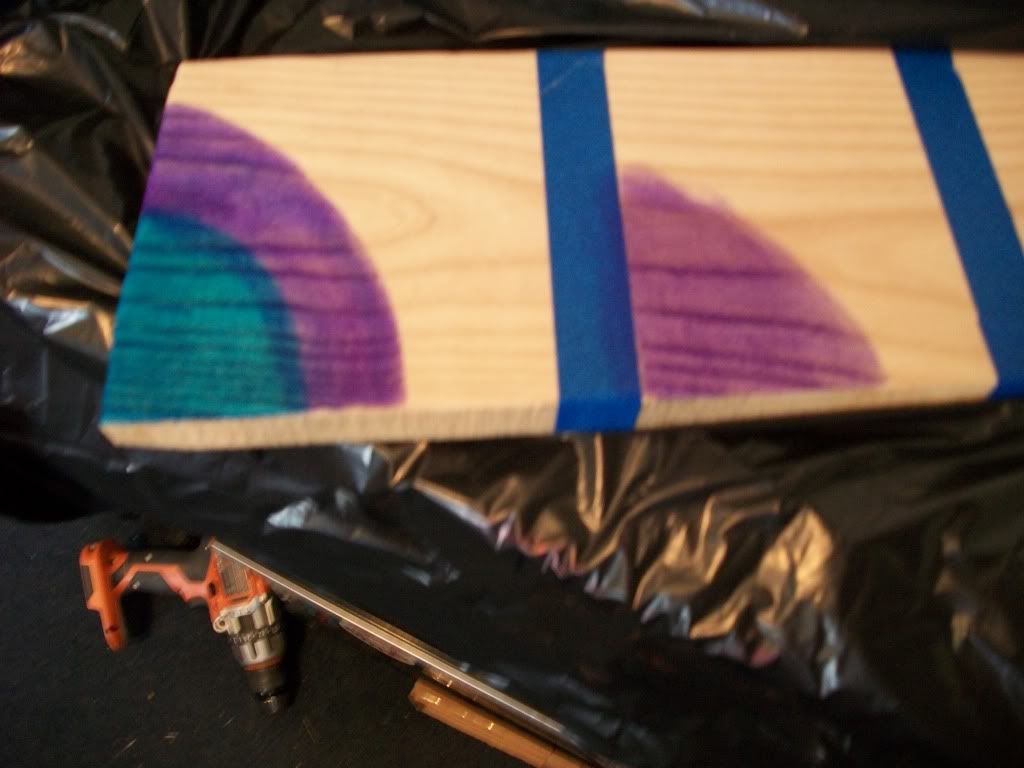

Here is more of the bleed through.
I am not definite on the color combo yet.(which comes first between the blue and violet......)

It looks like crap on the sample board....now...but thats why we practice...lol.
Sorry fior the blurry pics.. :shock:
More to come soon. -N 8)


Top
Profile
Post subject:
Posted: Sat Jun 05, 2010 1:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 26, 2008 9:56 pm
Posts: 3941
Location: Great White North, EH!
hah you had me totally tricked with what you were planning.

I thought you were going to dye the whole piece with the Silver/grey/black, then sand it back, so it would just be in the grain, then dye the whole thing with the peacock blue, and do the edge burst in violet. I bet it would look totally:

The cat's pyjamas.

I have no idea how people get these things on their cat, my cat would tear my face off and claw out my eyes before i ever got any clothing on her.(That cat looks miserable.)

I really like the blend between the peacock and violet, you would just have to work on making a smoother more gradual blend. Do you have access to an airbrush per chance? if you do, you could dye the base colours, and then spray the burst, with a little (and I mean a little, not a lot,) you can get a really nice transition.

I don't know how open to suggestions you are, or if you have something in particular in mind, but if you have scrap to work with, i would try:

1) dye with the silver grey,
2) after it dries, sand back until it's mostly gone from the wood, except for the grain,
3)dye again with the peacock (or the violet-maybe try a little sample of each,)
4) after that's dry, shoot a thin coat or two of clear (it'll make it easier to fix any mistakes in the next step without having to sand all the way back to bare wood,)
5) burst the edges with the other colour,
6) a few more clear coats

_________________
I'm not an expert, but I play one on the internet.



Top
Profile
Post subject:
Posted: Sat Jun 05, 2010 7:12 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Feb 19, 2010 4:55 pm
Posts: 723
Wow, looks like dying isn't an easy thing to do. Sounds like Twelvebars got some tips for you though.

_________________
My Rig: Guitar into Pedals then into Amps and out into Speakers.


Top
Profile
Post subject:
Posted: Sun Jun 06, 2010 6:49 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 22, 2007 7:00 pm
Posts: 1218
Twelvebar wrote:
I don't know how open to suggestions you are, or if you have something in particular in mind, but if you have scrap to work with, i would try:

1) dye with the silver grey,
2) after it dries, sand back until it's mostly gone from the wood, except for the grain,
3)dye again with the peacock (or the violet-maybe try a little sample of each,)
4) after that's dry, shoot a thin coat or two of clear (it'll make it easier to fix any mistakes in the next step without having to sand all the way back to bare wood,)
5) burst the edges with the other colour,
6) a few more clear coats

Thanks Twelvebar,(Love the pic) Yes I am VERY open to suggestions and creative critisism on this project. I don't claim to be an expert.... :D ...So I'll take any advice anyone is gracious enough to give.

I was getting frustrated with not being able to do any dyeing, so I wanted to do some indoors. I wasn't able to do any sanding. Theses shots were to get somewhat of an idea of what they will look like on the wood by themselves.

The blending is certainly going to be the fun part.
I am hoping to get some serious work on this this week. The weather I am told shold be favorable.-N 8)


Top
Profile
Post subject:
Posted: Sun Jun 06, 2010 8:02 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jan 29, 2009 7:13 pm
Posts: 19025
Location: Illinois, USA
BastardN wrote:
"Thanks everyone for your takes on the pickguards."
Bro, no pick-guard, your colors chill. Hardware/Pickups, chrome black gold covers ashtrays?

_________________
you can save the world with your guitar one love song at a time it's just better, more fun, easier with a fender solid body electric guitar or electric bass guitar.


Top
Profile
Post subject:
Posted: Mon Jun 07, 2010 1:23 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 22, 2007 7:00 pm
Posts: 1218
BastardN wrote:
Twelvebar wrote:
I don't know how open to suggestions you are, or if you have something in particular in mind, but if you have scrap to work with, i would try:

1) dye with the silver grey,
2) after it dries, sand back until it's mostly gone from the wood, except for the grain,
3)dye again with the peacock (or the violet-maybe try a little sample of each,)
4) after that's dry, shoot a thin coat or two of clear (it'll make it easier to fix any mistakes in the next step without having to sand all the way back to bare wood,)
5) burst the edges with the other colour,
6) a few more clear coats

Thanks Twelvebar,(Love the pic) Yes I am VERY open to suggestions and creative critisism on this project. I don't claim to be an expert.... :D ...So I'll take any advice anyone is gracious enough to give.

I was getting frustrated with not being able to do any dyeing, so I wanted to do some indoors. I wasn't able to do any sanding. Theses shots were to get somewhat of an idea of what they will look like on the wood by themselves.

The blending is certainly going to be the fun part.
I am hoping to get some serious work on this this week. The weather I am told shold be favorable.-N 8)

I just checked with my pal "Gino the Butcher", He paints all of my custom guitars.
He will hit the Tele with a glass Poly when all is stained and done.
Twelvebar , your advice is welcome and very helpful.
As is everyone's suggestions.
Thanks !

-N 8)


Top
Profile
Post subject:
Posted: Mon Jun 07, 2010 1:34 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Fri Sep 14, 2007 4:37 pm
Posts: 4750
Location: My Piece Of Red Dirt
Great thread........the drama continues.............. 8) Mike

_________________
The blues ain't nothin but a good man feelin bad.


Top
Profile
Post subject:
Posted: Mon Jun 07, 2010 1:51 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Dec 01, 2009 9:22 am
Posts: 2175
Howdy BN!

I kind of agree with SBLS, but I rekon that black pickguard will show off enough of the colours you've chosen. I think they look very cool. That purple looks sweet. 8)

I've got a thing for purple guitars and will be making a note of that stain you've got to maybe use on that spare body I used to make the templates with. I can't offer you any advice as I have no experience with stains so I'll wait for you to master it so you can show me how its done! :D

That pic 12bar posted is proper bonkers! I just noticed that Cat has also been forced to wear "Kitty Mittens" !?! How $@!&*% up is that! Randel would tear me off a chunk if i tried anything like that :lol:

Nice work Dude!

Andy

_________________
Pending Greatness


Top
Profile
Post subject:
Posted: Mon Jun 07, 2010 3:06 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 26, 2008 9:56 pm
Posts: 3941
Location: Great White North, EH!
Andybighair wrote:
That pic 12bar posted is proper bonkers! I just noticed that Cat has also been forced to wear "Kitty Mittens" !?! How $@!&*% up is that! Randel would tear me off a chunk if i tried anything like that :lol:

Nice work Dude!

Andy


can never post this too many times:

http://www.youtube.com/watch?v=vCaTpFwcC9o

_________________
I'm not an expert, but I play one on the internet.



Top
Profile
Post subject:
Posted: Sat Jun 12, 2010 6:48 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Feb 19, 2010 4:55 pm
Posts: 723
So N, hows the dying coming?

_________________
My Rig: Guitar into Pedals then into Amps and out into Speakers.


Top
Profile
Post subject:
Posted: Wed Jun 23, 2010 12:48 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Feb 19, 2010 4:55 pm
Posts: 723
Anything?

_________________
My Rig: Guitar into Pedals then into Amps and out into Speakers.


Top
Profile
Post subject:
Posted: Wed Jul 07, 2010 8:30 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 22, 2007 7:00 pm
Posts: 1218
Impulse7 wrote:
Anything?

Yes I have a 5hit load of pics to post.
No Drama....just been busy sorry for the delay.- 8)


Top
Profile
Post subject:
Posted: Thu Jul 08, 2010 10:28 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 22, 2007 7:00 pm
Posts: 1218
Let's get right to it shall we......

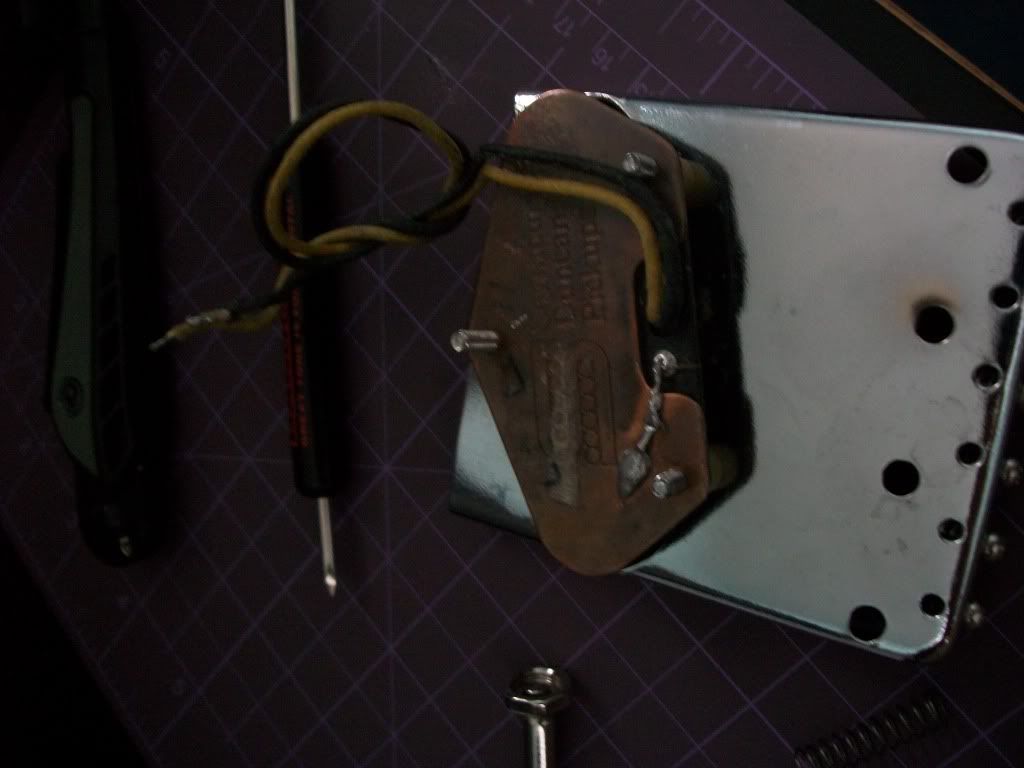

Recieved the wire and rewound this D.O.A Seymour Duncan to 14k. HOT..
The neck pup I had lying around from another project....Fender USA, I believe it came out of a Tele Reissue. This is the advantage to doing pro-bono work for friends, you usually get to keep the leftover pieces parts from the jobs.

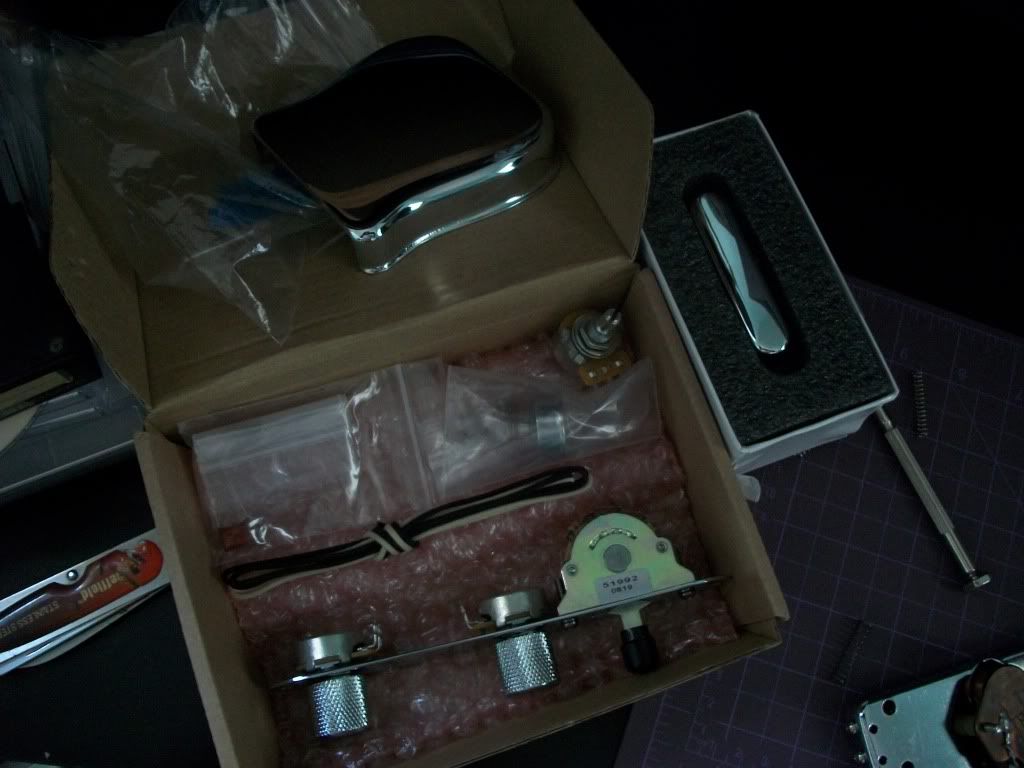

I also assembled the control panel, pots and swtch and all that fun...
and yes that is an ashtray bridge cover I will be putting on for that "streamlined look".

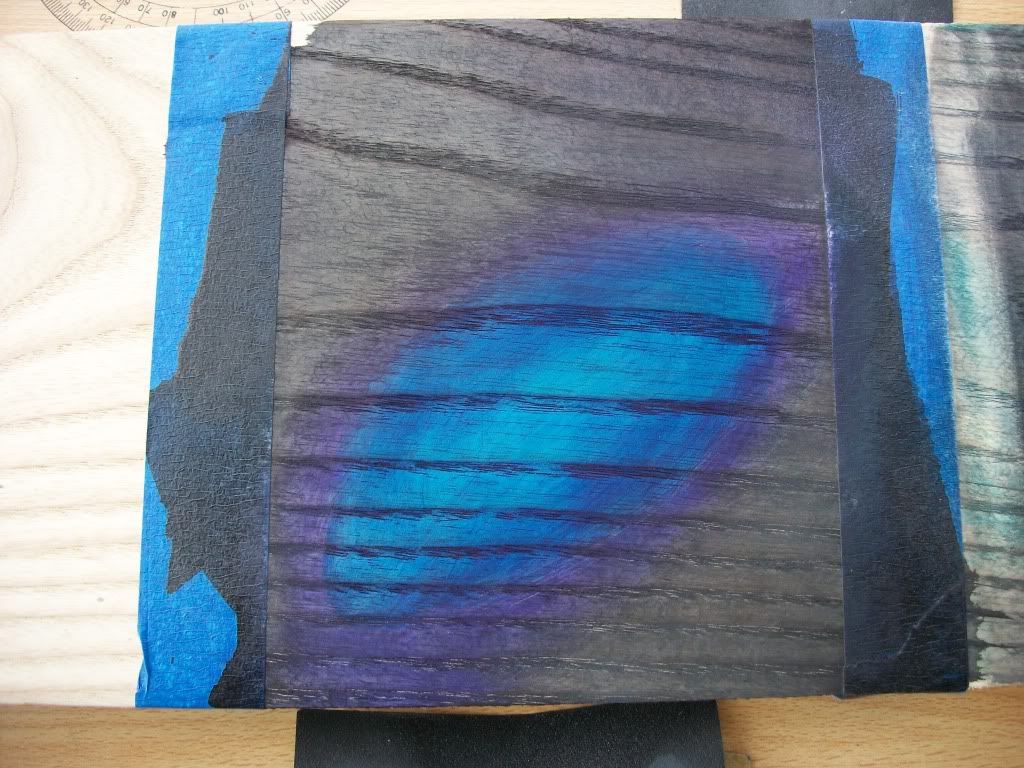

Here we have some more color swipes....looks like 5hit doesn't it...??These are just swipes to test my blending.....it does get a bit better...
On the actual body I will not be using an orbital sander, thats where those crappy swirls on the wood come from.
So we are still testing sanding and dying techniques between wiring and
such.:::::note; I only used 320 grit, on the finished project we will take it much finer.

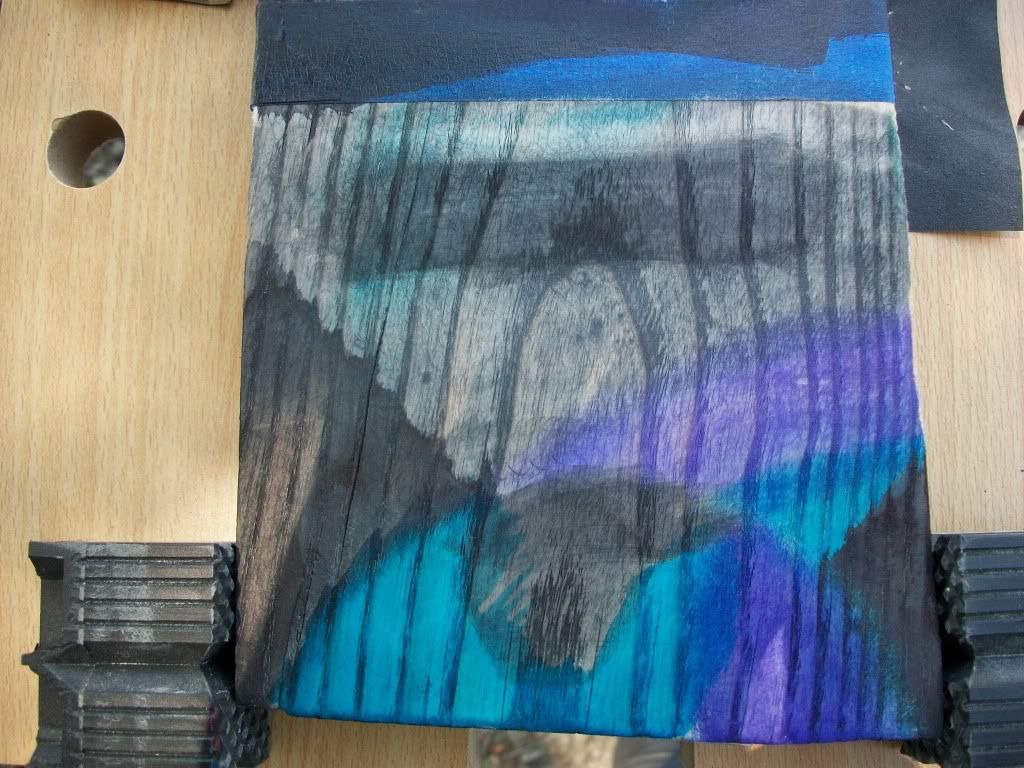

Here is more blending. It really is a teadious technique. Kind of like painting with quick-drying water color paints.The grains are like channels for the paint... Only these don't raise the grain as much.
I am almost ready to start sanding down the tele body and begin the real deal. More to come soon. Gotta work to finance the other things!-N 8)
