Post subject: Amp gurus: I could use a little help
Posted: Sat Jun 18, 2016 3:20 am
Offline
Amateur
Amateur
User avatar

Joined: Wed Aug 27, 2014 9:25 pm
Posts: 176

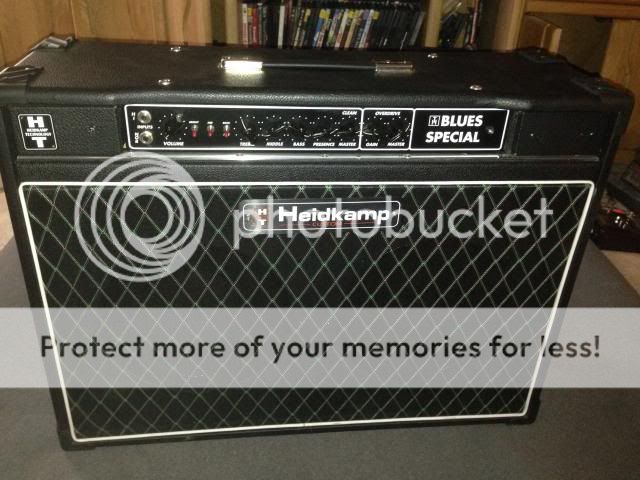

I did a simple speaker swap today, and when I turned the amp on, no sound.

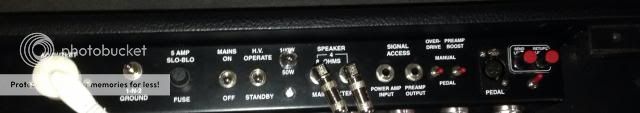

I hooked it up fine, but when I looked at the back of the amp to check the speaker connection, I noticed one tube wasn't glowing (the one nearest the PI.

I looked inside the amp at the socket connections, everything looked ok, wiggled some stuff around to see pin solder joints. Then I tested it again, all 4 power tubes glowing, no sound.

I took the shields off of the preamp tubes, none of them are glowing.

I looked for an internal fuse, don't see one, but the main seems ok.

I put in all new tubes (pre and power), still the same result.

Any ideas what might have caused all of this? I played the amp an hour before the speaker swap, everything was fine. I played both speakers earlier, both worked fine. But I did the swap, and the amp just makes no sound now.

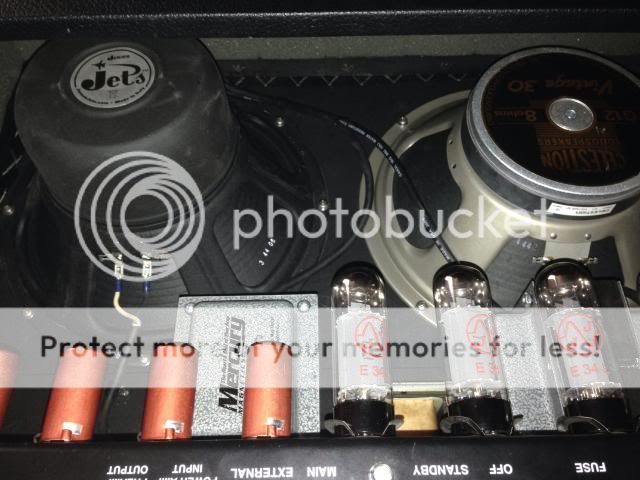

Here's a look at the inside of the amp if it helps. It's a custom build, so I have no schematics.
