Post subject: Super 55 Design flaw.
Posted: Sun Mar 18, 2012 8:22 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Oct 22, 2009 11:11 am
Posts: 5

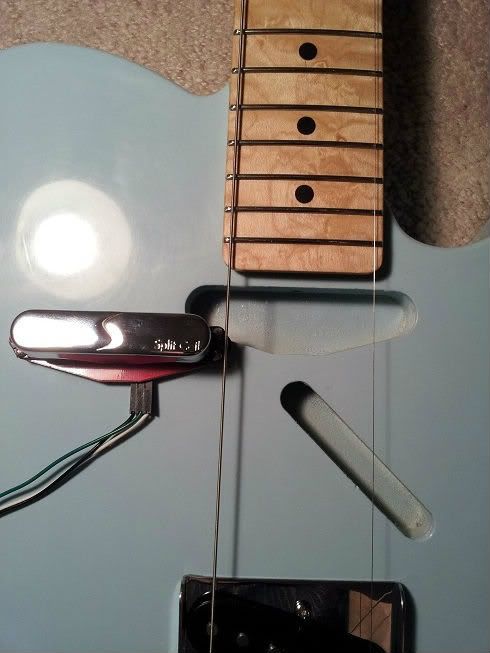

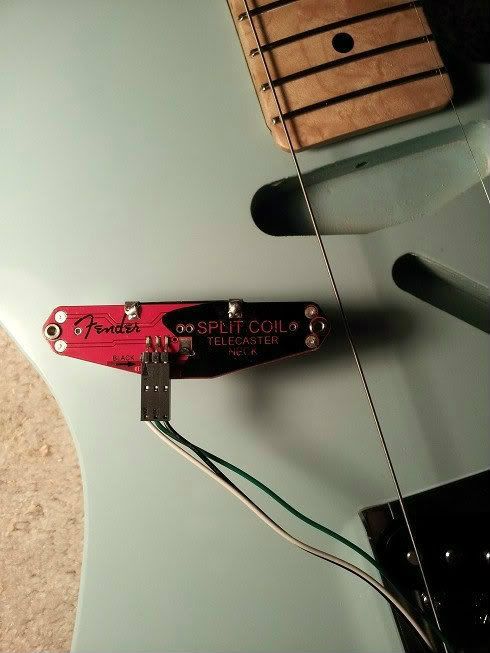

Pretty ticked about this. Gonna have to chip away at my body to get this to fit. You would think Fender would test install these on a guitar. The clip needed to be horizontal not vertical. Cmon Fender.



Last edited by joesatch on Sun Mar 18, 2012 8:55 pm, edited 1 time in total.

Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Super55 Design flaw.
Posted: Sun Mar 18, 2012 8:28 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
Agreed, flaw wise. However, you could always solder wires directly to their respective terminals on the pickup in lieu of using the clip. This way you won't have to chip anything away.

_________________
You dig?


Top
Profile
Post subject: Re: Super55 Design flaw.
Posted: Sun Mar 18, 2012 8:34 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Oct 22, 2009 11:11 am
Posts: 5
Heating up that circuit board. Not sure about that man. Also cant bend the lugs up because there's no clearance under the pickup for that. Fender owes me a solution. I guarantee, they will have alot up pissed off people because of this. All they had to do was put the clip horizontal like EMG, Kinman, etc. Very disappointing.


Top
Profile
Post subject: Re: Super55 Design flaw.
Posted: Sun Mar 18, 2012 9:13 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
joesatch wrote:
Heating up that circuit board. Not sure about that man. Also cant bend the lugs up because there's no clearance under the pickup for that. Fender owes me a solution. I guarantee, they will have alot up pissed off people because of this. All they had to do was put the clip horizontal like EMG, Kinman, etc. Very disappointing.


Agree that it is a stupid design, but if you can't solder that without destroying something you shouldn't be holding a soldering iron. It should only take about a second or 2 of heat with a 25 watt iron. Your not trying to solder a ground wire to the back of a pot.

_________________
Bill



Top
Profile
Post subject: Re: Super 55 Design flaw.
Posted: Wed Apr 25, 2012 6:05 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Apr 25, 2012 5:52 pm
Posts: 3
It just happened to me. After using the pickups for a month in my Thinline Tele the neck pickup went dead. I took it apart. This is what I found. I'm very disappointed.



Top
Profile
Post subject: Re: Super 55 Design flaw.
Posted: Thu Apr 26, 2012 4:57 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
PunkKitty312 wrote:
It just happened to me. After using the pickups for a month in my Thinline Tele the neck pickup went dead. I took it apart. This is what I found. I'm very disappointed.



Well, you can see what needs to be done to get it up and running again. I would suggest directly soldering each of the wires to their respective terminals on the base of the pickup though.

_________________
You dig?


Top
Profile
