Post subject: New guitar new pick ups
Posted: Fri Nov 25, 2011 7:52 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Feb 28, 2009 12:20 pm
Posts: 125
I bought a 2011 MIM Standard Strat used. I wanted to put in some Texas Specials in it. Well my guitar guy opened it up and it had a set of Fender Custom Shop pu's. But they arnt marked what they are. HIs meter read B 6.83 N6.14 M6.3. Which don't match up to any values that Fender has on it's Custom pick ups. Any Ideas gang? Thanks, Mark


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: New guitar new pick ups
Posted: Fri Nov 25, 2011 10:22 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
What makes your tech think the pickups are Custom Shops? MIM Standard Strats use ceramic magnets with a magnet on each side of the pole pieces. Please provide a sharp photo of the back of the pickguard and a closeup of the pickups.

_________________
Bill



Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Fri Nov 25, 2011 10:26 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Feb 28, 2009 12:20 pm
Posts: 125
HI Bill, They have the custom shop logo on them. I'll get pics tomorrow. Thanks,Mark


Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Fri Nov 25, 2011 11:42 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Need photo of the topside of the pickguard showing the pickup poll piece stagger also.

_________________
Bill



Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 1:05 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Feb 28, 2009 12:20 pm
Posts: 125

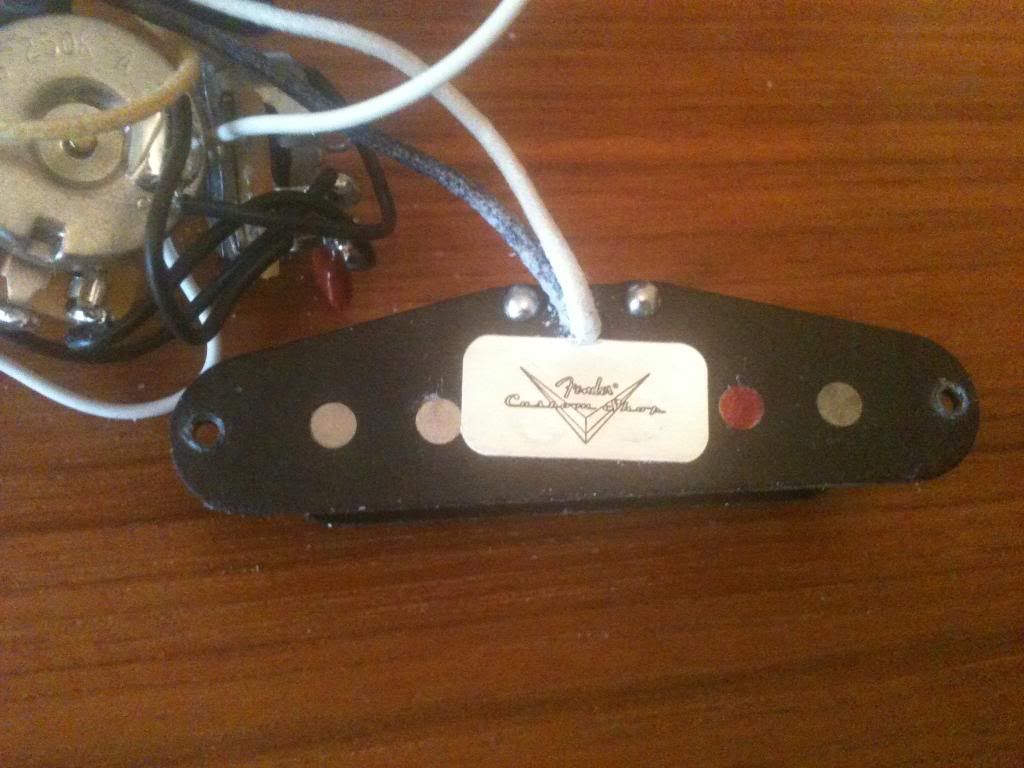

Image Image Here's a few pics, sorry this is my first time uploading pics. Photo bucket was a little slow..Thanks for any help in identifying these pick ups. Mark


Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 1:30 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
To be honest, they look like they could be Texas Specials. The magnet edges are not beveled and the resistance is within the range of the Texas Specials resistance. You can't expect them to measure exactly the same due to tolerances in the wire winding and meter. A measurement of each pickups's inductance would narrow things down further. How do they sound?

_________________
Bill



Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 3:13 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Feb 28, 2009 12:20 pm
Posts: 125
Bill, they sounded great, but nothing like the TS. I also had new pots a new switch and a fat resister and now modded it to be able to blend pickups.. Texas Specials rock!! The others have a great sound more refined, the Specials are raw ,bold, brash, sweet, I guess I'll put them on Cragis List. Thanks for your help, Mark


Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 4:36 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
Frankly, I'm in agreement with Bill. Further, note the red dot on the bottom of the B string's polepiece. of all the Custom Shop offerings and to the best of my knowledge, only the Texas Specials have a designated bridge pickup and are marked accordingly with that red dot.

_________________
You dig?


Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 4:51 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The TS set has a RW/RP middle pickup -- the lead-ins for it should be color-coded in yellow/black.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 5:02 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Feb 28, 2009 12:20 pm
Posts: 125
I just checked the pick ups, 2 have a black and white wire's and one has a light yellow and black wire's. Could the new pot's make a huge difference in the sound? Cus the new pick ups sound wicked good the others I had replaced sounded OK but nothing like the new set up. Mark


Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 5:19 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
markdavid wrote:
I just checked the pick ups, 2 have a black and white wire's and one has a light yellow and black wire's. Could the new pot's make a huge difference in the sound? Cus the new pick ups sound wicked good the others I had replaced sounded OK but nothing like the new set up. Mark


Again, as we've all been saying, you are verifying your set as Texas Specials.

What is the resistance value of your pots?

_________________
You dig?


Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 5:26 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Martian wrote:
What is the resistance value of your pots?


See the OP's first post. They are well within the range of the TS spec. Much closer to TS spec than any other Custom Shop pickup of current vintage.

_________________
Bill



Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 5:30 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
bluesky636 wrote:
Martian wrote:
What is the resistance value of your pots?


See the OP's first post. They are well within the range of the TS spec. Much closer to TS spec than any other Custom Shop pickup of current vintage.


I did and as previously stated, I agree with you. My above quote asks for the pots' resistance.

_________________
You dig?


Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 6:02 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Martian wrote:
bluesky636 wrote:
Martian wrote:
What is the resistance value of your pots?


See the OP's first post. They are well within the range of the TS spec. Much closer to TS spec than any other Custom Shop pickup of current vintage.


I did and as previously stated, I agree with you. My above quote asks for the pots' resistance.


DOH! :oops: :lol:

_________________
Bill



Top
Profile
Post subject: Re: New guitar new pick ups
Posted: Sat Nov 26, 2011 6:11 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Feb 28, 2009 12:20 pm
Posts: 125
Thanks everyone, If remember right they are 250, the same I think that where on there just better grade. Mark
