Post subject: Shawbucker 1T & 2T pickups
Posted: Sat Sep 29, 2018 10:34 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Thu Sep 27, 2018 6:25 am
Posts: 10
Location: Takoma Park, MD.
I recently purchased a Fender Limited Edition Troublemaker Telecaster. It came loaded with a Shawbucker 1T in the neck postion and a Shawbucker 2T in the bridge wired in HH configuration. Both pickups have the bottom three and top three pole adjustments offset in this guitar but when I look at the pickups on the Fender webstore, both pickups have the pole adjustments in line across all strings. What is the difference ? The webstore pickups lack covers, these have chrome covers.

I love the sound and feel of this guitar. I can't wait to hear it in the hands of a real guitar player.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Tue Oct 02, 2018 2:17 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
This one ?

ImageCapture d’écran 2018-10-02 à 05.15.49


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Tue Oct 02, 2018 7:44 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Thu Sep 27, 2018 6:25 am
Posts: 10
Location: Takoma Park, MD.
Pics....

https://m.imgur.com/gallery/PUHHJK9


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Tue Oct 02, 2018 10:48 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
tonalrandy wrote:


There's nothing wrong


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Thu Oct 04, 2018 7:53 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Feb 13, 2018 10:28 pm
Posts: 1594
Location: SoCal, US
stratele52 wrote:
There's nothing wrong

This.
They are Shawbuckers, but they were built to look like the original wide-range humbuckers used in the late 60s and 70s.

_________________
-- Rich


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 1:07 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
CB91710 wrote:
stratele52 wrote:
There's nothing wrong

This.
They are Shawbuckers, but they were built to look like the original wide-range humbuckers used in the late 60s and 70s.


Sorry I did not read carefully your question :oops:


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 4:22 am
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
My guess is they were saving money, using what covers they had on-hand and modified the lug & screw placement w/o changing the pickups tone to significantly.


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 10:41 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
It is not because Gibson have the "Patents" ?


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 10:48 am
Offline
Rock Star
Rock Star

Joined: Tue Jul 17, 2007 1:53 am
Posts: 4240
I have no solid knowledge of this, nor any explanations, so just bear with me.

But the Troublemaker service diagram (on the product page; https://shop.fender.com/en-US/electric- ... 20783.html ) says "PICKUP ASSY AM PRO TELE DLX AGED WHT BRIDGE"; part number 7710448000, and "PICKUP ASSY AM PRO TELE DLX BLK NECK", part number 7710449000. Here's the diagram link: https://www.fmicassets.com/Damroot/Orig ... caster.pdf
The pickups in the diagram are Wide Range Reissues, and that's what the Troublemaker pups look like from above.
That contradicts what the highlights & specs on that product page says.

Now, one doesn't need to take the metal covers off to know what the pickups really are. From the backside, WRH-RI's are easy to separate from Shawbuckers.
Here's a link to the Shawbuckers: https://www.thomann.de/gb/fender_shawbu ... _zebra.htm


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 12:12 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Feb 13, 2018 10:28 pm
Posts: 1594
Location: SoCal, US
sfceric64 wrote:
My guess is they were saving money, using what covers they had on-hand and modified the lug & screw placement w/o changing the pickups tone to significantly.

The Player Tele HH and Chris Shiflett Tele use 6-in-line screws under chrome covers, so it's not a stock availability or patent issue. The rest of the Humbucker Tele's as well as the Starcaster use the offset screws. It's a bit of a Fender signature thing, even though the original Wide-Range are no longer produced (maybe Custom shop?)

_________________
-- Rich


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 12:26 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Feb 13, 2018 10:28 pm
Posts: 1594
Location: SoCal, US
jmattis wrote:
But the Troublemaker service diagram (on the product page; https://shop.fender.com/en-US/electric- ... 20783.html ) says "PICKUP ASSY AM PRO TELE DLX AGED WHT BRIDGE"; part number 7710448000, and "PICKUP ASSY AM PRO TELE DLX BLK NECK", part number 7710449000. Here's the diagram link: https://www.fmicassets.com/Damroot/Orig ... caster.pdf
The pickups in the diagram are Wide Range Reissues, and that's what the Troublemaker pups look like from above.
That contradicts what the highlights & specs on that product page says.

Perhaps the original design was to use the AmPro pickups without covers, and it was later decided to add the Fender covers to add to the "parallel universe" mystique of the model? The graphic got updated, but not the parts list?
Quote:
Now, one doesn't need to take the metal covers off to know what the pickups really are. From the backside, WRH-RI's are easy to separate from Shawbuckers.
Here's a link to the Shawbuckers: https://www.thomann.de/gb/fender_shawbu ... _zebra.htm

Indeed....
'72 Reissue:

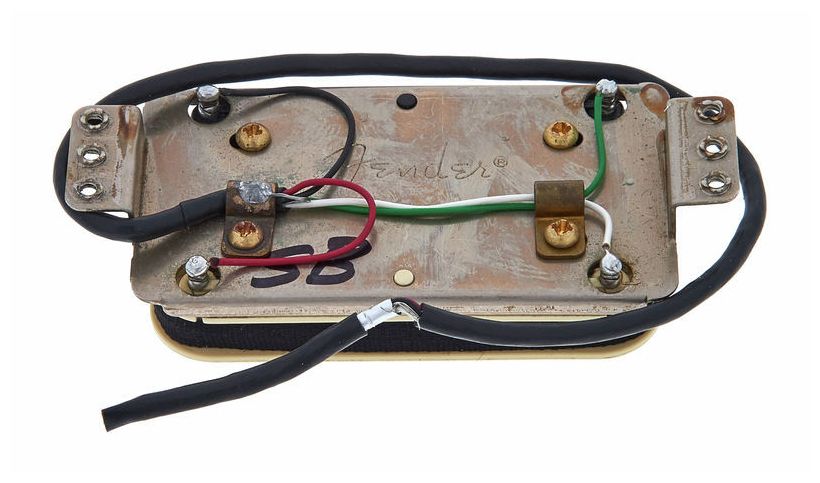

Shawbucker:

_________________
-- Rich


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 9:33 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Thu Sep 27, 2018 6:25 am
Posts: 10
Location: Takoma Park, MD.
First off.... I love the feedback and knowledge here. Ya'll know your sh... . I can learn alot.

Anyway, so what I'm gathering from the back pics is that the pickups in my guitar are actually a '72 style reissued wide range pickups, not Shawbuckers as Fender is listing in it's features & specs?


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 9:45 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
Since you actually have one in your possession, you could easily pull one of your pups loose and look at the back. I wouldn't think Fender would ship you '72 RI style pups, even though the offset cover may be that. Look at the back of one.....


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Fri Oct 05, 2018 11:55 pm
Offline
Rock Star
Rock Star

Joined: Tue Jul 17, 2007 1:53 am
Posts: 4240
jmattis wrote:
I have no solid knowledge of this

Based on that, editing my previous:
The American Professional Telecaster Deluxe pickups (= the same pups as on the Troublemaker) have the WRH(-RI) style covers, but according to that model's product page, they in fact also are Shawbuckers. And I should have checked the AmPro service diagram before posting: it shows the pickup (backs/wires) are Shawbucker type.
https://www.fmicassets.com/Damroot/Orig ... 7-2016.pdf

Sorry for the hassle I stirred up... :|


Top
Profile
Post subject: Re: Shawbucker 1T & 2T pickups
Posted: Sat Oct 06, 2018 7:08 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Thu Sep 27, 2018 6:25 am
Posts: 10
Location: Takoma Park, MD.
Shawbuckers they are !! Is there any advantage to the offset pole screw adjustments vs in line ?
