Post subject: Re: Pictures of your Squier Bass....
Posted: Sun Apr 05, 2015 7:53 pm
Offline
Roadie
Roadie
User avatar

Joined: Wed Dec 31, 2014 12:39 pm
Posts: 287
Location: Sackville, New Brunswick
Traded in my red SS Bronco bass plus a few $$$ and got this lightly-used "Vintage Modified Jaguar Bass Special Short-Scale" (phew, that's a long name), in silver:

Scale Length: 30" (762 mm)
Fingerboard: Rosewood
Fingerboard Radius: 9.5" (241 mm)
Nut Width: 1.5" (38.1 mm)
Bridge Pickup: Standard Single-Coil Jazz Bass
Middle Pickup: Vintage-Style Split Single-Coil Precision Bass
Controls: Volume 1. (Middle Pickup), Volume 2. (Bridge Pickup), Master Tone

The original owner wanted to switch to a 5-string bass.
All it needed was to raise the action a fair bit and then pull the bridge saddles way back to get the intonation right.

I like it way better than the Bronco, which was beginning to collect dust.
It's really light too. I think it's lighter than my Strat, Epi LP, and El Degas SG copy.

_________________
"People may say I can't sing, but no one can ever say I didn't sing." - Florence Foster Jenkins


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Pictures of your Squier Bass....
Posted: Tue Apr 07, 2015 3:01 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Jul 19, 2007 9:50 am
Posts: 89
Location: Cassini Probe
My only Squier at this time.


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Thu Jul 30, 2015 3:10 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Sun Jan 04, 2015 11:45 am
Posts: 20994
Location: On the loo, regretting that gas station burrito.
I did just post this on another thread, but I'll add it here too. Image

I don't have any other pics of it, but maybe I might take new ones since I've got my Jazz back into action again.

_________________


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Fri Jul 31, 2015 10:10 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jan 29, 2009 7:13 pm
Posts: 19025
Location: Illinois, USA
dbhost wrote:
I didn't take any photos of my first one years ago (A 2003 PJ in Candy Apple Red).

But I just picked up a new Affinity Jazz to play with... Loving it so far...

I picked it up as a modding platform, I LOVE the Affinity neck, and just the ergonomics of this bass, it fits me well... But it doesn't have the electric or aesthetic specs I am going for, so the modding begins...

Step 1 is done. Swap out boring white pick guard with aftermarket tort guard.
Step 2 is done. Pick up a set of Squier Duncan Designed Jazz pickups, and shield the snot out of them.
Step 3 is in inventory, waiting to be applied. Use conductive coating paint to shield pickup and control cavities making the conductive coating make contact with things like the control cover etc, but steering clear of anywhere ground is NOT supposed to be...
Step 4 is to swap out the OEM bridge with a Classic Vibe 60s High Mass bridge. I have it, just need to install it.
Step 5 is to replace the original J Bass logo with one that spells out Jazz Bass. Really what were they thinking truncating the name?

Will post up detail photos once it's done...


que ?

_________________
you can save the world with your guitar one love song at a time it's just better, more fun, easier with a fender solid body electric guitar or electric bass guitar.


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Tue Aug 25, 2015 12:47 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Mar 17, 2015 7:34 am
Posts: 20
Location: League City, Texas U.S.A.
Sorry, have been busy playing it, I forgot to post up here...

To prep for this job, I got a can of MG Chemical Total Ground conductive spray coating. The stuff isn't cheap, but it does a great job.

I started by stripping the strings off, removing the pickguard, removing the original Affinity pickups, and pulling the bridge. Sorry no pics of this stage...

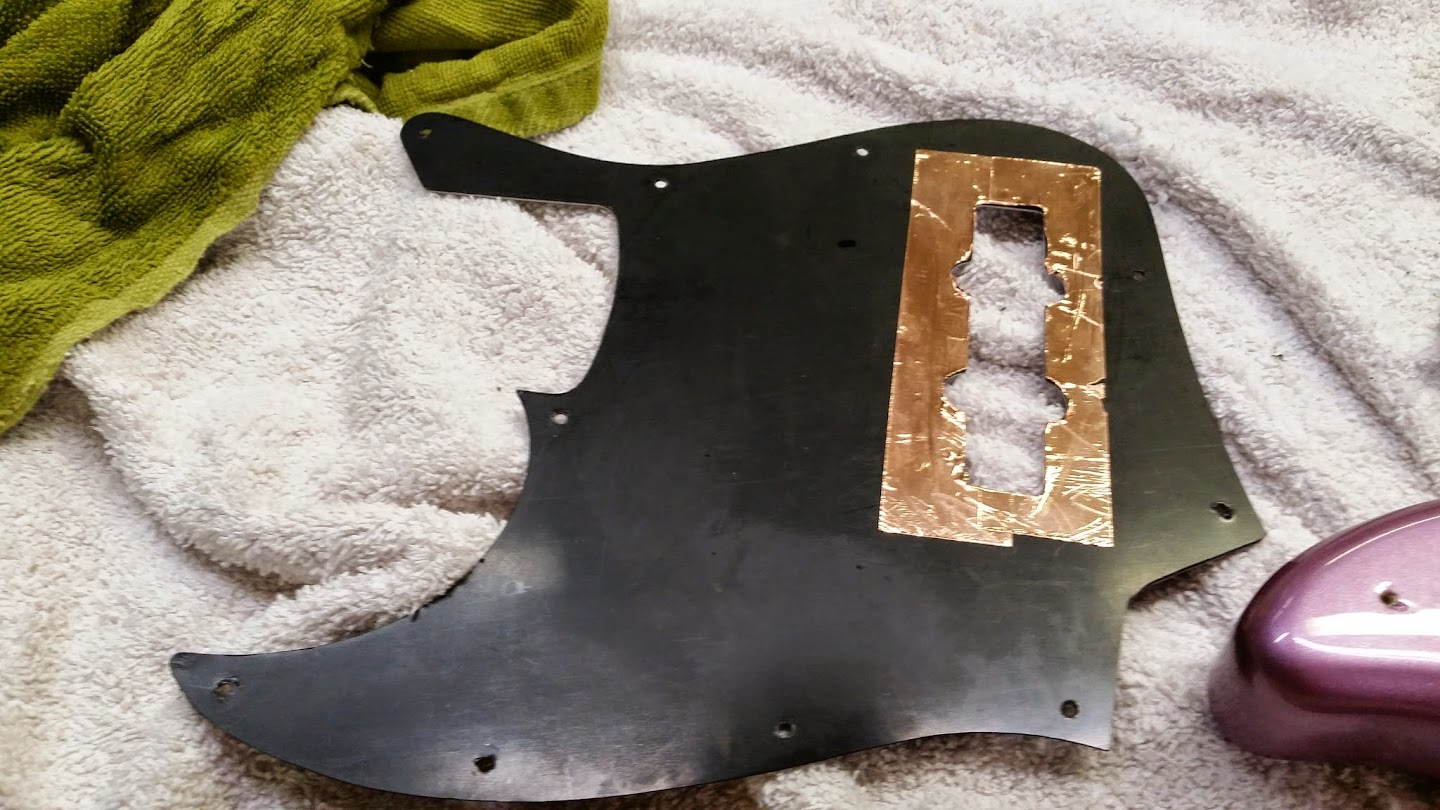

Then I shielded the underside of the pickguard around the pickups...

Then I masked off the body and neck of the bass to avoid any possibility of overspray. The Squier finish isn't resistant to tape adhesive by the way. There are small unnoticeable spots where paint flaked off. I need to touch up when I can find the proper color...

I then sprayed 4 coats, of the conductive paint into the pickup cavity, as well as the control cavity. I soaked a Q tip end in the paint, and ran it carefully through the bore between cavities using it as a paint brush, to fully coat the bore making it shielded and electrically conductive. Once dry, I removed the masking, and then applied the copper foil tape to improve grounding between bridge and ground lead.

I forgot to snap a pic of this stage, but I filled the outer 2 screw holes with toothpicks glued in, and then trimmed flush. I then mounted the High Mass bridge, installed the pickups, wired them to the control plate, reinstalled the control plate, pickguard, strings etc... And lastly ran it through a full setup. (The pickups are still a hair high for my tastes... I need to fix that.)

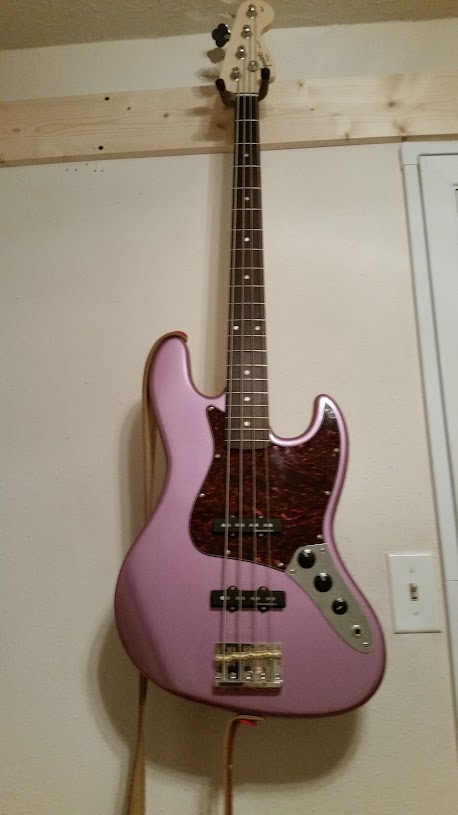

The finished product plays like a dream, sounds exactly like a Jazz Bass should, and best of all, is something I can be proud of because, well, I did all the custom work on it...

_________________
2014 Fender Rumble 500 Combo, 2015 Fender Rumble 210 cab, Fender Single Button footswitch.
Don't take my word for it. Audition one!


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Tue Aug 25, 2015 4:47 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jan 29, 2009 7:13 pm
Posts: 19025
Location: Illinois, USA
Muy bueno, dbhost ! Great looking Jazz Bass ! Thank you for posting !

_________________
you can save the world with your guitar one love song at a time it's just better, more fun, easier with a fender solid body electric guitar or electric bass guitar.


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Tue Aug 25, 2015 4:52 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Sun Jan 04, 2015 11:45 am
Posts: 20994
Location: On the loo, regretting that gas station burrito.
That's pretty cool. 8)

_________________


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Sun Sep 06, 2015 2:34 pm
Offline
Rock Star
Rock Star

Joined: Fri Apr 08, 2011 5:14 pm
Posts: 3169
Location: Linningrad
dbhost wrote:
Sorry, have been busy playing it, I forgot to post up here...

To prep for this job, I got a can of MG Chemical Total Ground conductive spray coating. The stuff isn't cheap, but it does a great job.



I started by stripping the strings off, removing the pickguard, removing the original Affinity pickups, and pulling the bridge. Sorry no pics of this stage...

Then I shielded the underside of the pickguard around the pickups...

Then I masked off the body and neck of the bass to avoid any possibility of overspray. The Squier finish isn't resistant to tape adhesive by the way. There are small unnoticeable spots where paint flaked off. I need to touch up when I can find the proper color...

I then sprayed 4 coats, of the conductive paint into the pickup cavity, as well as the control cavity. I soaked a Q tip end in the paint, and ran it carefully through the bore between cavities using it as a paint brush, to fully coat the bore making it shielded and electrically conductive. Once dry, I removed the masking, and then applied the copper foil tape to improve grounding between bridge and ground lead.

I forgot to snap a pic of this stage, but I filled the outer 2 screw holes with toothpicks glued in, and then trimmed flush. I then mounted the High Mass bridge, installed the pickups, wired them to the control plate, reinstalled the control plate, pickguard, strings etc... And lastly ran it through a full setup. (The pickups are still a hair high for my tastes... I need to fix that.)

The finished product plays like a dream, sounds exactly like a Jazz Bass should, and best of all, is something I can be proud of because, well, I did all the custom work on it...


I don't come down here very often, but damn Dave, that's a hot 'stuff' job!
KUDOS!

_________________
2012 Lefty American Standard Jazz
2017 Lefty American Professional Precision
2018 Rumble Studio 40 Combo
2016 Rumble 200 Combo
One day they shall name a GREAT city after me, and they shall call it LINNINGRAD


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Thu Oct 22, 2015 7:54 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Dec 03, 2011 2:43 pm
Posts: 670
2012 Squire Vintage Modified 70's Style Jazz 5

Purchased for a backup, but seeing a fair share of stage time;

Lots of mods;
SD SJ5-3's Bassline pups.....CTS pots.......Vitamin Q Cap.....Switchcraft jack......Copper shielded all cavities and back of pg......white pearl pg......2 round string retainers and Schaller strap locks........refinished in Surf Green including the headstock with a Squier replacement decal.

The bass plays and sounds great.


_________________
2012 American Standard Precision V - Candy Cola Red
2012 Squier Vintage Modified Jazz V - Surf Green
2011 FCS Custom Classic Special Jazz Bass V - Violin Burst
1996 MIM Stratocaster HSS - Black
1975 Precision Bass - 3 Tone Sunburst


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Fri Dec 04, 2015 8:44 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Dec 23, 2014 3:49 pm
Posts: 55
Location: Midland, Tx

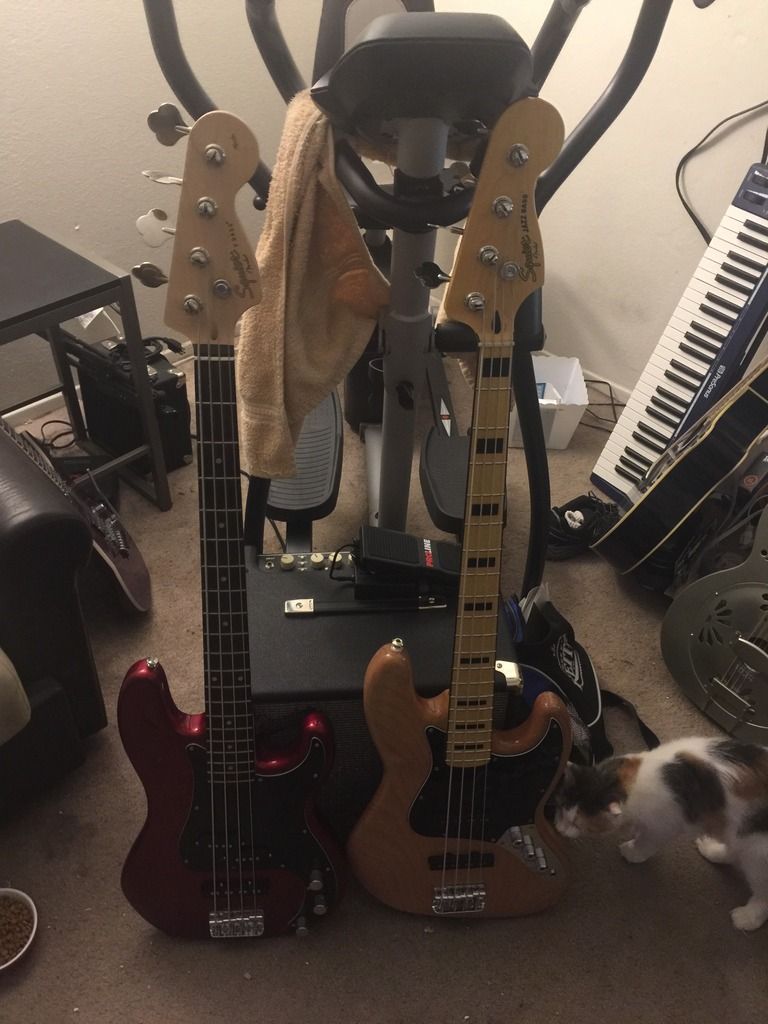

The two Basses in my collection....

_________________
Fender Hot Rod Deluxe III
Fender Mustang III
Fender Rumble 40

Fender USA Professional Strat
Fender Deluxe Roadhouse Strat
Fender Coronado II
Epiphone LP Standard Pro
Fender CD-140SCE Mahogany
Gretsch G9201
Yamaha APX500III
Squire VM '70 Jazz Bass


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Mon Dec 28, 2015 8:09 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Sun Jan 04, 2015 11:45 am
Posts: 20994
Location: On the loo, regretting that gas station burrito.
Here's a couple of updated pics with the Squier Jazz Bass and Bad $@! II bridge.


_________________


Last edited by PaulLF on Sun Oct 16, 2016 4:07 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Sat Oct 15, 2016 6:26 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Oct 11, 2009 6:23 am
Posts: 833
2010 VM P, with a Matt Freeman neck (with a tinted gloss finish) and a EMG GZR pickup:


My Franken Squier, with the neck and electronics/DD pickup from the above VM P bass, Affinity body and bridge, Fender pearloid pickguard. I had to move the bridge as it was way out of alignment. had to fill and drill the mounting holes and move it about 1/8" towards the G string side:


2010 70's Jazz, minor cosmetic mods:


My favorite (they are all great, but ...) Is the top one, the VM P. With the MF neck and the GZR pup it plays and sounds awesome, it's got the lowest action of any bass I've ever played.

_________________
'08 Fender Am. Std. Jazz bass, maple fretboard, charcoal frost metallic finish
'10 Squier VM Jazz bass, maple fretboard, natural finish
Ampeg BA115
'09 MIM standard Strat, maple fretboard, sunburst finish
Fender Super Champ XD


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Sun Oct 16, 2016 4:10 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Sun Jan 04, 2015 11:45 am
Posts: 20994
Location: On the loo, regretting that gas station burrito.
That's pretty cool. 8) I'd like to mod my Jazz like that to give it more of a vintage feel. Change the knobs from those silver ones to some old school black Fender knobs and maybe even the pick up covers. Although, I hope it would fit with the Leo Quan BA II bridge on it.

_________________


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Mon Nov 14, 2016 4:11 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Oct 11, 2009 6:23 am
Posts: 833
Deleted

_________________
'08 Fender Am. Std. Jazz bass, maple fretboard, charcoal frost metallic finish
'10 Squier VM Jazz bass, maple fretboard, natural finish
Ampeg BA115
'09 MIM standard Strat, maple fretboard, sunburst finish
Fender Super Champ XD


Top
Profile
Post subject: Re: Pictures of your Squier Bass....
Posted: Tue May 09, 2017 5:16 pm
Offline
Hobbyist
Hobbyist

Joined: Tue May 09, 2017 5:07 pm
Posts: 1
