Post subject: A very cool find!!
Posted: Sat Dec 19, 2009 9:58 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Apr 23, 2009 9:23 pm
Posts: 1009
Location: Las Vegas, Nevada
This is going to be quite long and with a lot of pics..

So I set out to find a 1.75 Squier body. I know they exist, my CV '60s is a 1.75 as well. I've been looking for a few weeks. I think I saw 1- being sold on ebay all month. But as I remember, it was a Fiesta Red which I try to avoid at all cost.

I hit the Vegas pavement in search of one, knowing full well it was gonna be nearly impossible. The 3rd Pawn-shop I went to, lo and behold, I can spot a 1" neck pocket heel from a mile away. It's a nice black and white Squier. I ask to take a look at it.

And this was staring me in the face..


No serial number front or back. None on the neck-plate. But the guitar had the body I wanted, and the neck looked KILLER!! Only one problem. The neck has a SERIOUS back-bow. The guitar couldn't even be played. But I thought "no problem, I can fix it, just adjust the truss rod."

Got it home, and proceeded to take it apart. Here are some interesting pics of the mystery Squier:

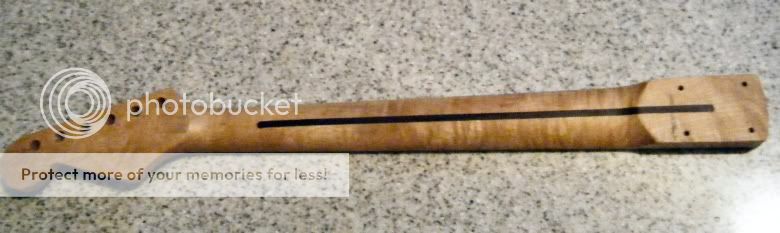

The neck, as you can see, is outstanding!! Just look at that maple grain going in all different directions!! I couldn't resist. Not pictured are the tuners which are Squier labeled sealed tuners. Gotoh tuners will fit in these holes as well.

It's a nice rosewood face. The color is more of a light-brown color than my others. White pearloid markers. The frets are 100% like brand new. Incidentally, the rosewood slab seems to be quite thick.

The neck has the only markings. They are only a series of numbers. 6&7 beside the screw-holes. What looks to be a 4 (originally thought it was an F). And a 2 on the back of the neck-plate.



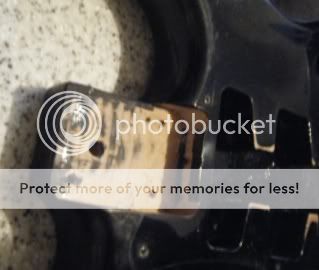

Looking at the neck pocket, I've determined the body to be a 1.75" Alder body. The routing isn't the cleanest, but it's still flat. Another observation is the single pickup routing. No swimming pool, or humbucker option at the bridge. The screws that were holding the neck were thicker than the screws for all of my Strats with a more round pan head than I usually see.

The electronics are pretty basic. Much like what you'd expect to see in a Squier guitar.



A close inspection reveals that there are blue dots on the sides of each pickup. The bridge pickup has a red line going up the side of the magnet, the neck pickup has a black line. The screws used for the pickups look more like wood screws, not machine screws. Nice shielding throughout the pickguard.


The electronics are what I would expect to find in a Squier as well. Cheap switch, mini-pots (250k), cap looks consistent with what I've seen in Squiers. Nicely wired, just cheap parts.





Now onto the neck issue..

The neck has a REALLY bad back-bow in it. My guess is that someone thought that the truss rod screw needed to be fully tightened without any consideration of what it might do if you do that. So a quick lesson for the beginners. DO NOT TOUCH THAT SCREW WITHOUT DOING PROPER RESEARCH. TAKE IT TO A TECH, OR YOU CAN ASK HERE WHAT IT'S FOR.

So with the screw loosened all the way, it's still a major problem. What to do.. What do I do???

Well here's my current solution. I really don't want to clamp the neck to anything to get it straight. If you clamp it to something that has a twist in it, the neck will follow. So I needed a flat surface, and I need some pressure on the middle of the face. It doesn't help that it's cold these days. In cold weather, maple turns rock hard. So whatever neck adjustment you make in the Fall will most likely stick throughout the winter.

Anyway here's what I came up with:



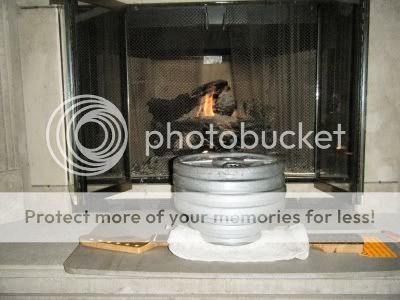

The neck is on a nice flat surface sitting just below the fire. And surrounded it with objects to make a warming oven type thing. Too high and I can heat up the neck too much. As it's sitting now (about 2-feet away and below the fire), it takes a good 3-hours to heat it up this way. The heat is going to expand the wood, and by using the weights (note, I'm using the smaller ones to concentrate on the center of the bow) the neck should settle back into a usable position eventually.

Since this is all experimental for me, I'm always concerned with the neck warping by heating up just one side, so I rotate it every hour. After about 4-hours of this last night, I turned the fire off, and let the neck cool down with the weights still on. After inspection in the morning, half of the bow was gone, and the neck hasn't warped. So it's back in the oven tonight for a second run. I've got about 65-lbs. on it right now.

In the meantime, I just couldn't resist hearing the guitar. So I put a CV '60s neck on it (bought on ebay), and took it for a test-drive.


All I can say is this.. I like the way it sounds better than my CV. I don't know what these pickups are, but sign me up!! I love these things. If anyone has seen these markings before, can you please tell me which model they were on?

I played this guitar for about 3-hours last night just amazed. I can't explain it really, every position works to my style. The outputs are balanced. I played everything from Blues, to Reggae, to Heavy Metal, to Jazz, to Classic rock, modern tones, vintage tones. The guitar could just do it all!!

In light of all of this, I'm still determined to return the original neck to this guitar. It's actually more v-shaped than a CV neck. Which I personally favor more.

So there you have it. The mystery Squier. For all I know it's a Partscaster. But in looking at the components, I really don't think so. The neck didn't come off without a good cracking sound. Why would someone fake a guitar that's better than most originals from that maker anyway?? I don't see any indication that it's a fake as far as my knowledge goes. Even if it turned out to be from a starter box, I wouldn't care. This guitar single-handedly squashed the idea that a CV is the best Squier made in my mind. I'd take this guitar over all of the CV models I tried.

So by the way.. I'm back where I started. I still need a body!! Damnit!! :P



**One more thing.. I understand it now.. I understand why people name their guitars. Unprecedented by me in all of my years of playing, I finally named a guitar.

I named this guitar Zeke.

Who's Zeke?

This is Zeke.

Zeke is a kitten I found in my backyard one night. I had no idea where he came from either. But I still have him. Being that the cat and the guitar are both black and white. It just made sense. It doesn't matter really where they came from, I still like 'em.

I'll keep you guys posted on the neck later on.

_________________
HaleAmano- House Of Sharks (Now On iTunes)
http://www.reverbnation.com/haleamano
