Post subject: Evil Twin - problems
Posted: Thu Nov 13, 2014 4:02 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 20, 2011 1:22 pm
Posts: 22
I have recently acquired an evil Twin. The serial number is CR-228XXX. Can anyone help me date it based on this or is there another method.

I want to try to find get the schematic for this model as I broke the volume pot at the shaft. It is the push / pull bright switch one and I want to be sure I am ordering the correct part.

An electronics qualified friend of mine is going to look at it for me and has asked if I can source the correct schematic.

Any help would be appreciated. Also, the reverb doesn't work!


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Evil Twin - problems
Posted: Thu Nov 13, 2014 4:49 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Shematics are here ;

http://ampwares.com/?brand=fender&line=twin

Or this one

Volume with switch look to be volume D136D8 on schematic close to V2 B.

Good luck to find one .

Dating ;

http://home.provide.net/~cfh/pots.html


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Thu Nov 13, 2014 5:32 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 20, 2011 1:22 pm
Posts: 22
Thanks for that. This schematic seems to show the push button bright switch. My amp has the push pull volume pot. Does anyone have this schematic?


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Thu Nov 13, 2014 5:39 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Thirtyplus wrote:
Thanks for that. This schematic seems to show the push button bright switch. My amp has the push pull volume pot. Does anyone have this schematic?



The schematic wich show volume part D136D8 is, IMO, volume pot with bright switch because they have same part number .

Did you see that ?

On link I send to you , you can find other schematic if you need .


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Thu Nov 13, 2014 6:36 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Better to post on Vintage amp forum, not modern .Anyway experts went to both forums

Do you have any photo of the amp , Are you sure it is a "Evil Twin ?
For this area amp , CBS did not do all schematics


Last edited by stratele52 on Thu Nov 13, 2014 6:51 am, edited 1 time in total.

Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Thu Nov 13, 2014 6:51 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Look this schematic , we see clearly dot --------between volume pot and switch meaning both working together .


http://ampwares.com/schematics/the_twin.pdf

Look you need a 1 Meg pot , you may have to use this one;


https://www.tubesandmore.com/products/R-VPP-1MA


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Wed Nov 19, 2014 5:11 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 20, 2011 1:22 pm
Posts: 22
Thanks for that guys!

I have now broken off the clean channel volume pot (push pull bright switch pot). Can anyone help me identify the part number?


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Wed Nov 19, 2014 5:52 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Thirtyplus wrote:
Thanks for that guys!

I have now broken off the clean channel volume pot (push pull bright switch pot). Can anyone help me identify the part number?



IMO there is no part number to order this original pot . You must use something close as I show you , see answer before .

That is what I do last year for a customer.

Picture may help


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Wed Nov 19, 2014 5:55 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 20, 2011 1:22 pm
Posts: 22
Thanks again! :)


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Thu Dec 04, 2014 7:07 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 20, 2011 1:22 pm
Posts: 22
Back again :oops:

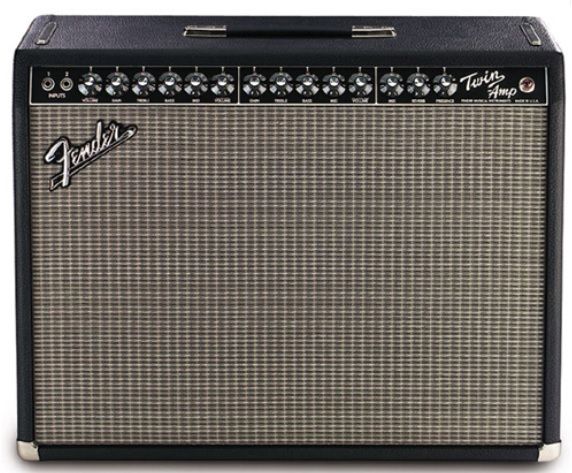

This is my amp here, it is the 3 channel evil twin...


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Thu Dec 04, 2014 7:09 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 20, 2011 1:22 pm
Posts: 22

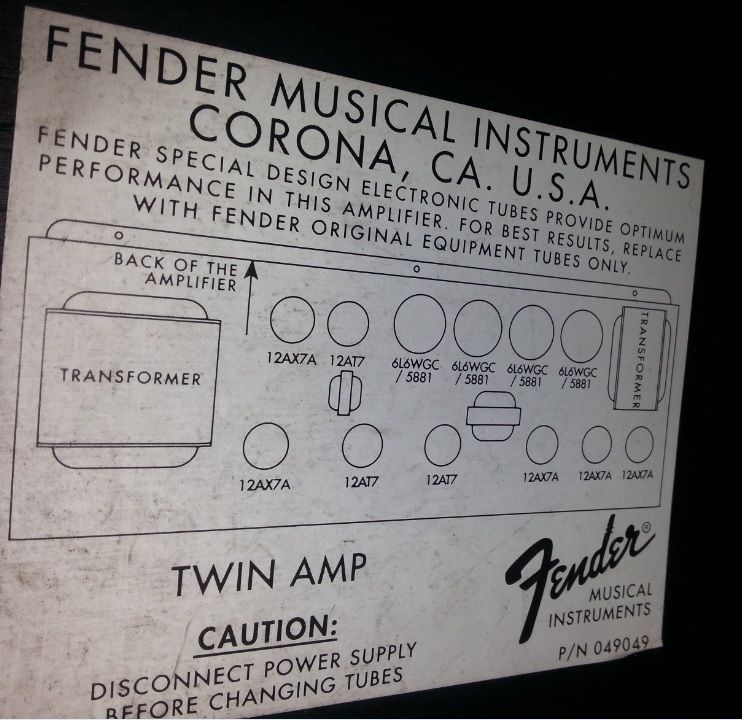

Can anyone tell me which order the tubes are in my amp. Here is a picture of the tube layout inside the amp....


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Fri Dec 05, 2014 3:06 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 20, 2011 1:22 pm
Posts: 22
In case anyone else has this issue please see this link which is of great help....

http://www.tdpri.com/forum/amp-central- ... ayout.html


Top
Profile
Post subject: Re: Evil Twin - problems
Posted: Fri Dec 05, 2014 4:29 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 20, 2011 1:22 pm
Posts: 22

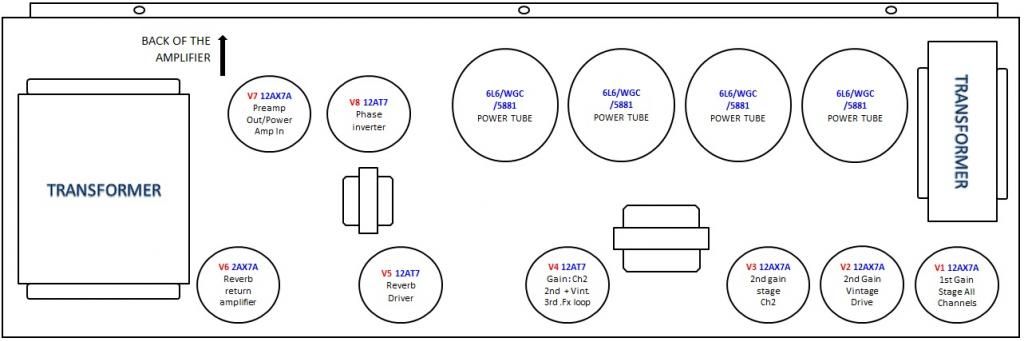

The link above suggests that this is the tube layout of the 94 twin. I would be grateful if anyone has any corrections....


To quote Guitar Ninja from the tdpri.com forum....
Quote:
V1: 1st gain stage for all channels.

V2: 2nd gain stage for the Vintage Drive Channel.

V3: 2nd gain stage for Channel 2.

V4: 2nd gain stage for Channel 1; 3rd gain stage for Vintage Drive Channel & Channel 2; effects loop return amplifier.

V5: Reverb Driver.

V6: Reverb Return Amplifier.

V7: Linked to the Preamp Out/Power Amp In.

V8: Phase inverter.


Top
Profile
