Post subject: Fender Super-sonic question
Posted: Sat Jul 26, 2014 11:44 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Jul 26, 2014 11:25 pm
Posts: 2
I recently acquired a Fender Super-Sonic 60 112 combo that came with a preamp tube pulled. It really quietened the amp to what I would consider to be bedroom level, and the tone is killer, but is it safe to run it without a tube like that? Thanks!

Pics:

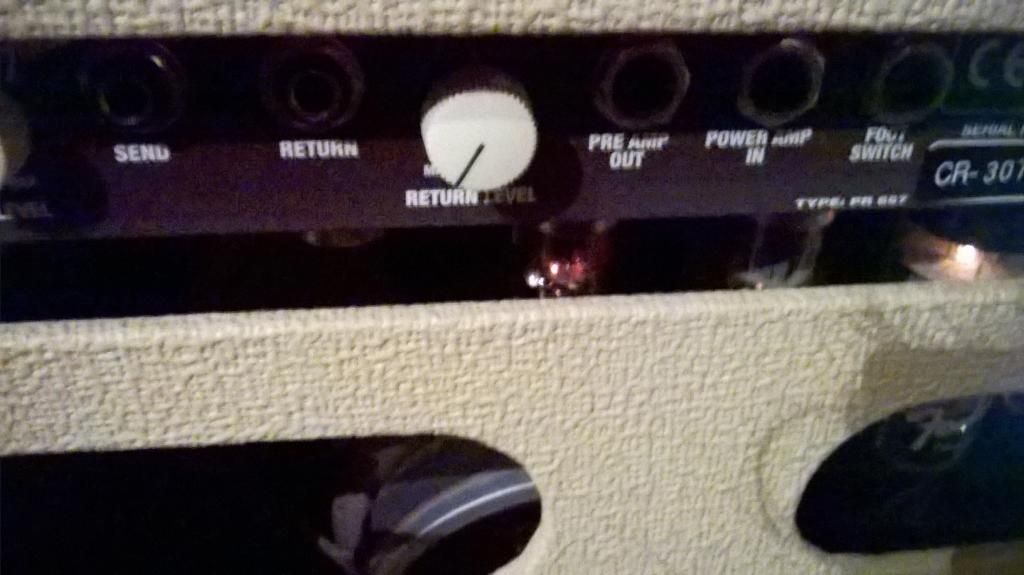

It's the tube to the far left there

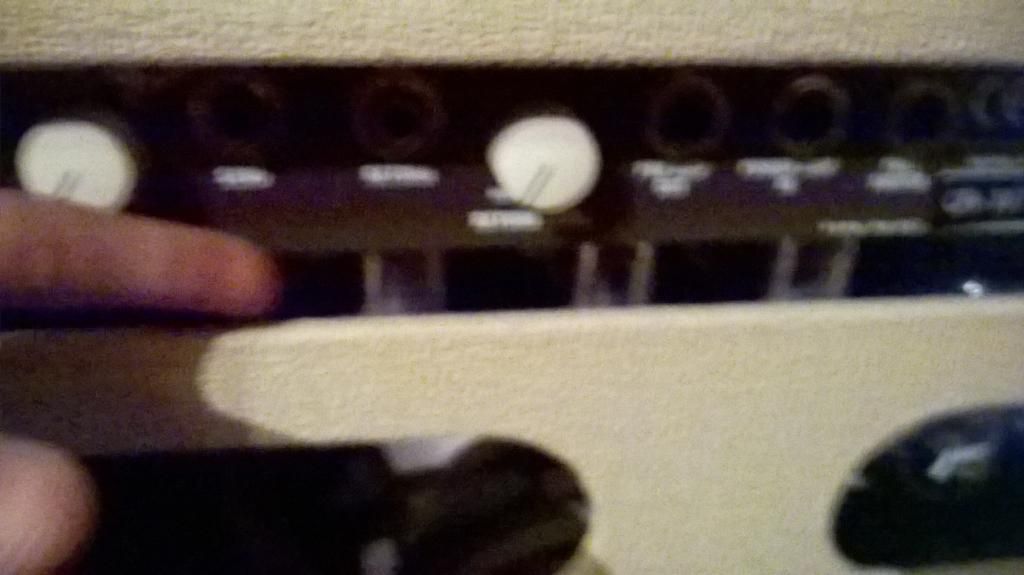

With the covers off and powered on


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Fender Super-sonic question
Posted: Sun Jul 27, 2014 2:29 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
It is safe if it is a 12XX7 tube. But amp won't work on all channel / effect.

Wich tube are you talking about ? Number on tube ? Photo are so poor

Tube's name start from the right , from the back of the amp .

Far right , the first one is V1 , next one V2....


Top
Profile
Post subject: Re: Fender Super-sonic question
Posted: Sun Jul 27, 2014 12:15 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Jul 26, 2014 11:25 pm
Posts: 2
stratele52 wrote:
It is safe if it is a 12XX7 tube. But amp won't work on all channel / effect.

Wich tube are you talking about ? Number on tube ? Photo are so poor

Tube's name start from the right , from the back of the amp .

Far right , the first one is V1 , next one V2....

The tube is supposed to be a 12AX7WC, and all it did was quieten up the amp. Everything on the amp still works.

Sorry for the bad pics, here is a diagram. Circled tube is the pulled tube


Top
Profile
Post subject: Re: Fender Super-sonic question
Posted: Sun Jul 27, 2014 12:32 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
This tube is used for " Return " output jack . It look to me it can also bring some gain from the guitar signal . I need to study this amp more to be sure , but no time for .

Anyway , it is safe to use your amp without this tube .


Some people put a volume control connect between "Send" and " Return " jacks to do same thing.

Enjoy a bedroom level amp :D


Top
Profile
Post subject: Re: Fender Super-sonic question
Posted: Sun Jul 27, 2014 1:47 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Tue Nov 27, 2012 9:07 pm
Posts: 604
Put a tube in the socket, they are cheap enough.....

_________________
dbm
If it sounds good it is good.
http://www.soundclick.com/bands/default ... tent=music
