Post subject: Fender Supersonic 22 Tilt Back Arms
Posted: Mon Jul 14, 2014 8:31 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jul 14, 2014 8:20 pm
Posts: 7
Hi all. I recently purchased a set of 14" tilt back arms for my Supersonic 22 combo. The arms come with no advice as to where the holes should be drilled, however I did contact Fender for a some advice. The response I received was "Unfortunately since adding legs to this amp would be considered a modification (being that it is not designed to accept them without modifying) I cannot offer any support or advice as to where you should install them. I would recommend contacting a service center for assistance."

Not really helpful as I thought some basic advice may have been on offer due to the arms being a Fender product and not produced by a third party.

Anyway ....... Has anyone done this installation to the Supersonic 22 Combo?

Cheers, Graeme :D


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Tue Jul 15, 2014 12:35 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory

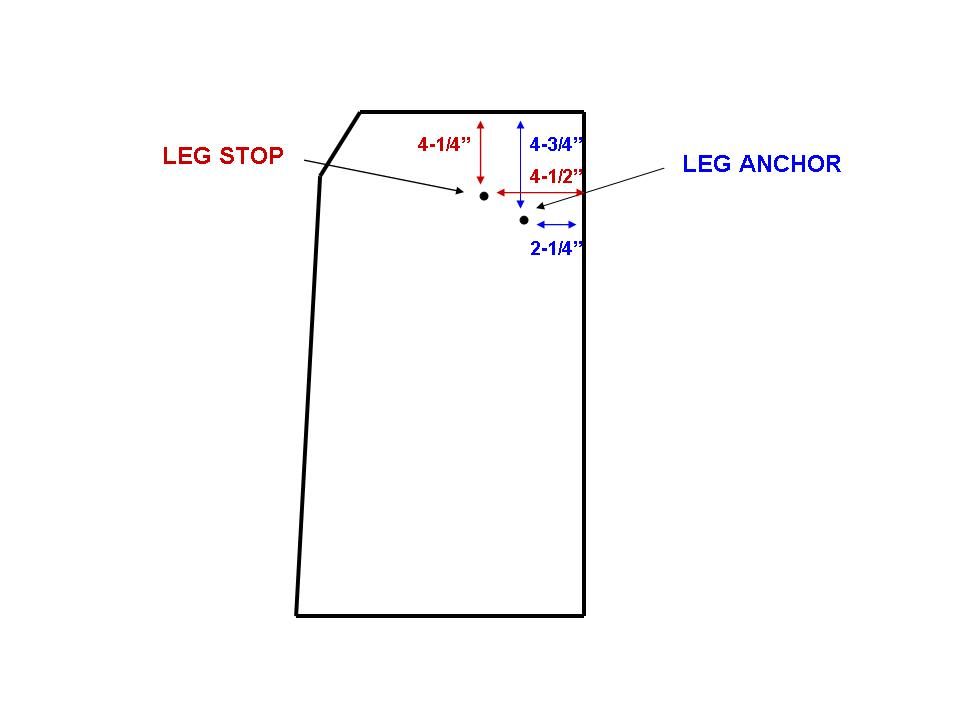

This is an installation diagram I developed for installing 14-inch tilt-back legs on a Deluxe Reverb, similar in size to a Supersonic 22 combo......


It's not drawn to scale but the measurements are accurate and may prove useful for your purpose. The location for the leg hardware is shown in blue while the stops are marked in red. If you need the dimensions in metric units you'll have to convert them yourself.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Tue Jul 15, 2014 1:06 am
Offline
Hobbyist
Hobbyist

Joined: Mon Jul 14, 2014 8:20 pm
Posts: 7
Thanks Retroverbial. Very helpful. Cheers, Graeme


Top
Profile
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Tue Jul 15, 2014 1:37 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
Be sure you get the order of precedence for the leg hardware correct.

The screw goes through the leg, then a flat washer, and through the hole in the side of the cabinet. On the inside, a flat washer, the lock washer, the remaining flat washer, and finally the lock nut. Do not over tighten lest you crush the wood panel.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Tue Jul 15, 2014 2:27 am
Offline
Hobbyist
Hobbyist

Joined: Mon Jul 14, 2014 8:20 pm
Posts: 7
Many thanks Arjay. Graen


Top
Profile
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Tue Jul 15, 2014 4:07 am
Offline
Amateur
Amateur

Joined: Sun Jul 13, 2008 5:37 pm
Posts: 171
I just did this, with 14" legs. However, the amp seems to tilt too far back... the problem is, in order to get less of a tilt, the legs contact the lower corners/screws when trying to fold them in for storage. To mount the legs high enough to clear the corners/screws, the amp is tilted too far back, imo.

And if you move the legs BACK on the amp side, to lessen the tilt, then, when folded, the legs will not fully be on the sides of the amp- they stick out. I took many measurements, and messed with positioning for a long time before figuring out the location that would give me minimum tilt (and I say minimum because the tilt is so extreme, or it seems so to me).

Unfortunately, getting longer legs doesn't help either, as long as you mount the legs high enough to clear the corner/screws, it tilts back too much. The tilt wouldn't be excessive on a SMALL stage, where the amp is basically right behind you and you need it pointed up at your head to hear yourself, but that's the only situation I can see it being useful in.

Maybe I need to mount them lower, but then try to bend them out a little, to clear the corner/screw at the bottom? That seems to be what's going on in this picture (the legs were so tight to the side of my amp, it was a bit of a hassle to get them around the corner/screws, had I mounted them that low)...



Top
Profile
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Fri Jul 18, 2014 4:56 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
That looks like std mounting location.

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Wed Dec 30, 2015 3:43 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Dec 27, 2007 11:52 am
Posts: 1
Retroverbial-thanks for the info and diagram; successfully installed 14" Fender legs on my SS 22!

Sorry to resurrect a zombie thread ...

Peace.


Top
Profile
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Wed Dec 30, 2015 5:25 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
Glad to be of help.

Rawk on!

8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Fender Supersonic 22 Tilt Back Arms
Posted: Sat Dec 01, 2018 10:12 am
Offline
Hobbyist
Hobbyist

Joined: Sat Dec 01, 2018 5:27 am
Posts: 1
I'll save the narrative; so here's what I did. My 2006 Blues Deluxe sits 18" high, just for reference with other amps. I used the 14" legs. I took the back panel off so I could be sure of no interference while drilling and mounting. All measurements taken from the top and back: Pivot point is 6 1/4" down and 2" in, stop is 5" down and 4 1/4" in. I used the through bolt for the pivot and the @3/4" screw for the stop. With the pivot: I used 2 flat washers between the leg and amp, so no scuffing when it rotates, a flat washer and the nylock nut on the inside. No need for the lock washer if using a nylock.

This is the angle I personally prefer, more like most elevated amp stands that I have used or own. Any more than this and it's too much sound on stage and not enough going forward, in my experience anyhow. I typically am positioned about 4-6' in front of my amp in most of the places I play. I usually do not mic my amp unless it's an outdoor gig or there's a soundman.

If anyone can tell me how to post a picture, I'd be more than happy to.
