Post subject: Re: Death of a blues junior
Posted: Mon Jun 30, 2014 12:13 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
To post a photo. Go to Photobucket. Or some online site to share media. Upload your photos.


For Photobucket:

1.) Click onto photo you wish to post. See "Links to Share The Photo" on the right side?

2.) Now, scroll your mouse (the computer's mouse :lol: ) over the IMG address window.

3.) Left click onto address window.

4.) It will say: "Copied"

5.) Now, paste the copied IMG address into the window of this Forum.

6.) So... this:

{URL=http://s1191.photobucket.com/user/BMW2002Ti/media/dead-horse_zpsc9e97b9b.gif.html}{IMG}http://i1191.photobucket.com/albums/z461/BMW2002Ti/dead-horse_zpsc9e97b9b.gif{/IMG}{/URL}


7.) Becomes this, when the { } that I placed into address line is kept as the original [ ]:






:lol: :lol: :lol:


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Death of a blues junior
Posted: Mon Jun 30, 2014 1:27 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Mar 20, 2010 2:30 pm
Posts: 792
Location: A Land Downunder
Glender, if it's of any help and you want to email me the jpegs I can host them on our server and link them here for you.

Snowy


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Mon Jun 30, 2014 2:41 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Pictures , how to ;

forums.fender.com/viewtopic.php?f=2&t=52777&hilit=Nutter%27s+guide


Top
Profile

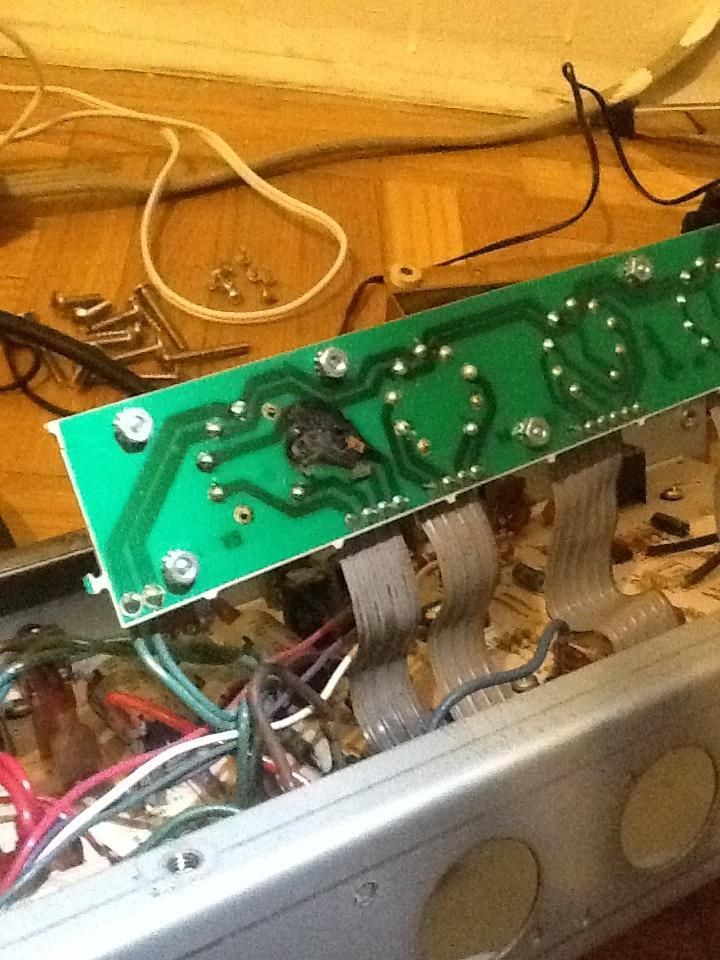

Post subject: Pics of the Death of a blues junior
Posted: Fri Jul 11, 2014 11:56 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Jun 22, 2014 7:27 am
Posts: 21
So...power tube just freaked out? Faulty tube? Instillation?
I just read I could get shocked even with amp un plugged. How the hell does that work?




Top
Profile
Post subject: Re: Death of a blues junior
Posted: Sat Jul 12, 2014 9:17 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
That certainly looks like damage due to a faulty output tube, and I would look for the screen grid resistors on the main board to be toasted also. "Biased hotter"? How hot? Too hot could have caused the tube failure.

This thread leaves a few questions. Why would a "tech" tell you it isn't worth repair? How was the bias adjusted, and to what specs? Why would you bring up the question of whether the foot switch was plugged into the wrong jack?

Blaming the OT for this indicates a lack of knowledge on the part of whoever suggested it, or an attempt to get out of what might be a warranty issue.

The amp can have the potential to shock when unplugged due to the caps holding a charge.

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Sat Jul 12, 2014 10:03 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
shimmilou wrote:
Blaming the OT for this indicates a lack of knowledge on the part of whoever suggested it, or an attempt to get out of what might be a warranty issue.


+1

Definitely something wonky at play there.

:shock:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Sat Jul 12, 2014 10:43 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Jun 22, 2014 7:27 am
Posts: 21
More questions etc.

This amp does not have a bias dial pot....so if the tech(s) did bias it each time tubes were changed there should be evidence of 3 or 4 solders. Ain't no evidence of any soldering.
Since it doesn't have a bias dial, wouldn't that mean it doesn't need to be biased when replacing tubes?

And
I misquoted tech re worth repair....I asked him if it was his amp what would he do....If repaired it would be unreliable. Also, Wait 9 months for a main board...or do a patch job (my interpretations).


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Sun Jul 13, 2014 12:30 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Mar 20, 2010 2:30 pm
Posts: 792
Location: A Land Downunder
Glender wrote:
More questions etc.

This amp does not have a bias dial pot....so if the tech(s) did bias it each time tubes were changed there should be evidence of 3 or 4 solders. Ain't no evidence of any soldering.
Since it doesn't have a bias dial, wouldn't that mean it doesn't need to be biased when replacing tubes?

And
I misquoted tech re worth repair....I asked him if it was his amp what would he do....If repaired it would be unreliable. Also, Wait 9 months for a main board...or do a patch job (my interpretations).


In your first post the tech told you he "biased it low to extend my tube life", then you took the amp back and it was "rebiased "hotter", as I mentioned in my earlier post the only way to do that on a stock BJr is add an adjustable bias, or change resistors entailing entire board removal to get at the traces. If there is no soldered bias resistors evident then he has been bull$&@tting you and taking your money and should not be trusted, plain and simple and that is just based on what he has told you.

The amp should have the bias checked/adjusted any time you change the power tubes, if you don't then all bets are off as to how long your new tubes will survive and sometimes they can take other bits with them when they go, starting to sound familiar?


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Sun Jul 13, 2014 1:11 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
No457 Snowy wrote:
If there is no soldered bias resistors evident then he has been bull$&@tting you and taking your money and should not be trusted, plain and simple and that is just based on what he has told you.


+1

That guy has been jerkin' your gherkin all along.

Find a new tech who's competent and trustworthy. Your nearby guitar and amp store may not be the most objective source of information -- talk with local musicians in your area to learn who can be trusted and who cannot.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Sun Jul 13, 2014 1:16 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Retroverbial wrote:
No457 Snowy wrote:
If there is no soldered bias resistors evident then he has been bull$&@tting you and taking your money and should not be trusted, plain and simple and that is just based on what he has told you.


+1

That guy has been jerkin' your gherkin all along.

Find a new tech who's competent and trustworthy. Your nearby guitar and amp store may not be the most objective source of information -- talk with local musicians in your area to learn who can be trusted and who cannot.

Arjay



+1

This repair is easy to do ,

The guy is not a tech for shure, if he is a tech is not qualified


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Sun Jul 13, 2014 12:47 pm
Offline
Hobbyist
Hobbyist

Joined: Sat May 31, 2014 2:28 pm
Posts: 24
it's not beyond fixing. if the "tech" you use is so called "qualified" he should be able to fix it. it looks as if those burns are to the plastic pc board not to the soldier points. the trace seems burnt but a jumper can fix it. it all depends on what you are willing to pay to have it done. the amp should be fully trouble shot as well.


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Mon Jul 14, 2014 11:28 am
Offline
Hobbyist
Hobbyist

Joined: Sun Jun 22, 2014 7:27 am
Posts: 21
Hold on! I found the solder point. Tiny. Very clean.

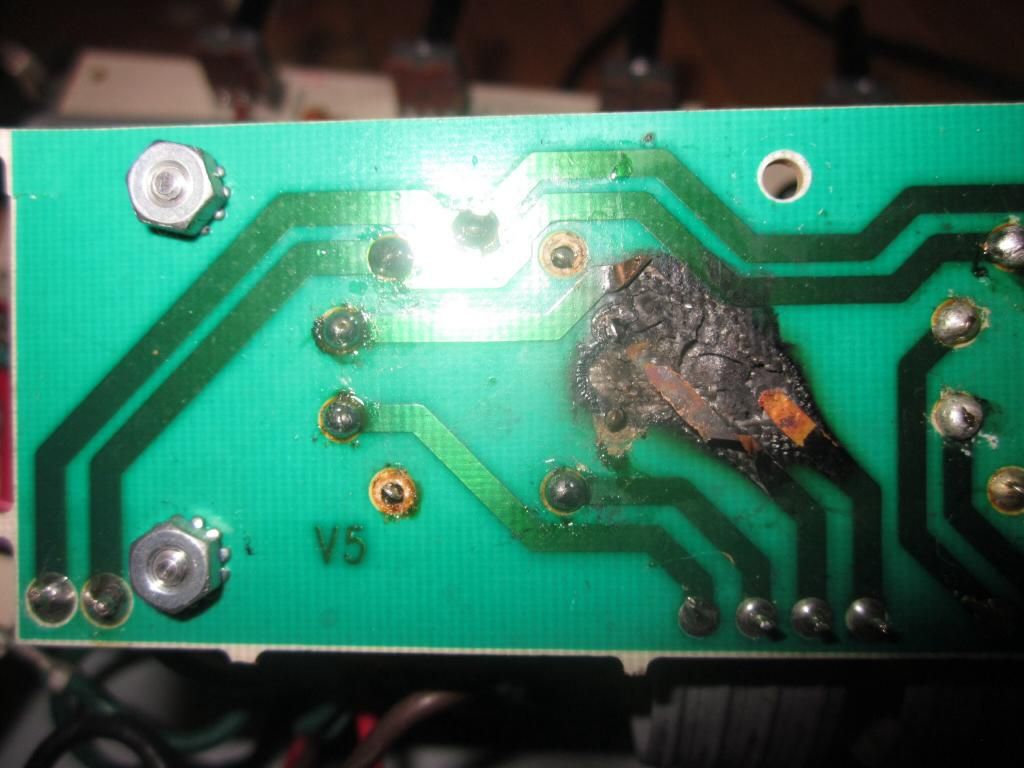

Burns affect 3 solder points.


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Tue Jul 15, 2014 11:19 am
Offline
Hobbyist
Hobbyist

Joined: Sun Jun 22, 2014 7:27 am
Posts: 21
Ok, more detailed pics.

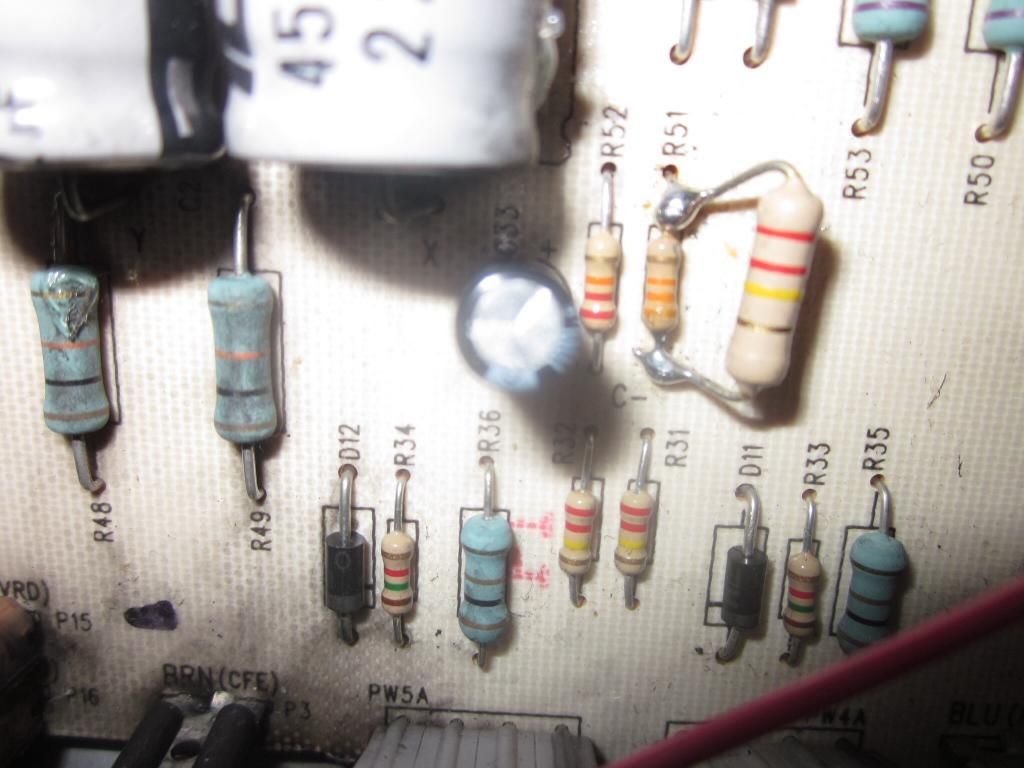

Bias resistor? Does this look like it's been soldered and re soldered 3 or 4 times?

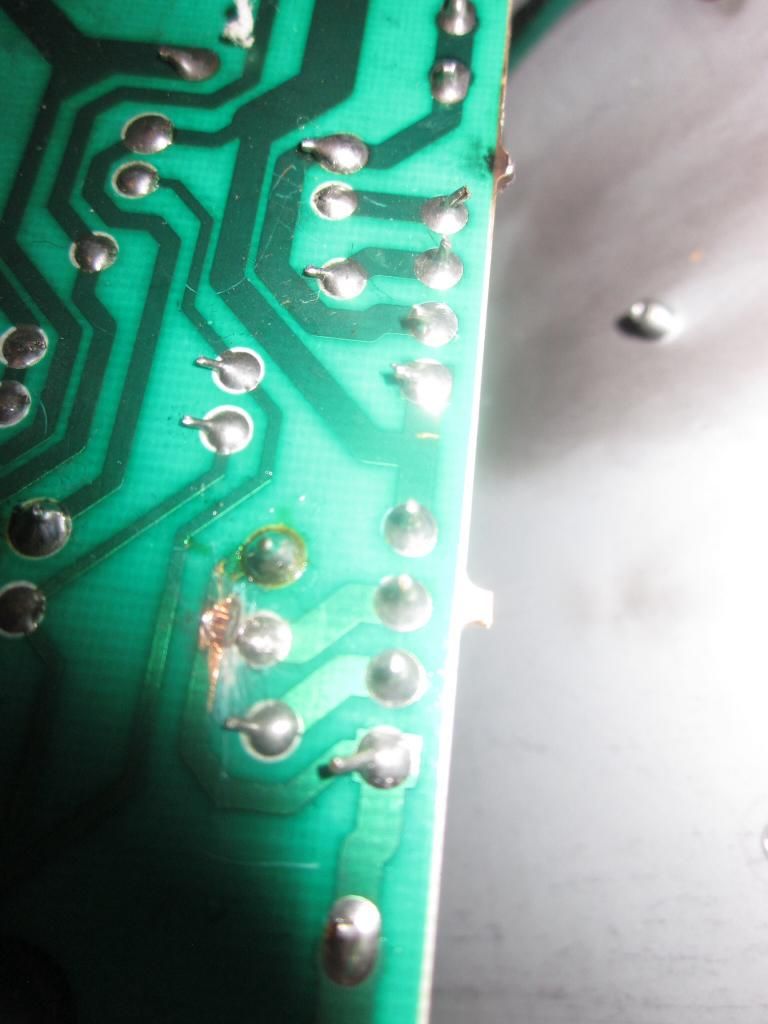

Scratched by a gremlin?

How expensive to jump this?


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Tue Jul 15, 2014 11:30 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
On the board , -C is the bias negative voltage . The 33K resistor with the new 220K in parallel is use on bias circuit


Top
Profile
Post subject: Re: Death of a blues junior
Posted: Tue Jul 15, 2014 7:33 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
+1 stratele52

R51 is the resistor that I replaced with a pot for adjustable bias.

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.
