Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Sat May 24, 2014 11:18 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
I haven't played one of those amps in fifteen or twenty years -- sorry.

Just twirl the knobs until you find a sweet spot......it won't take long.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Sun May 25, 2014 2:32 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Powdered Toast Man wrote:
The "low power" switch is very misleading. I'll tell you why:


The low power setting has almost no effect on the output volume of the amp. .



Power output and db's you ear are two different things .


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Sun May 25, 2014 1:55 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Tue Nov 27, 2012 9:07 pm
Posts: 604
A friend of mine had one of those and I used it in his studio several times, and I thought it was a very nice amp. It has a whole bunch of tubes in it.

_________________
dbm
If it sounds good it is good.
http://www.soundclick.com/bands/default ... tent=music


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Sun May 25, 2014 3:26 pm
Offline
Roadie
Roadie

Joined: Thu Jun 18, 2009 9:31 pm
Posts: 205
I found an online manual for the amp last night. It states the impendance switch is pre-set to 16ohm at the factory.

When I looked at the back panel I found the switch set at 8ohms (4ohm, 8ohm, 16ohm is the options for the switch) thats where it was when I tested the amp.

Is that damaging to the amp and speakers??? I don't have a guitar right now to test it at the recommended 16ohm.

http://support.fender.com/manuals/guitar_amplifiers/94_Twin_Amp_manual.pdf


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Sun May 25, 2014 3:55 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
warmachine wrote:
I found an online manual for the amp last night. It states the impendance switch is pre-set to 16ohm at the factory.
Are you sure ? All Fender speaker are 8 ohms speaker , all are wired in parallel for a 4 ohms total , twin amp is different ??? I guess not " Schematic I have said 4 ohms

Is that damaging to the amp and speakers???

No but put switch at 4 ohms

http://support.fender.com/manuals/guitar_amplifiers/94_Twin_Amp_manual.pdf


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Sun May 25, 2014 5:14 pm
Offline
Roadie
Roadie

Joined: Thu Jun 18, 2009 9:31 pm
Posts: 205
stratele52 wrote:
warmachine wrote:
I found an online manual for the amp last night. It states the impendance switch is pre-set to 16ohm at the factory.
Are you sure ? All Fender speaker are 8 ohms speaker , all are wired in parallel for a 4 ohms total , twin amp is different ??? I guess not " Schematic I have said 4 ohms

Is that damaging to the amp and speakers???

No but put switch at 4 ohms

http://support.fender.com/manuals/guitar_amplifiers/94_Twin_Amp_manual.pdf


Sorry I have never investigated how amps and speakers really work, but anyhow according to what I'm looking at....

Below the three speaker jacks it reads "100watts 4ohms min. total"

And speakers are rated at 8ohms each and are wired in series.


According to the manual...

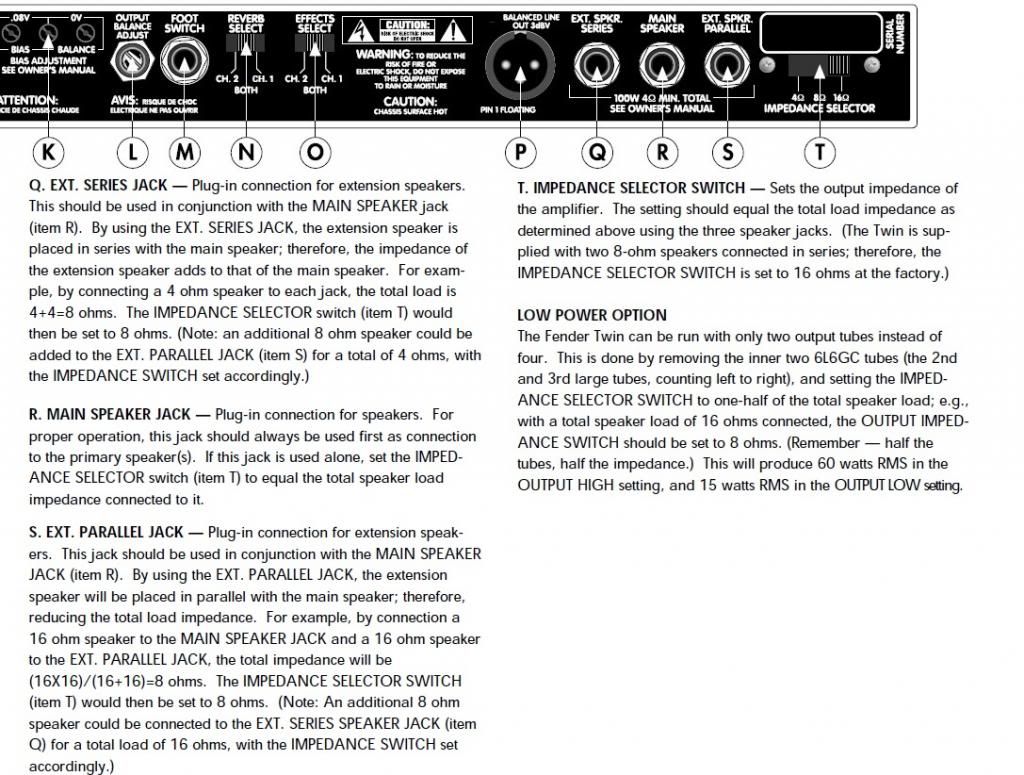

T. Impendance Selector Switch : Sets output impendance of the amplifier. The setting should equal the total load impendance as determined above using the three speaker jacks. (The Twin is supplied with two 8-ohm speakers connected in series, therefore the IMPENDANCE SELECTOR SWITCH is set to 16ohms at the factory)


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 1:56 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
warmachine wrote:


And speakers are rated at 8ohms each and are wired in series.


According to the manual...

T. Impendance Selector Switch : Sets output impendance of the amplifier. The setting should equal the total load impendance as determined above using the three speaker jacks. (The Twin is supplied with two 8-ohm speakers connected in series, therefore the IMPENDANCE SELECTOR SWITCH is set to 16ohms at the factory)



First time I see a Fender amp with speakers in series , Any picture af the speaker wiring ?

Can you see by yourself if they are in eerie , do you know how ?

If in serie , 16 ohms is ok

Look here ;

http://www.eminence.com/support/wiring-diagrams/


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 5:04 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Tue May 15, 2012 2:49 am
Posts: 560
Location: Perth, Australia
My Supersonic Twin came from the factory with it's 2 x 12 Celestion's wired in series (i.e both 8ohms in series for a total of 16ohms), and the selector was set on 8ohms impedance.

_________________
GUITAR: Fender USA JazzMaster.
BASS: Fender USA 58'AVRI
AMP: Fender USA SuperSonicTwin - Blonde.


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 5:25 am
Offline
Roadie
Roadie

Joined: Thu Jun 18, 2009 9:31 pm
Posts: 205
stratele52 wrote:
First time I see a Fender amp with speakers in series , Any picture af the speaker wiring ?

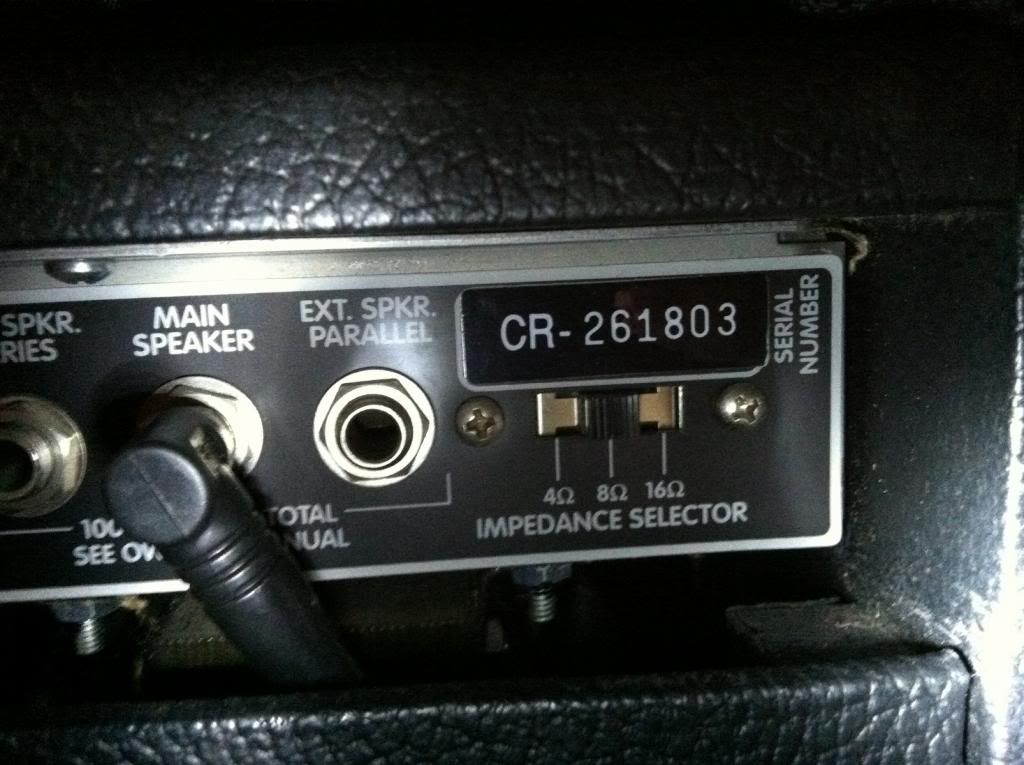

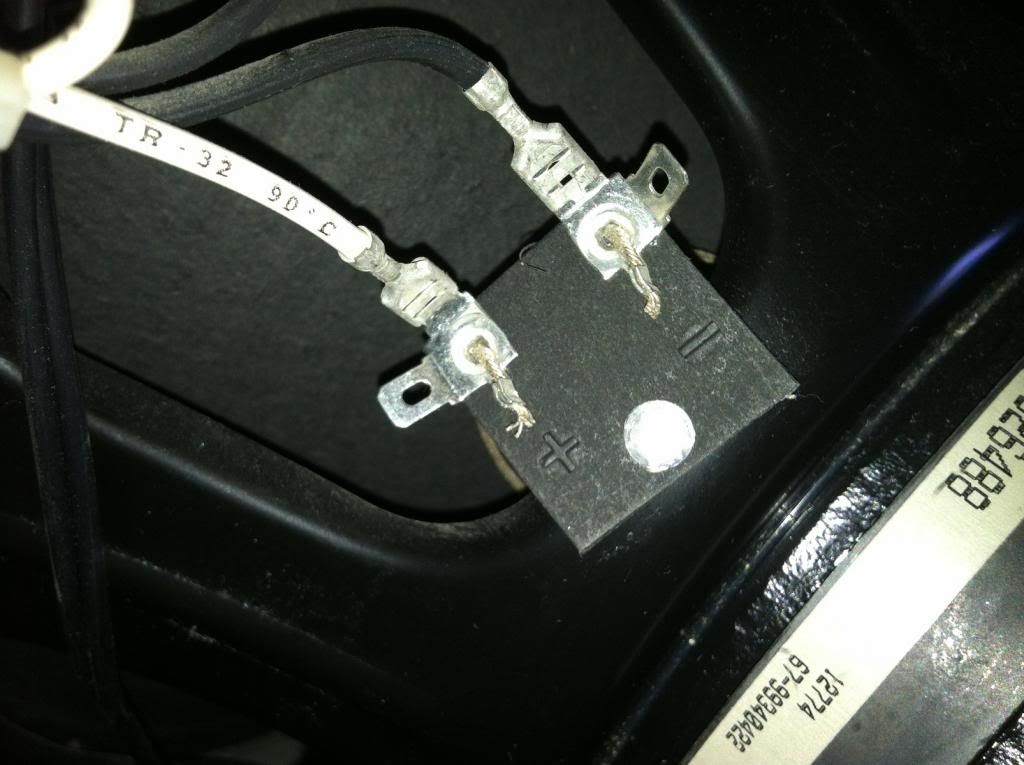

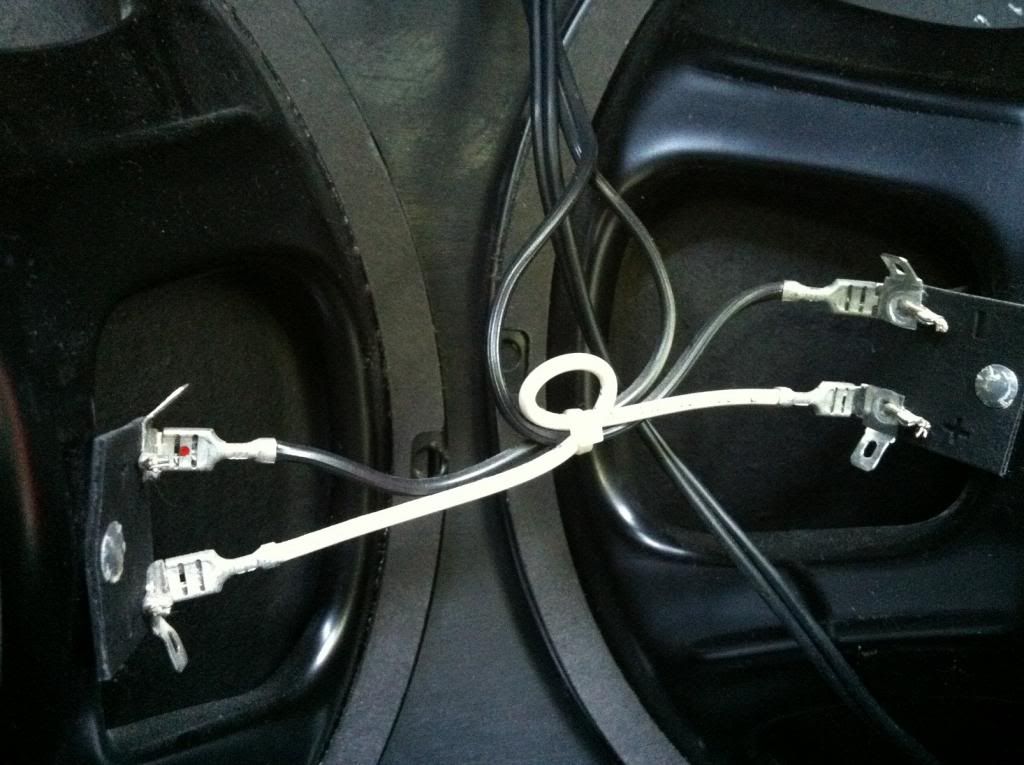

Here's the pictures I took.


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 5:27 am
Offline
Roadie
Roadie

Joined: Thu Jun 18, 2009 9:31 pm
Posts: 205
stratele52 wrote:
First time I see a Fender amp with speakers in series , Any picture af the speaker wiring ?

Can you see by yourself if they are in eerie , do you know how ?

If in serie , 16 ohms is ok




Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 5:44 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Thank's for answer , I mostly repair old vintage Fender amps , I never see these "new" amp .

That'is funny 16 ohms , I don't know why Fender built this way , Anybody have an answer ?

Speaker in series do not have same sound than in parallel


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 5:53 am
Offline
Roadie
Roadie

Joined: Thu Jun 18, 2009 9:31 pm
Posts: 205
AaronK wrote:
My Supersonic Twin came from the factory with it's 2 x 12 Celestion's wired in series (i.e both 8ohms in series for a total of 16ohms), and the selector was set on 8ohms impedance.

stratele52 wrote:
Thank's for answer , I mostly repair old vintage Fender amps , I never see these "new" amp .

That'is funny 16 ohms , I don't know why Fender built this way , Anybody have an answer ?

Speaker in series do not have same sound than in parallel


That's what's great about these forums :D So much stuff to learn! I'm fresh to this whole speaker ohm thing. So should my Impendance switch stay at 8ohm or go to 16ohm?


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 5:56 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
warmachine wrote:

That's what's great about these forums :D So much stuff to learn! I'm fresh to this whole speaker ohm thing. So should my Impendance switch stay at 8ohm or go to 16ohm?



serie = 8+8 = 16


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 10:44 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
stratele52 wrote:
serie = 8+8 = 16


Correct.

Conversely, in parallel......

8Ω + 8Ω = 4Ω

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Fender Twin Amp ....not Twin Reverb. Is this a choice am
Posted: Mon May 26, 2014 2:07 pm
Offline
Roadie
Roadie

Joined: Thu Jun 18, 2009 9:31 pm
Posts: 205
AaronK wrote:
My Supersonic Twin came from the factory with it's 2 x 12 Celestion's wired in series (i.e both 8ohms in series for a total of 16ohms), and the selector was set on 8ohms impedance.


Looks like you'll have to flip the switch to 16ohms like me. Maybe the our assembly line guy that day stepped out for a smoke break or something? Lol
