Post subject: Re: Tell me about my Twin . . .
Posted: Sat May 17, 2014 12:04 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
T2Stratman wrote:

The ground switch was not connected on any of the Reissue Ampson which it appears IIRC. Which makes you wonder why they put it on, other than the guy ordering the parts off the paperwork inherited from the old days showed it and the guy didn't make the connection of it not being needed!

T2

To keep the look of the original Blackface ?


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Tell me about my Twin . . .
Posted: Sat May 17, 2014 12:51 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
T2Stratman wrote:
stratele52 wrote:
Retroverbial wrote:


The polarity switch was a feature of all re-issue Twin Reverbs up until about 2005/2006 (just as it was with the early DRRI) as this photo clearly shows......



Arjay


I see two schematics of 65 Twin Reverb with Polarity / ground switch

All 3 contacts on the switch are write ; NC
No Connected .

IMO ,switch is a fake :lol:

Did you open you amp to see ?


The ground switch was not connected on any of the Reissue Ampson which it appears IIRC. Which makes you wonder why they put it on, other than the guy ordering the parts off the paperwork inherited from the old days showed it and the guy didn't make the connection of it not being needed!

T2


Correct.

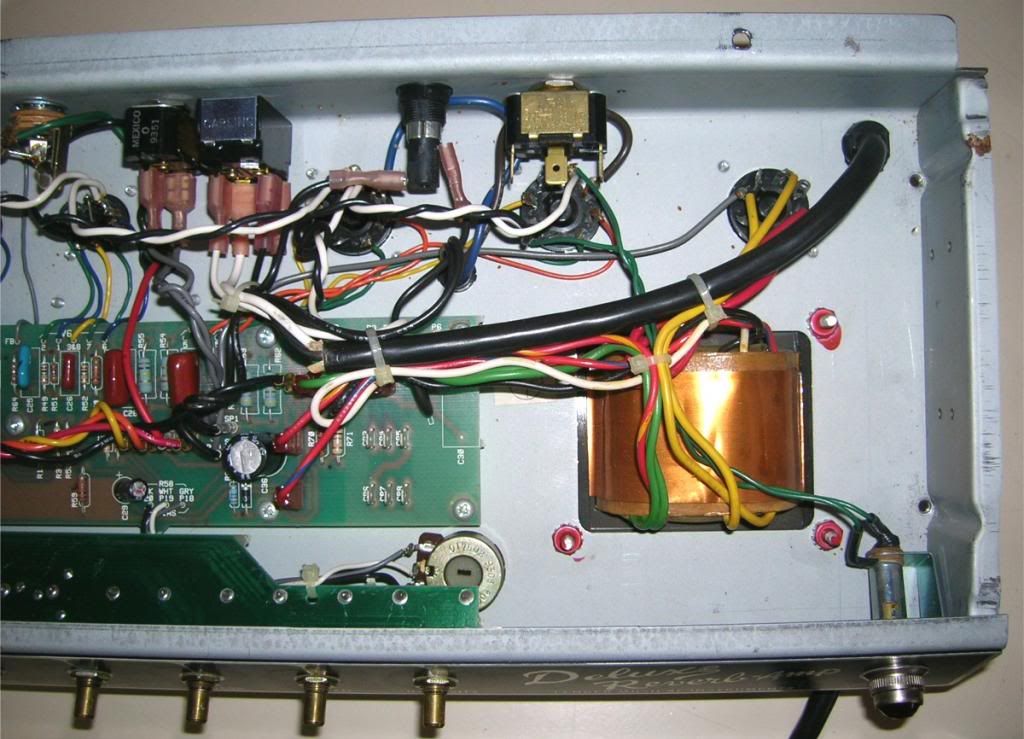

As can plainly be seen in this pic of a DRRI chassis, the polarity switch is visible and is connected to precisely nothing......


A total waste of an otherwise perfectly serviceable Carling switch.

Ultimately I re-tasked it to function as an impedance selector when I installed a multiple-tap output transformer. Thus, my DRRI can safely drive either a 4-ohm or 8-ohm load.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Tell me about my Twin . . .
Posted: Sat May 17, 2014 1:03 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sat Mar 15, 2014 7:41 am
Posts: 50
Location: North Carolina
Arjay,

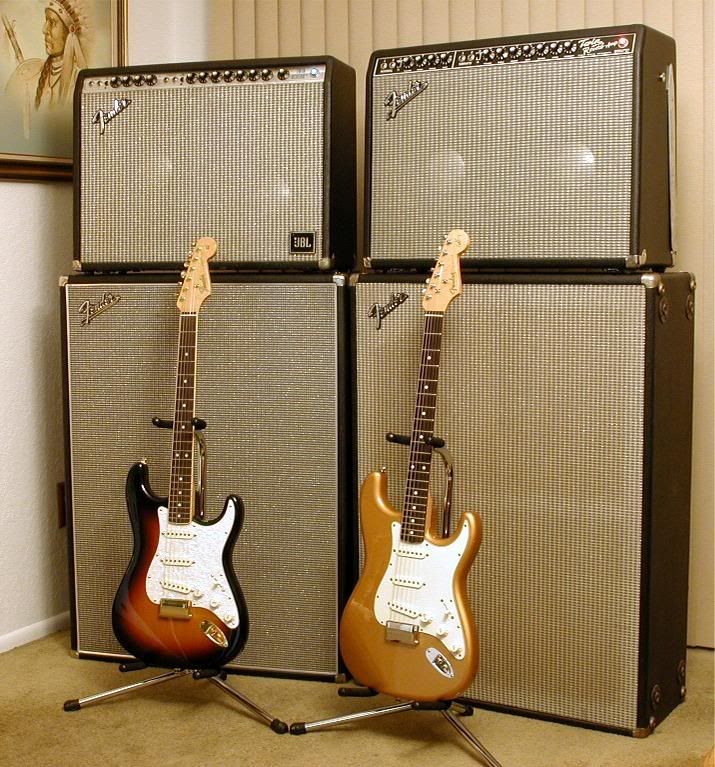

That pic of your Twin with those JBL's.....Wow!
That brings it to another level!! Nice!

_________________
2008 Fender American Stratocaster Sienna Sunburst, Maple neck
2004 Fender Deluxe Reverb RI
2012 Gibson Les Paul Classic Custom Wine Red
2005 Rickenbacker 620 Fireglow
1974 Rickenbacker 4001 Bass Fireglow


Top
Profile
Post subject: Re: Tell me about my Twin . . .
Posted: Sat May 17, 2014 1:10 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Thank's for the picture Retroverbial


Top
Profile
Post subject: Re: Tell me about my Twin . . .
Posted: Sat May 17, 2014 1:19 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Brytam wrote:
Arjay,

That pic of your Twin with those JBL's.....Wow!
That brings it to another level!! Nice!


Ya think?


:mrgreen:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Tell me about my Twin . . .
Posted: Sat May 17, 2014 1:24 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Wow :!: :!: :!:


Top
Profile
Post subject: Re: Tell me about my Twin . . .
Posted: Sat May 17, 2014 3:52 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sat Mar 15, 2014 7:41 am
Posts: 50
Location: North Carolina
I am impressed Arjay! A wall of sound!!

Just checked my 2003 Twin Reverb RI & found the same thing! A cool unused ground switch!


_________________
2008 Fender American Stratocaster Sienna Sunburst, Maple neck
2004 Fender Deluxe Reverb RI
2012 Gibson Les Paul Classic Custom Wine Red
2005 Rickenbacker 620 Fireglow
1974 Rickenbacker 4001 Bass Fireglow


Top
Profile
Post subject: Re: Tell me about my Twin . . .
Posted: Sat May 17, 2014 5:12 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The polarity switch would be deleted a couple years after yours was built, Brytam. That event just about coincided with Fender adopting that miserable, sleazy, rotten, terrible, disastrous, worthless RoHS-compliant solder across their entire line of amps. Thus the switch becomes a sort of visual yardstick to quickly determine whether the solder joints of a given TRRI or DRRI will hold together or not.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Tell me about my Twin . . .
Posted: Sun May 18, 2014 10:40 am
Offline
Hobbyist
Hobbyist

Joined: Fri May 16, 2014 9:11 pm
Posts: 16
The only number(s) on the tube chart is AB763.

Power transformer #EIA606MS1139SB4
fROM THIS i WOULD SAY IT IS 2006/2007.


Top
Profile
Post subject: Re: Tell me about my Twin . . .
Posted: Sun May 18, 2014 3:17 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
39th week of 2011.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
