Post subject: Re: reverb tubes on supersonic twin
Posted: Mon Apr 21, 2014 2:14 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Whatever. The OP has been provided with correct information. This thread is done as far as I am concerned.

_________________
Bill



Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: reverb tubes on supersonic twin
Posted: Mon Apr 21, 2014 9:08 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
bluesky636 wrote:
Whatever. The OP has been provided with correct information. This thread is done as far as I am concerned.

What a spoiled brat! :lol:

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Mon Apr 21, 2014 9:16 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Cap47 wrote:
bluesky636 wrote:
Whatever. The OP has been provided with correct information. This thread is done as far as I am concerned.

What a spoiled brat! :lol:


Your contributions to this thread have been duly noted.

_________________
Bill



Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 6:58 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
bluesky636 wrote:
Cap47 wrote:
bluesky636 wrote:
Whatever. The OP has been provided with correct information. This thread is done as far as I am concerned.

What a spoiled brat! :lol:


Your contributions to this thread have been duly noted.

As are your contributions to every thread!

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 7:17 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
wilywelch wrote:
To test, I had nothing plugged into the amp, turned all volume and gain knobs down or off, and could get rid of the squeal by simply turning the reverb knob down. This leads me to believe it's a tube in the reverb circuit. If this is not the case, I'd like to know from someone in the know. Thanks


OK, meanwhile back at the Ranch... :lol:

Just pull V5 and V6 (as Shimmy stated being the reverb driver and recovery tubes). Does the "squeal" noise go away? If so, just get new tubes. If not, you most likely have another tube(s) problems.


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 2:29 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
You might want to clean the reverb cable rca connectors with Deoxit making sure you don't mix up the order they were plugged in. Some issues occur when they get dirty. Then try substituting the tubes and also try cleaning the tube sockets and pins of the tubes.

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 3:21 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
BMW2002Ti wrote:
wilywelch wrote:
To test, I had nothing plugged into the amp, turned all volume and gain knobs down or off, and could get rid of the squeal by simply turning the reverb knob down. This leads me to believe it's a tube in the reverb circuit. If this is not the case, I'd like to know from someone in the know. Thanks


OK, meanwhile back at the Ranch... :lol:

Just pull V5 and V6 (as Shimmy stated being the reverb driver and recovery tubes). Does the "squeal" noise go away? If so, just get new tubes. If not, you most likely have another tube(s) problems.

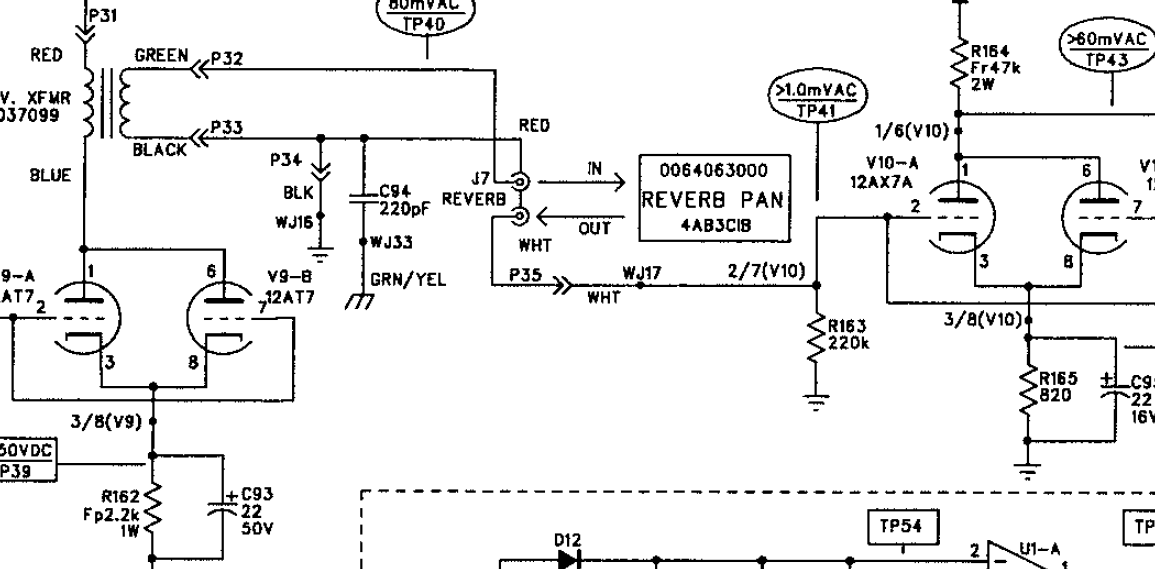

V5 and V6 are not the reverb driver and recovery, V9 and V10 are the correct tubes. V6 is the Phase Invertor. V9 driver is 12AT7 and V10 recovery is 12AX7A. If you try to change V5 and V6 it has nothing to do with the reverb. The V9 and V10 are correct!


_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 6:51 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Supersonic Twin...
What schematic is that?

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 7:27 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
Super-Sonic_Comb.pdf I downloaded from Fender in 2010 when I bought the amp.

Very interesting there are different variations from the circuit for the SuperSonic 100 and the Super-Sonic Combo from 2010. I wonder which the SuperSonic Twin matches the most? The Supersonic 100 is V5 and V6 but the schematic does not state "Combo" in the title block. Time for more research! The 100 has the Biasing monitoring and the 60W Combo doesn't.

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 8:23 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
The new 100 Head and the Twin 100 with the Automatic Bias has caused a redesign of tube usage V9 being the PI tube now and V5 driver and V6 recovery. Puts a new spin on the usage. Match your amp to the correct Schematics to determine your course of action!

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 8:47 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
It most closely matches the schematic for......wait for it......wait some more.....maybe just a little more.....the Supersonic Twin. Not the 100, not the combo........

http://support.fender.com/schematics/guitar_amplifiers/Super-Sonic_Twin_2011_schematic_Rev-B.pdf

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 9:14 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
shimmilou wrote:
It most closely matches the schematic for......wait for it......wait some more.....maybe just a little more.....the Supersonic Twin. Not the 100, not the combo........

http://support.fender.com/schematics/guitar_amplifiers/Super-Sonic_Twin_2011_schematic_Rev-B.pdf


Ya think? :lol: :lol: :lol:

bluesky636 wrote:
shimmilou wrote:
^Totally clueless^ (7 and 8 letter words)

The reverb driver is V5 (12AT7) and the reverb recovery is V6 (12AX7).


Schematic might be useful too:

http://support.fender.com/schematics/gu ... _Rev-B.pdf


Great minds DO think alike. :wink:

_________________
Bill



Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 11:26 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
:lol:

Now if we could just figure out how to turn a screw over the internet.... :|

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Tue Apr 22, 2014 11:59 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
shimmilou wrote:
:lol:

Now if we could just figure out how to turn a screw over the internet.... :|


Some things are best left to a professional. :lol: :lol: :lol:

_________________
Bill



Top
Profile
Post subject: Re: reverb tubes on supersonic twin
Posted: Wed Apr 23, 2014 4:16 pm
Offline
Hobbyist
Hobbyist

Joined: Tue Aug 23, 2011 6:16 pm
Posts: 19
Thanks to all for your advice and help. By the way, I'm totally lucid, drug free, alcohol free, and might be considered a nerd in some circles. Thanks to the veteran for your service to this country. I gotta be honest, I've never been profiled by a simple question. I'll be more careful next time. Good Day!
