Post subject: Balanced V3 tube
Posted: Wed Feb 05, 2014 7:33 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jan 06, 2014 3:16 pm
Posts: 15
Is it important to have the PI tube in V3 balanced? Amp is my US Blues Deluxe. In my tube swapping mode, I replaced the 12AX7 that came with the amp for a 12AT7 that was not balanced. Amp sounds great when I am noodling around, not so much in rehearsals. Perhaps a little knowledge is a dangerous thing.

_________________
1980 Fender Lead II (modified), 1994 Fender Blues Deluxe, 1980's Maya Les Paul copy, 1976 Yamaki acoustic with LR Baggs Element PU


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Balanced V3 tube
Posted: Wed Feb 05, 2014 7:39 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
For long-tailed phase inverter with a balance input to the stage, a balanced (between the duo-triode) MAY help. To be honest, very few tubes equally wear out their two triodes. So, after a few months of use, you would need to test the tube to see if the two-halves were still balanced.

So, how effective the extra cost to buy a balanced duo-triode? Dunno.


Top
Profile
Post subject: Re: Balanced V3 tube
Posted: Wed Feb 05, 2014 7:47 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jan 06, 2014 3:16 pm
Posts: 15
Yes, there seem to be mixed reviews here. Depends on the specific amp perhaps?

_________________
1980 Fender Lead II (modified), 1994 Fender Blues Deluxe, 1980's Maya Les Paul copy, 1976 Yamaki acoustic with LR Baggs Element PU


Top
Profile
Post subject: Re: Balanced V3 tube
Posted: Wed Feb 05, 2014 8:36 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

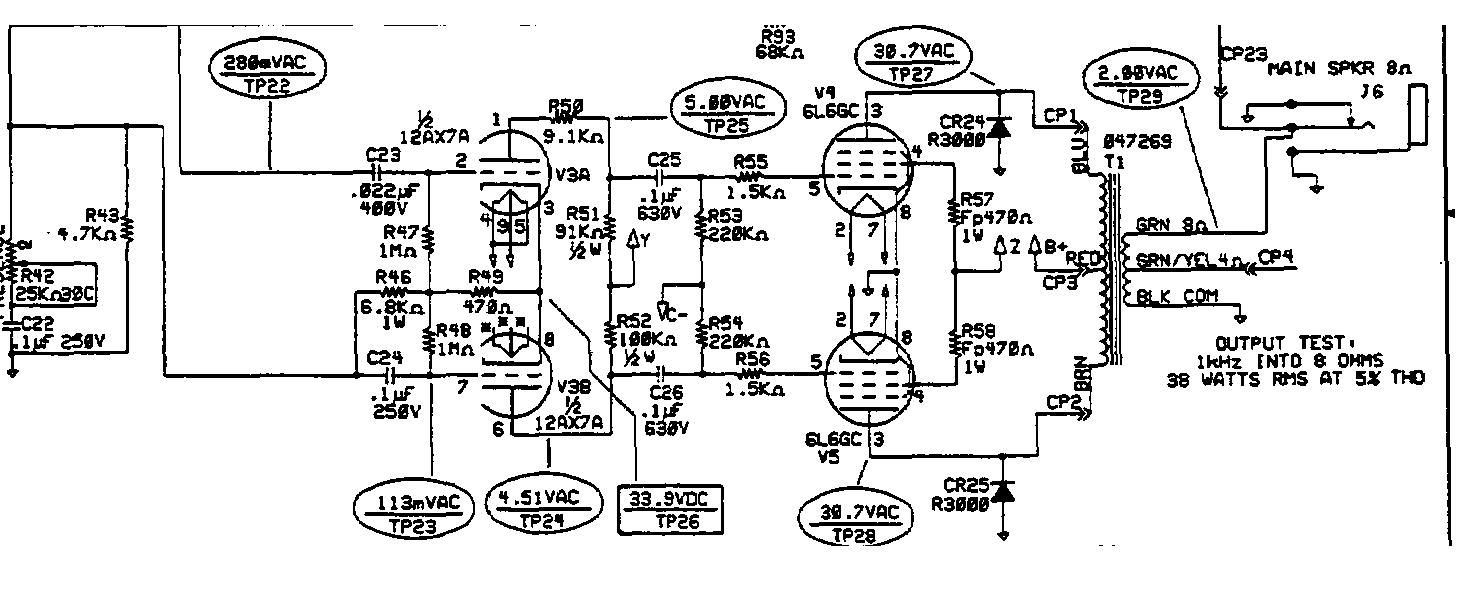

If you look at the phase inverter of the Blues Deluxe, you'll note that the two triodes are not equally loaded. Either by the anode plate voltage (one-half is in a voltage divide --- power/signal --- network) or the input signal onto the grids. This is prolly done to compensate for earlier stage(s) topology and/or a resultant non-symmetric stage = "on-purpose" non-symmetric output signal.

Plus, local feedback appears to be applied to one-half of the triode (and thus, one-half of the signal sine wave). So, I would guess that only half of the signal has local constraints. This half also appears to have all of the global feedback applied to it.

Now, a tube that tests with the two strong and near balanced triodes may sound better --- not only because of the amp's design --- but, also simply due to strong & quiet output. You need to try out the specific tube and see if it makes a difference.


http://www.webphix.com/schematic%20heav ... deluxe.pdf




Top
Profile
Post subject: Re: Balanced V3 tube
Posted: Fri Feb 14, 2014 10:55 am
Offline
Roadie
Roadie

Joined: Sun Aug 02, 2009 6:55 pm
Posts: 297
Location: Warren Mi
I put what ever sounds best
