Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 9:59 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 19, 2014 12:48 am
Posts: 35
Quote:
I think a remedial course in "Soldering 101" is in order.


Actually, a beginners course is in order. Never could solder worth a damn. Weld? Yes. Solder, no.

bluesky636, the wires around that socket are cramped, and my hand just moved a couple of millimeters too close. Had I not done that, the amp would be making music right now. I'm buying new sockets and wire, and it will look nice and tidy when I'm done. I'll post a photo for your approval. ;)

This isn't near as hard as this:



Which I turned into this:


And this:



All by myself. Electrical, too. :)


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 10:18 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Some people are good at some things and not so good at other things. Me, I can't nail two boards together, but I can build amps. :D



_________________
Bill



Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 10:35 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
How clean and neat is this .. :!:


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 10:39 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Monkeyleg wrote:
Quote:




Awesome car. Oh those SU carbs are a BEAR to adjust.

Try a small to medium flat solder tip. I find that this gives a much better flow than the round tip. Cleaning and prepping the site is THE key. Just like welding.

http://www.amazon.com/Weller-ETA-Screwd ... d_sim_hi_9

Good luck!


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 10:46 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Properly tinned wires might also be a big help......

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 11:05 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Arjay,

Most correct! Favorite solder:

http://ecx.images-amazon.com/images/I/513MmJ4FLCL.jpg

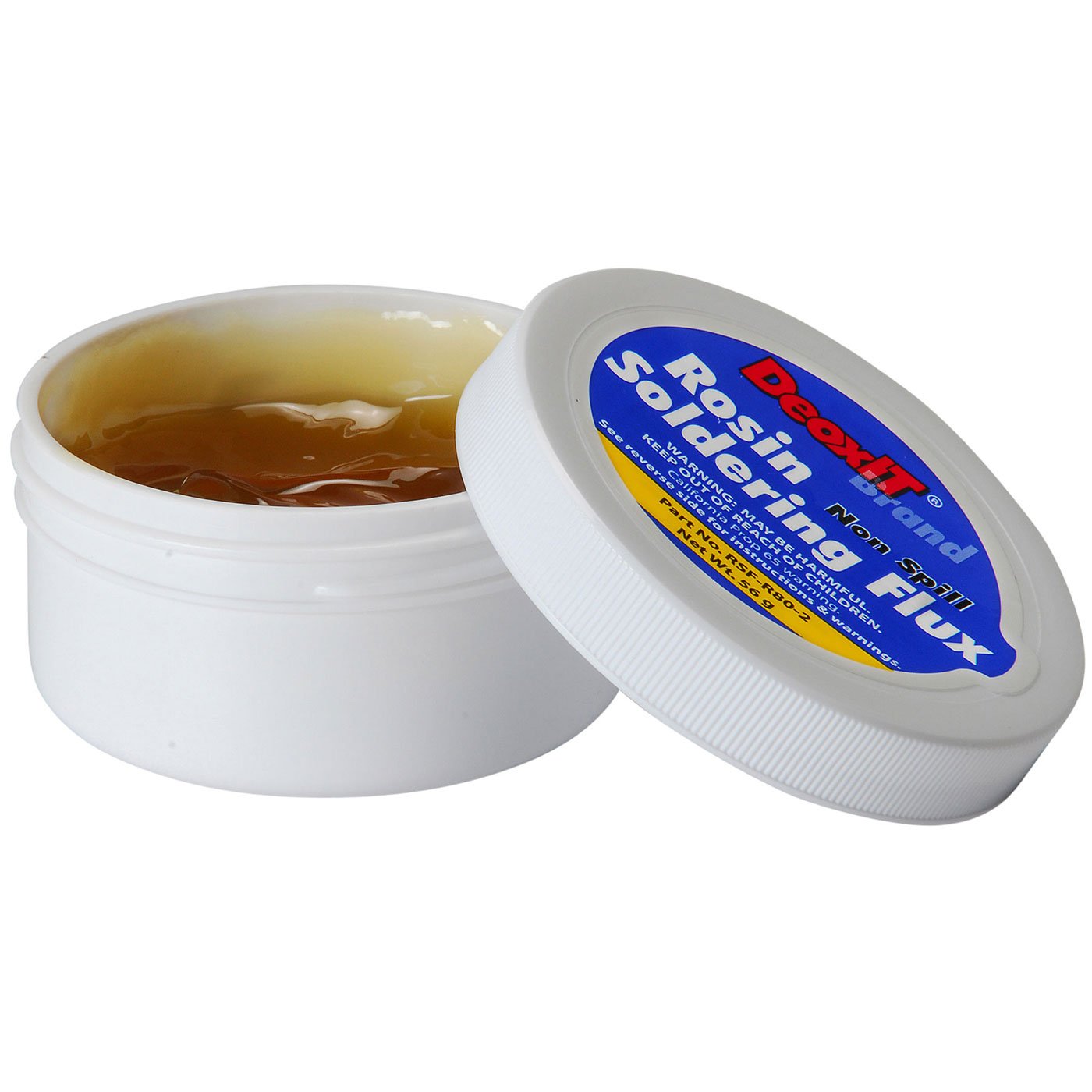

Solder flux paste:

http://ecx.images-amazon.com/images/I/7 ... L1500_.jpg


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 11:08 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 19, 2014 12:48 am
Posts: 35
Quote:
Some people are good at some things and not so good at other things. Me, I can't nail two boards together, but I can build amps.


Awesome looking amp. Good solder joints, too. ;)


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 11:12 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
monkeyleg, We live for good tone and amp porn!

:lol: :lol: :lol:


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 11:17 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Tue May 15, 2012 2:49 am
Posts: 560
Location: Perth, Australia
It's a treat to see people who have pride in their work, no matter how big or small or important the job may be.

_________________
GUITAR: Fender USA JazzMaster.
BASS: Fender USA 58'AVRI
AMP: Fender USA SuperSonicTwin - Blonde.


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Sun Jan 26, 2014 11:28 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Aaron,

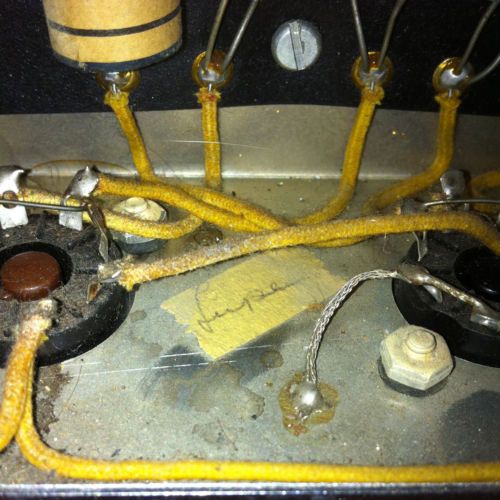

Yes. We must strive to try and meet her standards. Goddess of Soldering! Lupe Lopez! :D :mrgreen: :D





Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Tue Feb 04, 2014 10:37 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 19, 2014 12:48 am
Posts: 35
Okay, back to the problem. I replaced the sockets for V7 and V8, the 6L6GC tubes. I replaced any wires that were scorched. I replaced the R70 and R71 resistors for the V7 and V8 tubes. I did pretty good solder joints, I think.

I put in new power tubes, and biased them to 32 on the V7 and about 35 on the V8. I kept swapping out preamp tubes with different ones. No change in the bad sound, though.

I took readings at the test points. I've put the values shown on the schematic in parentheses after the read values.

TP7 2.02VDC (2.02VDC)
TP10 2.15VDC (2.12VDC)
TP33 98.3VDC (93.6VDC)
TP36 -42VDC (-32VDC or -52VDC, can't read it)
TP37 35mVDC (33mVDC)
TP38 33mVDC (33mVDC)
TP39 469VDC (433VDC)
TP33 98.3VDC (93.6VDC)
TP36 -42VDC (-32VDC or -52VDC, can't read it)
TP13 2.08 (2.06VDC)
TP22 2.2VDC (2.01VDC)
TP26 -7.25VDC (-5.50VDC)
TP27 2.02VDC (2.02VDC)
TP28 12.3VDC (13,2VDC)
TP2 462VDC (433VDC)
TP3 450VDC (420VDC)
TP4 411VDC (385VDC)
TP5 -63VDC (-50.2VDC)
TP1 467VDC (435VDC)
TP18 7.7VDC (7.6VDC)

There's a hum that increases with the volume knobs on both the guitar and the amp. There's no hum if the guitar isn't plugged in, or if the guitar volume knob is set to 0.

Any ideas, anyone?


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Wed Feb 05, 2014 1:10 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Your bias is still a bit cold, I would bump it up to 40 mA on the highest tube. I would double-check the two 100 watt resistors on the heater circuit, make sure the traces and solder job are good. You might have fried a coupling cap somewhere in the preamp, maybe even a Plate resistor or two, although your test voltages look OK. The filter caps would be the next place to look for problems. Have you tried a new rectifier tube?

The description of "bad sound" is subjective and not very helpful in diagnoses.

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Wed Feb 05, 2014 8:23 am
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 19, 2014 12:48 am
Posts: 35
Thanks for the reply, shimmilou. The bias is recommended to be 30-37 by a whole bunch of sources (including BMW2002Ti, who's been helping me on this). It was the bias I had set before things went south, and sounded the best. I've replaced the filter caps, the resistors for the filter caps, and the rectifier tube.

The "bad sound" is muddled and gritty distortion when the strings are hit hard. If I go up the fret board on the low E string, the sound gets fuzzy, more so than even fret buzz. If I play a chord with the low strings (E, A and/or D), it's very muddled and harsh. It only sounds this way with the amp volume knob higher than three on either channel. At three or below the sound is clean.


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Wed Feb 05, 2014 8:34 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
" There's a hum that increases with the volume knobs on both the guitar and the amp. There's no hum if the guitar isn't plugged in, or if the guitar volume knob is set to 0. "


You have a ground loop. Somewhere between the guitar pickup and the input of the amp. Try another patch cord. Try a different guitar.


Good luck!


Top
Profile
Post subject: Re: What burns out power tubes?
Posted: Wed Feb 05, 2014 8:53 am
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 19, 2014 12:48 am
Posts: 35
I've tried two different guitar cords, and three guitars. No difference. No difference which input jacks I use, either.


Top
Profile
