Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 9:44 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
I agree 1000000000000% that they are worthless now!!
Ok power caps are wired as in the weber schematic..


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 9:46 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Just saw your other post.. The mtone diagram has the B portion of the power caps running through pin 6 through a 470ohm res and connects to pin 4..


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 9:47 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
michaelbpuccio,

Let's start from ground zero. You need to have a proper wired power supply and power supply filters, or nothing is going to work properly except your fuse (hopefully). :D

Speakers connected. No volume. No guitar plugged in. New fuse. Measure the DC voltages not resistance at points A, B, C, D, and E.

Let's see how well the PS rail is operating, first.

NOTE: that resistor is attached to the socket on pins 4 and 6 to minimize lead lengths. It is the screen resistor. PIN 6 IS NOT USED in a 6L6GC. Only pin 4 (screen). So Pin 6 is acting only as an attachment point for the resistor.

http://i243.photobucket.com/albums/ff18 ... 420001.jpg


Last edited by BMW2002Ti on Wed Sep 18, 2013 9:53 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 9:52 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Quick question, am I to run a ground wire for every power cap or just one since they are all wired together? I know it's a dumb one....


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 9:57 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
If the four caps (-) are wired together --- run ONE LINE ONLY to the chassis at the appropriate point. This is usually onto the brass grounding plate on nearly all Fender amps. One black wire, from the cap's negative side to the ground plate.

See brass plate under the pots?



Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 10:12 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Yes I see how your amp has the brass underneath.. Unfortunately I was not given that in my kit. So I will have to make a temp ground and pick some brass from the hardware store tomorrow.. Ok there are three tabs on the input jacks, I do not understand how they are wired.. With the 1m resistor... Can you simplify this?


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 10:16 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
BMW2002Ti wrote:
michaelbpuccio,

Let's start from ground zero. You need to have a proper wired power supply and power supply filters, or nothing is going to work properly except your fuse (hopefully). :D

Speakers connected. No volume. No guitar plugged in. New fuse. Measure the DC voltages not resistance at points A, B, C, D, and E.

Let's see how well the PS rail is operating, first.

NOTE: that resistor is attached to the socket on pins 4 and 6 to minimize lead lengths. It is the screen resistor. PIN 6 IS NOT USED in a 6L6GC. Only pin 4 (screen). So Pin 6 is acting only as an attachment point for the resistor.

http://i243.photobucket.com/albums/ff18 ... 420001.jpg



Ok so this means that the wire coming in to the tube socket to be attached to pin 4? And not to pin 6?


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 10:35 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154

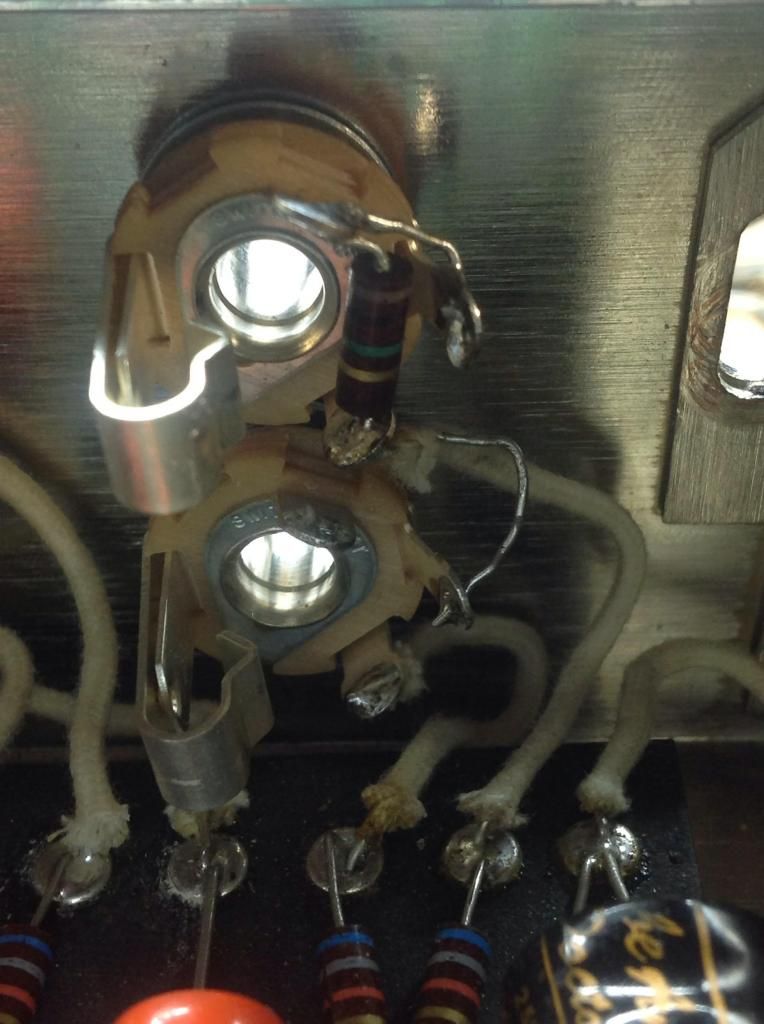

This is how I'm interpreting the schematic for the input jacks... Please correct me if I'm wrong..



Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 10:48 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Ok I have it all back together and about to grab my guitar and plug in.. Here we go!


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 10:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
michaelbpuccio wrote:


This is a one-meg ohm grid-to-ground resistor. There are 68K-ohm grid loading resistors from the jack to the input tube's grid.

I think I may have confused you about the resistor on the 6L6GC (pin 4 to 6). The line from the board goes to pin 6. And a resistor goes from pin 6 to pin 4. So... the power is going from the board to pin 6. Then through the 470-ohm resistor into pin 4. Just as diagrammed on the schematic.


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 11:01 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
michaelbpuccio wrote:
Ok I have it all back together and about to grab my guitar and plug in.. Here we go!


Keep the Halon handy!

:wink:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 11:06 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Or go to Costco and get a gross of fuses.

:D :mrgreen: :D


Last edited by BMW2002Ti on Wed Sep 18, 2013 11:11 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 11:09 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Halon was handy!! :lol: SHES WORKIN AND NOT POPPIN FUSES!!! Oh yeah!! And she isn't muffled and sounding like its under water!! Man this is awesome guys!! Thank you so much for all your help and putting up with my noobie questions! So I guess what we all learned from this experience is that the mojotone build is good but their schematics are way off and need some updating.. And that the Weber schematic is the one that works!

Thanks again guys! 8)
Oh yeah one more question... How do I get the middle to be only middle tone control and not a blend of bass and treble? Or is this something that isn't possible? And seriously are my jacks wired in correctly? Lol!!


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 11:39 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
BMW2002Ti wrote:
michaelbpuccio wrote:


This is a one-meg ohm grid-to-ground resistor. There are 68K-ohm grid loading resistors from the jack to the input tube's grid.

I think I may have confused you about the resistor on the 6L6GC (pin 4 to 6). The line from the board goes to pin 6. And a resistor goes from pin 6 to pin 4. So... the power is going from the board to pin 6. Then through the 470-ohm resistor into pin 4. Just as diagrammed on the schematic.


BMW
I knew exactly what you meant.. Thank you for your help in opening my eyes on this build! I did in fact move the connections to pin 4.. I must have overlooked your post as I was getting closer to firing her up.. So it is supposed to be connected to pin 6 then goes through the resistor to pin 4.. Ok I'll have to make that change.. As it does have a little bit of hum..

My question still is with how the input jacks are wired because I do not understand the schematic on them.. But it is working now and sounds amazing! So I guess I did it correctly..


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Thu Sep 19, 2013 12:00 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
BMW2002Ti wrote:
michaelbpuccio wrote:


Ok... see the brown-black-green-gold resistor? This one = 1 meg-ohm. See the blue-gray-orange-gold ones (68k-ohm) on the board? Compare this to the schematic's layout:

http://www.webphix.com/schematic%20heav ... _schem.pdf
