Post subject: Re: Bassman LTD conversion to PTP
Posted: Sun Sep 15, 2013 6:26 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Bassman LTD conversion to PTP
Posted: Sun Sep 15, 2013 6:34 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
That's cool, for two 100-ohm resistors, in parallel, from heater line-to-ground.


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Sun Sep 15, 2013 7:07 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Ok so then I have them correctly installed??


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Mon Sep 16, 2013 6:29 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Aug 21, 2009 1:45 pm
Posts: 852
Location: SoCal323
When reading the heater voltage, are you reading from one heater to ground or are you measuring across the two heater wires. If the former, that would explains the 3.2vac reading. Correct me if I'm wrong but shouldn't the heater voltage be measure across the two heater pins for correct reading?

_________________
Its a lifestyle.....



Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Mon Sep 16, 2013 11:39 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154

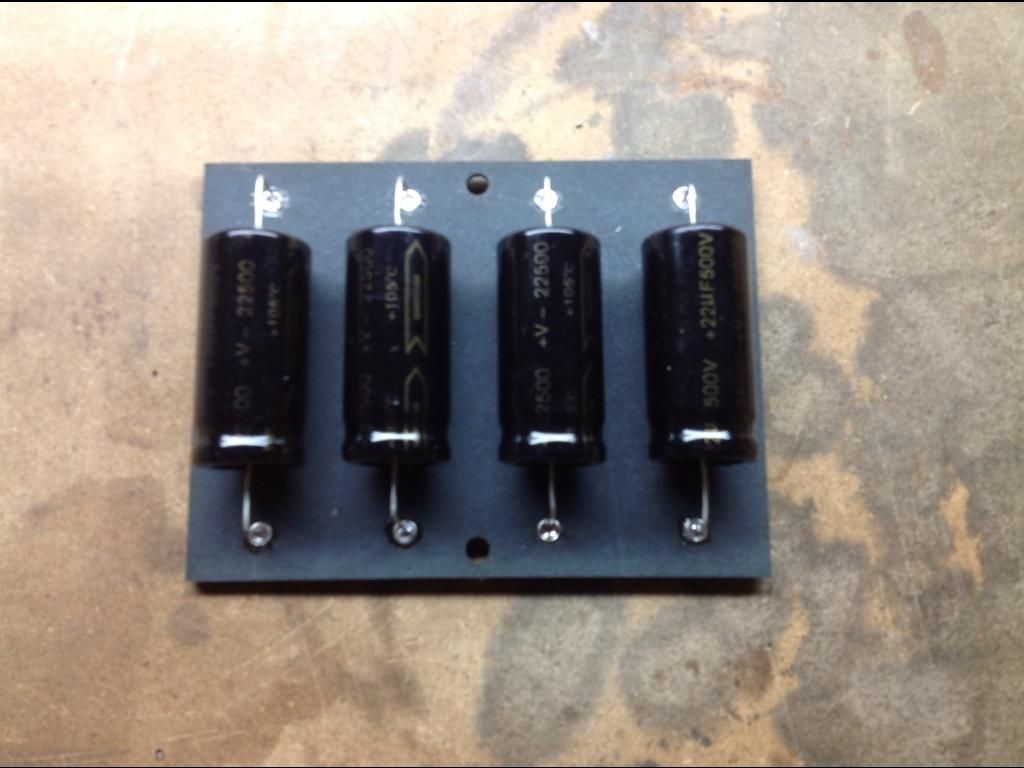

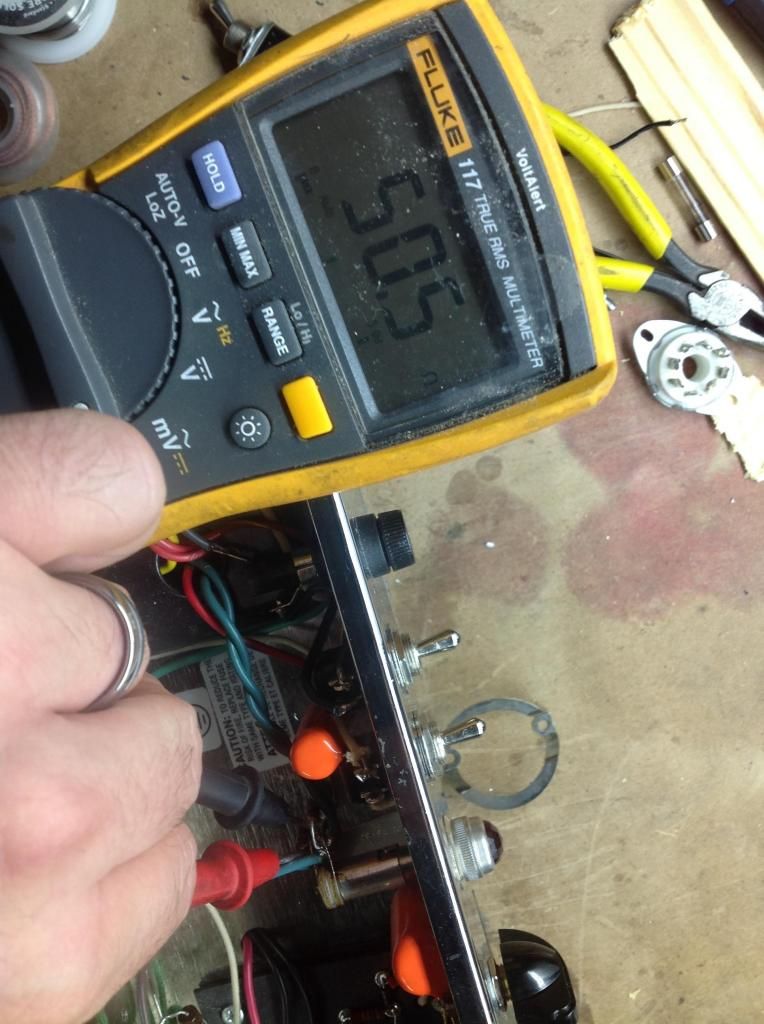

As a matter of fact you are right! Measuring across gives me 6.5vac.. Thanks for pointing this out! This means that my issue with blowing fuses is not from the heaters or in the daisy chain portion of the circuit.. I believe it has to be in the way I have the power capacitors wired up.. I have seen two different ways of wiring them which makes it confusing. Mojotone has one way that uses ground and weber wires them without using ground. Which way is correct as you can see they clearly are different.. I'm wondering if this may be the cause of the fuses popping and the tone sounding muffled?

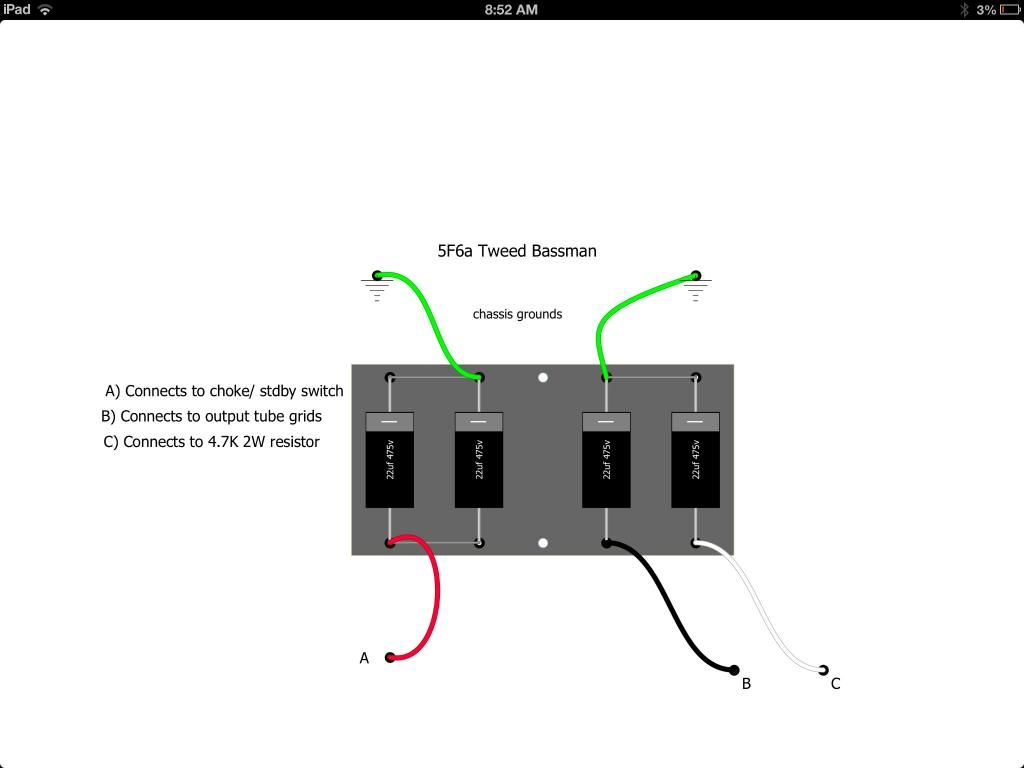

Mojotone layout

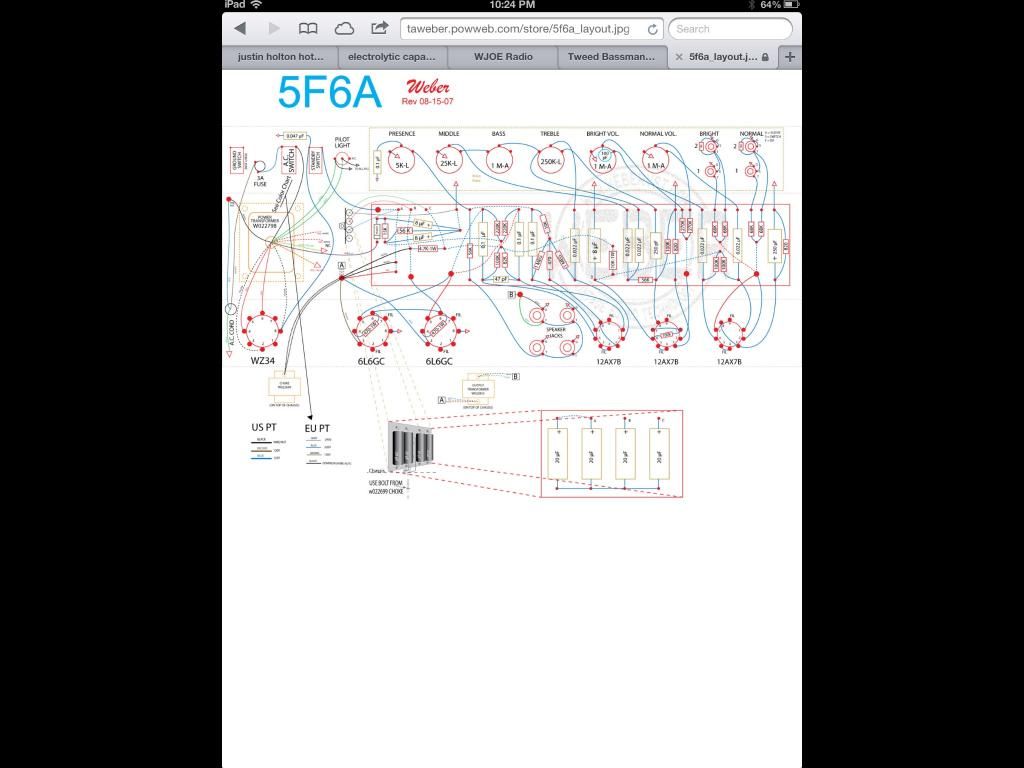

Weber layout

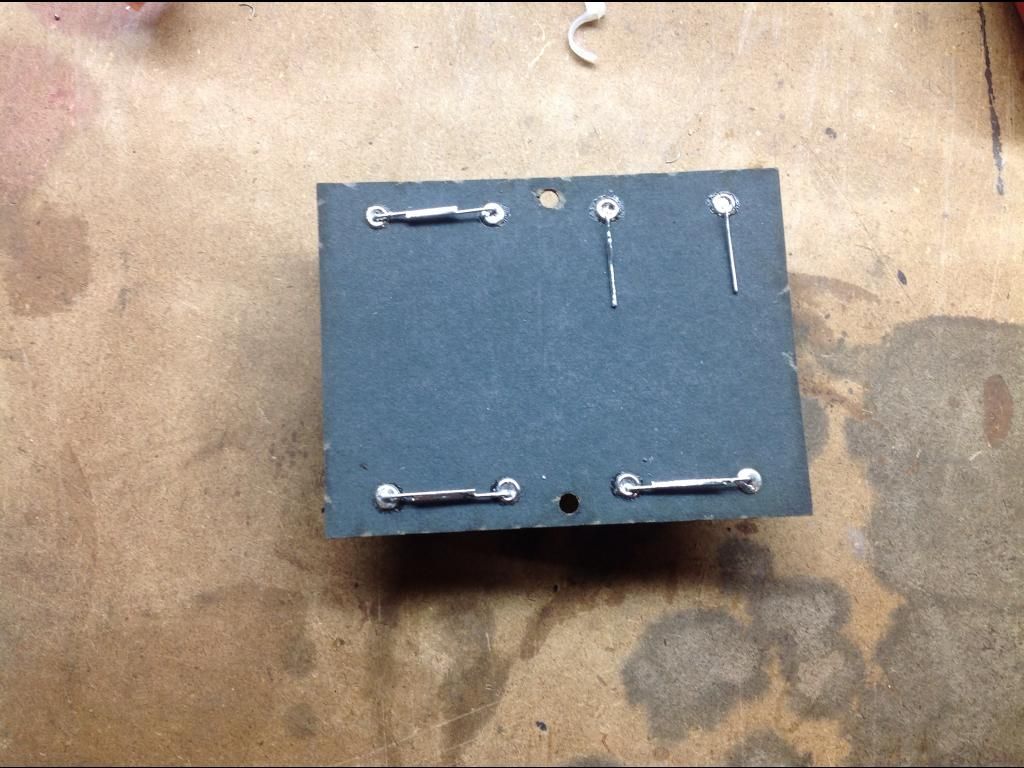

Following the mojotone layout




Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Tue Sep 17, 2013 1:50 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Those 20mfd caps must be grounded for the PS to work properly. Usually, all four (-) leads off the caps are grounded to the chassis at one point.


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Tue Sep 17, 2013 2:00 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
BMW2002Ti wrote:
Those 20mfd caps must be grounded for the PS to work properly. Usually, all four (-) leads off the caps are grounded to the chassis at one point.


+1

You might also check that the bias cap is correctly polarized (the "+" lead should be tied to ground).

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Tue Sep 17, 2013 7:22 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
michaelbpuccio wrote:
I believe it has to be in the way I have the power capacitors wired up.. I have seen two different ways of wiring them which makes it confusing. Mojotone has one way that uses ground and weber wires them without using ground. Which way is correct as you can see they clearly are different.. I'm wondering if this may be the cause of the fuses popping and the tone sounding muffled?


The Weber schematic clearly shows the negative side of the power supply caps being grounded.


_________________
Bill



Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 1:03 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Thanks for that schematic! And yes it does.. Guess I am just asking all the wrong questions....


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 1:39 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
michaelbpuccio,

A good starting point: measure the DC voltages at points A through E. You can have the tube in-or-out of the circuit. Only the GZ34 or WZ34 needs to be inserted. Speaker(s) connected. Volume at zero. No input (no guitar plugged in).

No tubes = slightly higher voltage readings due to lack of their load on the power supply.


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 4:24 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Ok here is what I have done.. I removed the board to double check that all parts and connections on the board were where they should be. I then reinstalled the board and connected the tube side of the board making sure to follow the schematic and layout provided by mojotone. Then worked on the potentiometer side again following the schematic and layout. The part that confuses me is the input jacks because I seem to not interpret the schematic correctly..

I called mojotone and spoke with their amp tech (Steve), and he suggested that I install one tube at a time starting from the rectifier to V1 to find where the issue is with popping of the fuse. Also taking measurements.. To shorten this explanation down I found that the issue with popping fuses lies when I install V2. When I flip the power switch off the amp it blows. This does not happen when the standby switch is turned off. This also happens with V2 removed and V1 installed.. My measurements are as follows:
With Rectifier installed:
1 NA
2 473.5VDC
3 NA
4 473.5VDC
5 NA
6 370VAC
7 NA
8 370VAC
With Power tube 1 installed left 6L6:
1 Ground
2 6.6VAC (measured across to pin 7)
3 470VDC
4 470VDC
5 -56VDC
6 470VDC
7 6.6VAC (measured across to pin 2)
8 Ground
With power tube 2 installed Right 6L6:
1 Ground
2 6.6VAC
3 470VDC
4 470VDC
5 -56VDC
6 470VDC
7 6.6VAC
8 Ground
With V3 installed Left 12AX7 preamp tube:
1 293VDC
2 35.5VDC
3 56VDC
4 6.6VAC
5 6.6VAC
6 289VDC
7 38VDC
8 56VDC
9 6.6VAC
With V2 removed middle preamp tube 12AX7:
1 450VCD
2 0
3 0
4 6.6VAC
5 6.6VAC
6 456VDC
7 451VDC
8 0
9 6.6VAC
With V1 removed right preamp tube 12AX7:
1 448VDC
2 0
3 0
4 6.6VAC
5 6.6VA
6 449VDC
7 0
8 0
9 6.6VAC


Last edited by michaelbpuccio on Wed Sep 18, 2013 5:07 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 4:27 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
Now yes I will sacrifice a fuse to post the readings of V2 and V1 with tubes installed.. Standby........


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 4:43 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Let me get this straight. You are popping a fuse when you insert V2 (12AX7B)? According to the schematic posted by Bluesky (5F6-A, Weber DIY).

There is something VERY WRONG with the wiring in that case. 12AX7 rarely pull enough current, even when the tube is completely shorted-out, to pop a main fuse.

Don't even install the output tubes, until you find the issue with the 12AX7 and or circuit around it.


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 4:49 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
I see the issue. You need to follow the schematic's V numbers. And tell us which tubes you are measuring.

I assume (and you know what that means), you mean V4 and V5. The 6L6GCs. And not V1 and V2 = 12AX7B.


Top
Profile
Post subject: Re: Bassman LTD conversion to PTP
Posted: Wed Sep 18, 2013 4:56 pm
Offline
Amateur
Amateur

Joined: Mon Nov 01, 2010 10:31 pm
Posts: 154
The schematic i have is the mojotone schematic and what i have been using.. While you posted I took the following measurements with tubes installed.. And yes there definitely has to be something wrong.... I have tried out these tubes in another amplifier and they work fine.. Could this be a problem on how I have my input jacks installed?
V2 middle pre amp tube 12AX7
1 214VDC
2 0
3 1.1VDC
4 6.6VAC
5 6.6VAC
6 365VDC
7 210VDC
8 211VDC
9 6.6VAC
V1 Right preamp tube 12AX7
1 245VDC
2 .0013VDC
3 1.9VDC
4 6.6VAC
5 6.6VAC
6 242VDC
7 1.9VDC
8 1.9VDC
9 6.6VAC


Last edited by michaelbpuccio on Wed Sep 18, 2013 5:04 pm, edited 1 time in total.
