Post subject: a question re S/F 1970
Posted: Thu Apr 18, 2013 12:21 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia

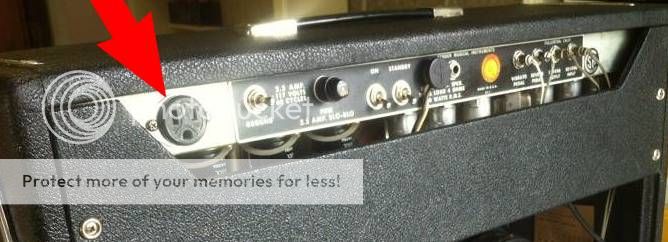

Would anyone know what is the slot for (red arrow)?

Please no flaming, as I haven't seen this on a B/F previously, thanks.






:mrgreen:


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 12:32 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Dec 29, 2012 11:48 pm
Posts: 681
Location: Southern, CA
I do believe that is a 110 volt accessory outlet. My 1968 SF Showman Reverb only as a two prong outlet (I never used it).

HTH

Jerry

_________________
'62 Jazzmaster/'78 Precision Bass/'88 Fender F250 acoustic/'07 Gibson Less Paul Classic Antique/'12 Squier Strat/'14 Squier VM Jaguar/'15 Classic 60s Telecaster/'68 Showman Reverb/'70 Bandmaster Cabinet JBL D140F speakers/'69 Super Reverb/'12 G-DEC 3-30


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 2:06 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
3 prong outlet .

Like a wall outlet but for pedal board , Fender Reverb and an other amp ....This outlet is not fused , is connected directly to your wall outlets. It is like an extension cord.

Shematic here ;

http://www.thevintagesound.com/ffg/


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 2:27 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
If this is to be connected to the wall socket, why there is a power cord next to it?


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 2:42 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Nikola Tesla wrote:
If this is to be connected to the wall socket, why there is a power cord next to it?


That's not I write .

In other word this outlet is connected to wall outlet BY the use of amp power cord. I write "it is like an extension cord " .
Extension cord NEED the use of power cord !

You don't not know how to read schema , if yes you'll see by yourself how this work .


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 2:43 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Nikola Tesla wrote:
Please no flaming, as I haven't seen this on a B/F previously, thanks.


My guess is, you haven't seen too many blackface amps.

Silverfaces, neither.

That convenience outlet is present on every blackface and silverface amp ever made, save for the Champ and Vibro Champ student models. It's used to power up an accessory such as a reverb tank, echo unit, Dimension IV or (in the modern era) a pedal board......anything requiring 200 watts or less of input power.

In the case of an amp purpose-built for export to Europe or Asia, the factory would replace this convenience outlet with a multiple-input voltage selector.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 3:20 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
stratele52 wrote:
Nikola Tesla wrote:
If this is to be connected to the wall socket, why there is a power cord next to it?


That's not I write .

In other word this outlet is connected to wall outlet BY the use of amp power cord. I write "it is like an extension cord " .
Extension cord NEED the use of power cord !

You don't not know how to read schema , if yes you'll see by yourself how this work .




I have no clue about reading schema, or anything about electronics .. I'm only a guitar player.

:arrow:


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 3:25 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
Retroverbial wrote:
Nikola Tesla wrote:
Please no flaming, as I haven't seen this on a B/F previously, thanks.


My guess is, you haven't seen too many blackface amps.

Silverfaces, neither.

That convenience outlet is present on every blackface and silverface amp ever made, save for the Champ and Vibro Champ student models. It's used to power up an accessory such as a reverb tank, echo unit, Dimension IV or (in the modern era) a pedal board......anything requiring 200 watts or less of input power.

In the case of an amp purpose-built for export to Europe or Asia, the factory would replace this convenience outlet with a multiple-input voltage selector.

Arjay



Nice and simple explanation, thank you.

I haven't seen many fender amps at all, as I was playing everything else but Fender. Now at old age I discovered Fender amps, and was impressed with the discovery.

As for the outlet and your: " .. every blackface and silverface amp ever made. I don't know if you count re-issues there but mine TR B/F has nothing there.

/


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 3:49 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
I don't count the re-issues because frankly they're but a pale imitation of the original prototypes.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 4:55 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
Retroverbial wrote:
I don't count the re-issues because frankly they're but a pale imitation of the original prototypes.

Arjay





Is really the difference so drastic?

I recently bought a B/F re-issue ..it sound great, very responsive, full tone.

There is a S/F from 1970 for sale. I'll have to give it a try, to see the difference .. if really the re-issues are .. a pale imitation of the original prototypes.

Very interested .. indeed!


:?:


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 5:53 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Nikola Tesla wrote:
Retroverbial wrote:
I don't count the re-issues because frankly they're but a pale imitation of the original prototypes.

Arjay





Is really the difference so drastic?

I recently bought a B/F re-issue ..it sound great, very responsive, full tone.

There is a S/F from 1970 for sale. I'll have to give it a try, to see the difference .. if really the re-issues are .. a pale imitation of the original prototypes.

Very interested .. indeed!


:?:


What Arjay means...if I may be so bold. The old SF and BF amps where simply more hearty. They could take alot of abuse from the road and constant gigging. The new reissues sound good enough, but since they use circuit boards vice the old amps being wired point to point they just are not as easy to fix if they break, nor are they as solidly built (internals wise, the cabs are fine). On the old amps a schematic, a soldering iron, and some components and you could fix them, not so easy with the new ones.

FWIW

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 6:20 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Nikola Tesla wrote:
Is really the difference so drastic?


I've been playing Fender amps for four and a half decades, Hoss.

Yes......the difference is that drastic.

And it's why buffoons can't sell their Super Reverb re-issues on Ebay for a thousand dollars yet those who know tone will glady pay two grand for an original.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 7:57 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
I've been playing guitars (and amps) for 4 decades now.

I can't wait to test the S/F made in 1970. If the difference is so huge I'll just buy it.

And of course, I don't care about internals, circuit boards, capacitors and the like ..

I judge by my ears, not components .. if I may.


/


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Thu Apr 18, 2013 8:24 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue May 24, 2011 8:25 pm
Posts: 1099
Location: A cloud of eider down
As someone who has been at it a while, I have become hooked on vintage Fender amps over the last few years. there is no comparison to the vintage and the new. I have at this point only held on to 1 "modern" Fender amp, picked up a BF bassman, and bandmaster, and just recently a SF Super Reverb which is in the process if coming back to life. With the help of some very good people here i have come to appreciate the sound, and craftsmanship of Leo's original designs.

_________________
"Where would rock and roll be without feedback?"


Top
Profile
Post subject: Re: a question re S/F 1970
Posted: Fri Apr 19, 2013 1:21 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Retroverbial wrote:
I don't count the re-issues because frankly they're but a pale imitation of the original prototypes.

Arjay



I agree.


Top
Profile
