Post subject: Hook Hot Rod Deluxe III into speakers of JSX212
Posted: Wed Apr 03, 2013 7:02 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Jul 29, 2011 6:08 am
Posts: 3
hi,

I recently bought a HRD III which is awesome. For now I wont be using my JSX combo and I was wondering if I can hook the Fender into the speakers of the JSX? if so what impedance should I use?

http://www.fullcompass.com/product/413563.html

Link above is info about JSX. I have in the past hooked a Mesa TA15 into speakers of JSX amp. so assumes it will work.

Im cautious as these are two awesome amps and I dont want anything to happen.

Cheers,
Eric


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Hook Hot Rod Deluxe III into speakers of JSX212
Posted: Wed Apr 03, 2013 9:06 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Read the HRD III owner's manual. It tells you what you can hook to the amps external speaker jack and how to do it.

_________________
Bill



Top
Profile
Post subject: Re: Hook Hot Rod Deluxe III into speakers of JSX212
Posted: Wed Apr 03, 2013 10:18 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Jul 29, 2011 6:08 am
Posts: 3
bluesky636 wrote:
Read the HRD III owner's manual. It tells you what you can hook to the amps external speaker jack and how to do it.


Bill,

I have read the manual already, page 7, I still have doubts with regards to what could happen
if I connect to serial vs parallell connected speaker and OHMs etc etc. I also dont know what is meant by "open plug" in section V on page 7.

Eric


Top
Profile
Post subject: Re: Hook Hot Rod Deluxe III into speakers of JSX212
Posted: Wed Apr 03, 2013 10:22 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Jul 29, 2011 6:08 am
Posts: 3
ericmb wrote:
bluesky636 wrote:
Read the HRD III owner's manual. It tells you what you can hook to the amps external speaker jack and how to do it.


Bill,

I have read the manual already, page 7, I still have doubts with regards to what could happen
if I connect to serial vs parallell connected speaker and OHMs etc etc. I also dont know what is meant by "open plug" in section V on page 7.

Eric


ah, open plug might mean a plug that goes nowhere. The way I look at this I have 2 x 8 OHM speakers in the JSX, that ll add up to 4 OHMs and thus scenario 3 om page 7 here:

http://support.fender.com/manuals/guita ... manual.pdf

That implies it cant be done. So this is where someone with proper skills can intervene and let me know.

Eric


Top
Profile
Post subject: Re: Hook Hot Rod Deluxe III into speakers of JSX212
Posted: Thu Apr 04, 2013 1:19 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Aug 05, 2012 9:50 am
Posts: 1399
Bill does a very good job at this, but I will post a few useful diagrams. If one has two speakers in a cabinet and one in their amp and ohmages differ and present problems, there are some work arounds. I have a 4 ohm Bugera amp. It is a robust little critter. I currently have the stock 4 ohm speaker running with and 8 ohm in parallel via a wire from each of my terminals running in a parallel hook up to my external 8 ohm speaker in a separate cab. This presents a 3 ohm load to my amp. It says 4 ohm is the minimum. I have dared to show it 3 ohms and it has rewarded me with a rich sound via the two different speakers and more air moving.

I am thinking of getting the new Eminence 8" hemp cone speaker, because of GAS around it. :lol: They only come in 4 ohms. That would leave me with two 4 ohm speakers and an 8 ohm. My solution, should I pursue this project and insist in running 3 separate 8" speakers, would be the following: Put the two 4 ohm speakers together wired in series to raise the ohms to 8. The 8 ohm speaker would be in the Bug. Taking a parallel wiring from my amp speaker and plugging it into my 8 ohm cab I will have created a 4 ohm load, the preferred one, for my amp. Speaker dieties will smile down from speaker towers and all will be right with the world. :D

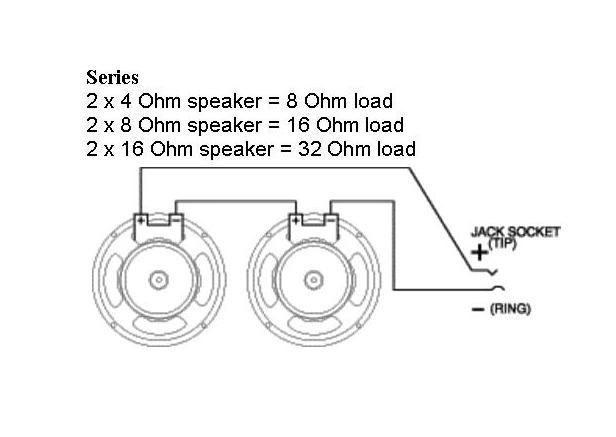

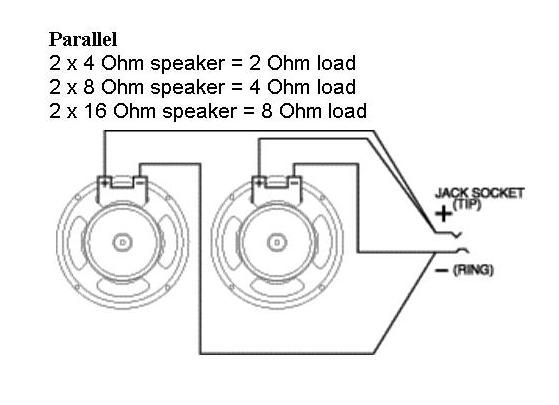

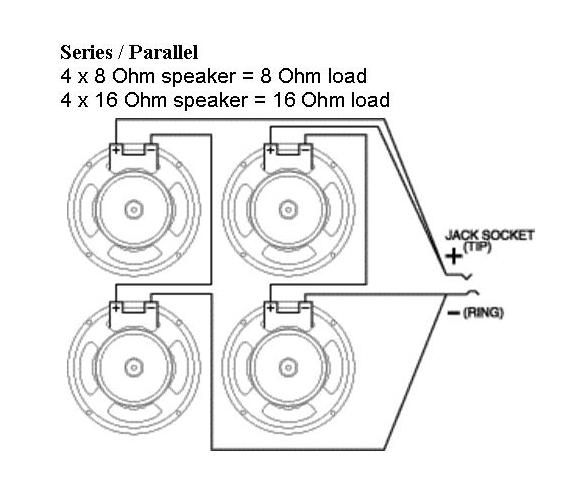

Now for the aforementioned diagrams.


_________________
I have some Fender gear.
(Telecaster, Jaguar, Villager 12 String. Mustang l, Bronco, SCX2, Rumble 350, HRDIII, Rumble 2x8 Neo Cab)
http://www.reverbnation.com/modwiz


Last edited by modwiz on Thu Apr 04, 2013 3:28 am, edited 2 times in total.

Top
Profile
Post subject: Re: Hook Hot Rod Deluxe III into speakers of JSX212
Posted: Thu Apr 04, 2013 2:10 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
modwiz wrote:
Speaker dieties will smile down from speaker towers and all will be right with the world.


LMFAO

:lol:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Hook Hot Rod Deluxe III into speakers of JSX212
Posted: Thu Apr 04, 2013 6:43 am
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
ericmb wrote:
ericmb wrote:
bluesky636 wrote:
Read the HRD III owner's manual. It tells you what you can hook to the amps external speaker jack and how to do it.


Bill,

I have read the manual already, page 7, I still have doubts with regards to what could happen
if I connect to serial vs parallell connected speaker and OHMs etc etc. I also dont know what is meant by "open plug" in section V on page 7.

Eric


ah, open plug might mean a plug that goes nowhere. The way I look at this I have 2 x 8 OHM speakers in the JSX, that ll add up to 4 OHMs and thus scenario 3 om page 7 here:

http://support.fender.com/manuals/guita ... manual.pdf

That implies it cant be done. So this is where someone with proper skills can intervene and let me know.

Eric


In your original post, you provided a link to a SINGLE 8-OHM SPEAKER. You made no mention of what the speaker configuration or impedance. I am not a mind reader. Complete information is always helpful.

If you have a speaker cab with two 8-ohm speakers in parallel, that gives you 4 ohms. The 8-ohm internal speaker in parallel with your 4 ohm cab gives you a total of 2.66 ohms. It might work. It might not. You can still disconnect the internal speaker and plug just the external cab into the amp as shown in your owner's manual.

An "open plug" is exactly what it says. A phone plug with nothing connected. There is an illustration of one in your owner's manual.
