Post subject: BDRI tube rattle.
Posted: Wed Oct 03, 2012 1:03 pm
Offline
Roadie
Roadie
User avatar

Joined: Wed May 05, 2010 11:35 am
Posts: 222
Location: London
I've noticed a tube rattle in the V4 position of my BDRI.
It doesn't appear to be the tube as I swapped V4 and 5 but the rattle remained in the V4 position.
Does this indicate a further issue maybe in the socket, or just a trait of these amps.
Are the tube damper rings a worth while solution?
Tubes are JJ 6L6 GCs btw.

Cheers in advance.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 3:07 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
If it is not the tube , tube damper will not be useful IMO. Can you press de tube in V4 when rattle to see if ratlle stop ?

I would check for some loose screw somewhere in the chassis or cabinet.


Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 3:49 pm
Offline
Roadie
Roadie
User avatar

Joined: Wed May 05, 2010 11:35 am
Posts: 222
Location: London
Yes. The rattle stops straight away. But I don't think it's the tube because when I swap v4 and 5, the rattle remains at v4 with either tube in it. Hence my thinking that a possible fault somewhere else manifesting as tube rattle.


Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 4:09 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Have you tried re-tensioning V4's pin sockets?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 4:44 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Retroverbial wrote:
Have you tried re-tensioning V4's pin sockets?

Arjay


The pins used in the sockets of the BDRI are not like the pins that you are used to. I can't describe them, but they are not like rolled cylinders. I discovered this when I was trouble shooting my failed tube in my BDRI.

To dc01: Look around in the area of V4/V5 at the various wiring harnesses. Play the amp with the back cover off of it and tell us if it still rattles. I found that the various harnesses in my BDRI were vibrating against the back cover. I redressed them and used a washer on the inside of each bolt hole on the back cover to space it away from the chassis. All noises went away.

_________________
Bill



Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 4:47 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Hokey dokey -- thanks, Bill.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 4:58 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Retroverbial wrote:
Hokey dokey -- thanks, Bill.

Arjay


They kinda looked like a "T" with a long stem. The crossbar of the "T" was bent slightly to grip the tube pin. You can sorta bend and twist them to be a little tighter, but not like an old style socket works. It seemed that they really didn't have much contact area with the tube pin compared to the traditional socket.

_________________
Bill



Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 9:00 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
I think I prefer the older mil-spec sockets.

:wink:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 11:00 pm
Offline
Roadie
Roadie
User avatar

Joined: Wed May 05, 2010 11:35 am
Posts: 222
Location: London
The rattle is still present from v4 with the back cover off.
Also, only certain notes cause the rattle. The worst being an e on the 7th fret, g string.


Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 11:38 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
dc01 wrote:
The rattle is still present from v4 with the back cover off.
Also, only certain notes cause the rattle. The worst being an e on the 7th fret, g string.


If you are positive it is not the tube itself, check all nuts, bolts, screws, cables, etc. in the vicinity of V4 for vibrations. Make sure the tube socket and circuit board are screwed down tight. These kinds of noises can be extremely difficult to pin down. In my two tube Champ 600, I was positive the power tube was rattling. Turned out to be the preamp tube.

_________________
Bill



Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Wed Oct 03, 2012 11:59 pm
Offline
Roadie
Roadie
User avatar

Joined: Wed May 05, 2010 11:35 am
Posts: 222
Location: London
Cheers Bill.

I'm pretty certain it's not the tube, as the rattle remained at V4 when I swapped the power tubes over.
I can feel the rattle on the glass of the tube with a very light touch. If I press the bottle itself the rattle changes character and becomes muted.
I might change the tubes for elimination purposes.


Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Thu Oct 04, 2012 8:09 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

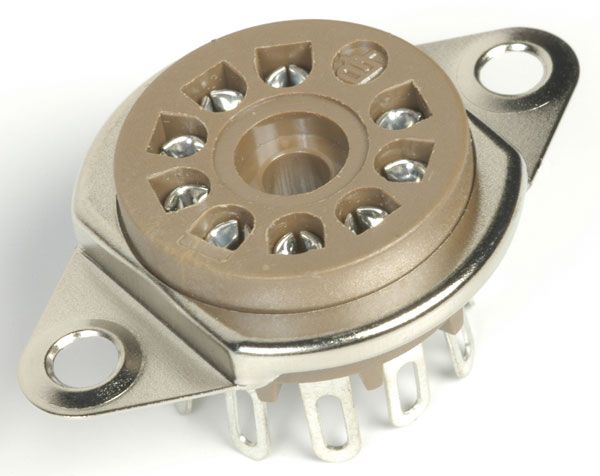

Bluesky, are these sockets the kind with the "slots" on each side of the socket hole? I usually solder a layer onto the tube pins, themselves if the owner of the amp doesn't want to spring for better sockets. A temporary cure, esp if the owner loves to roll tubes.

Boy, there are some pretty cheesy off-shore teflon sockets out there. The US made Amphenol ones with slots seem to hold up pretty well. Esp mil spec versions.

It's easy to see the tangs to adjust in the non-"slotted" sockets.




Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Thu Oct 04, 2012 10:13 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
BMW2002Ti wrote:
Bluesky, are these sockets the kind with the "slots" on each side of the socket hole? I usually solder a layer onto the tube pins, themselves if the owner of the amp doesn't want to spring for better sockets. A temporary cure, esp if the owner loves to roll tubes.

Boy, there are some pretty cheesy off-shore teflon sockets out there. The US made Amphenol ones with slots seem to hold up pretty well. Esp mil spec versions.

It's easy to see the tangs to adjust in the non-"slotted" sockets.




Yes, the ones in the BDRI look like those in the top photo.

_________________
Bill



Top
Profile
Post subject: Re: BDRI tube rattle.
Posted: Thu Oct 04, 2012 11:10 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The ubiquitous adage "They sure don't build 'em like they used to" immediately springs to mind......

:roll:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY
