Post subject: External speaker box for the Excelsior...
Posted: Sat Jul 07, 2012 10:26 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sat Nov 26, 2011 1:31 pm
Posts: 16
Location: Lund, Sweden
Hi!
Just bought me a great little big amp, Fender Excelsior... it IS a great amp. Been playing around with it for a couple of days now, different guitars, different input jacks loud and silent... WOW!
Yesterday I found it was pretty easy to use an external speaker with this Excelsior and it sounded SO good in 4x12 cabinet. Now to the point...

I want to build a little box with jacks to make it fool proof (well, almost...) to use an Ext speaker

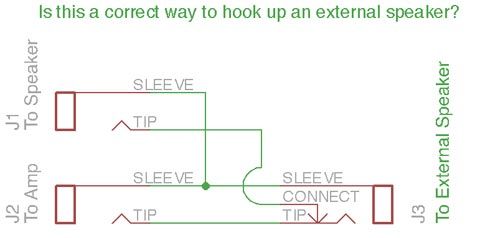

Here's my schematic... am I thinking right?


J1 is connected with the tele plug from the speaker...
J2 is connected (with a small speaker cable I have to make) to the amp speaker jack.
J3 is a jack with a switch function so that the Excelsior will use the internal speaker if no external speaker is connected. The internal will be cut off when an external is used...

Have I got it right? :?:

My idea is to mount a small aluminum box with the jacks inside the Excelsior somewhere... short cables must be better, right? Less hum that way or?

Thankful for all kind of help I can get...

/ Sune
