Post subject: Cheap Ruby 5AR4 GZ34's in the DRRI
Posted: Thu Dec 08, 2011 5:32 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
Yet another buzzing 5AR4 and I'm sure its the original from the 1990's so just how long did the original owner put up with the buzz ?

So here is my choice without spending big $$$'s

JJ, TAD, Sovtek

I used a jj In the last one without any issues.

Any Suggestions ?

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Cheap Ruby 5AR4 GZ34's in the DRRI
Posted: Thu Dec 08, 2011 5:45 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
I'd go TAD GZ34. JJ has had some serious QA issues that last few years with their power and rectifier tubes.

http://www.tubeampdoctor.com/en/shop_TA ... LECTED_386

Or get the 5V4GA mislabeled US mil spec 5AR4. These are truly 5AR4/GZ34.

http://www.ebay.com/itm/5AR4-Rectifier- ... 5889ea818b


Top
Profile
Post subject: Re: Cheap Ruby 5AR4 GZ34's in the DRRI
Posted: Thu Dec 08, 2011 5:46 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
I have a Sovtek in my Vibroverb, an original Mullard in my '65 Princeton Reverb, and (believe it or not), an OEM Groove Tube in my '93 DRRI which may very well be original to the amp.

If you're buying new I'd say you prolly won't go wrong with a TAD, EHX, or a Sovtek.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Cheap Ruby 5AR4 GZ34's in the DRRI
Posted: Thu Dec 08, 2011 5:58 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
so are all 5V4GA's the same ?
if not how do you know which will work ?

Thanks !!!!

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Post subject: Re: Cheap Ruby 5AR4 GZ34's in the DRRI
Posted: Thu Dec 08, 2011 6:21 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
No. Only these late 1980's "5V4GA" labeled Philips/Sylvania mil spec rectifiers are truly 5AR4. The "real" 5V4GA cannot handle the current demands RMS, nor the max current per plate of a real 5AR4.

Compare the structure of the mislabeled 5V4GA (= 5AR4) versus a real 5V4GA:

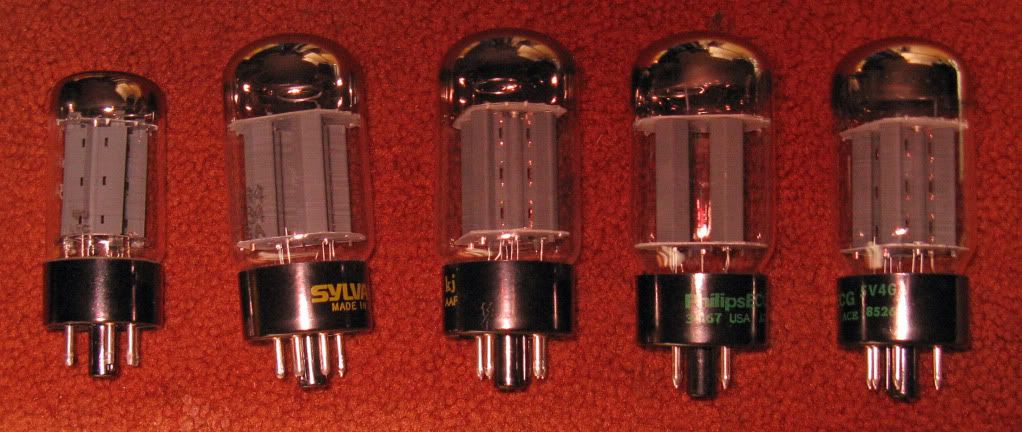

mislabeled 5V4GA on right, Sylvania 5AR4 in middle, Mullard GZ34 on left :

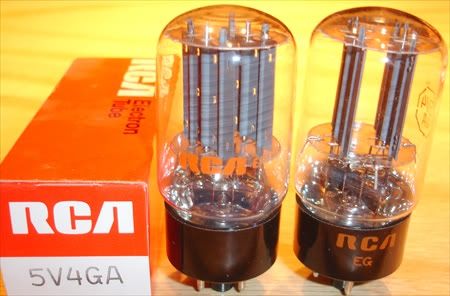

real 5V4GA:



Top
Profile
Post subject: Re: Cheap Ruby 5AR4 GZ34's in the DRRI
Posted: Thu Dec 29, 2011 10:41 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
I did two things

First I replaced the GZ34 with a sovtek
second I replaced the coin base 6V6's I had (tension grippers didn't make contact with the base)
I just happened to have another sweet set of 6V6 RCA's that were a very close match.

No More Buzz !!!

Those Ruby GT 5AR4's have caused me trouble three times now in three different DRRI's

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive
