Post subject: Photos of my Homemade 2X12 cabinet
Posted: Sat Feb 19, 2011 3:18 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 06, 2008 12:07 pm
Posts: 383

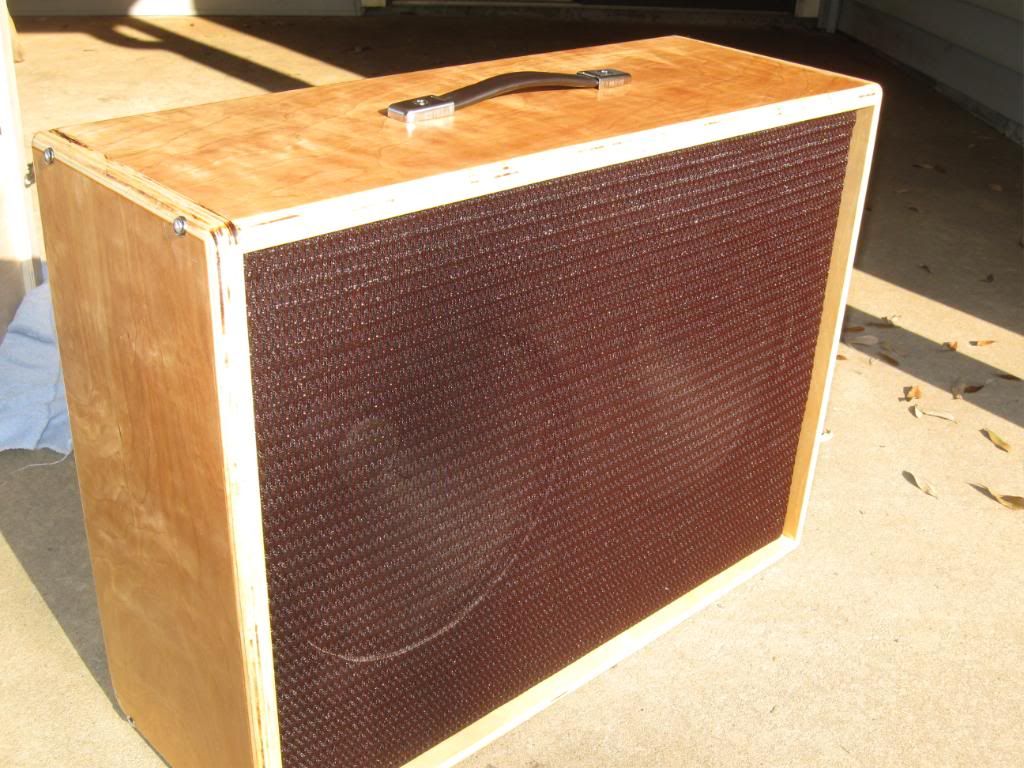

So, I am recovering from tennis elbow--which includes lots of not-playing-guitar time. So with my free time, I built my first speaker cabinet. It was fun and a lot easier than I thought it would be.

27 X 20 X 10" (roughly the size of a Fender Twin)

3/4" China Birch 4' X 4' $22 (half a sheet--I have the other half in the garage)
Screws, sandpaper, polyurethane, etc: $35
Fender Oxblood Grill Cloth http://angela.com/search.aspx?find=grill+cloth: $23
Handle, Jack Plate, Feet, etc http://www.mojotone.com : $16
Approximate total of parts: $96

I used a home table saw, miter saw (not necessary), drill, router, and orbital sander. Borrowed some 3 ft wood clamps.

The speakers are Celestion Alnico Blues I bought from http://www.avatarspeakers.com


I had so much fun, I'm going to build another one.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sat Feb 19, 2011 5:19 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Mon Feb 08, 2010 9:40 am
Posts: 987
Very cool... I've always thought it would be fun to build an extension cab for my twin. Well done!


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sat Feb 19, 2011 5:29 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Fri Feb 29, 2008 9:49 pm
Posts: 3233
Location: Memphis
Pretty Cool!

_________________
Hey, Boy Blue is back!


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sun Feb 20, 2011 10:20 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Nov 04, 2010 12:13 am
Posts: 1174
SOLID!


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sun Feb 20, 2011 12:46 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Feb 15, 2009 3:52 pm
Posts: 2005
Nice!

Been thinking of doing one myself! :idea:

What did you use for plans? Or was it a educated guess?

_________________
-T

"You can't spend what you ain't got, you can't lose what you ain't never had" ~ McKinley Morganfield


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sun Feb 20, 2011 1:59 pm
Offline
Amateur
Amateur
User avatar

Joined: Tue Jun 02, 2009 1:33 am
Posts: 154
Location: Salonica-Greece
I have no knowledge of how to build a cabinet but I'm wondering two things
1) Shouldn't the speaker poles be connected in parallel or does your way (in series) is how it's done?
2) Wouldn't be better if you had left some openings for the bass relief?

_________________
Alexander
AMSTD Strat RW Candy Cola +Callaham + Texas Specials +Tortoise shell pickguard/Fender Blues Junior III SN FSR
Salonica-Greece

Macedonia IS GREECE the last 2500 years


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sun Feb 20, 2011 2:31 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 06, 2008 12:07 pm
Posts: 383
tyronne wrote:
Nice!

Been thinking of doing one myself! :idea:

What did you use for plans? Or was it a educated guess?


I could not find plans. I took my Marshall 4 X 12 cabinet "apart" to study it.
Basically:

I started with a 4 X 4' 3/4" 11-ply Birch plywood (don't waist your effort on other types of plywood)

Front and Back 25.5" X 18.5"
Right and Left 20" X 10"
Top and Bottom 25.5" X 10"

I butted the top and bottom to the sides of the right and left...this gives outside dimensions of 27" X 20" X 10"

The inside furring strips are 3/4" by 3/4"
25.5" (4)
17" (2)
4 to 5" (4)

the back strips are the 2-17" and 2-25.5". Set them in 3/4" back from the edge.
the front/baffle board strips are the 2-25.5" and the 4 5" strips placed with gaps where the speakers will be close to the edge. Set them in 1 1/2" back from the edge to give some "recess" for the speaker baffle.

Everything was wood-glued. Clamps, clamps, clamps. I used 1 1/4" #8 wood screws for the top/bottom/left/right/back. But glue is strong enough without screws.
The furring strips are attached by glue only.

Take your time cutting the circles out for the speakers. The holes should have an 11" diameter. The speaker mounting holes are 8 1/4" apart. I used a jig saw for the circles but I used a router with a home-made circle jig for my second cabinet (in progress)

Warning: I am not a professional cabinet maker. Don't trust my instructions without checking your own measurements, etc. Of course, keep your fingers away from the blades! :roll:
2nd Warning: This is fun! :P


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sun Feb 20, 2011 2:38 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 06, 2008 12:07 pm
Posts: 383
Alex_Under wrote:
I have no knowledge of how to build a cabinet but I'm wondering two things
1) Shouldn't the speaker poles be connected in parallel or does your way (in series) is how it's done?
2) Wouldn't be better if you had left some openings for the bass relief?


Hi.
The speakers were 8 ohms each. By wiring them in Series, I have a 16 ohm load.
If my speakers were 16 ohms each, wiring them in Parallel would yield an 8 ohm load.
I chose 16 ohms, because I plan on building another cabinet. With two 16 ohm cabinets, the combined, parallel load will be 8 ohms.

Question 2: I thought about an open back design, such as with a Fender Twin or Hot Rod Deville, but I chose to go closed back hoping for more focused bass. Marshall's cabinets, both 4X12 and 2X12 (model 1936) are sealed closed. I am very happy with the sound I'm getting.

Thanks for your questions. Believe me, I asked a lot of questions while building this cabinet, too. :)


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sun Feb 20, 2011 2:58 pm
Offline
Professional Musician
Professional Musician

Joined: Sun Dec 19, 2010 12:00 pm
Posts: 1389
Great job 8) 8) 8) 8)

_________________
Tissan

*'52 Telecaster RI, '57 Stratocaster RI, Gibson ES175 RI, Washburn Hawk 1980, Epiphone Casino MIK 2000, 57' Deluxe Knotty Alder, BDRI ...*
https://soundcloud.com/pierrou
http://www.youtube.com/user/Jazzenfamille


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sun Feb 20, 2011 3:44 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jul 16, 2007 6:51 pm
Posts: 25353
Location: Witness Protection Program
Looks good - - any rattles when using it?

_________________
Being able to play and enjoy music is a gift that's often taken for granted.

Don't leave home without it!


Top
Profile
Post subject: Re: Photos of my Homemade 2X12 cabinet
Posted: Sun Feb 20, 2011 3:49 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 06, 2008 12:07 pm
Posts: 383
Miami Mike wrote:
Looks good - - any rattles when using it?


Nope. No rattles.


Top
