Post subject:
Posted: Fri Oct 29, 2010 1:01 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat May 08, 2010 4:31 am
Posts: 411
Location: France
I agree, you don't need to drain capacitors to adjust your bias, even put your fingers within the chassis. On top of that, I DONT recommand to use a resistor with bended wires to drain caps due to the fact that there is no isolation.

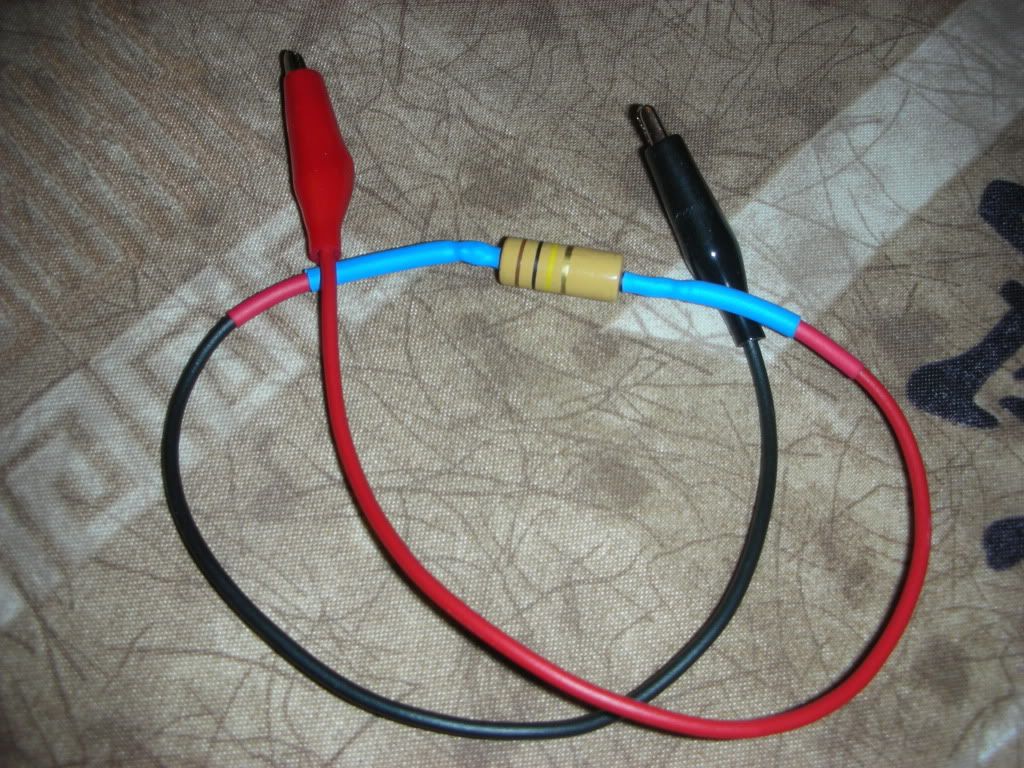

For information, here is my drain capacitor:
100K + wires + crocodile AND all fully isolated.

_________________
Tissan '52 Tele RI & Washburn Hawk 1980, Epiphone Casino MIK, Blues Deluxe RI & VOX ...


Last edited by Tissan on Sun Oct 31, 2010 4:05 am, edited 10 times in total.

Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: BDRI biasing
Posted: Fri Oct 29, 2010 1:06 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827
shimmilou wrote:
63supro wrote:
...Without knowing the actual plate voltage the mv values mean nothing....


Excellent point 63supro! I presumed that his amp was close 440 plate volts like mine, and 65 mV at the test point would be about 28 mA of Plate current per tube, about 12.5 watts idle Plate dissipation (about 50% for a 5881), still on the cold side lol. 85 mV then would be about 17 watts idle, or 70% of a 5881 25 watt tube. I guess that the JJs were 30 watt tubes so 85 mV sounds pretty good. For me it depends on the amp for the bias setting. I like the HRDlx at about 50%, but I like the BJr closer to 70%. To me the 50%-70% range is ideal, and within most everyone's specs. :)

I started to post about the Plate current/voltage/wattage, but I thought it might be too much for the OP. :lol:


You can't really presume anything with these amps. Like bluesky636 said, the power supplies on these amps aren't well regulated. Cheap components are cheap components. You get what you pay for. Even the guy who does the biasing video on tubedepot.com mentions how bad the tube socket connections are to the board. This can also effect the voltage readings. Reason #899 as to why I sold my HRDlx. LOL

_________________
Life...... It's sexually transmitted and always fatal


Top
Profile
Post subject:
Posted: Fri Oct 29, 2010 1:39 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat May 08, 2010 4:31 am
Posts: 411
Location: France

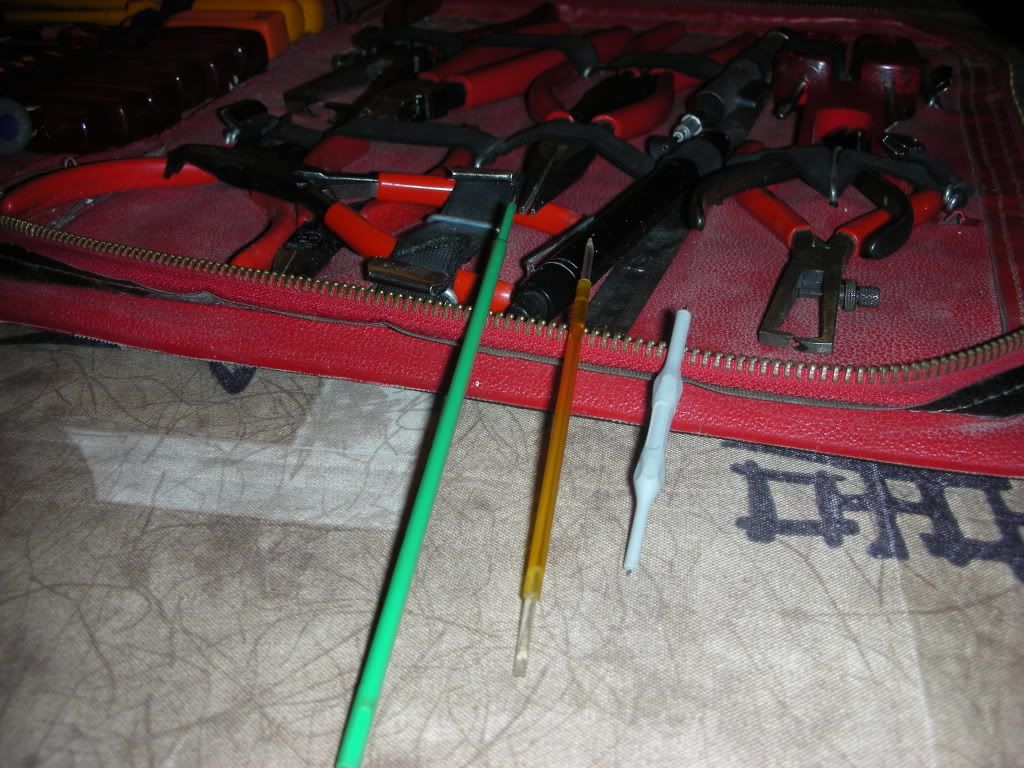

Here are a set of isolated screwdrivers I use for bias setting or RF-IF adjustments:

_________________
Tissan '52 Tele RI & Washburn Hawk 1980, Epiphone Casino MIK, Blues Deluxe RI & VOX ...


Last edited by Tissan on Sun Oct 31, 2010 4:06 am, edited 2 times in total.

Top
Profile
Post subject: Re: BDRI biasing
Posted: Fri Oct 29, 2010 2:42 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
shimmilou wrote:
63supro wrote:
...Without knowing the actual plate voltage the mv values mean nothing....


Excellent point 63supro! I presumed that his amp was close 440 plate volts like mine, and 65 mV at the test point would be about 28 mA of Plate current per tube, about 12.5 watts idle Plate dissipation (about 50% for a 5881), still on the cold side lol. 85 mV then would be about 17 watts idle, or 70% of a 5881 25 watt tube. I guess that the JJs were 30 watt tubes so 85 mV sounds pretty good. For me it depends on the amp for the bias setting. I like the HRDlx at about 50%, but I like the BJr closer to 70%. To me the 50%-70% range is ideal, and within most everyone's specs. :)

I started to post about the Plate current/voltage/wattage, but I thought it might be too much for the OP. :lol:


As I noted above, the plate voltage of my BDRI drops quite a bit as bias current increases. I don't know if that is typical of teh amp in general, or just mine. It doesn't seem to cause any problems as the amp sounds great.

_________________
Bill



Top
Profile
Post subject: Re: BDRI biasing
Posted: Fri Oct 29, 2010 3:00 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
bluesky636 wrote:
As I noted above, the plate voltage of my BDRI drops quite a bit as bias current increases. I don't know if that is typical of teh amp in general, or just mine. It doesn't seem to cause any problems as the amp sounds great.


That should be the case for all amps, the more idle current through the primary of the OT, the more voltage dropped across it, which is less voltage left for the Plate. :)

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject:
Posted: Fri Oct 29, 2010 3:14 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat May 08, 2010 4:31 am
Posts: 411
Location: France
I confirm that normal, this is due to Transformer secondary impedance with more current that react on primary, using simply words: output transformer internal resistor multiplied by idle current gives you less voltage out available.
8)

_________________
Tissan '52 Tele RI & Washburn Hawk 1980, Epiphone Casino MIK, Blues Deluxe RI & VOX ...


Top
Profile
Post subject:
Posted: Fri Oct 29, 2010 3:57 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
shimmilou/Tissan:

Whew. I thought that was the case. Makes sense. Glad to hear that confirmed.

_________________
Bill



Top
Profile
Post subject:
Posted: Fri Oct 29, 2010 4:40 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Oct 10, 2010 8:54 am
Posts: 50
Hey guys, using this link http://www.justinholton.com/hotrod/bias.html I learned how to measure the plate voltage at the pin 3 point. Mine measured to 409 V for one tube and 411 V for the other tube. I then entered the data into the calculator, and it came up with these results:

Calculated static plate dissipation of V4: 13.394 W
Calculated static plate dissipation of V5: 13.460 W

Does this sound good?

Thanks!


Top
Profile
Post subject: BDRI biasing
Posted: Fri Oct 29, 2010 5:03 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
That is pretty good for the 25 watt tube, maybe a little on the cold side for a 30 watt tube. I am not sure of the rated wattage of your tubes, but whichever you have they should be adjusted somewhere between 50-70 percent of the max rated value. So, a 25 watt tube would be between 12.5 and 17.5 watts. A 30 watt tube would be between 15 and 21 watts idle. :)

Be very careful if you're going to measure voltage at the pins of the tube, it is very easy to slip and short some things out. I measure my plate voltage from ground to one of the output transformer primary leads. The connector on the circuit board has a little groove at the top to steady the meter lead on. It might be a good idea to get a bias probe while you are learning. I like the one that Eurotubes sells, you can measure the Plate current directly, instead of the Cathode current translated from a voltage drop across a 1-ohm resistor, like many other probes use (and the test point in your amp). :idea:

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject:
Posted: Fri Oct 29, 2010 5:28 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
dgcobb wrote:
Hey guys, using this link http://www.justinholton.com/hotrod/bias.html I learned how to measure the plate voltage at the pin 3 point. Mine measured to 409 V for one tube and 411 V for the other tube. I then entered the data into the calculator, and it came up with these results:

Calculated static plate dissipation of V4: 13.394 W
Calculated static plate dissipation of V5: 13.460 W

Does this sound good?

Thanks!


That's one of the tables I use. I also use this one:

http://www.webervst.com/tubes1/calcbias.htm

Use the top calculator to determine the maximum (70%) safe bias setting. Select Class AB, your tube type, and your measured plate voltage.

Then use the next calculator down with your measured plate voltage and cathode current (Use 1/2 of the voltage measured at the Fender test point. At that point, mV = mA since you are measuring across a 1 ohm resistor). This will give you your tube power rating and will calculate the approximate plate current.

Finally, you can use "Jim Jones' Bias Tables" for your tube type to determine the safe range of bias for your tubes and amp.

Works great.

_________________
Bill



Top
Profile
Post subject: Re: BDRI biasing
Posted: Fri Oct 29, 2010 5:32 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
shimmilou wrote:
Be very careful if you're going to measure voltage at the pins of the tube, it is very easy to slip and short some things out.


Who would do something as dumb as that? :shock: :shock: :shock:













Me. :oops: :oops: :oops: :oops:





I use this bias probe now:

http://www.amp-head.com/product_info.ph ... ucts_id=70

_________________
Bill



Top
Profile
Post subject:
Posted: Fri Oct 29, 2010 5:49 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
:lol: Yeah, you, me, and baby makes three,... at least. I can probably even tell you which screwdrivers make the best welding rods. :lol:

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject:
Posted: Fri Oct 29, 2010 6:24 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
dgcobb, here is what thetubestore has about your tubes. Looks like they are 30 watt tubes.

"...To my surprise I tried the 6L6WGC-STR and it was magic. I got the same tone as the old G.E. tubes but the biasing was colder than what I used for NOS tubes in the past, closer to 55% or about 17 watts at idle as opposed to 20 – 25 watts (70-80%) that most people seem to like for rock or blues.

http://thetubestore.com/6l6templeton.html#30

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject:
Posted: Fri Oct 29, 2010 8:21 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
I know this sounds anal, but what the heck. To measure the idle wattage dissipation of the power tube you need to subtract the ground to cathode wattage from the ground to anode wattage. That is, measure not only ground to anode voltage, but also ground to cathode... then subtract the difference to calculate the actual cathode to anode idle dissipation, in watts.

Ok, off the soapbox for me...


Top
Profile
Post subject: BDRI biasing
Posted: Fri Oct 29, 2010 9:08 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Hi BMW2002Ti,

Really, the rating of the tube is only Plate dissipation (Anode), not tube dissipation. The Cathode to ground measurement would be the 1-ohm resistor, outside the tube. The 1-ohm resistor is only there for the convenience of a test point, because normally the Cathode would be grounded (no voltage difference in ground and Cathode). Remember that the current through the Cathode is the Plate current plus the grids currents. And if you really want to be anal, don't forget the wattage of the filaments (JK, it doesn't matter). :lol:

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
