Post subject: Check out this Blues Jr....
Posted: Tue Mar 09, 2010 10:29 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Mon Aug 13, 2007 1:14 pm
Posts: 13

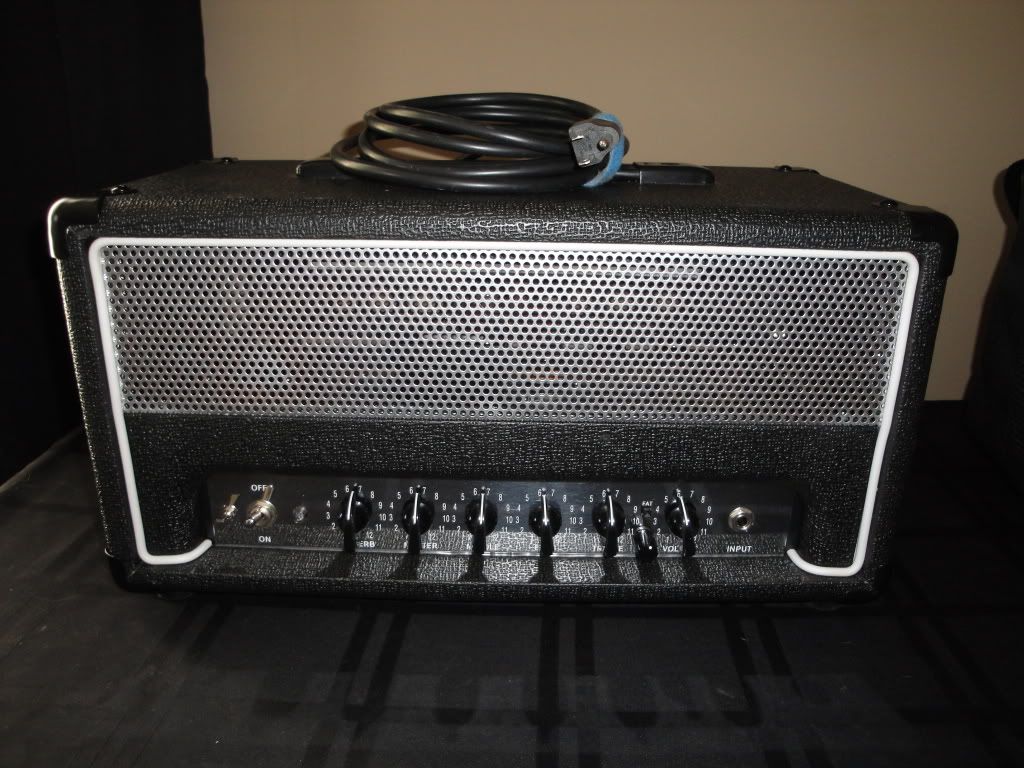

Finally just about done with the Blues Jr Head unit project. Has been fun for sure and has kept me busy for most of the winter on and off. Here are the mods:

Stock Cream board model BJ to start (Black tolex, Eminence speaker)
Orange drop tone stack capacitors
Adjustable bias trimpot
Power supply stiffening capacitor
Twin stack mod
Presence control
High Voltage preamp mod
Switch craft all metal input jack
Audio taper master volume and reverd control
Billm Audio Clean boost module
Stereo footswitch control jack
TO22 Heyboer OT
Standby Switch
Aux speaker Jack

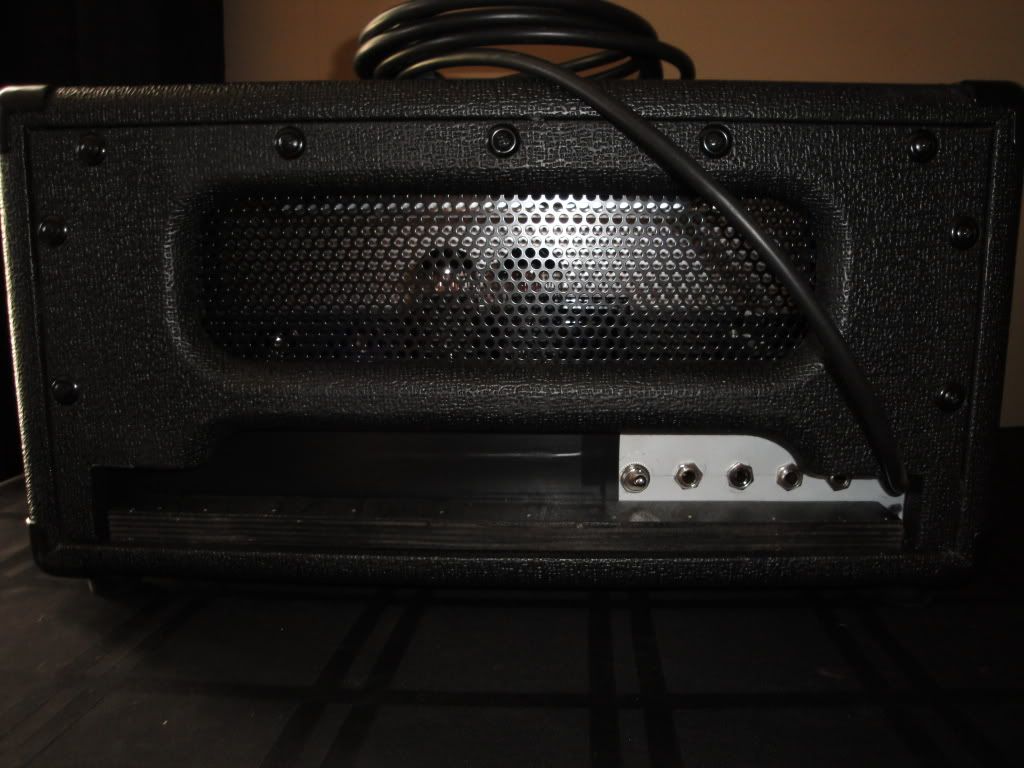

Line out Jack
Octal Socket conversion kit - J/J 6V6 Tubes
Preamp tubes-V1 EH 12AY7, V2 J/J 12DW7, V3 J/J 12AX7 (Ballanced Triodes)
Eminence Lil Texas 12" Speaker
Head Unit conversion
Blackheart BH15H Head cab used
Hand cut/bent perforated grill
Blue LED light/bezel installed

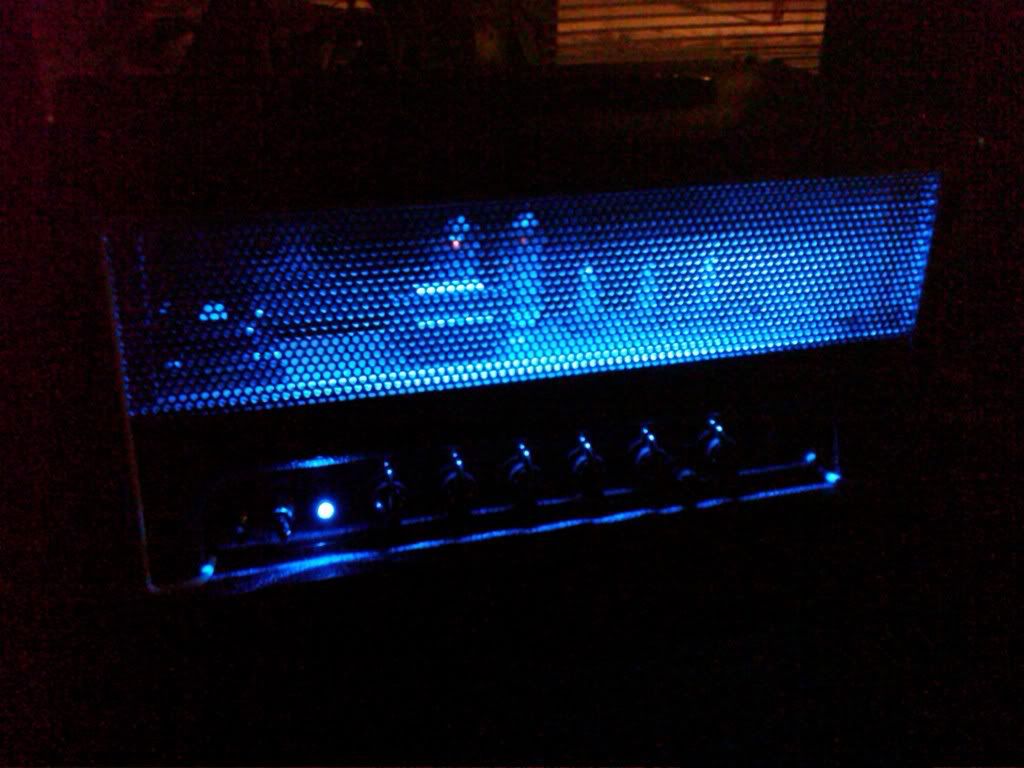

Blue LED light bar installed in Head Cab
LED Light switch installed in Face plate

Still to do:
Cathode Follower Mod for V2










Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Tue Mar 09, 2010 2:31 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Sep 16, 2007 7:32 pm
Posts: 1384
Location: uɐʇsıʞɔnuɐɔ 'puɐlʇɐlɟ
WoW,
so the big question what's it sound like now ?

_________________
Keep on Truckin, Going full speed ahead down the highway to hades.


Top
Profile
Post subject:
Posted: Tue Mar 09, 2010 5:30 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Jul 29, 2009 10:03 am
Posts: 9449
Location: NL Canada
That is certainly a fine very neat job,you are to be commended,I don't understand why they didn't put a standby switch in the Blues Jr. anyway. How big is the difference in tone?I imagine it would be significant after all these mods as well as probably a noticeable increase in peak volume. Also how does it sound now with the master turned down and the volume maxxed, does it make a big difference with the overdrive?Sorry about all the questions but I just bought a Blues Jr. and I'm getting acquainted with it and it's a great little amp as is and I imagine that the mods make it a little tone monster.

_________________
'65 Strat,65 Mustang,65 Jaguar,4 more Strats,3 vintage Vox guitars,5 Vox amps,'69 Bassman with a '68 2-15 Bassman cab,36 guitars total-15asst'd amps total,2 vintage '60s Hammond organs & a myriad of effects-with a few rare vintage ones.


Top
Profile
Post subject:
Posted: Tue Mar 09, 2010 5:38 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sun Aug 05, 2007 4:56 pm
Posts: 10
Location: Nor Cal
Very Nice !!!!!


Top
Profile
Post subject:
Posted: Wed Mar 10, 2010 1:01 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 24, 2009 12:05 am
Posts: 1400
Location: Australia
That is WAY COOl dude!

It always amazes me when people start modding stuff. I always think "why not just buy a different amp if you're not happy with the one you have?" but if you take it to your level it's just a really cool thing to do isn't it!

Cheers.

_________________
_______________________________________
MIM Std Tele, MIM HSS Strat, Homemade Mongrel Tele, Blues Jr, Champ600, coupla pedals...sweeeet!


Top
Profile
Post subject:
Posted: Wed Mar 10, 2010 1:13 am
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
I'm next!!

Maybe.

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Top
Profile
Post subject:
Posted: Wed Mar 10, 2010 1:24 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Jul 29, 2009 10:03 am
Posts: 9449
Location: NL Canada
This morning I ran my Blues Jr. through my Marshall 1960 4-12 cab loaded with G25 L Celestions and was absolutely amazed by the difference in sound.I wrote my overall comments in the lounge section.Ican just imagine how one would sound with the above mods.

_________________
'65 Strat,65 Mustang,65 Jaguar,4 more Strats,3 vintage Vox guitars,5 Vox amps,'69 Bassman with a '68 2-15 Bassman cab,36 guitars total-15asst'd amps total,2 vintage '60s Hammond organs & a myriad of effects-with a few rare vintage ones.


Top
Profile
Post subject:
Posted: Wed Mar 10, 2010 2:22 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Fri Feb 29, 2008 9:49 pm
Posts: 3233
Location: Memphis
WOW!!! Great Job!

Bill

_________________
Hey, Boy Blue is back!


Top
Profile
Post subject:
Posted: Fri Mar 12, 2010 4:21 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
...... deleted for security

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Last edited by BMW-KTM on Thu Mar 25, 2010 7:10 pm, edited 1 time in total.

Top
Profile
Post subject:
Posted: Fri Mar 12, 2010 7:28 pm
Offline
Professional Musician
Professional Musician

Joined: Fri May 15, 2009 12:39 pm
Posts: 1466
Location: Birmingham UK
Needs a logo..

Looks like great work - nice one

_________________
Fender Highway & Classic 60s Strats, Fender Toronado, Telecaster, Gretsch Projet, Charvel 3, PRS SE Soapbar II & Custom 24, Burns Batwing and many others!


Top
Profile
Post subject:
Posted: Sat Mar 13, 2010 9:13 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Dec 13, 2008 11:49 am
Posts: 1153
Location: South Bay, CA
very nice!

Check out this site for the finishing touches:

http://www.amplates.com/nameplates.html

_________________
'59? Bogen Challenger CHA-33, '65 Bandmaster, '65 Tremolux, 65 Showman;
'74 SF Princeton; '77 SF Princeton Reverb; Dr. Z Mini Z

Our band: http://www.facebook.com/thetoysband


Top
Profile
Post subject:
Posted: Mon Apr 12, 2010 12:25 am
Offline
Hobbyist
Hobbyist

Joined: Mon Apr 12, 2010 12:21 am
Posts: 1
wow.. amazing amazing work.. If you wouldn't mind me asking how were you able to increase the voltage to power that blue led indicator? I'm trying to do the same to mine right now but the output is only at 1.5v so its not enough to light up the blue led.. thanks!


Top
Profile
Post subject:
Posted: Mon Apr 12, 2010 5:23 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jan 15, 2010 12:24 pm
Posts: 25
I guess it is a legitimate question.."why mod, just buy another amp" . However, most of us do the mod thing for:
Challenge
Hobby
Making a unique amp unlike any other
Like the sound of the stock amp, but want to make it even better.
Like the amp, and just want additional features (ie. standby switch,presence control).

I guess some people always look to improve, tinker etc., some just want plug and play out of the box. There is no right philosophy, just different ones.


Top
Profile
Post subject:
Posted: Mon Jul 05, 2010 9:07 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Jul 17, 2007 9:03 pm
Posts: 1
I just did these same mods to my Blues Junior. I turned it into a head also. I made my own cabinet instead. I did all that, rather than buy new amp because I like to tinker and it was a challenge. Plus it looks cool as a head unit. 8)

Where did you find the perforated metal? I was looking for that exact pattern and couldn't find it. What did you cut it with? What did you shape it with?

Did you keep the Reverb tank? I made my cabinet large enough to house the Reverb Tank below the chassis. So the chassis sits about 4 inches above the base of the cabinet. Far enough away from the Transformers to avoid interference.

How did you wire in the Blue LED bar to the chassis? I considered doing something along those lines but didn't know how to wire it in.

Thanks
