Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Wed Feb 22, 2017 1:47 pm
Offline
Amateur
Amateur

Joined: Sat May 25, 2013 10:02 pm
Posts: 197
stratele52 wrote:
BMW2002Ti wrote:

Did you do this bypass fix? Or a previous owner?

The lead of the red wire is touching onto a tracing. :(


Ryan41018, please post pictures on forum, not link.

As Retroverbial and BWM write, this wiring/ jumper job is a piece of junk.
Your redplating may come from this poor job.
Amp need to see a qualified person who know how to solder properly.

Post a photo of all the board


Photos of whole back of the board are linked in the post.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Wed Feb 22, 2017 2:29 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada

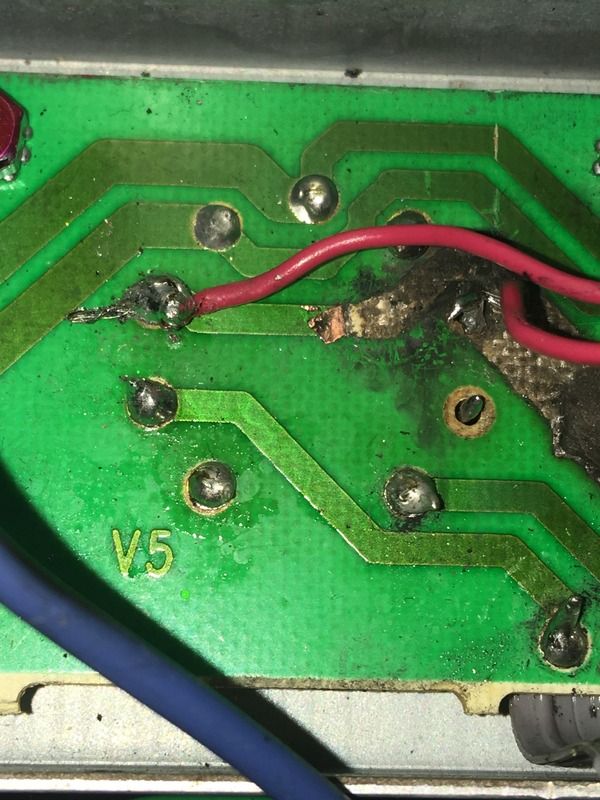

Board on one picture will be helpful, not link

Very very bad job;



Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Wed Feb 22, 2017 4:11 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
stratele52 wrote:
Very very bad job;


+1

That's some sadass lookin' $hit.

:shock:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Wed Feb 22, 2017 5:33 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
From the photos it looks like pin 3 (cathode) saw a whopping current surge and fried the board tracings to ground. Most likely due to a shorted EL84, at the time.

Fixing this will prolly require a complete rewiring to a proper grounding point. ALL screen, grid stopper, grid-to-ground, and cathode-tied reading resistors (if they exist) will need to be inspected. As well as V5 socket for thermal damage or carbon tracking.


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Wed Feb 22, 2017 10:30 pm
Offline
Amateur
Amateur

Joined: Sat May 25, 2013 10:02 pm
Posts: 197
Great News!!! Removed all solder and cheesy wiring on V5, Reflowed and re-jumped pins that fried AND SHE IS UP AND RUNNING MY FRIENDS!

STRATELE52 NAILED IT, when he said i bet your shorting out on the pins. Thanks guys


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Wed Feb 22, 2017 11:30 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Glad you got it to work! Good thing it seemed to be a simple fix. :)


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Thu Feb 23, 2017 2:28 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Congrat and enjoy. :)


Last edited by stratele52 on Thu Feb 23, 2017 2:31 am, edited 1 time in total.

Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Thu Feb 23, 2017 2:30 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Time to spin the volume knob to "12" and beat that thing like a rented mule.

8)

Arjay
