Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 10:45 am
Offline
Amateur
Amateur

Joined: Sat May 25, 2013 10:02 pm
Posts: 197
stratele52 wrote:
I do a mistake forget pin 3, we should work with pin 2 not 3 , bias -7 vdc are at pins 2 of each EL84; do you read it - 7 vdc ?

Sorry :oops:


- 7vdc go to C - at C33 on schematic.
C- go to R31, R32 just follow the way to pins 2;

R32 go to R34 by a connector and go to pin 2 of one EL84
R31 go to R33 by a connector and go to pin 2 of other EL84
At each resistor on these paths you must read -7 vdc


Both Cs- are show on this picture




strattele52-

V4 Reads -8.35
V5 Reads 30.43
C33 on one leg reads 0 and the other -8.31
R32 on one leg reads -8.48 and other leg reads 30.20
R34 both leg read 30.55 & 30.80
R31 Both leg reads -8.37 & -8.39
R33 both legs read -8.33 & -8.38


Hope I understood you correctly - these are what I measured


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 12:00 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Ryan41018 wrote:
stratele52 wrote:
I do a mistake forget pin 3, we should work with pin 2 not 3 , bias -7 vdc are at pins 2 of each EL84; do you read it - 7 vdc ?

Sorry :oops:


- 7vdc go to C - at C33 on schematic.
C- go to R31, R32 just follow the way to pins 2;

R32 go to R34 by a connector and go to pin 2 of one EL84
R31 go to R33 by a connector and go to pin 2 of other EL84
At each resistor on these paths you must read -7 vdc


Both Cs- are show on this picture




strattele52-

V4 Reads -8.35 ; Pin 2 ? good
V5 Reads 30.43 ; Pin 2 ? do you mean +30 vdc or 30 vac ; WRONG This tube is red plating yes ?

C33 on one leg reads 0 and the other -8.31
0 is the ground, it is filter cap
R32 on one leg reads -8.48 and other leg reads 30.20
Broken wire ( or open restore or short with other component ? )here where is 30 volts

R34 both leg read 30.55 & 30.80 Wrong
R31 Both leg reads -8.37 & -8.39 Good
R33 both legs read -8.33 & -8.38 Good


Hope I understood you correctly - these are what I measured


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 1:42 pm
Offline
Amateur
Amateur

Joined: Sat May 25, 2013 10:02 pm
Posts: 197
Strattele52-

Yes V5 is reading 30 VDC and Yes this is the ONLY one Red Plating

I will change R34

I will check r32 for broken wire or check if contacting other component


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 2:04 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
R34 is good; It receive what the amp send between / at the jonction of R32 and R34.

You have to check, look carefully what in the circuit is "connected" to the jonction to R32 and R34.
Something is there to make a short and bring 30 volts; piece of wire , solder.....

Or something is wrong / short at tube's pin 2, the one glowing. The 30 volts may come from both sides.

Show pictures of the tube's socket with R32, R34, both sides of the circuit board


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 2:13 pm
Offline
Amateur
Amateur

Joined: Sat May 25, 2013 10:02 pm
Posts: 197
i will check tonight


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 2:31 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Ryan41018 wrote:
i will check tonight



I suspect solder bridge between tube's pin 2 and another pin.


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 8:12 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
You guys following this schematic?

http://www.gitaarhobby.nl/gitaar-images ... Manuel.pdf

I see C33 as a high-frequency snubber on the 12AX7 phase inverter? :?:


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 9:09 pm
Offline
Amateur
Amateur

Joined: Sat May 25, 2013 10:02 pm
Posts: 197

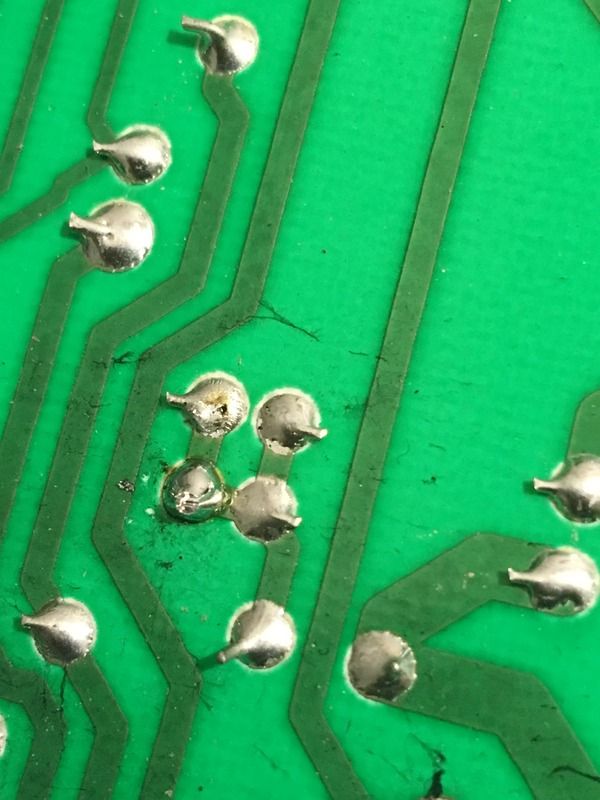

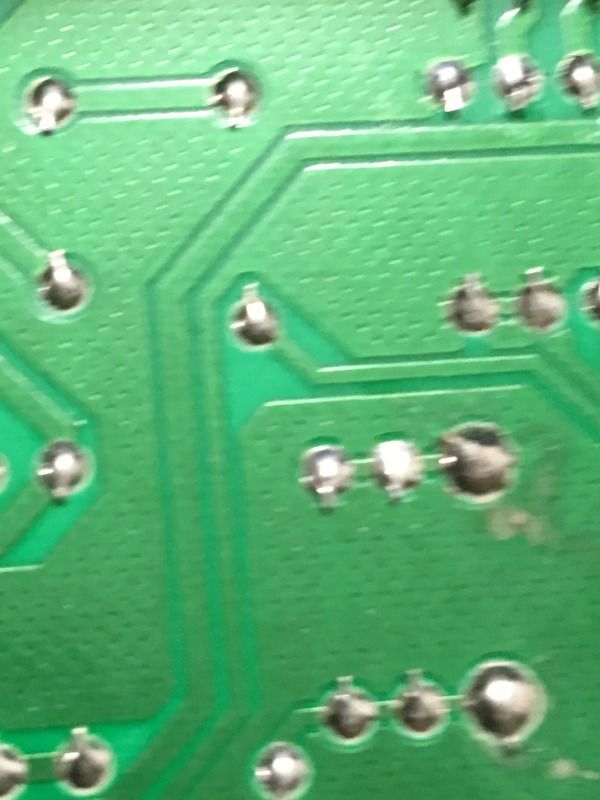

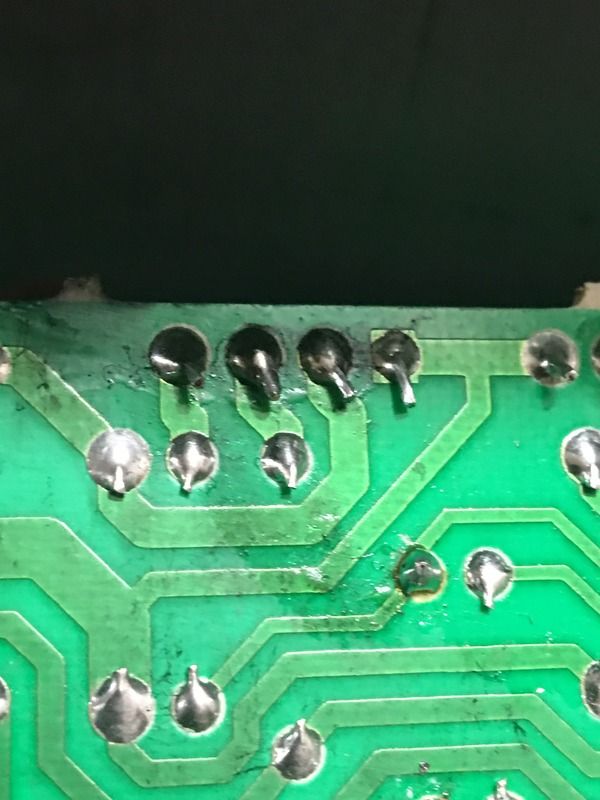

Below are photos of V5

http://i7.photobucket.com/albums/y286/69targa912/CF577E54-7859-4653-B533-D7C3E865730D_zps1cyie8ub.jpg

http://i7.photobucket.com/albums/y286/69targa912/026E6DAC-25BE-405C-86B9-679195AC73F4_zpst006fyxs.jpg

http://i7.photobucket.com/albums/y286/69targa912/F6406801-417F-4F28-9C2B-03056AFA3B35_zpsj9txb0jc.jpg

http://i7.photobucket.com/albums/y286/69targa912/0EABFBFA-F2B8-472F-8DF3-A14CA5D2597C_zpsl8f7e6dz.jpg

http://i7.photobucket.com/albums/y286/69targa912/92AEDFF3-0682-4740-BDB7-39D474A296F1_zpsemqq5grz.jpg


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 9:13 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

Did you do this bypass fix? Or a previous owner?

The lead of the red wire is touching onto a tracing. :(


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 10:04 pm
Offline
Amateur
Amateur

Joined: Sat May 25, 2013 10:02 pm
Posts: 197
BMW2002Ti wrote:

Did you do this bypass fix? Or a previous owner?

The lead of the red wire is touching onto a tracing. :(



This is the way i got it.....are you telling me that the wiring touching the green trace is a no no?


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 10:10 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
It doesn't appear that the wire should bridge anything but the region of the burnt tracings. IMHO, that was a terrible job. You have more photos of the entire "fix?"

You may end up re-doing another tech's poor patchwork, to get this amp to anywhere near reliable. :cry:


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 10:37 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
BMW2002Ti wrote:


HOLY EXCREMENT!

:shock:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 10:40 pm
Offline
Amateur
Amateur

Joined: Sat May 25, 2013 10:02 pm
Posts: 197
Definitely nasty, but yeah she needs to be cleaned up. I'll pull that wire back away from the trace, but I've never heard of that being a problem unless the trace is lifted?


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Tue Feb 21, 2017 10:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Since the damaged tracing is near V5. And V5 is the problem tube... prolly safe to say the "fix" didn't work. Try to get more photos of the entire circuit board top and bottom. Esp areas where work was done.

Thanks!


Top
Profile
Post subject: Re: Blues JR III (2011) Red Plating V5 Only
Posted: Wed Feb 22, 2017 2:20 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
BMW2002Ti wrote:

Did you do this bypass fix? Or a previous owner?

The lead of the red wire is touching onto a tracing. :(


Ryan41018, please post pictures on forum, not link.

As Retroverbial and BWM write, this wiring/ jumper job is a piece of junk.
Your redplating may come from this poor job.
Amp need to see a qualified person who know how to solder properly.

Post a photo of all the board
