Post subject: 65 Twin Reverb owners ; tremolo !
Posted: Sun Nov 22, 2015 5:50 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Hi ,
The reverb is ON with foot switch and when I switch ON tremolo I hear a loud " clac" in speaker . No control by volume .
What about your 65 Twin Reverb ?

Reverb pot ; 4 or more . Louder at 10 than 4 .
Tremolo intensity , more than 4

Reverb OFF or reverb pot at 0 , no "clac " on tremolo

Thank's


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Sun Nov 22, 2015 8:14 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Stratele, leads from switch are not reversed?


Thanks!


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Sun Nov 22, 2015 8:42 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
BMW2002Ti wrote:
Stratele, leads from switch are not reversed?


Thanks!



Ground shield is at ground both sides, plug and jack .

Tremolo hot wire switch tremolo
Reverb hot wire switch reverb

I simulate a single switch for tremolo ; same loud "clac"


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Sun Nov 22, 2015 1:29 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

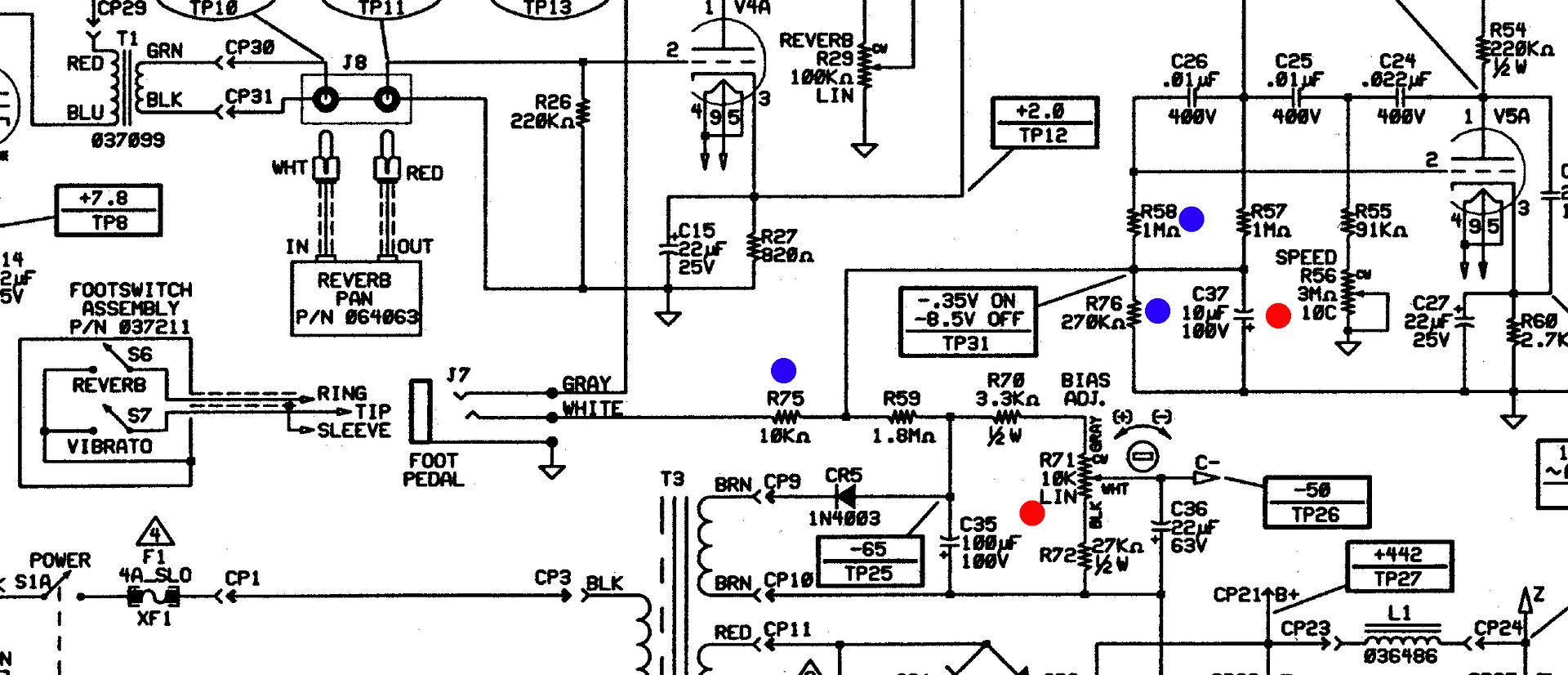

OK, got it. The TRRI has a couple of components not seen in the BF or SF TR. There is a cap hanging off the switch line, as well as another resistor. Maybe, these are bad or have cold solder points? Just a WAG.

See C37 and R75. C35 is the bias supply filter cap. This supplies C- to the tremolo circuit. Could also be leaky or dried out.

Good luck with the fix! Post your results.



Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Sun Nov 22, 2015 1:53 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Thank's for your answer BMW , but you don't know the story about this (mine ) amp .
It was converted to AB763 by Kendrick .

More story later ,

First I wish a answer to my question to stock 65 TR owners.


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Sun Nov 22, 2015 3:07 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
stratele52 wrote:
Thank's for your answer BMW , but you don't know the story about this (mine ) amp .
It was converted to AB763 by Kendrick.


Did the tremolo have the problem before Kendrick "converted" it?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Sun Nov 22, 2015 6:35 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Retroverbial wrote:
stratele52 wrote:
Thank's for your answer BMW , but you don't know the story about this (mine ) amp .
It was converted to AB763 by Kendrick.


Did the tremolo have the problem before Kendrick "converted" it?

Arjay


I don't think so, this is what my customer say .

Waiting for answer from my customer


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Mon Nov 23, 2015 6:34 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Thank's BMW 202Ti and Retroverbial ;

All components are good, solders too . I check everything very carefully .

1- If I use the stereo input jack with any kind of switches and /or separate wires , shielded or not I hear the loud "clac".

2- If I mod the switching like original AB753 ; two RCA input jacks , everything work fine , quiet . :lol:

3- If I disconnect the wire ( stereo jack ) for reverb switching from V4 pin 1 ,( AB763 circuit ) no more loud "clac" . Quiet .
Reverb is alway ON but that's my customer want . He always use reverb .
We can switch tremolo ON and OFF.

On 65 TR reissue different components may do the job to use a single stereo jack, to remove the spark . On AB763 , this jack do not work , two single RCA jack work . Why ???

I'll live the amp like that unless my customer ask to mod to two input RCA jacks .

Thank's BMW2002Ti , I appreciate your help


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Mon Nov 23, 2015 7:16 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Just receive e-mail from my customers , amp always do a "clac" whith original circuit and before it go to kendricks for mod to AB763.

So my question to 65 TRRI owners ; what about the "clac" when reverb is ON an you switch to tremolo ?


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Mon Nov 23, 2015 7:48 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
There is no "clack" when switching the trem on under those conditions with my 1999 model. No "tick", no noise at all, quiet as a church mouse.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Mon Nov 23, 2015 8:12 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Retroverbial wrote:
There is no "clack" when switching the trem on under those conditions with my 1999 model. No "tick", no noise at all, quiet as a church mouse.

Arjay



You have the stereo input jack with your foot switch ?

Very strange and mysterious ......


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Mon Nov 23, 2015 8:30 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Yes, exactly as it was made.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Mon Nov 23, 2015 10:07 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Retroverbial wrote:
Yes, exactly as it was made.

Arjay



:?

Very very confused


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Tue Nov 24, 2015 8:23 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Apr 28, 2012 5:37 am
Posts: 68
No noise with my post 2000 year model.


Top
Profile
Post subject: Re: 65 Twin Reverb owners ; tremolo !
Posted: Wed Nov 25, 2015 1:55 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
paul_f wrote:
No noise with my post 2000 year model.



Thank's for answer .

You do this test ? reverb knob at 10 , tremolo intensity at 10

Push ON tremolo switch.

No guitar , no playing . You did not ear a light "click " ?
