Post subject: 1983 Concert II Power Switch
Posted: Fri Feb 06, 2015 1:23 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 06, 2015 1:16 pm
Posts: 6
Hi. New to the forum. I have a 1983 Concert II (Rivera Era) combo. I need to replace the on/off power toggle switch. Does any one know how to access the switch to change it? Is the switch soldered or push-on type? Does anyone know the part number or of a Fender-like replacement?

Thanks.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 1983 Concert II Power Switch
Posted: Fri Feb 06, 2015 1:50 pm
Online
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Pictures please .

Most fender switches need to solder . Chassis mount with nut and washer .

Easy to find


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Fri Feb 06, 2015 2:04 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 06, 2015 1:16 pm
Posts: 6
stratele52

I'll take some pictures tonight after work and post them. Thanks.


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Fri Feb 06, 2015 5:24 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
I own one of these amps (an 84 2x10 version) and you have to remove the amp from the cab to access the switch. Here is a replacement for what you need.

http://www.angela.com/fendercarlingampl ... witch.aspx

This company is very good, and I only good things to say about their service and quality of parts.

HTH

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Fri Feb 06, 2015 6:24 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 06, 2015 1:16 pm
Posts: 6
T2Stratman,

I don't know if I am up to removing the amp from the cab, but I will take a look at it. Unfortunately there are no amp techs within 100 miles of here. Thanks for the parts link and the info on the switch replacement. Most helpful!


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Fri Feb 06, 2015 7:06 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 06, 2015 1:16 pm
Posts: 6
stratele52,

Well, I can't figure out how to post pictures, if it's allowed. I'll keep trying.


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Fri Feb 06, 2015 7:22 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 06, 2015 1:16 pm
Posts: 6
Some pictures:

http://s300.photobucket.com/user/hillegasr/library/


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Fri Feb 06, 2015 7:32 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
lcsd4712 wrote:
T2Stratman,

I don't know if I am up to removing the amp from the cab, but I will take a look at it. Unfortunately there are no amp techs within 100 miles of here. Thanks for the parts link and the info on the switch replacement. Most helpful!


If you got a screwdriver you can remove the amp from the cab. Just remove the tubes first and keep track of which ones went where. The amp sits in a tray and slides out once you have the screws all removed. The actual switch simply unscrews from the faceplate and the wires are soldered to the switch. You should be able to do this with common tools and a decent soldering iron.

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Sat Feb 07, 2015 3:15 am
Online
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
lcsd4712 wrote:
stratele52,

Well, I can't figure out how to post pictures, if it's allowed. I'll keep trying.



Ah ah , it is almost done :lol:



Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Sat Feb 07, 2015 3:20 am
Online
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
T2Stratman wrote:
I own one of these amps (an 84 2x10 version) and you have to remove the amp from the cab to access the switch. Here is a replacement for what you need.

http://www.angela.com/fendercarlingampl ... witch.aspx

This company is very good, and I only good things to say about their service and quality of parts.

HTH

T2


You show a SPDT switch as use on many Fender amps.

Amp schematic show a DPDT switch like this one ;
http://www.angela.com/fendercarlingampl ... tch-2.aspx

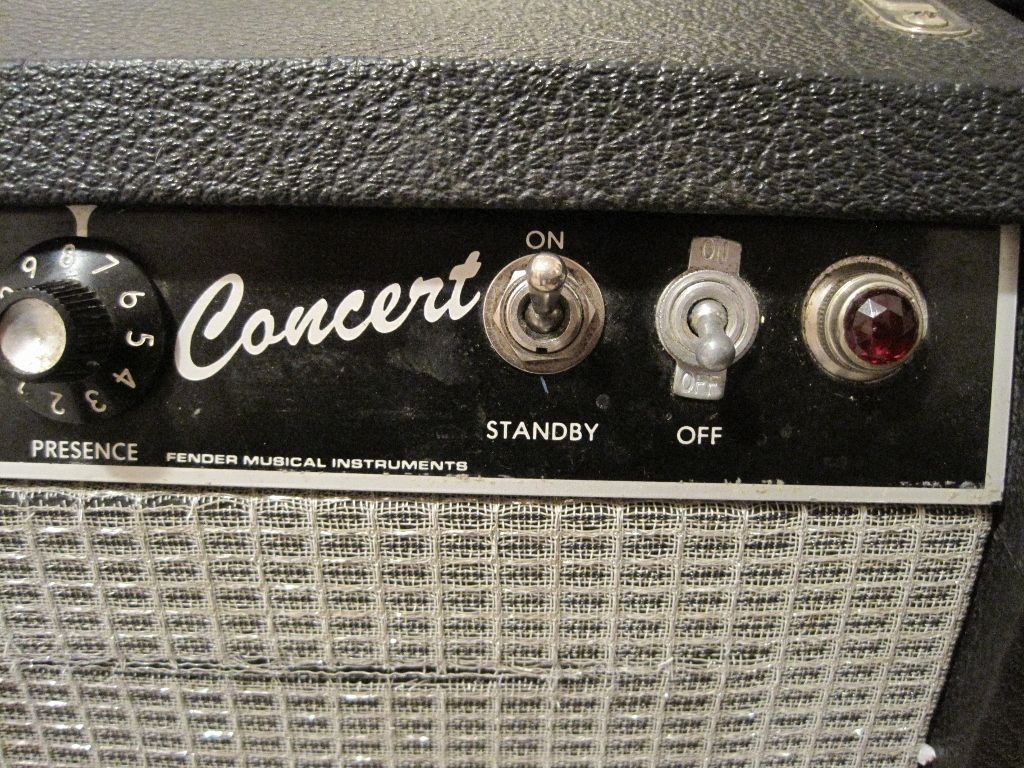

The power switch on the amp is not original ( see photo ) . Switch look SPDT available in many hardware store , Home Depot , Lowes, Radio Shack .IMO amp wiring could be modified to use SPDT switch .

You could use DPDT on both wiring if not sure , Angela write both switches are same size


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Sat Feb 07, 2015 3:36 am
Online
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
lcsd4712

Check if fuse at the back panel is the right one , often people put too powerful fuse and the amp is not protected .


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Sat Feb 07, 2015 3:40 am
Online
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
lcsd4712 wrote:
T2Stratman,

I don't know if I am up to removing the amp from the cab, but I will take a look at it. Unfortunately there are no amp techs within 100 miles of here. Thanks for the parts link and the info on the switch replacement. Most helpful!



You just need somebody who know how to solder 2 or four wires.
Any TV repairman in town ? You don't need to got to Music store for this easy job . Ask around you , Radio shack ......

You may have to bring only the chassis not all the amp .

Why don't you learn how to solder ? They may have some video ou YouTube .


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Sat Feb 07, 2015 5:58 am
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 06, 2015 1:16 pm
Posts: 6
I think it's worth giving a try. I work with a guy who really good with soldering and some electrical. Once I get the assembly out I'm sure we can figure out how to replace the switch. Thanks for the info on the switch. I can see this forum is good source of info on fender amps.


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Sat Feb 07, 2015 6:15 am
Online
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
lcsd4712 wrote:
I think it's worth giving a try. I work with a guy who really good with soldering and some electrical. Once I get the assembly out I'm sure we can figure out how to replace the switch. Thanks for the info on the switch. I can see this forum is good source of info on fender amps.



+1


Top
Profile
Post subject: Re: 1983 Concert II Power Switch
Posted: Sat Feb 07, 2015 8:28 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
stratele52 wrote:
T2Stratman wrote:
I own one of these amps (an 84 2x10 version) and you have to remove the amp from the cab to access the switch. Here is a replacement for what you need.

http://www.angela.com/fendercarlingampl ... witch.aspx

This company is very good, and I only good things to say about their service and quality of parts.

HTH

T2


You show a SPDT switch as use on many Fender amps.

Amp schematic show a DPDT switch like this one ;
http://www.angela.com/fendercarlingampl ... tch-2.aspx

The power switch on the amp is not original ( see photo ) . Switch look SPDT available in many hardware store , Home Depot , Lowes, Radio Shack .IMO amp wiring could be modified to use SPDT switch .



Thanks Stratele52, yeah I did misread that one! It should be a DPDT. And that on/off switch most definitely is not original and should be replaced with the proper one.

T2

T2
