Post subject: My 73 Dual Showman Reverb is coming along
Posted: Mon Feb 02, 2015 2:09 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Dec 18, 2013 5:19 pm
Posts: 75
I recently bought a non working 1973 Dual Showman Reverb for next to nothing. The head cabinet was ruined and the amp wouldn't turn on. First thing I did was recap and retube. Now it not only works but sounds great. I also cleaned the tube sockets, pots and connections. Now no more pops and crackles. Sounds fantastic. I went to a local guitar store yesterday and they had an empty Fender 2x12 combo cabinet in decent shape so I bought it at what I thought was a good price. I just put the Showman in the combo cabinet and it fit perfect. I have been reading reviews on speakers and plan on ordering two as soon as I decide which speakers to get. In the mean time I have been using a spare Marshall 1960A cab with four Celestion G12T-75s. Sounds ok after messing with the amp EQ but no where near the vintage sound I am after. I also have two Celestion G12T-100 Hot speakers that were just sitting in my closet so I decide what the heck. Until I buy some speakers I will give these a try. Surprisingly they sound better than the 75s. Maybe its because the Marshall is a closed back and the combo isn't. Anyway I now have a nice working Dual Showman Reverb Combo and it will be a great sounding one when I get the right speakers. Also the Master Volume was converted to a presence control and I think its awesome. I may at some point have it converted to black face specs but as it sits it sounds pretty darn good.

[img][IMG]http://i1286.photobucket.com/albums/a615/alex_white5/2_zpslke4czjw.jpg[/img][/img]


[img][IMG]http://i1286.photobucket.com/albums/a615/alex_white5/3_zpswzklau7y.jpg[/img][/img]

[img][IMG]http://i1286.photobucket.com/albums/a615/alex_white5/4_zpsqluv1epz.jpg[/img][/img]


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: My 73 Dual Showman Reverb is coming along
Posted: Mon Feb 02, 2015 3:34 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
It's not surprising that you were able to install your DSR into a combo cabinet since it shares its chassis dimensions with the Twin Reverb. And TR enclosures are relatively prolific (many players actually swing the other way and prefer their TR as a stand-alone head for ease of logistics).

There was never a "blackface" version of the DSR so you may find that reconfiguring the circuit to pseudo-AB763 specs is a challenge in its own right.

Welcome to the forum.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: My 73 Dual Showman Reverb is coming along
Posted: Mon Feb 02, 2015 3:56 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Aug 21, 2009 1:45 pm
Posts: 852
Location: SoCal323
Retroverbial wrote:
It's not surprising that you were able to install your DSR into a combo cabinet since it shares its chassis dimensions with the Twin Reverb. And TR enclosures are relatively prolific (many players actually swing the other way and prefer their TR as a stand-alone head for ease of logistics).

There was never a "blackface" version of the DSR so you may find that reconfiguring the circuit to pseudo-AB763 specs is a challenge in its own right.

Welcome to the forum.

Arjay


I agree. At my age I would much rather carry the head in one arm and the cab in another rather than risk dislocating a shoulder or herniating a disk carrying it all at once in a combo cab. :lol:

I agree about looking for the right speakers. I think a set of American flavored speakers would compliment the showman nicely.

Wish you luck and congrats on
A. Your dual showman acquisition
B. Your successful repairs on the amp.

_________________
Its a lifestyle.....



Top
Profile
Post subject: Re: My 73 Dual Showman Reverb is coming along
Posted: Mon Feb 02, 2015 4:53 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
A couple of Emi Texas Heat's should do nicely......

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: My 73 Dual Showman Reverb is coming along
Posted: Mon Feb 02, 2015 5:00 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Dec 18, 2013 5:19 pm
Posts: 75
Retroverbial wrote:
A couple of Emi Texas Heat's should do nicely......

Arjay



Thanks guys. So do you think the Texas Heats would be better for a Twin or in my case a DSR than the Legends 1258s? Arjay if you think so that is probably what I will buy. While searching for technical know how and expertise I have come across your post quite a bit and I know you know your stuff when it comes to these older Fender amps. You have been a big help in the past and for that I thank you.


Top
Profile
Post subject: Re: My 73 Dual Showman Reverb is coming along
Posted: Mon Feb 02, 2015 6:24 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Retroverbial wrote:
There was never a "blackface" version of the DSR so you may find that reconfiguring the circuit to pseudo-AB763 specs is a challenge in its own right.

Welcome to the forum.

Arjay



Welcome, lovehifi!

Arjay is correct. There never was a Dual Showman Reverb version with AB763 blackface style phase inverter anode loading and bias controlled pot. I recently redid a Showman Reverb from AA769 (balance pot) to AB763 (bias pot and BF anode loading).

-----

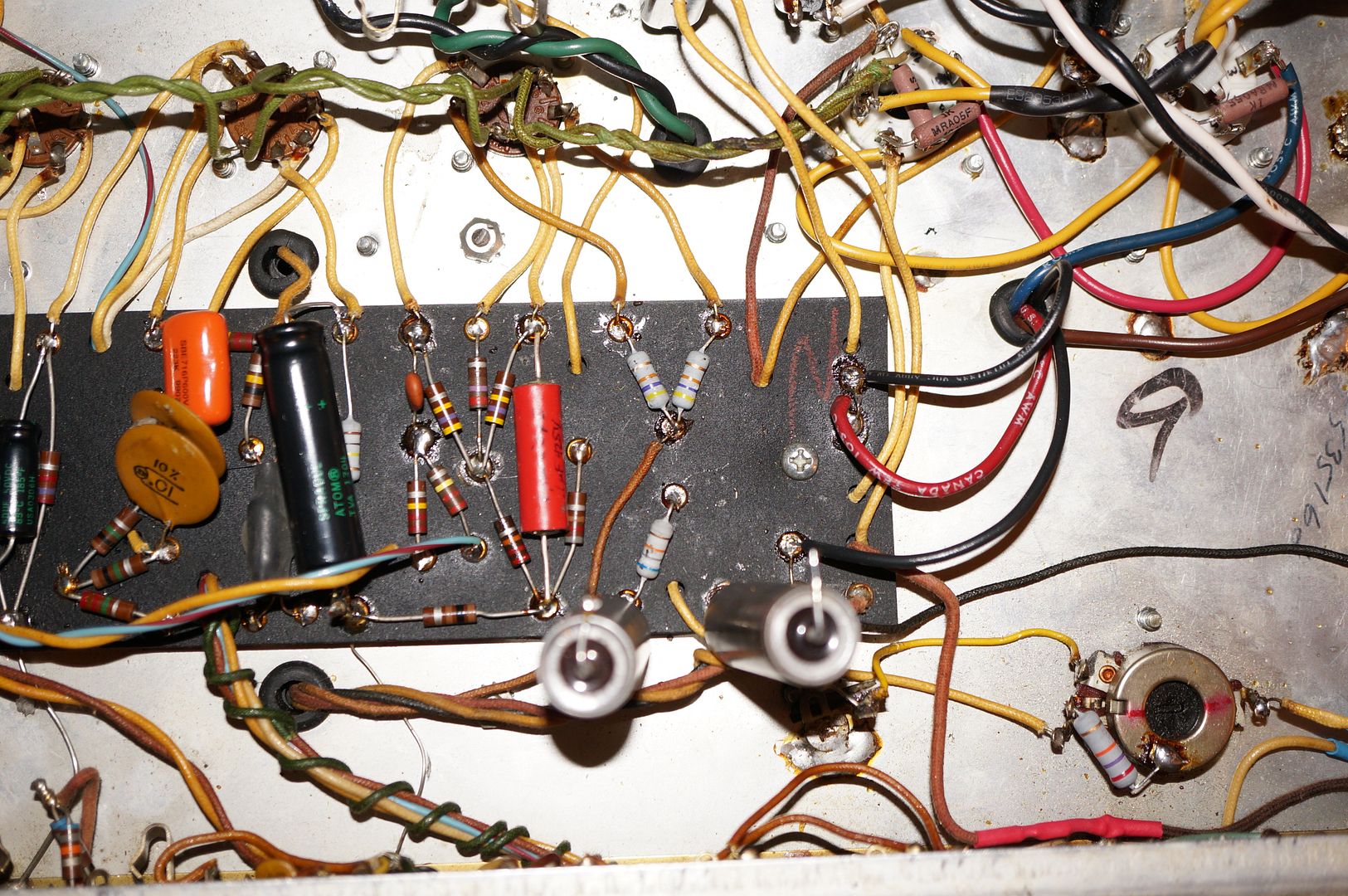

Showman reverb with AA769 style balance pot (coupling caps from PI to 6L6GC pulled for clarity):

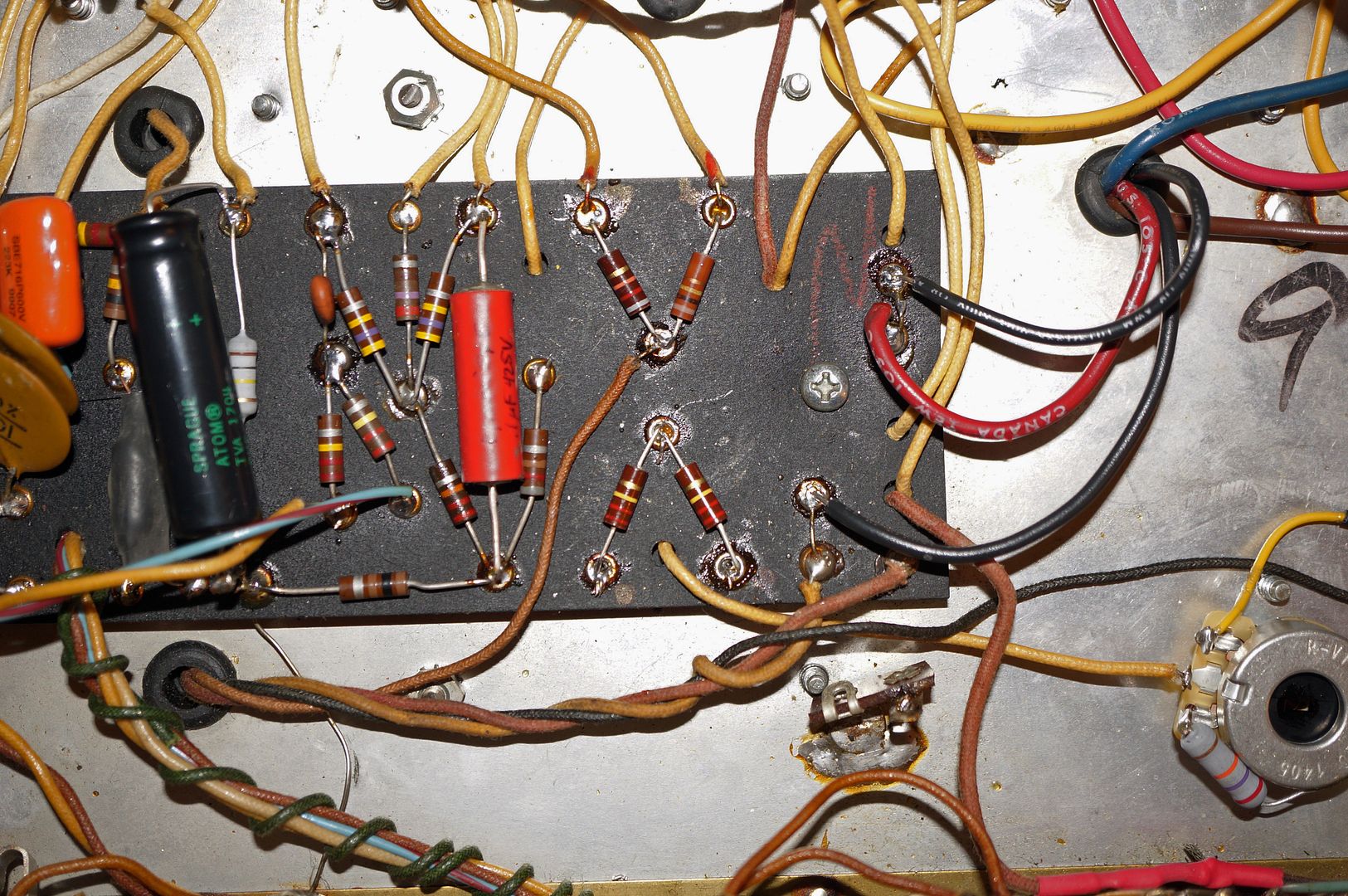

Modified to bias pot and anode loading (ala: AB763-style):



Top
Profile
Post subject: Re: My 73 Dual Showman Reverb is coming along
Posted: Mon Feb 02, 2015 6:35 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The Legends would also be a worthy option, hifi. The salient sonic difference between the two is, the Legend will likely sound a bit more organic (ie: "vintage") while the TH produces a somewhat more contemporary rock/blues tone. Truth told, there are dozens of quality speakers that will get the job done. Just be certain to buy something with sufficient power-handling capability. Your DSR makes 100 real watts -- not like the chintzy-a$$ed nonsense you'd see from a Frontman 212. A 75-watt rating (for each of the two speakers) should be ample for the task at hand.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: My 73 Dual Showman Reverb is coming along
Posted: Tue Feb 03, 2015 3:04 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Dec 18, 2013 5:19 pm
Posts: 75
Well someone locally was selling a 2 x 12 cabinet with two Legend 1258s so I bought it. It was the same price as buying two Legends new so I figured why not. Anyway sounds much better (to me) than the G12-75s. Now my Fender sounds like a Fender:) I was worried the 1258s might be ear piercing on the highs but my worries did not come true. Another plus is these being used they are already broke in.


Top
Profile
Post subject: Re: My 73 Dual Showman Reverb is coming along
Posted: Tue Feb 03, 2015 4:02 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
A wise choice, weed-hoppah......congratulations!

8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
