Post subject: Unmarked Speaker 67' Deluxe Reverb
Posted: Sun Jan 25, 2015 8:07 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Oct 07, 2012 6:48 pm
Posts: 74
Hi everyone

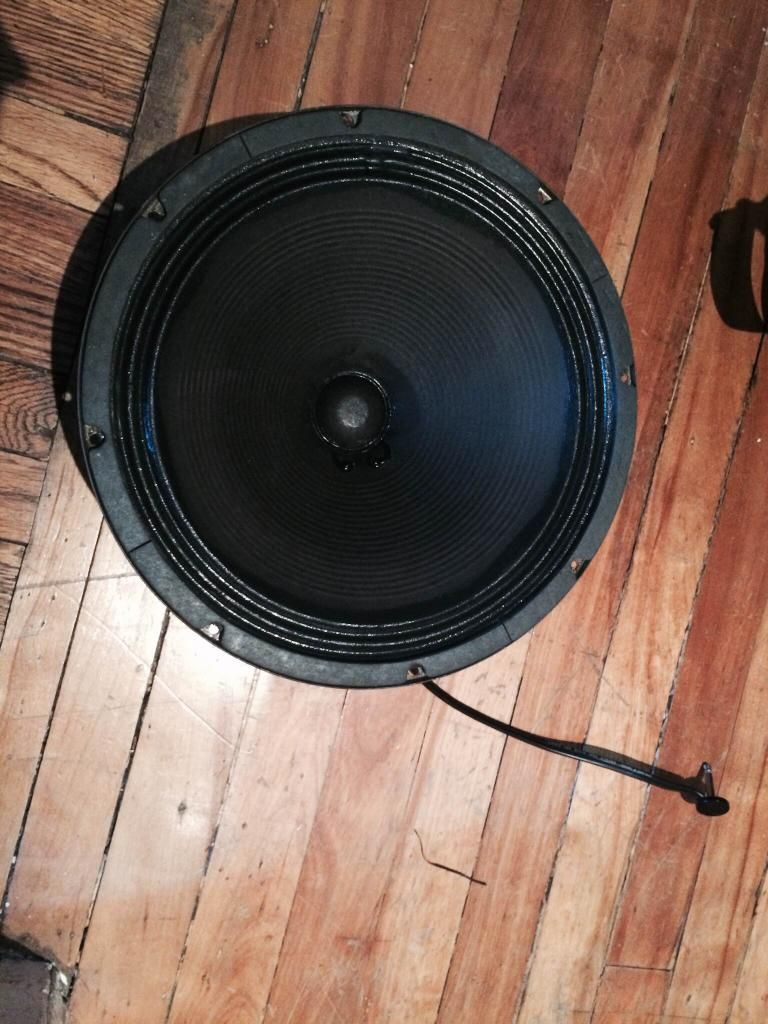

Was wondering if anyone had any info on what kind of speaker this is. Its from a pretty all original 67' Blackface Deluxe Reverb (chassis, tube sticker, transformers, all date properly 66-67)

I think its an Oxford based on similar looking baskets..

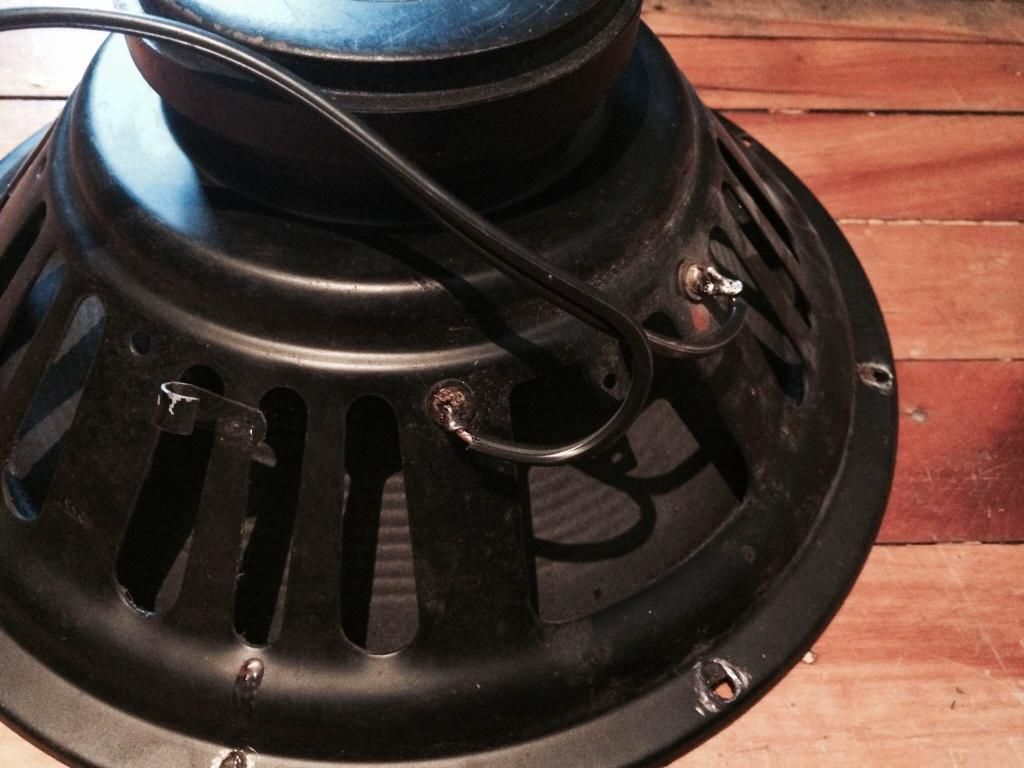

I don't really want to pull the Fender sticker off, but otherwise I have given it a thorough going over. I noticed that the positive/negative terminals seem to be straight off the basket (as opposed to the terminal strip you normally see...)

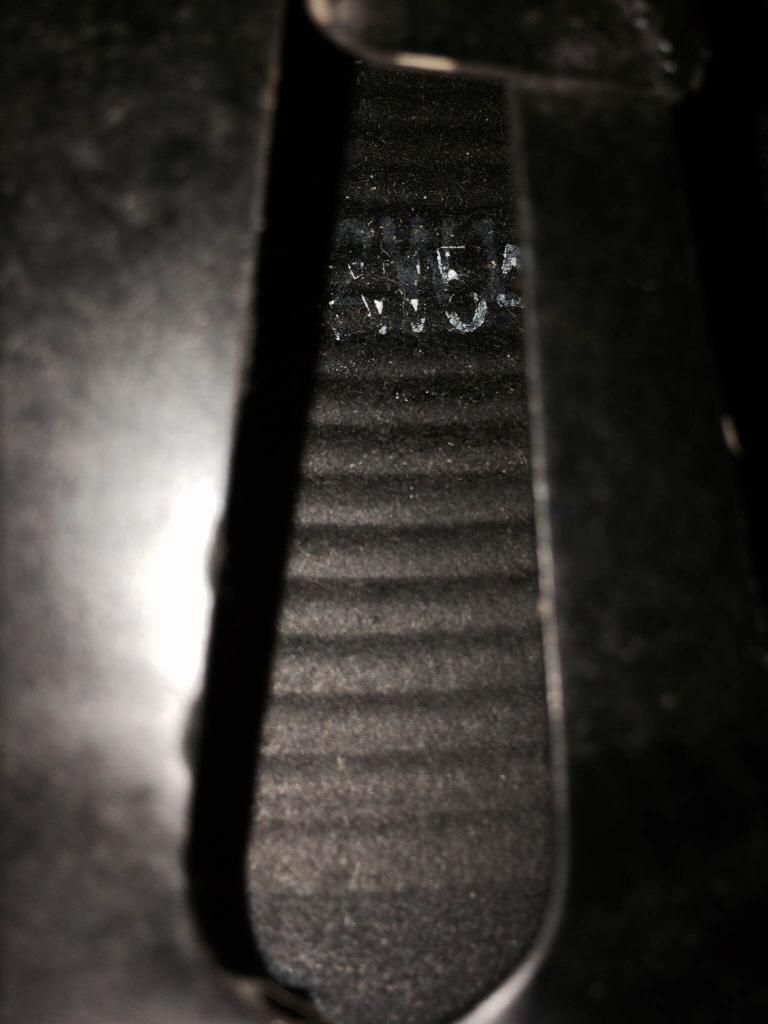

There were some light numerals on the paper cone:

written in white pencil: 10365
Printed in white on the cone: RW404 (or FW404 hard to tell)
beneath the white print, in grey read 042W16006

Speaker looks to be in good shape, could be a redone, but I have no idea.

Nothing anywhere to be seen on the basket in terms of standard speaker codes, etc.

Image[/url]

Image[/url]

Image[/url]

Image[/url]

Image[/url]

Image[/url]


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Unmarked Speaker 67' Deluxe Reverb
Posted: Sun Jan 25, 2015 10:45 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory

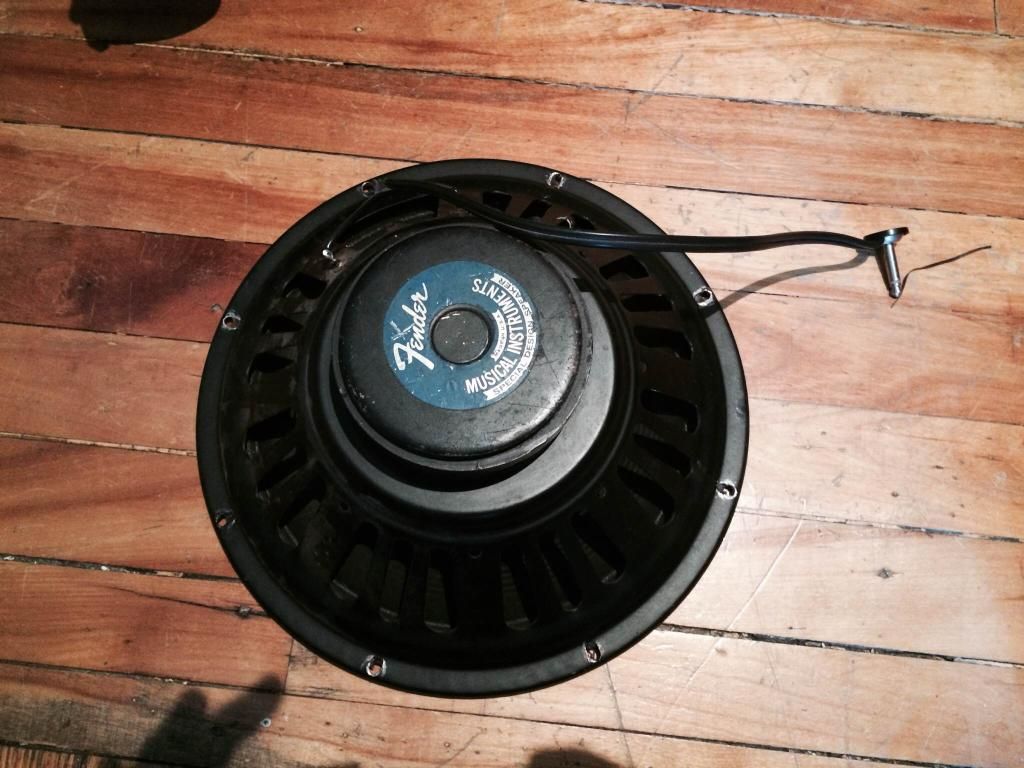

I'm betting that Utah made that speaker -- the proof would be the EIA code which is likely concealed beneath the blue-and-white Fender "donut". If visible it would be formatted thus: "328XXX". A Fender P/N of "014827" might also be present. The Utah driver is the sonic and functional equivalent of an Oxford 12K5.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Unmarked Speaker 67' Deluxe Reverb
Posted: Mon Jan 26, 2015 9:13 am
Offline
Hobbyist
Hobbyist

Joined: Sun Oct 07, 2012 6:48 pm
Posts: 74
Will pulling off the sticker lower the speakers value?

Is there a way to do this without wrecking the speaker?

Thanks


Top
Profile
Post subject: Re: Unmarked Speaker 67' Deluxe Reverb
Posted: Mon Jan 26, 2015 2:31 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
IMHO, the Utah speakers of this era were nothing really special. I would just leave the speaker and labels alone. The label intact, will prolly increase the value of the speaker.

Here's a link to a 1970's ad for Utah Speakers (instrument). See if one of these seem to fit your model.

http://rocketroberts.com/techart/images ... cat_10.jpg


Top
Profile
Post subject: Re: Unmarked Speaker 67' Deluxe Reverb
Posted: Tue Jan 27, 2015 10:40 am
Offline
Hobbyist
Hobbyist

Joined: Sun Oct 07, 2012 6:48 pm
Posts: 74
Yeah, I hear you on that.

My issue is that I can't date it, which though I don't intend to sell, kid of bugs me. I can't honestly say 'all original' as I can't date the speaker....

Might have to just accept that though.


Top
Profile
Post subject: Re: Unmarked Speaker 67' Deluxe Reverb
Posted: Tue Jan 27, 2015 10:58 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
My WAG on that is the speaker is a late 1960-1970's issue. Fender started using more Utah speakers during this era.


Top
Profile
Post subject: Re: Unmarked Speaker 67' Deluxe Reverb
Posted: Tue Jan 27, 2015 12:22 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory

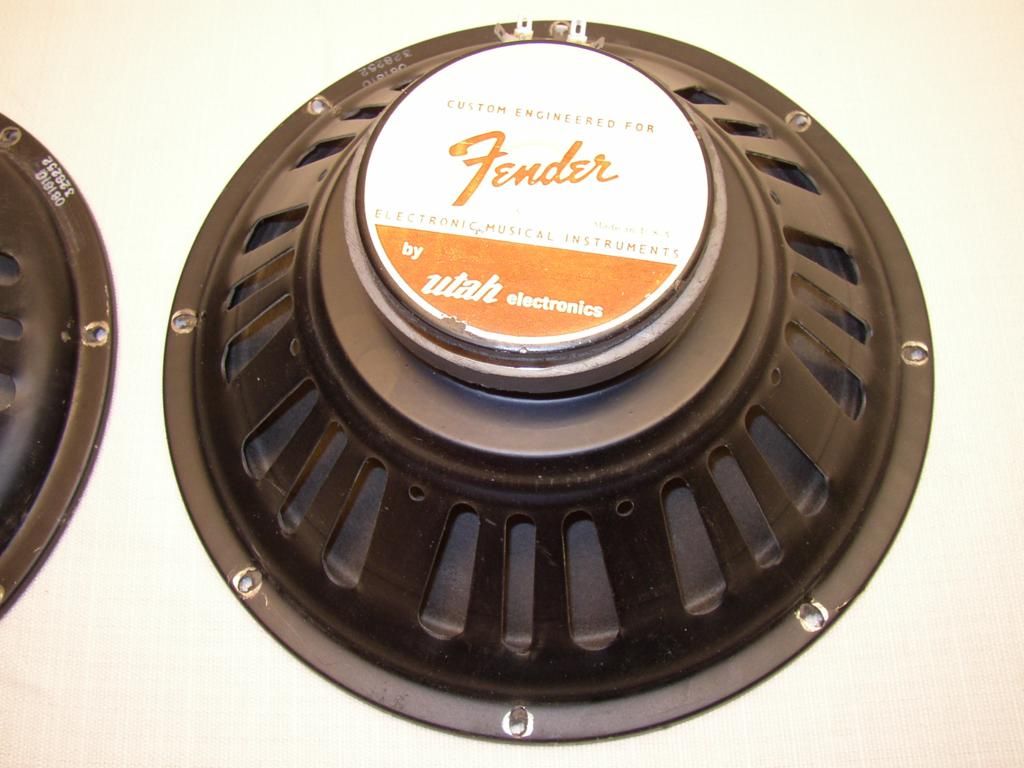

In mid-year 1969, Utah began using this label style on all of their speakers destined for Fender amps......


Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Unmarked Speaker 67' Deluxe Reverb
Posted: Tue Jan 27, 2015 12:56 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Oct 07, 2012 6:48 pm
Posts: 74
Got it, so likely not an original 66' or 67'...

rats
