Post subject: Showman Reverb reversion to BIAS pot
Posted: Tue Jan 20, 2015 7:27 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
OK. Gonna redo Jerry's amp from BALANCE pot to BIAS pot. Since there doesn't seem to be a recipe for the Showman Reverb, will follow conversion of the SF Twin Reverb to BF Twin Reverb.

-----

Resistors and balance pot wiring of AA768 circuit. Two 0.1mfd phase inverter coupling caps pulled out of the way for clarity.



-----

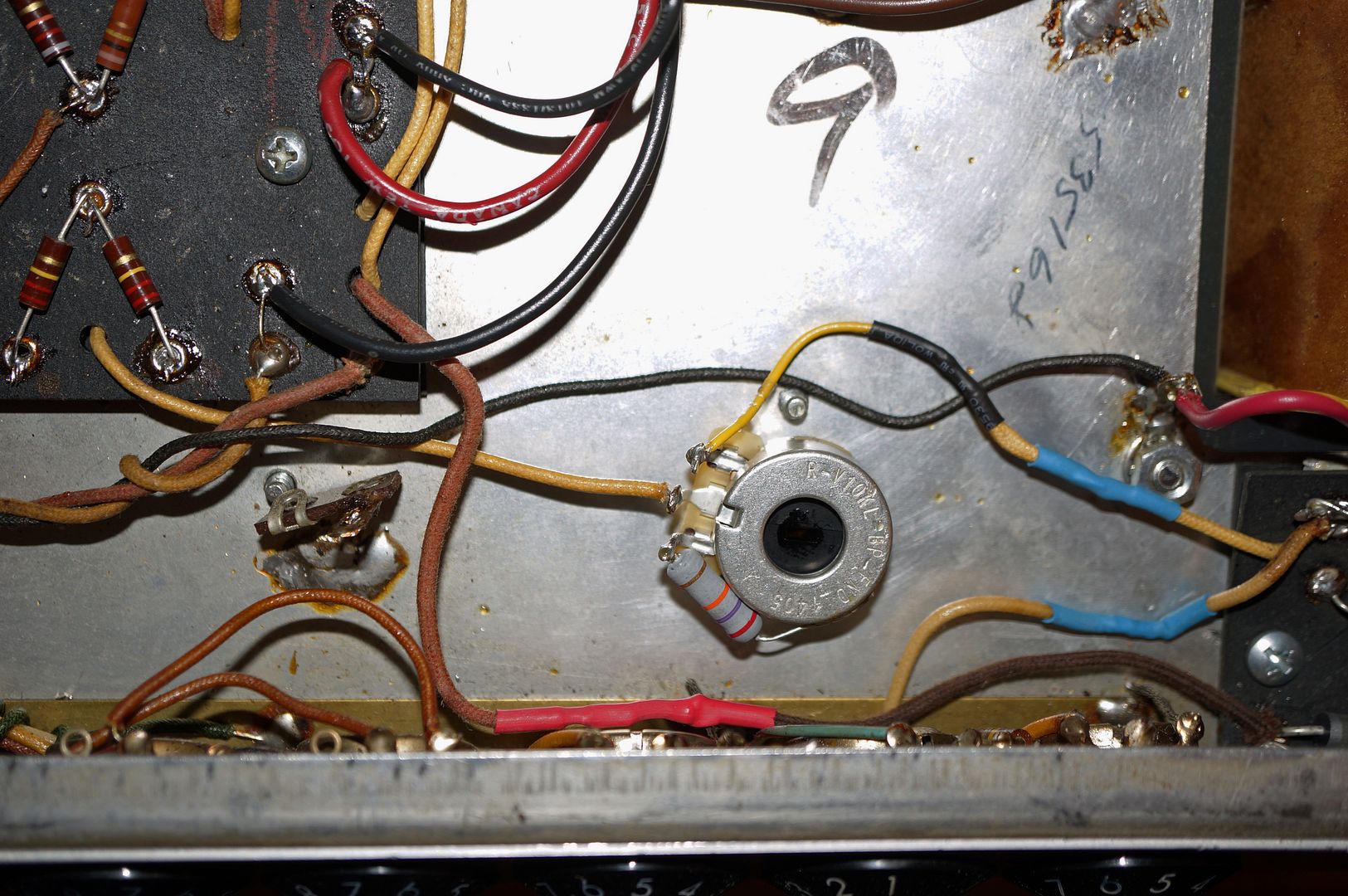

Bias pot replaced and re-wired to AB763 TR specs. See above photo for old wiring (Balance pot).



-----

AB763 TR wiring of resistors. Balanced 220k-ohm grid-to-ground replace imbalanced 68k-ohms. 100k and 82K replace the 47k-ohms plate loading resistor on the phase inverter.




Will test voltages and move onto suspect output tranny.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Showman Reverb reversion to BIAS pot
Posted: Tue Jan 20, 2015 8:14 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Tue Dec 28, 2010 9:53 pm
Posts: 349
Looking good! :D


Top
Profile
Post subject: Re: Showman Reverb reversion to BIAS pot
Posted: Wed Jan 21, 2015 7:46 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
There is something still very wrong with the Showman Reverb. Voltages are all ok (main PSU, bias circuit, screen grids --- with no tubes in). The PT, OPT (output tranny), choke, sockets, all electrolytic caps, diodes, and coupling caps from PI to 6L6GC's have all been changed.

All is cool, with power on, in standby and only the four 6L6GC inserted. No other tubes. When you hit the standby switch --- one 6L6GC (V9) immediately goes ballistic. Big bright blue spark inside the tube. Speaker sounds like high voltage buzz. Doesn't matter which 6L6GC I use in that socket. Same results.

I pulled the 6L6GC from V9 and left it empty. Hit the standby and the other 6L6GC's idle bias currents never settle down. 40mA then 50mA, then 60mA, still climbing, as I shut the amp down.

Seems like some drastic parasitic oscillations. Guess that I may need to add snubber caps and other "fixes" to the amp.

Has anyone here worked on a SF era TR or Showman and had to add the snubber caps, cathode-tied resistors, and bypass caps paralleling those resistor back to the amp to make it stable? The amp seemed to have an AA768 circuit, originally.

I had no phase inverter tube inserted --- so I don't think the issue is out-of-phase global feedback.

This amp did work fine, after I'd replaced everything but the OPT. Then, the amp went unstable and blew a fuse (proper amps) ---- about 10 minutes into a session. It has blown fuses and had ballistic 6L6GC issues ever since the last blown fuse.


Thanks, for any input.
