Post subject: Cabinet Dimensions for D 130F?
Posted: Fri Jan 16, 2015 6:13 pm
Offline
Amateur
Amateur

Joined: Sun Jul 25, 2010 8:13 am
Posts: 147
Location: Charm City
So I finally acquired a real JBL D 130F at a very reasonable price, $50 American. The speaker has been reconed, as you would imagine, but it's an older recone from the late '80's, and sounds great. It's 8 ohms. Unfortunately, the guy I bought it from wanted to keep the cab it was in, and for fifty bucks I wasn't going to argue.
My question is, what kind of dimensions should I look for in a Cabinet to bring out the most in this speaker? Open or closed back? Ported or not? Insulation necessary?
I'll probably be pairing this with my '68 Dual Showman Reverb (85 W). I know there's an impedance mismatch, and I've read all kinds of wildly different info regarding power handling capacity for this driver, from 25W low end to 75W + at the high end. There are even discussions with Harvey Gerst claiming these numbers are for full range sound reproduction, and that for single instrument applications like electric guitar it should be able to handle upwards of 100W.
I never dime the Showman anyway, and I plan on taking it slowly and easily with this speaker until I establish some parameters. I can always pull a pair of tubes to reduce wattage and have a perfect impedance match if necessary.
I see empty used cabs for sale cheap all the time, and I suppose I could make one if I have to.
Anybody have any experiences for the best type of cab to make this holy grail speaker really shine? Thanks for any input!


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Cabinet Dimensions for D 130F?
Posted: Fri Jan 16, 2015 7:39 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Sorry, but I would not push more than 40-50 watts through a JBL D130F...that is all they are good for. IIRC they were only rated at 35 watts RMS (Continuous).

Remember Dick Dale used to shred these speakers on a regular basis through his Showman.

I also wouldn't run an ohm mismatch unless you like taking chances with your amp and speaker...this type of stuff always ends bad.

Maybe this post will bring out our resident expert on JBL's Retroverbial to give you additional information! Come on Arjay!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: Cabinet Dimensions for D 130F?
Posted: Mon Jan 19, 2015 1:47 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
T2Stratman wrote:
...I also wouldn't run an ohm mismatch unless you like taking chances with your amp and speaker...this type of stuff always ends bad...


Really? There is not one thread on this forum about an impedance mismatch causing any harm to a tube amp. Myself, and many other forum members, routinely run a mismatch with zero problems. Apparently, the fear of the unknown causes parroting of the false statements about mismatched impedance.

Keep any mismatch to within a 2 to 1 ratio, high or low, and the amp won't even flinch. :wink:

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: Cabinet Dimensions for D 130F?
Posted: Mon Jan 19, 2015 9:03 am
Offline
Amateur
Amateur

Joined: Sun Jul 25, 2010 8:13 am
Posts: 147
Location: Charm City
shimmilou wrote:
T2Stratman wrote:
...I also wouldn't run an ohm mismatch unless you like taking chances with your amp and speaker...this type of stuff always ends bad...


Really? There is not one thread on this forum about an impedance mismatch causing any harm to a tube amp. Myself, and many other forum members, routinely run a mismatch with zero problems. Apparently, the fear of the unknown causes parroting of the false statements about mismatched impedance.

Keep any mismatch to within a 2 to 1 ratio, high or low, and the amp won't even flinch. :wink:



Yeah, I've always understood the same thing, that most Fender amps would easily handle a 100% mismatch ( 8 ohms to 4 or 16, e.g.) without threat of damage. And honestly, for years I just plugged a head into a cab with no thought of matching impedance, and never had a problem-some just sounded better than others.
But back to the matter at hand...doesn't anybody out there have any thoughts about the ideal size and type of enclosure to hold a D 130F?


Top
Profile
Post subject: Re: Cabinet Dimensions for D 130F?
Posted: Mon Jan 19, 2015 10:38 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
nyquilcoma wrote:
shimmilou wrote:
T2Stratman wrote:
...I also wouldn't run an ohm mismatch unless you like taking chances with your amp and speaker...this type of stuff always ends bad...


Really? There is not one thread on this forum about an impedance mismatch causing any harm to a tube amp. Myself, and many other forum members, routinely run a mismatch with zero problems. Apparently, the fear of the unknown causes parroting of the false statements about mismatched impedance.

Keep any mismatch to within a 2 to 1 ratio, high or low, and the amp won't even flinch. :wink:



Yeah, I've always understood the same thing, that most Fender amps would easily handle a 100% mismatch ( 8 ohms to 4 or 16, e.g.) without threat of damage. And honestly, for years I just plugged a head into a cab with no thought of matching impedance, and never had a problem-some just sounded better than others.
But back to the matter at hand...doesn't anybody out there have any thoughts about the ideal size and type of enclosure to hold a D 130F?


Do as you wish, but it is your power tranny not mine. It might work for a while, but they were designed to run a certain way for a reason overbuilt or not.

As for the cab, this might sound obvious but if you are going to run a 1x12 JBL, why not just build a cab the original dimensions? Worked for Fender, these were built and tuned specifically for the JBL option. Maybe even try a tone ring?

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: Cabinet Dimensions for D 130F?
Posted: Mon Jan 19, 2015 6:22 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

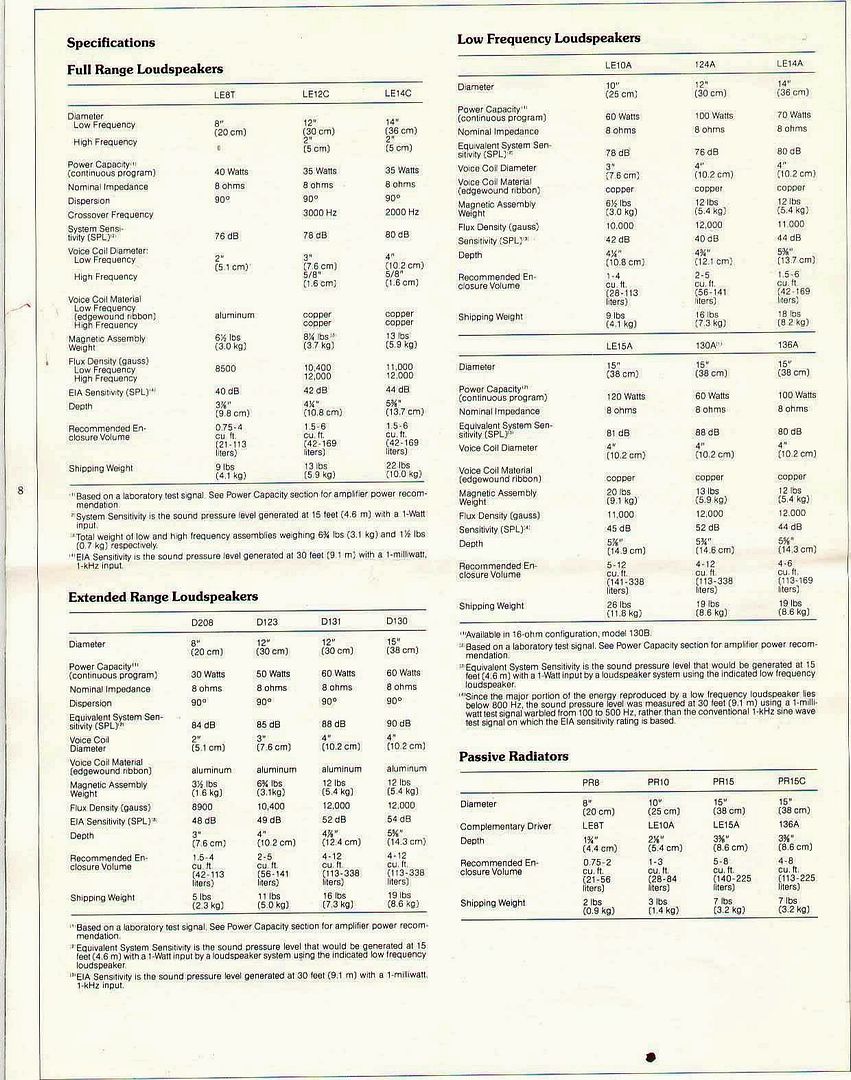

Here's the JBL speaker data page from their 1975 brochure. Looks like the D130 will work in cabinet of 4-12 cubic feet. Prolly depending on if the cab has open back, vented, ported, or sealed back.
