Post subject: Showman Reverb revisited
Posted: Sun Nov 23, 2014 11:57 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Photos of Jerry's Showman Reverb. I replaced OEM sockets (which were bad) with ceramic ones carried by Ruby Tubes. Needed to used these, as they were the only ones that would fit SF era 1-inch diameter punched holes in the chassis.

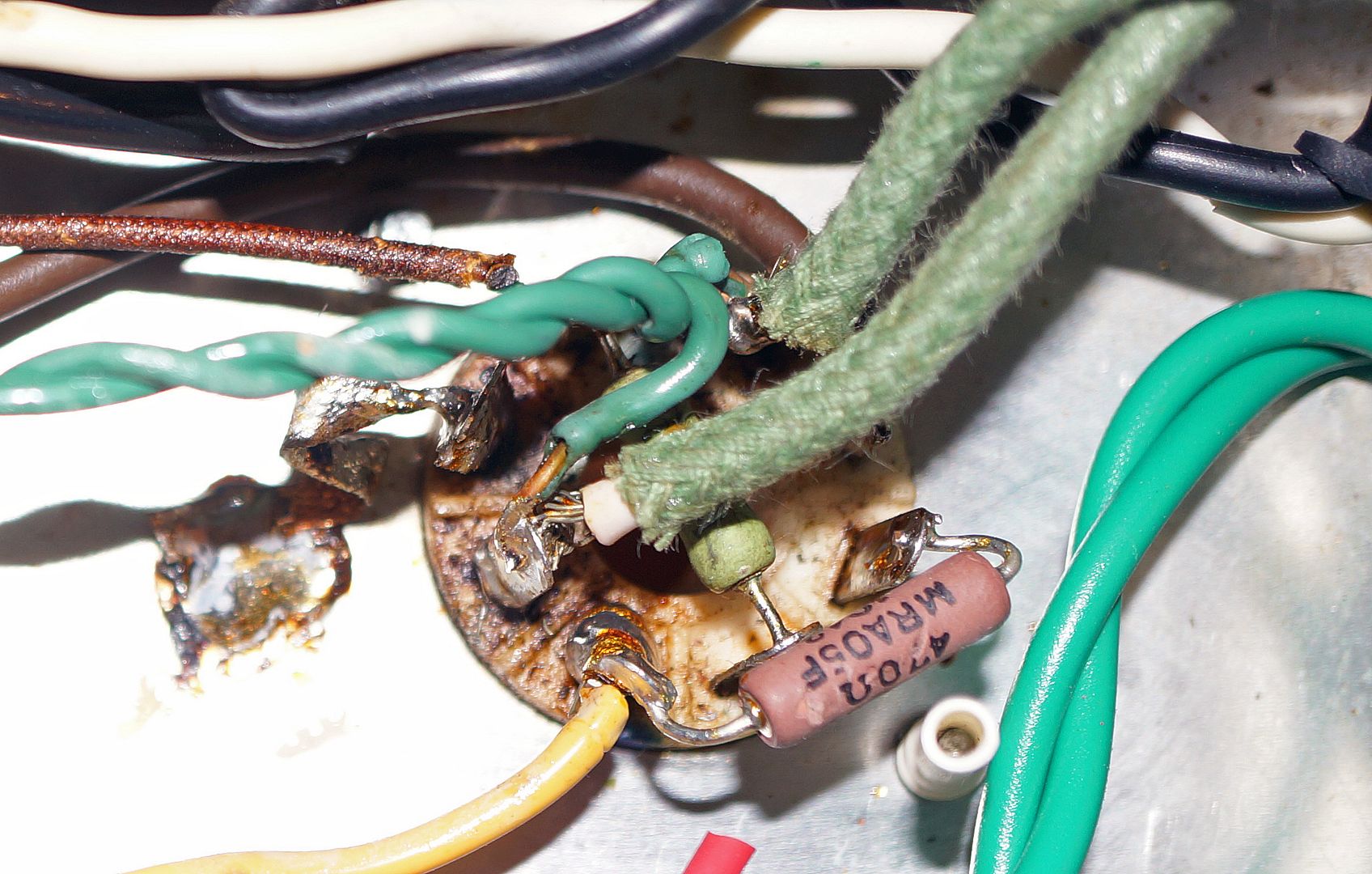

Notice heat damage.

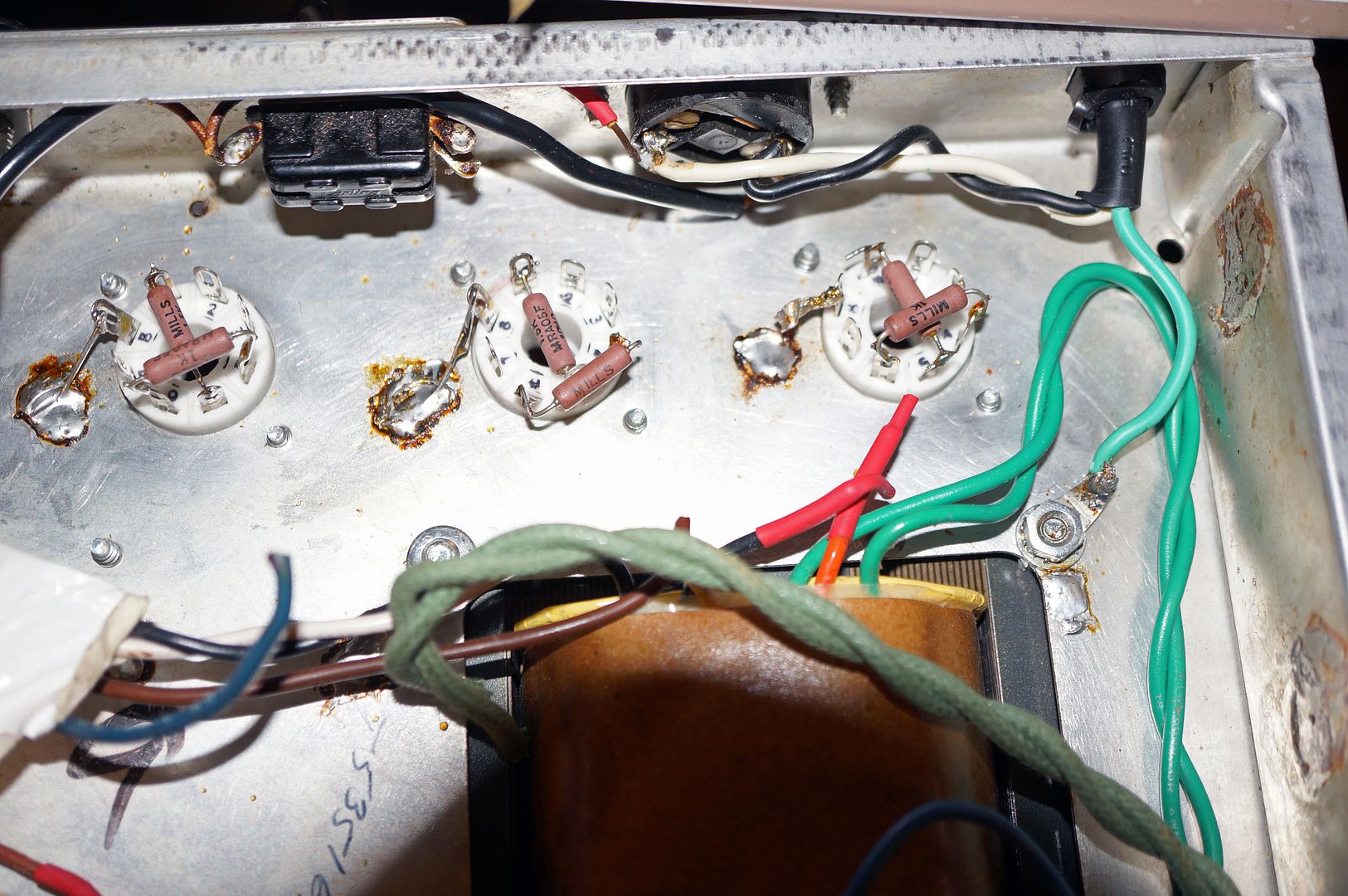

Replaced with ceramic sockets carried by Angela. Seem to be made better. Esp solder tangs and socket receptor. Using 1k-ohm Mills, 5-watt wire-wound resistors as screen grid resistors.



Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 1:31 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

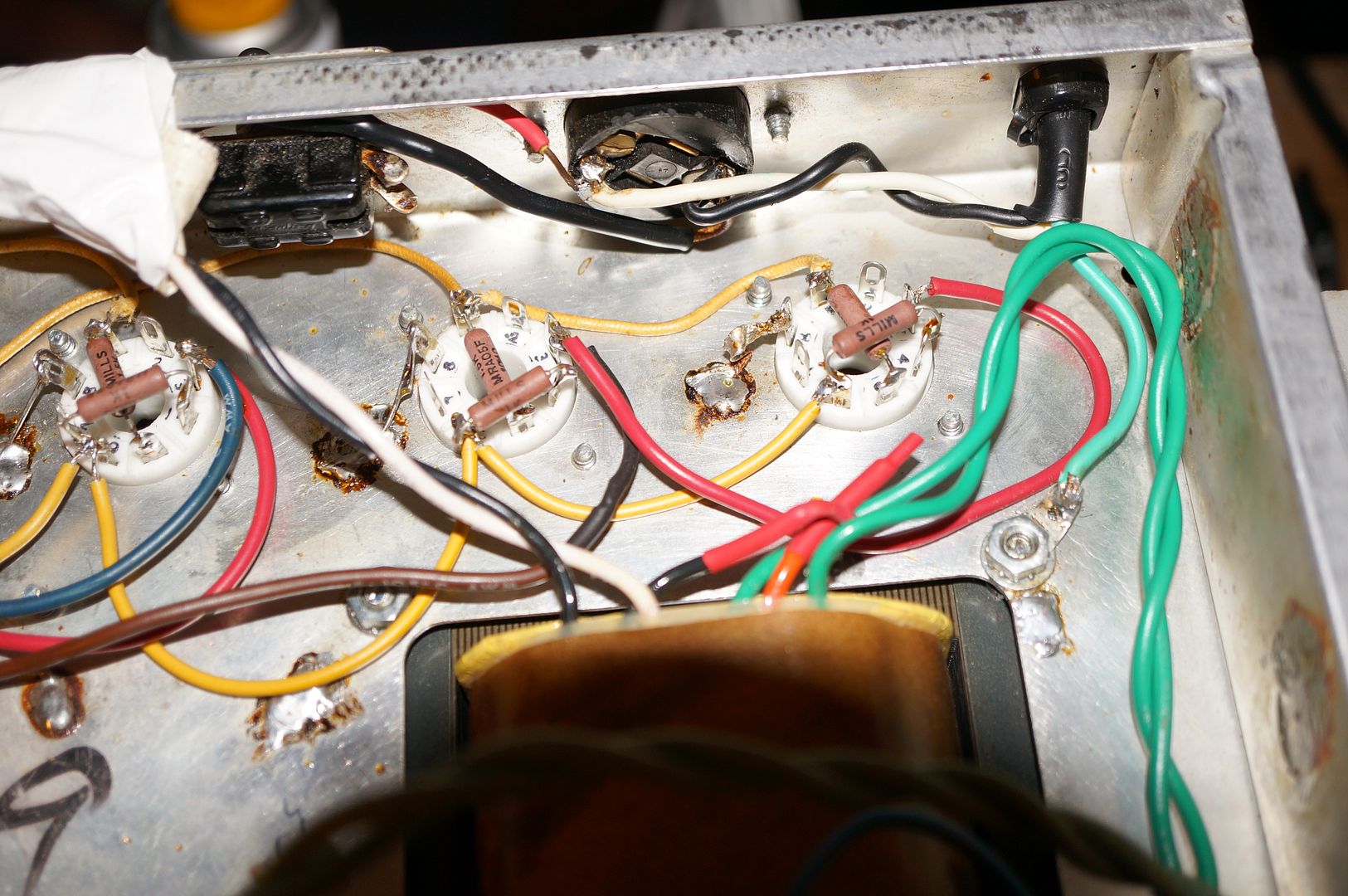

Starting to hook up the wiring:



-----

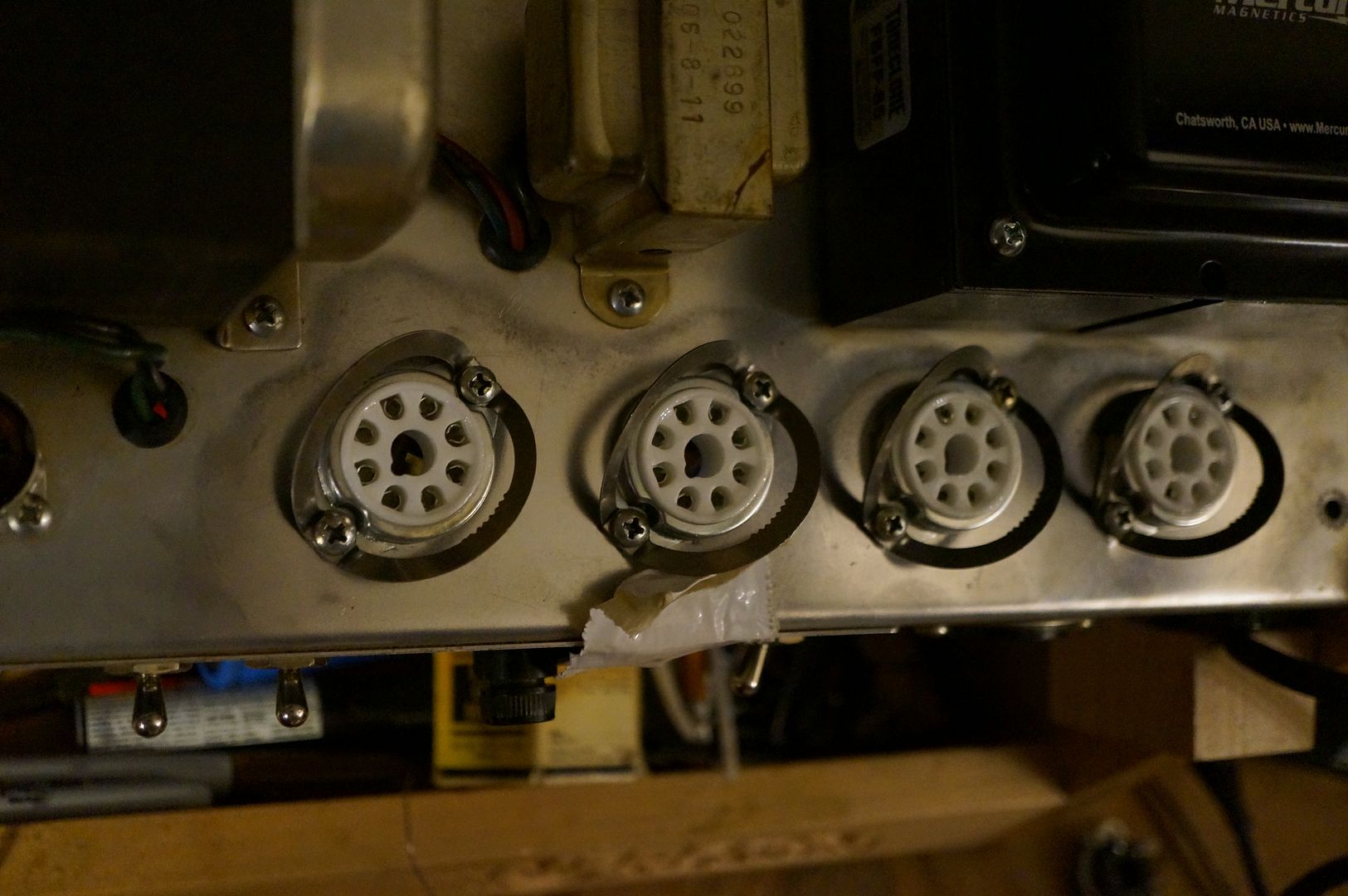

Top view of sockets:



Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 3:23 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Wiring completed to sockets. Doghouse caps & resistors rechecked. Test drive tomorrow.

-----


-----



Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 10:19 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Testing fix...




Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 10:27 am
Offline
Aspiring Musician
Aspiring Musician

Joined: Thu Dec 12, 2013 2:54 pm
Posts: 619
That's some really excellent work there.

Any particular reason for the parallel bias filter caps, or just using what you had on hand?

Regards,
vinyl


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 12:26 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
For the bias power supply --- I had on hand.

Thanks, for the compliment. :mrgreen:


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 3:07 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
Great work, lovely amp. That OT reminds me on my Super Reverb's OT .. it produces a huge tone. :D


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 6:11 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Tue Dec 28, 2010 9:53 pm
Posts: 349
Nikola Tesla wrote:
Great work, lovely amp. That OT reminds me on my Super Reverb's OT .. it produces a huge tone. :D


Not trying to steal the thread but what benefits do you get from upgrading the OT?

I'm also in agreement with your work quality. 8)


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 6:54 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Clean amp and some nice work there. I hope the Showman's owner is enjoying it! ;)

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 7:04 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Dec 29, 2012 11:48 pm
Posts: 681
Location: Southern, CA
T2Stratman wrote:
Clean amp and some nice work there. I hope the Showman's owner is enjoying it! ;)

T2


T2,

This is my amp. BMW2002Ti repaired it back in April 2013. Worked great until recently, started blowing fuses so he took it back in to repair.

BMW2002Ti does amazing work and I know I'll be 100% satisfied.

Jerry

_________________
'62 Jazzmaster/'78 Precision Bass/'88 Fender F250 acoustic/'07 Gibson Less Paul Classic Antique/'12 Squier Strat/'14 Squier VM Jaguar/'15 Classic 60s Telecaster/'68 Showman Reverb/'70 Bandmaster Cabinet JBL D140F speakers/'69 Super Reverb/'12 G-DEC 3-30


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 7:13 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
jmallard wrote:
T2Stratman wrote:
Clean amp and some nice work there. I hope the Showman's owner is enjoying it! ;)

T2


T2,

This is my amp. BMW2002Ti repaired it back in April 2013. Worked great until recently, started blowing fuses so he took it back in to repair.

BMW2002Ti does amazing work and I know I'll be 100% satisfied.

Jerry


I knew that Jerry...that is the reason for the wink! I am sure beemer will get you back up and running...he is one thorough guy!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 7:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
djwhitjr wrote:
Not trying to steal the thread but what benefits do you get from upgrading the OT?

I'm also in agreement with your work quality. 8)



Thanks! No the original PT was blown.

Now, no fuse issues. But, a new 120Hz hum.

The plot thickens...


:D


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Mon Nov 24, 2014 8:01 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Tue Dec 28, 2010 9:53 pm
Posts: 349
Gotcha. I thought it was an upgrade for better sound purposes and wasn't sure what that would do. Thanks


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Tue Nov 25, 2014 8:42 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
djwhitjr wrote:
Nikola Tesla wrote:
Great work, lovely amp. That OT reminds me on my Super Reverb's OT .. it produces a huge tone. :D


Not trying to steal the thread but what benefits do you get from upgrading the OT?

I'm also in agreement with your work quality. 8)




I was referring to OT, not PT. I believe that the pictured OT is original to the amp thus my comment.

Once again - nice amp, I played one many years ago and was all smiles ..


Top
Profile
Post subject: Re: Showman Reverb revisited
Posted: Tue Nov 25, 2014 9:02 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Sorry. yes the output tranny in original.

Story with the hum. No hum with only 6L6GC's. Hum with PI (12AT7). Any 12AT7. Checking lead dressing. Plate voltages, today.
