Post subject: Re: Upcoming 5E3 Build.
Posted: Wed Mar 02, 2016 8:44 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
BMW2002Ti wrote:
Very interesting how Fender wired the 6V6GT sockets, in this amp. Not the usual pin 1 to pin 5 grid stopper. But, rather the resistor is place between pin 5 & 6. No screen resistors on the socket, but relying on the 5K-ohm resistor in the power rail to drop the voltage onto the screens.

Are you going to run two heater lines to each 6V6GT? The original layout seemed to have one heater (pin #2) grounded to the chassis. And only pin #7 coming from the lamp. I'd imagine that Hoffman lifted both heater lines off the chassis, to help reduce hum.

http://ampwares.com/schematics/deluxe_5e3.pdf

Thanks, for the great photos! :D
I plan to run two heater lines.

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Upcoming 5E3 Build.
Posted: Thu Mar 03, 2016 9:11 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL

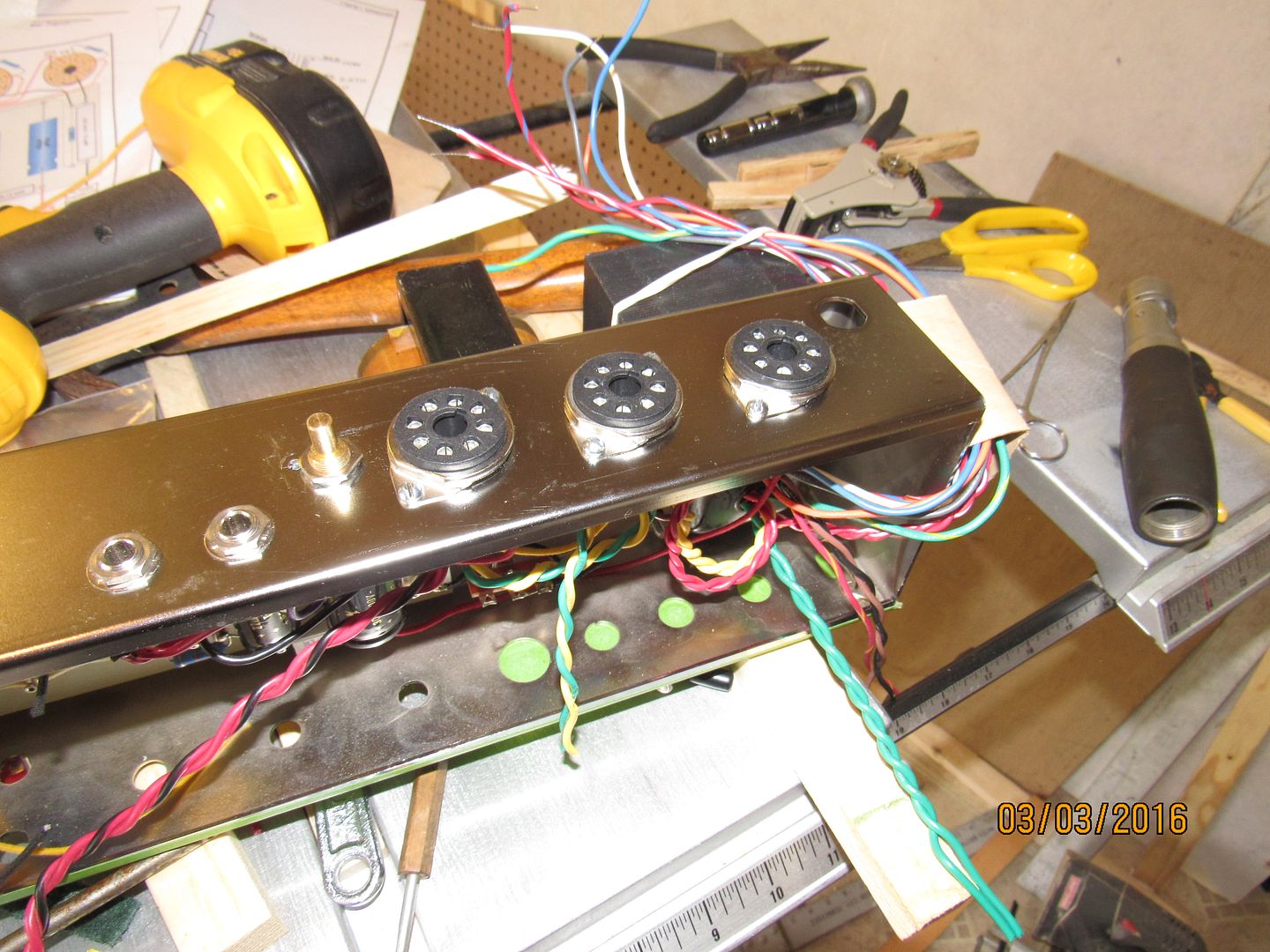

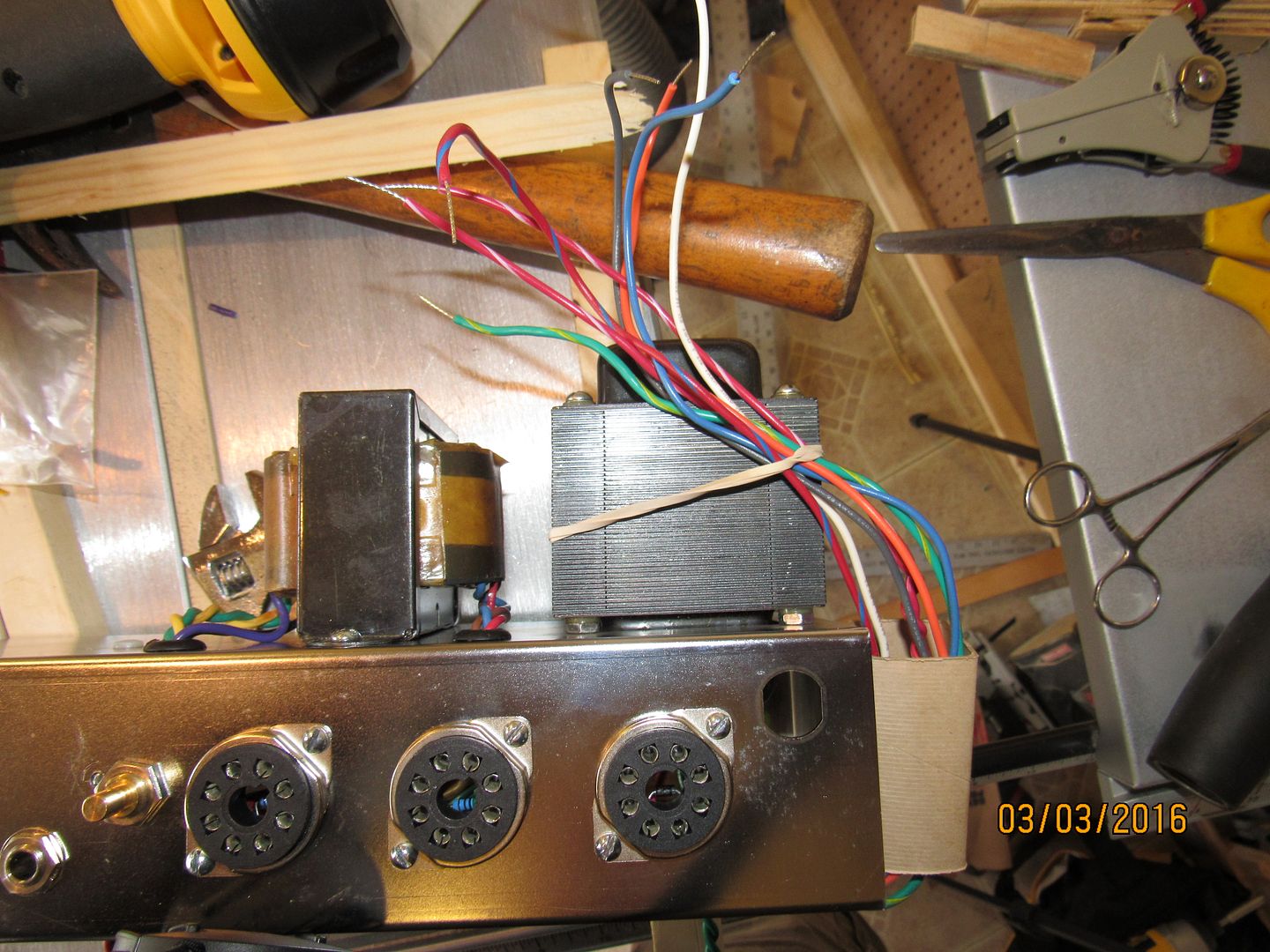

My PT arrived and it is in and the Octals are all wired. I think my next progression will be to get the pots wired and the jacks.
That PT is a monster with all the ability to wire for different line voltage lower voltage taps for Bias. Mag comp 40-18028.

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Thu Mar 03, 2016 9:12 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL

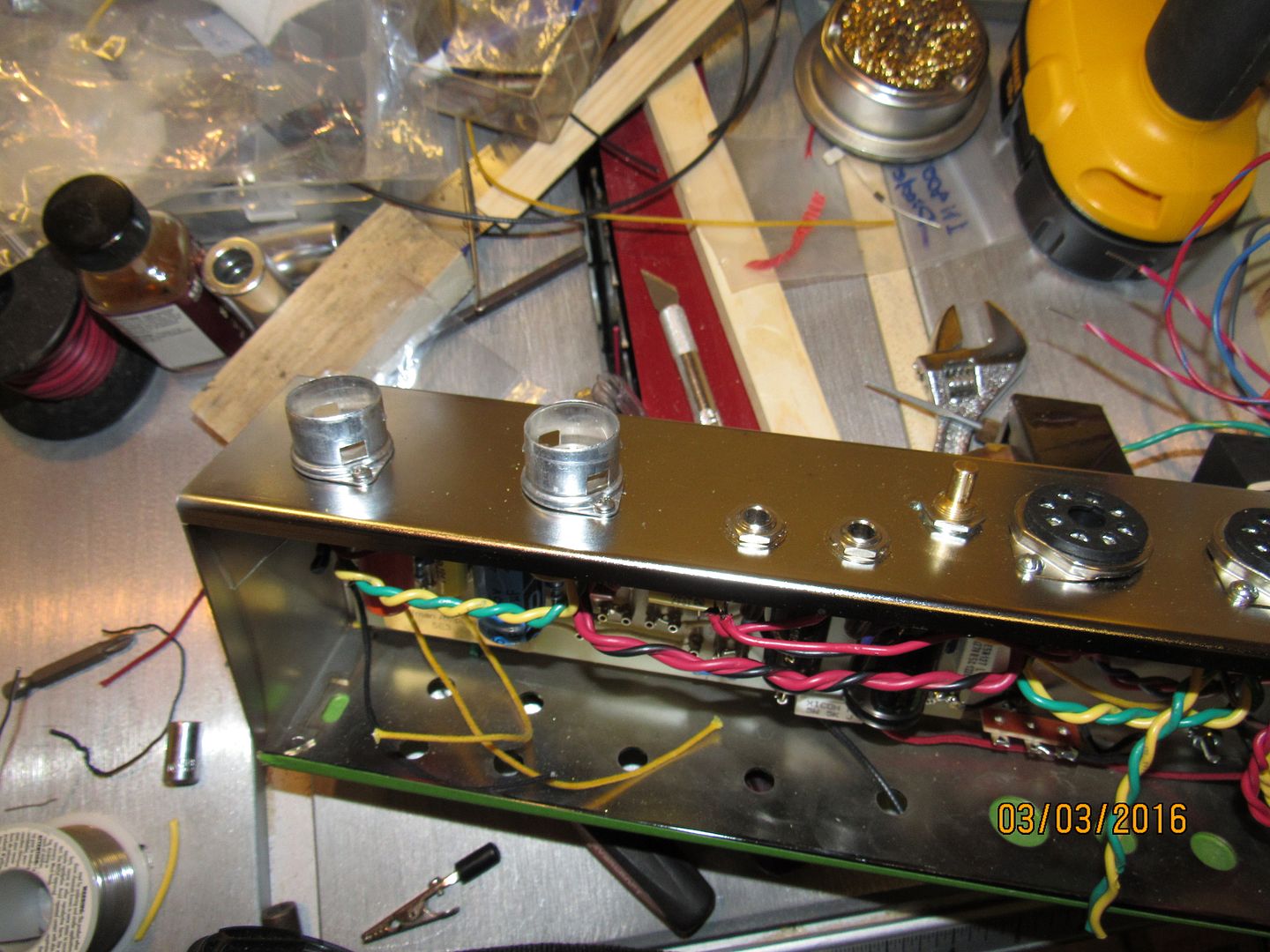

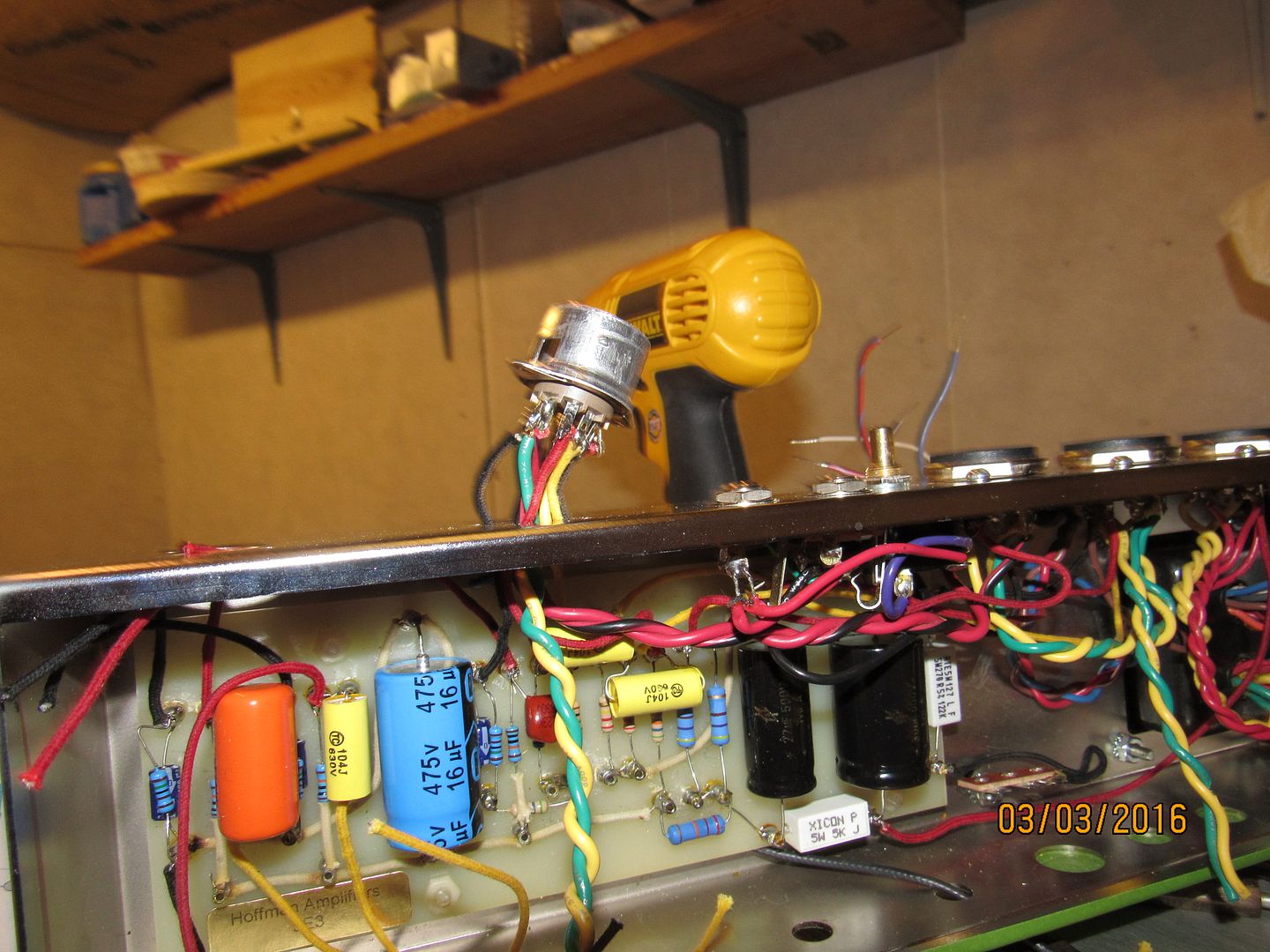

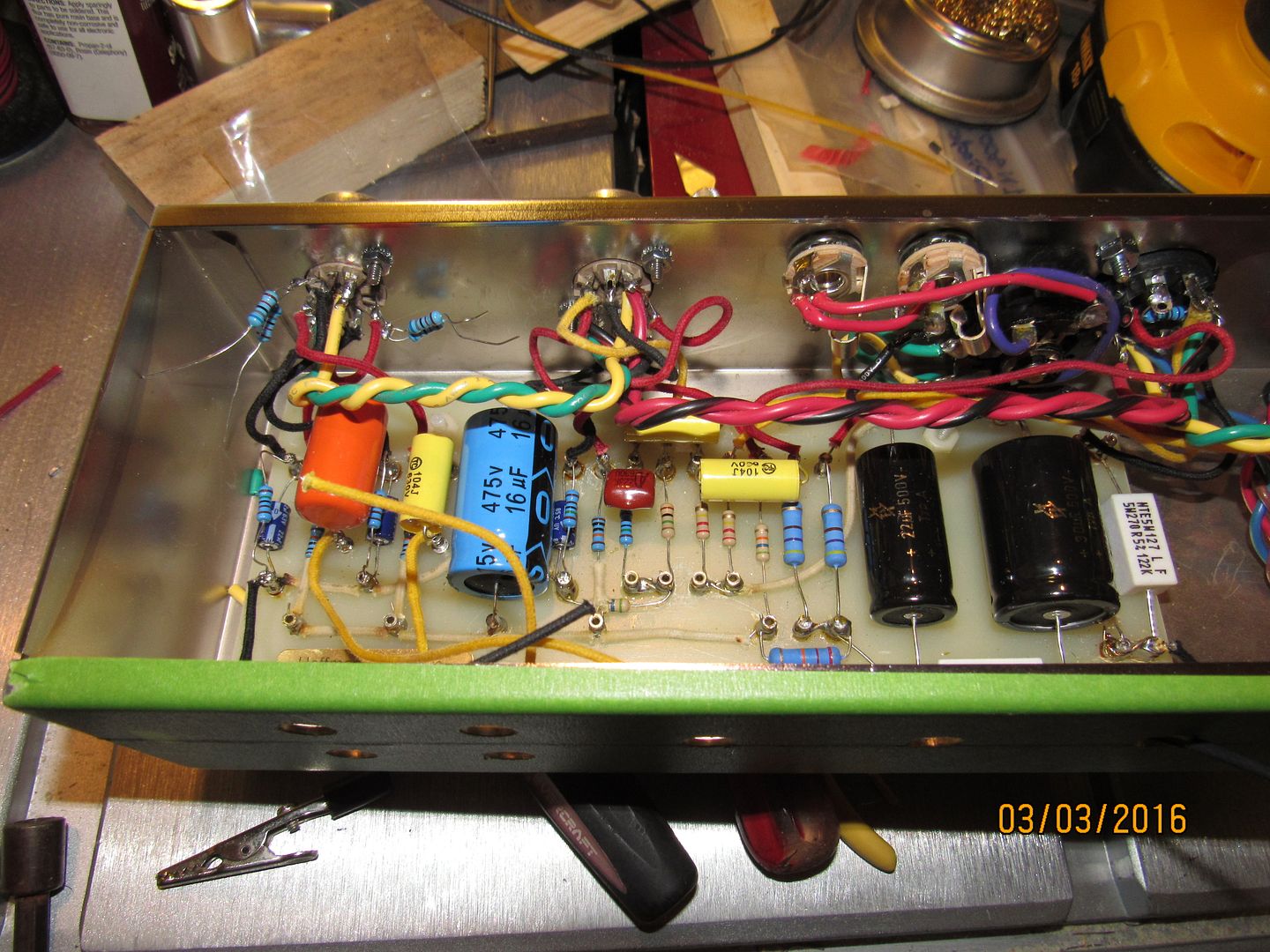

Finished wiring the sockets. Signal wires will be shielded wire and also Pin 2 of the PI to Tone Pot. Time to turn it over and wire Jacks and Pots.


_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Fri Mar 04, 2016 10:28 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL

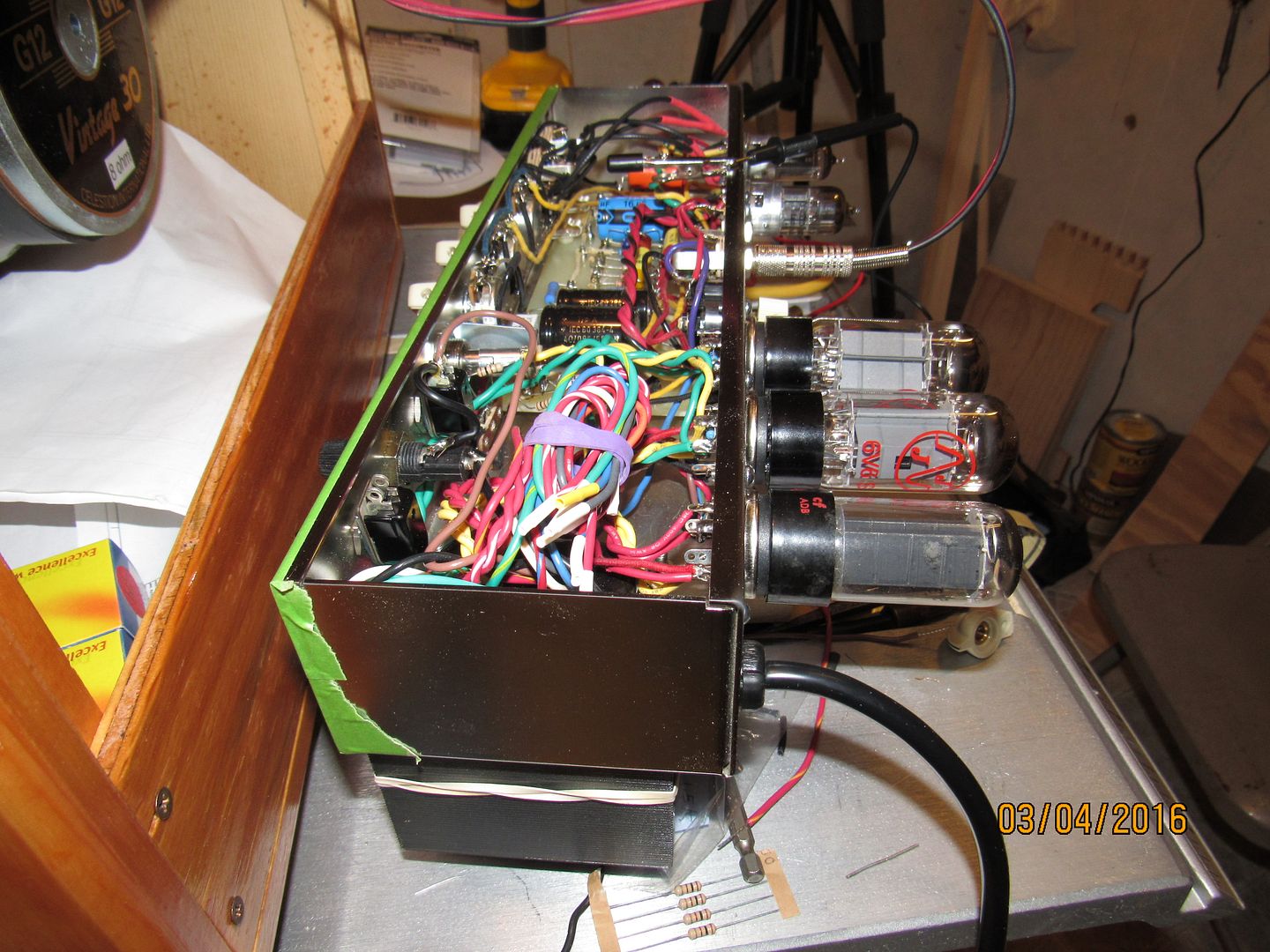

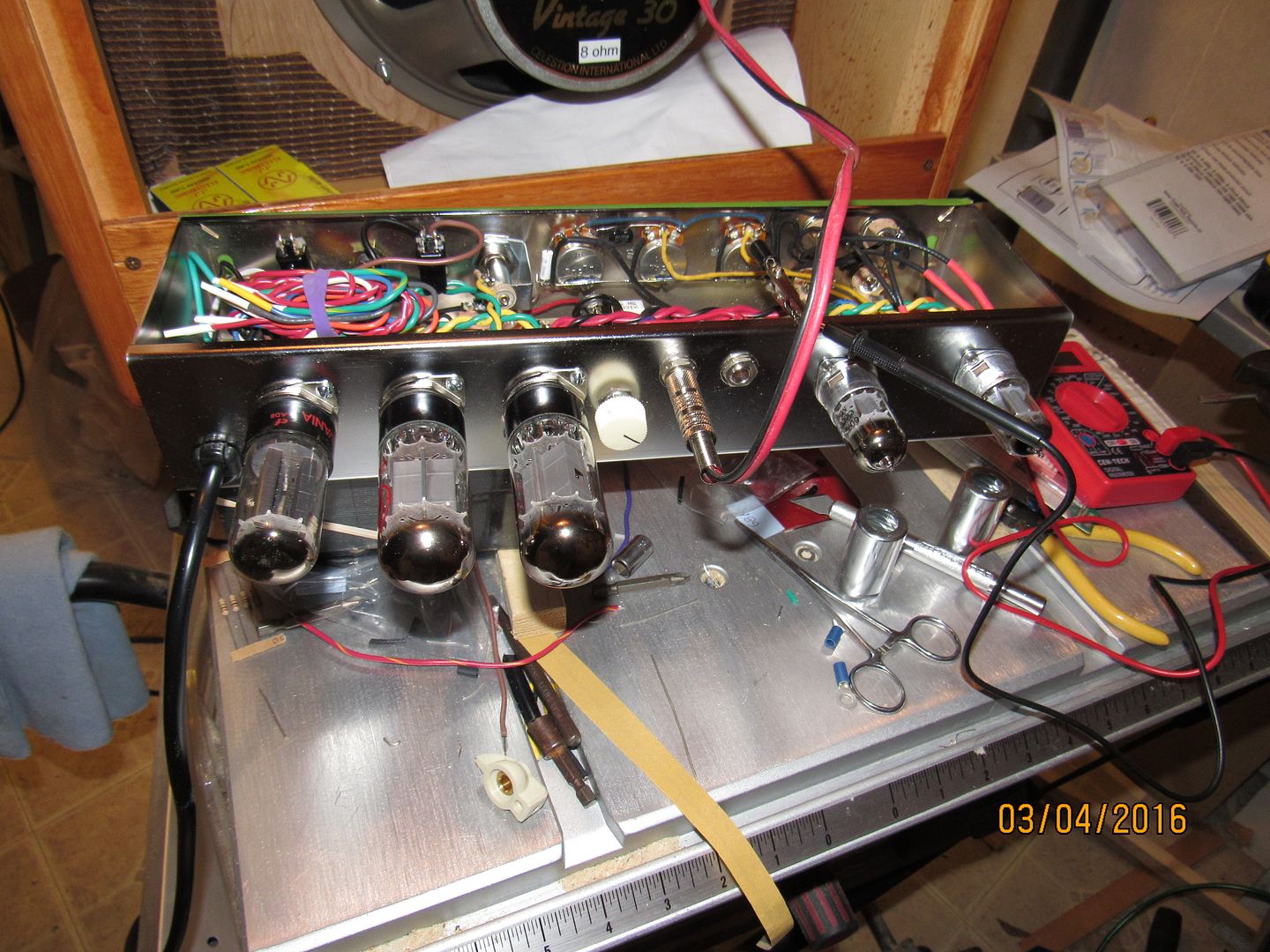

I really made progress today. Stuck at it and the amp is together and working great. Not a problem with it at all. Did the Lightbulb Limiter and checked the voltages at the 3 filters. Then I plugged in and played. Took a break and went back out and put the Chassis in the Amp Cab.


_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sat Mar 05, 2016 8:38 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Great job! What is the tone like?

:)


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sat Mar 05, 2016 10:06 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
BMW2002Ti wrote:
Great job! What is the tone like?

:)
Great tone , nice breakup! It was a little brittle with the JJ 6V6 at 1st so I put in a pair of GE 6V6 and what a difference. I only use JJ crap at 1st power up. Don't want to risk ruining my good tubes.

I tried a 5Y3 and a 5U4GB to see what the voltage differences were. 1st Cap was 393 with 5Y3 and 408 with the 5U4. The 5V winding is rated 3A so I can use either. I have taps for lower voltage if I want.

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sat Mar 05, 2016 2:18 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Very nice work Cap! I might have missed is somewhere in the post...what does the knob next to the speaker input jack do?

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sat Mar 05, 2016 2:33 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
T2Stratman wrote:
Very nice work Cap! I might have missed is somewhere in the post...what does the knob next to the speaker input jack do?

T2


Perhaps a global feedback controller?


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sat Mar 05, 2016 2:42 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
I believe it's an impedance selector to switch between the multiple secondary taps at the O/T.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sat Mar 05, 2016 7:28 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
Retroverbial wrote:
I believe it's an impedance selector to switch between the multiple secondary taps at the O/T.

Arjay
Warp Drive, just kidding, Arjay has won the 64,000 dollar question! T2Stratman pay up. :lol:

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sat Mar 05, 2016 11:14 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
No sweat, Cap47. Tony dropped by for a visit a couple of weeks ago, with a 12 Y/O bottle of Glenlivet in hand.

He's paid in full.

:wink:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sun Mar 06, 2016 7:20 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Retroverbial wrote:
No sweat, Cap47. Tony dropped by for a visit a couple of weeks ago, with a 12 Y/O bottle of Glenlivet in hand.

He's paid in full.

:wink:

Arjay


Hell of a visit it was too! As good at photography as Arjay is, his collection is most impressive in person! Each amp looks like he just brought it home from the music store!

Really enjoyed the '69 Crown Royal too! Quite the special treat!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sun Mar 06, 2016 10:30 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
T2Stratman wrote:
Really enjoyed the '69 Crown Royal too! Quite the special treat!


Indeed!

That's a very special bottle that I reserve for only my most honored friends.

8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sun Mar 06, 2016 12:23 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
https://www.youtube.com/watch?v=dh2OCjrJLdY

Just a quick video. I should have recorded from the front I think.

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: Upcoming 5E3 Build.
Posted: Sun Mar 06, 2016 6:51 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Nice tone! If you record from front, you'll get a slightly better imaging and mid-to-high clarity.

:)
