Post subject: Help with Bassman 70 Silverface
Posted: Fri Jun 13, 2014 11:13 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 13, 2014 11:07 am
Posts: 10
Hi Guys Im new here. Im trying to identify the year my amp was made. I have looked all over and looked into the tube chart code and transformer code and Im still a little confused.

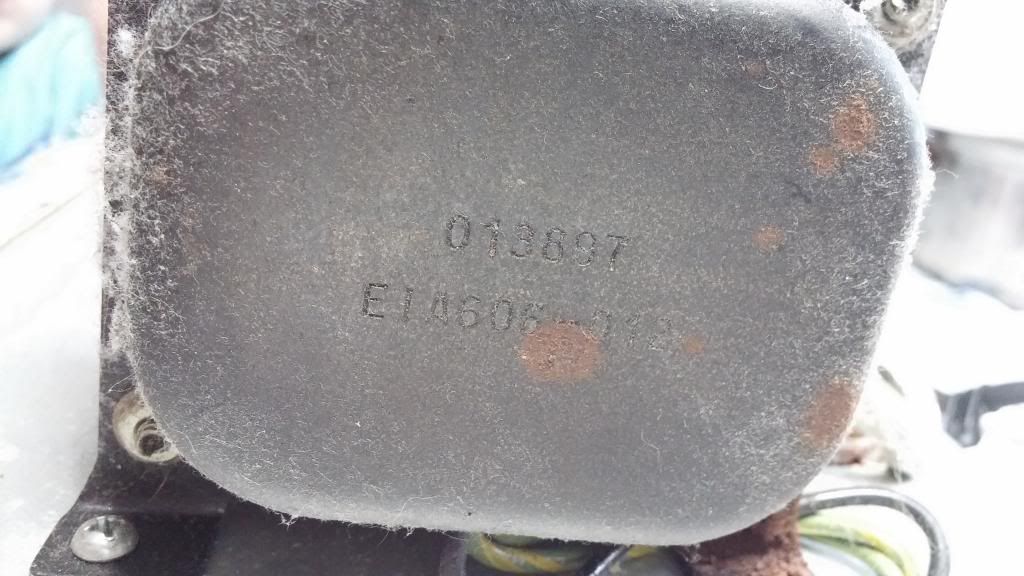

I got the amp from someone i know and the "date stamp" code on the tube chart is missing. It has a 2x15 Bassman speaker cabinet The tag reads "Fender Musical Instruments" ( I read thats significant to the year). The transformer has EIA606- 012 on one and the other is EIA606 028 on the other if im not mistaken, but it doesnt make sense to me that the year is a 0 (1960? 70? 80?). The fender logo does not have a tail. Idk,

Ive read all these little tricks and cant seem to pinpoint the year. Anyone have any ideas? Ill give you all the info I can.

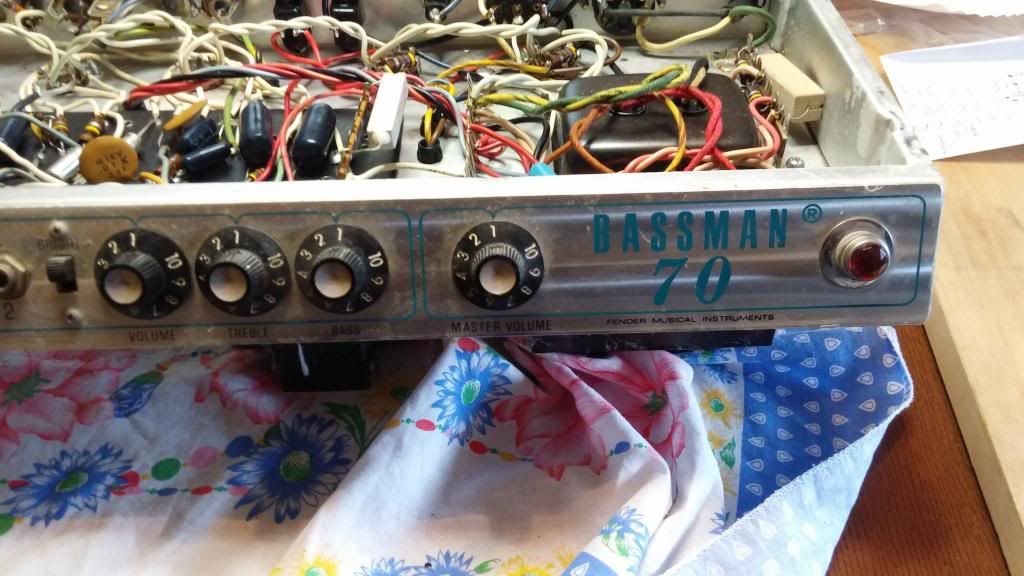

It has a Master Volume knob

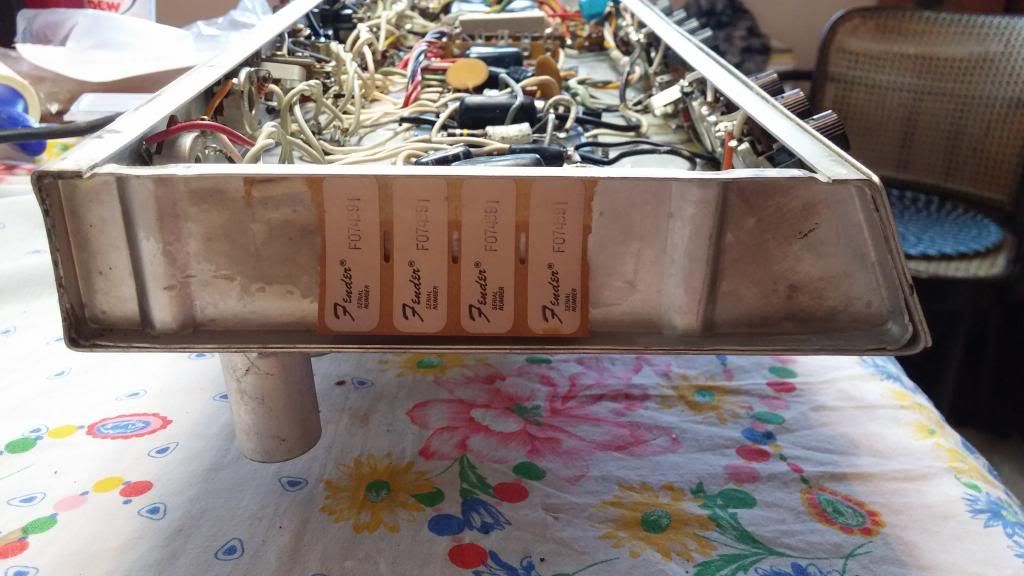

The chassis has what I assume is a serial stamp F074391

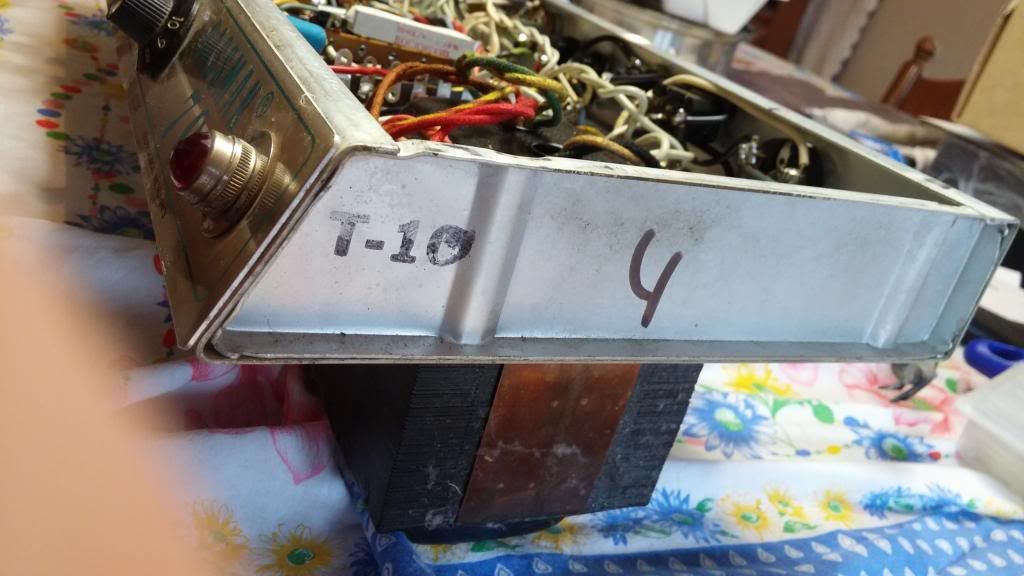

Also Stamped in ink on the chassis: 0854, and T10 in Large Letters

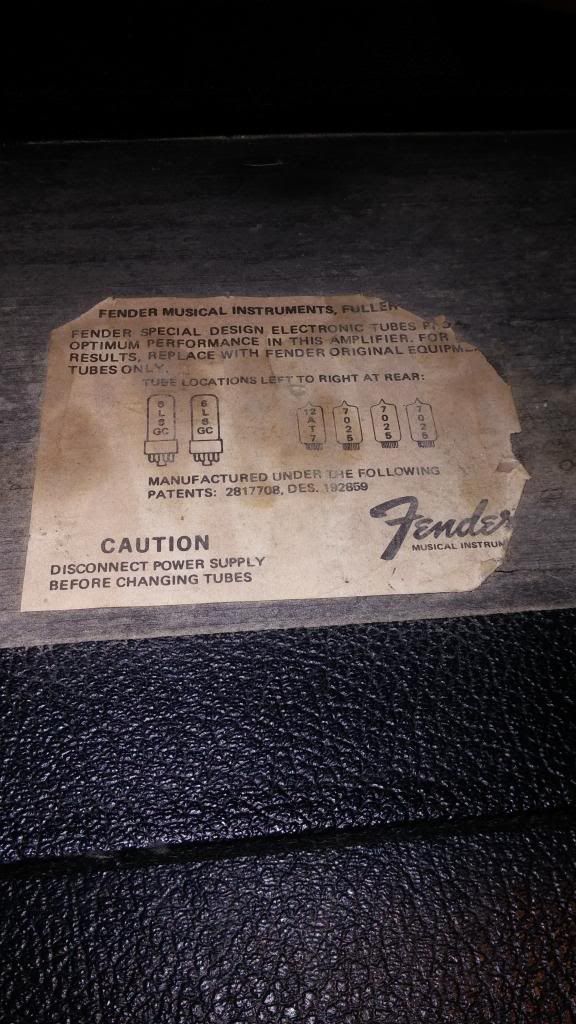

Here is the tube chart after i cleaned the tolex up a little:



Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Help with Bassman 70 Silverface
Posted: Fri Jun 13, 2014 1:08 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Metalfan1185 wrote:
The transformer has EIA606- 012 on one and the other is EIA606 028 on the other if im not mistaken, but it doesnt make sense to me that the year is a 0 (1960? 70? 80?). The fender logo does not have a tail. Idk,

The chassis has what I assume is a serial stamp F074391


Hi Metalfan! My WAG would be:

606-012 = 606 is Schumacher. 012 = 1980, 12th week for your amp.

606-028 = 1980, 28th week.

F0743391 = F0+5--digits is 1980.

Have any photos?


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Fri Jun 13, 2014 2:52 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
BMW2002Ti wrote:
Hi Metalfan! My WAG would be:

606-012 = 606 is Schumacher. 012 = 1980, 12th week for your amp.

606-028 = 1980, 28th week.

F0743391 = F0+5--digits is 1980.


+1

That correlates to my archived data as well.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sat Jun 14, 2014 8:27 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 13, 2014 11:07 am
Posts: 10

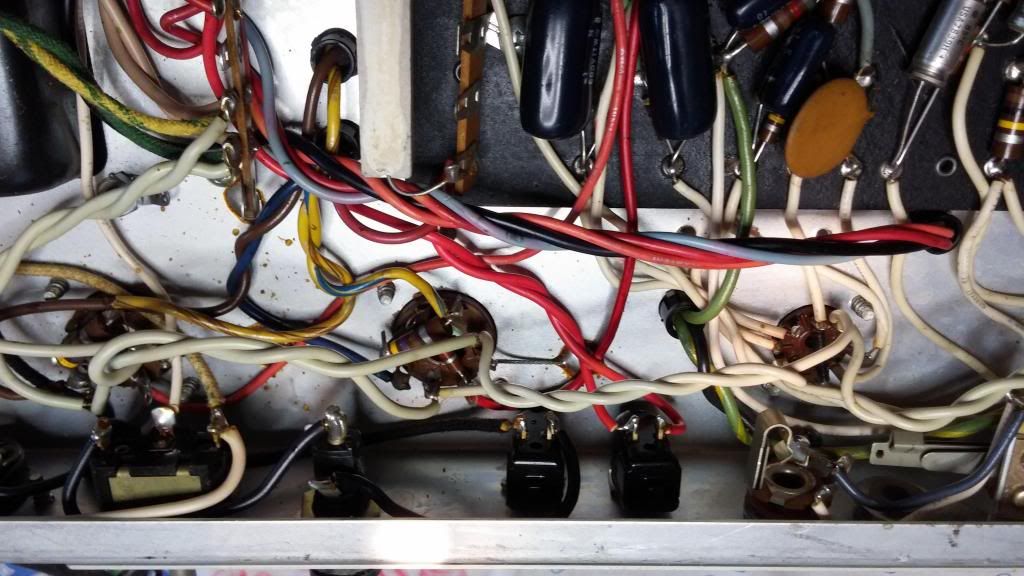

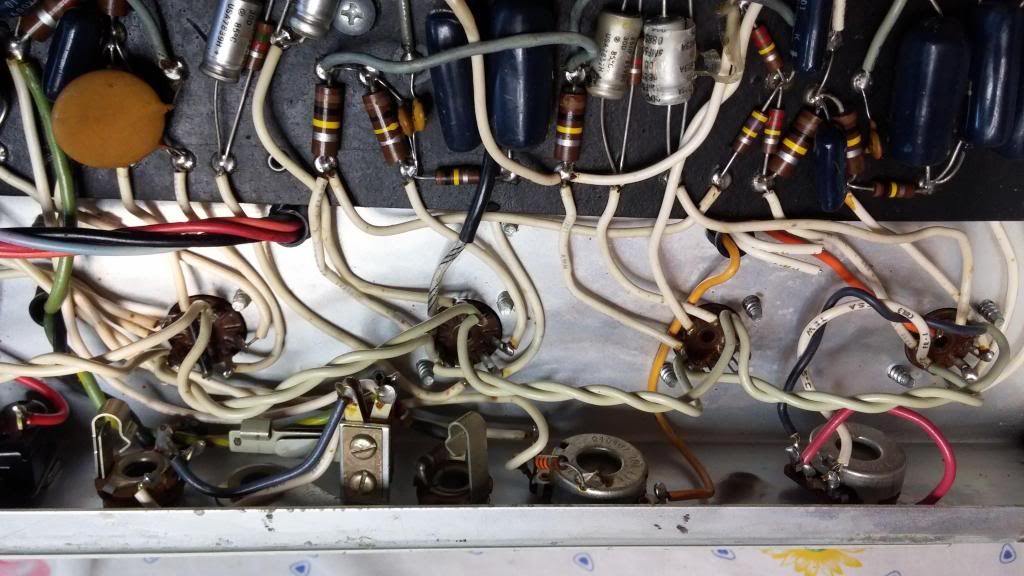

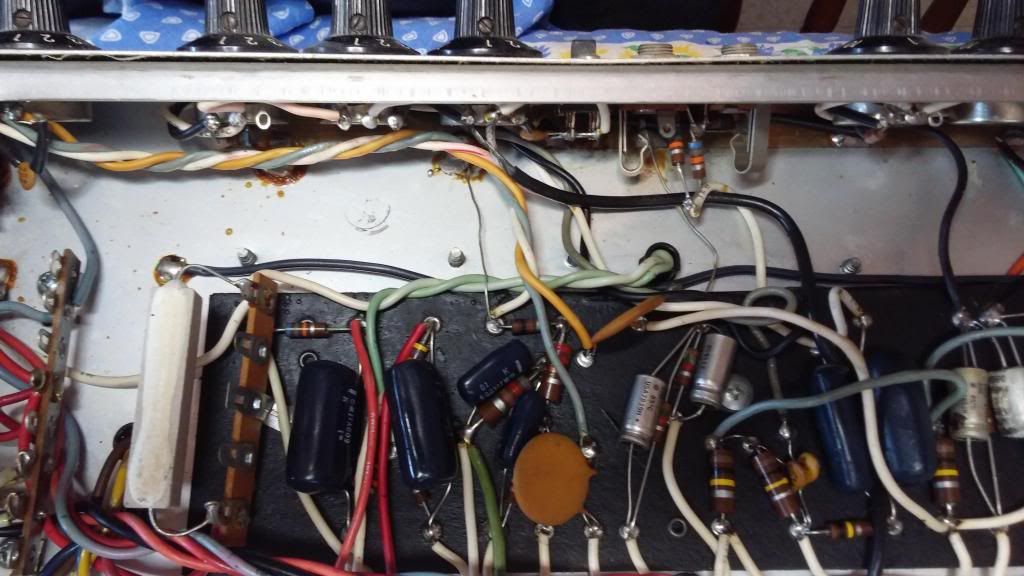

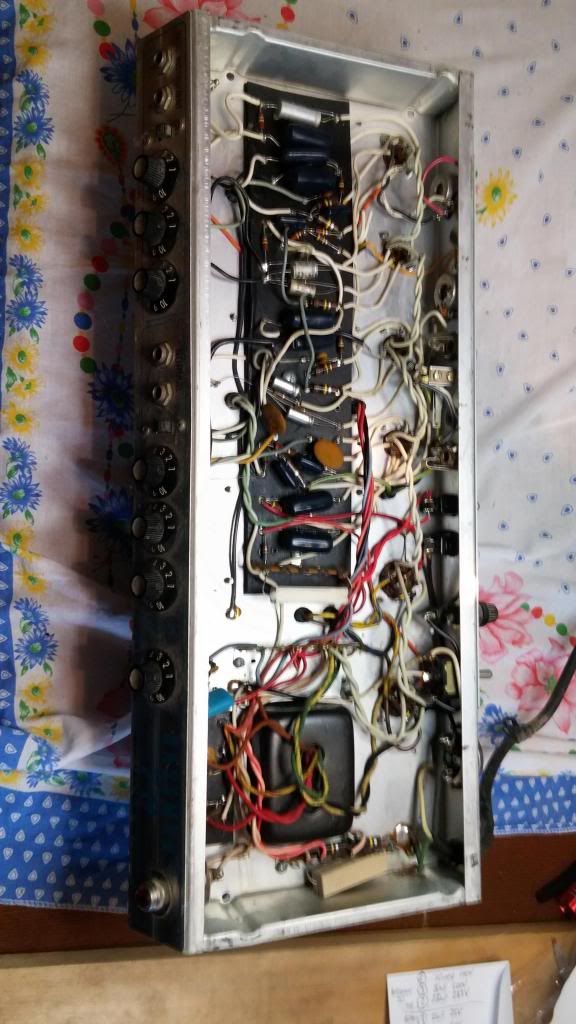

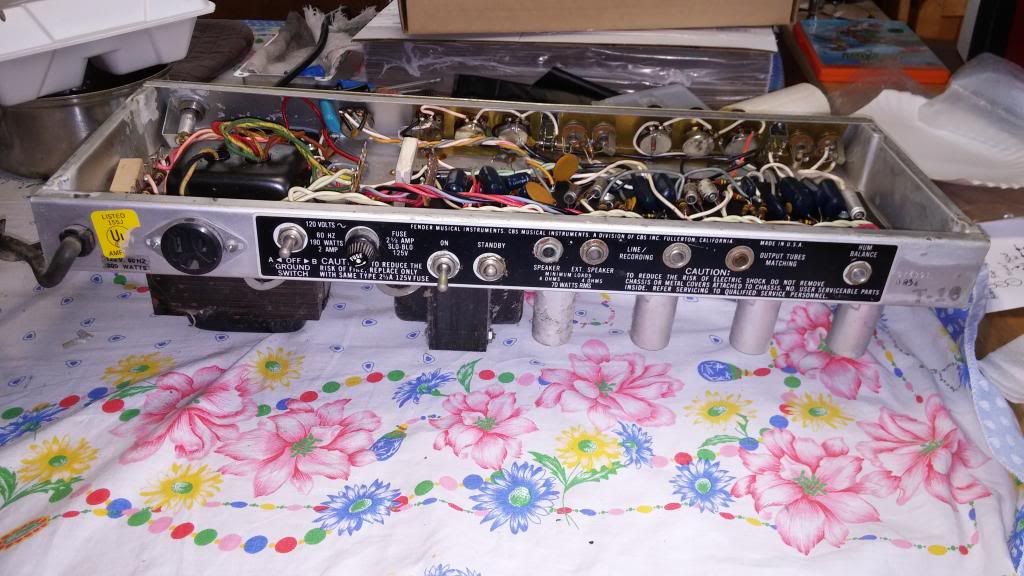

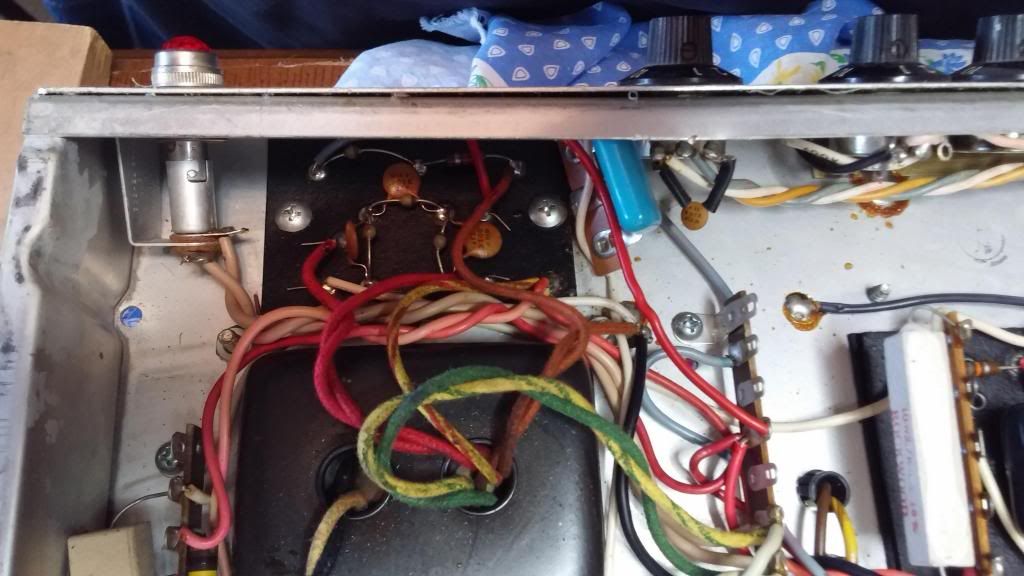

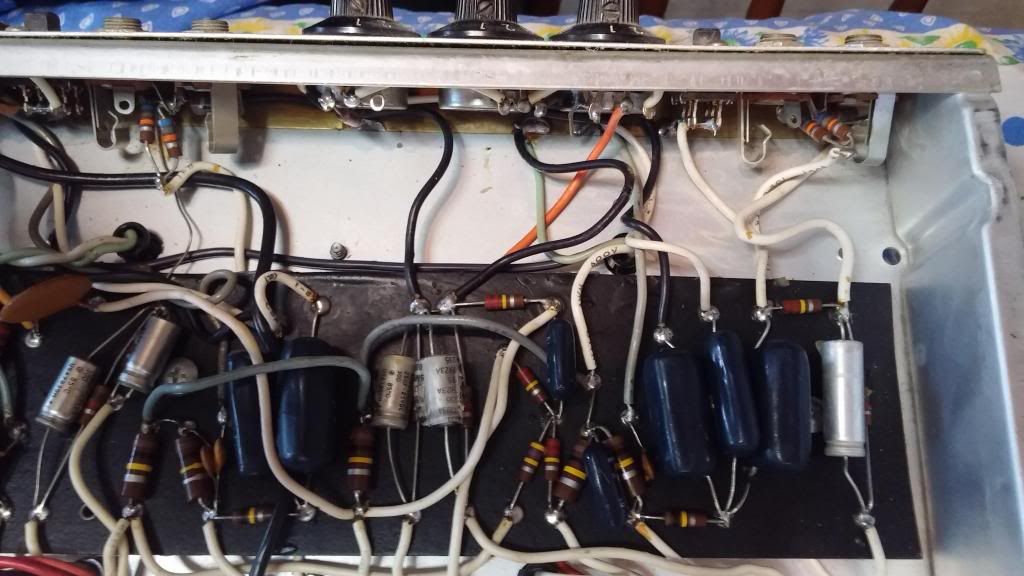

I got a chance this morning to take some pictures of it. I brought it to someone to check the parts out and be sure the caps and stuff are good before turning it on because its been sitting for years.









Last edited by Metalfan1185 on Sat Jun 14, 2014 8:42 am, edited 1 time in total.

Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sat Jun 14, 2014 8:40 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 13, 2014 11:07 am
Posts: 10









Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sat Jun 14, 2014 9:46 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

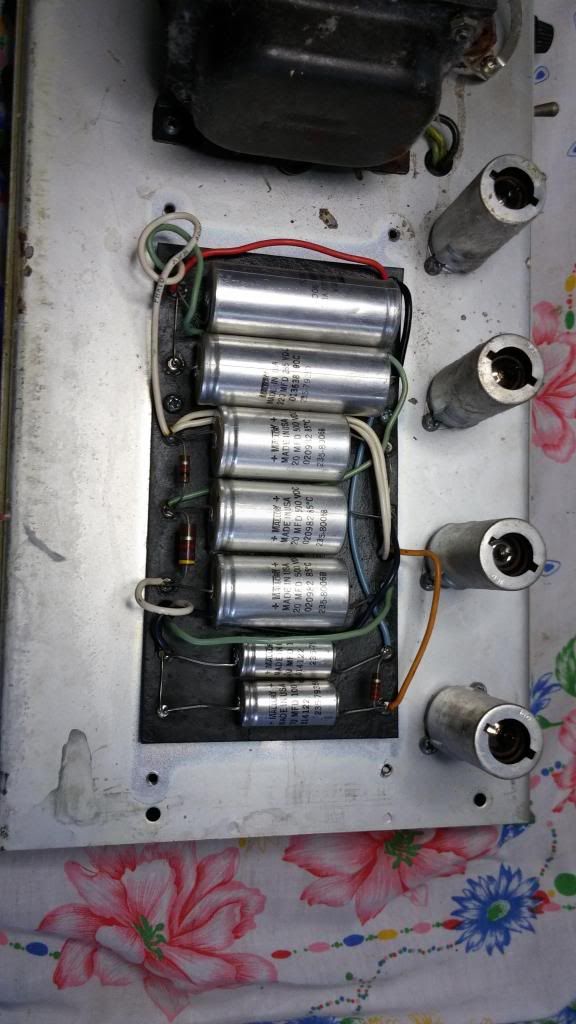

Metalfan, amp is in great shape. The Mallory filter caps are all original, too. "1980" stamp dating. I'd prolly change out those main filter caps, under the hood. 34 years old is pushing it, a bit, even with those quality caps.


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sat Jun 14, 2014 10:19 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 13, 2014 11:07 am
Posts: 10
Thanks! I have been dying to play it but I saw a cap or two swelled up so I'm investing into some replacement parts (non-china cheapys). I read that there are many circuit variations in these amps so I would like to find exactly which circuit mine has. I dont really know where to start in terms of figuring that out. I cant wait to try it!!!

By the way, Thanks for your responses guys I appreciate it!!!


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sat Jun 14, 2014 10:47 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
BMW2002Ti wrote:
Metalfan, amp is in great shape. The Mallory filter caps are all original, too. "1980" stamp dating. I'd prolly change out those main filter caps, under the hood. 34 years old is pushing it, a bit, even with those quality caps.


Absent any visible evidence of fatigue (bulging cases, leaking electrolyte) I see nothing amiss with those caps. I'd fire it up now and start taking some dynamic voltage and current measurements.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sat Jun 14, 2014 10:57 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 13, 2014 11:07 am
Posts: 10

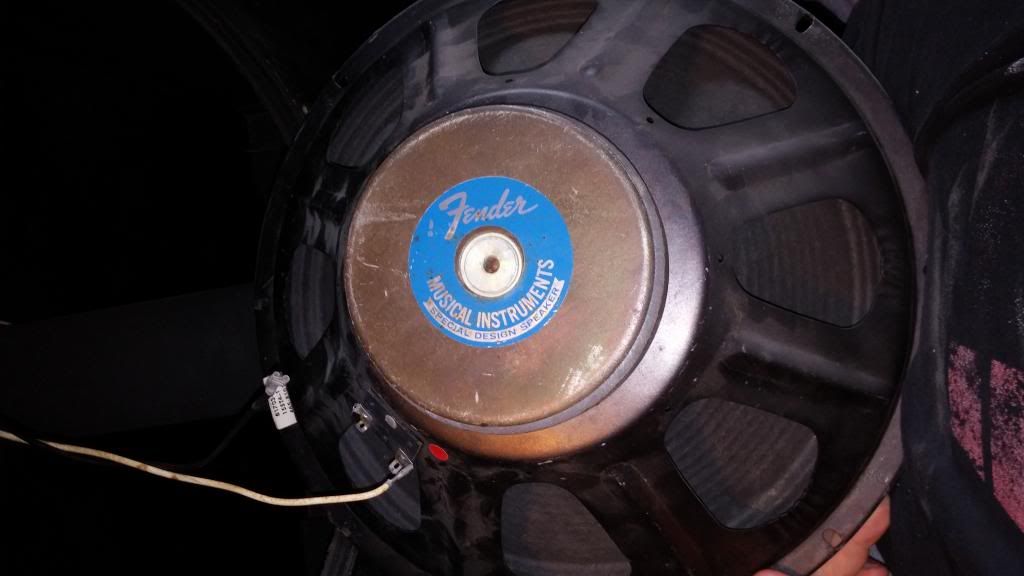

Yes there is a little evidence of the caps swelling I can see it on the edges. Im also checking other things too like the carbon composition resistors and other caps. This amp came with a bassman 2x15 cabinet as well. I think the speakers in it are Fender branded.


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sat Jun 14, 2014 1:04 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Got any pics of the cabinet?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sun Jun 15, 2014 9:08 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 13, 2014 11:07 am
Posts: 10

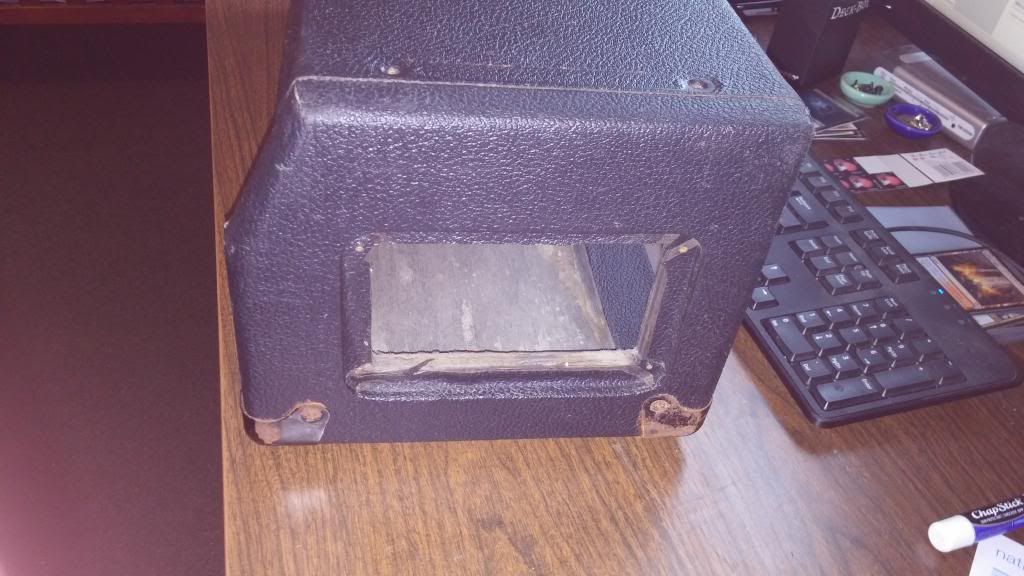

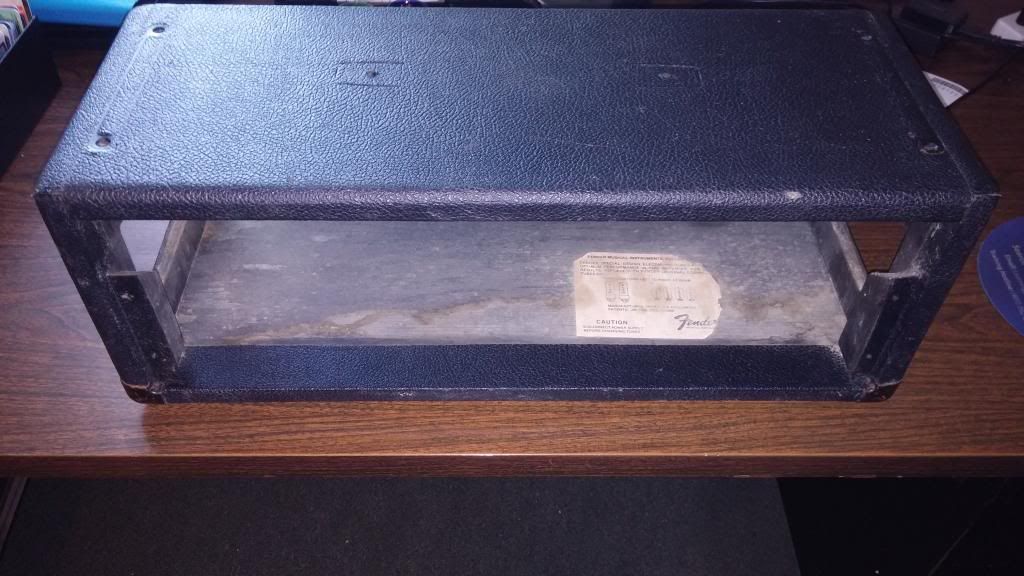

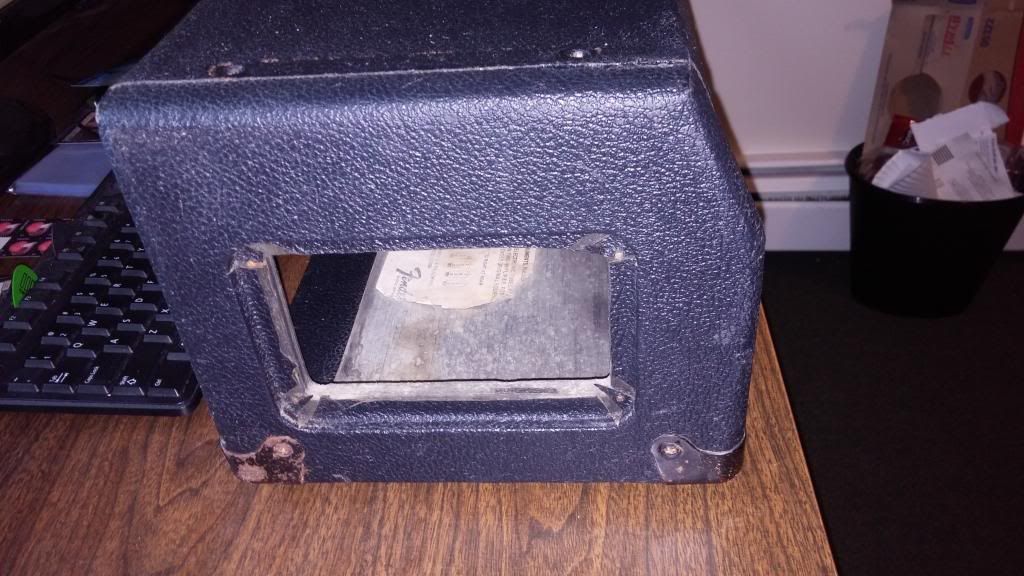

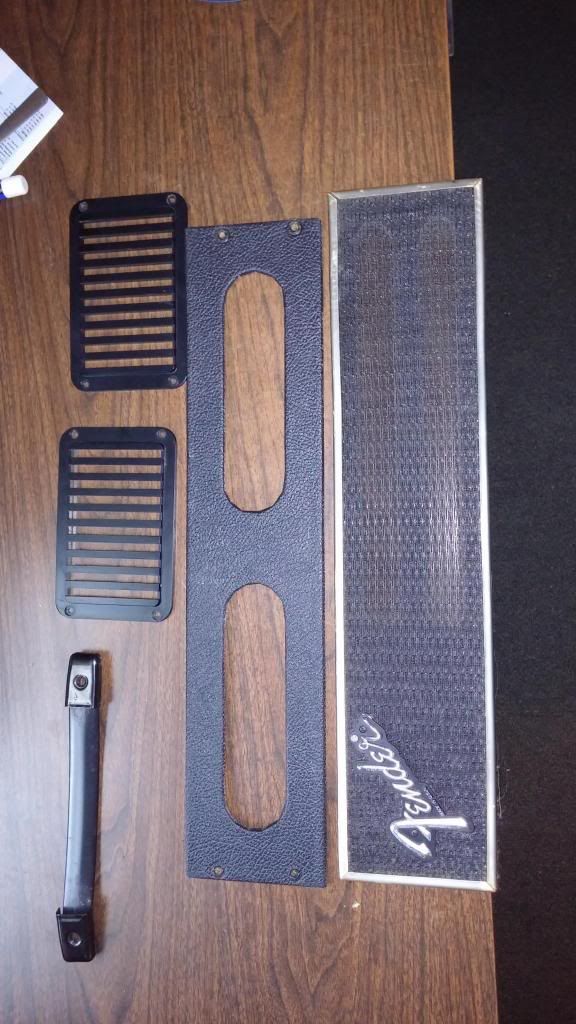

Sure! I am in the middle of restoring the cabinet and cleaning it up a little but here are the photos before. All I did was clean the tolex a little so far.







That's what you meant right? Or did you want pics of the speaker cabinet?







Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sun Jun 15, 2014 10:57 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory

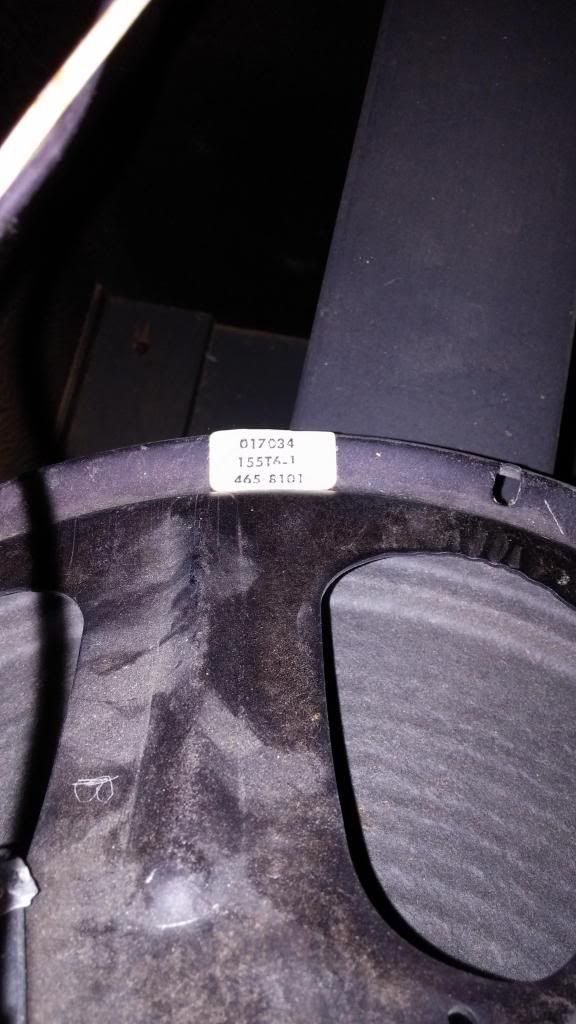

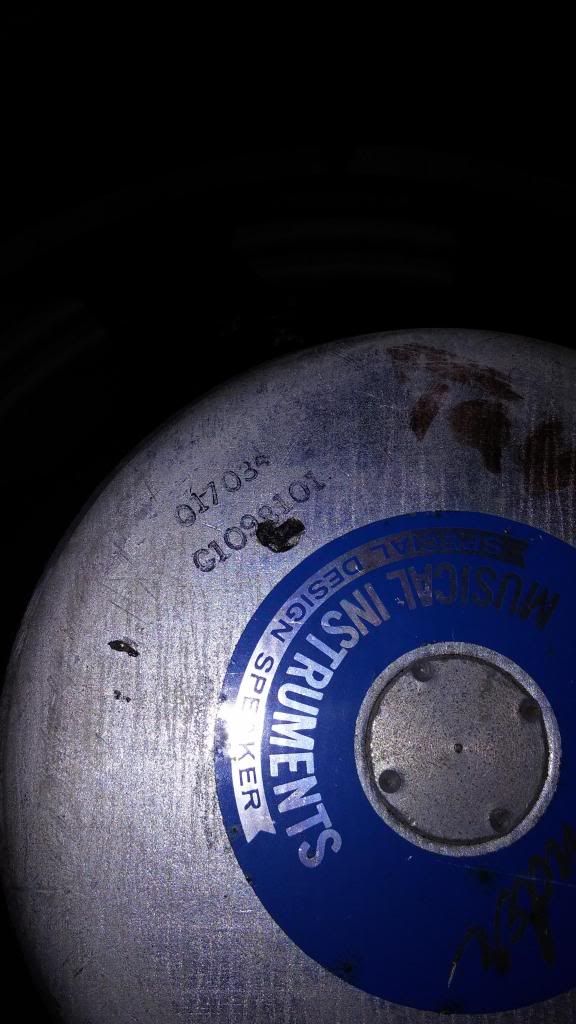

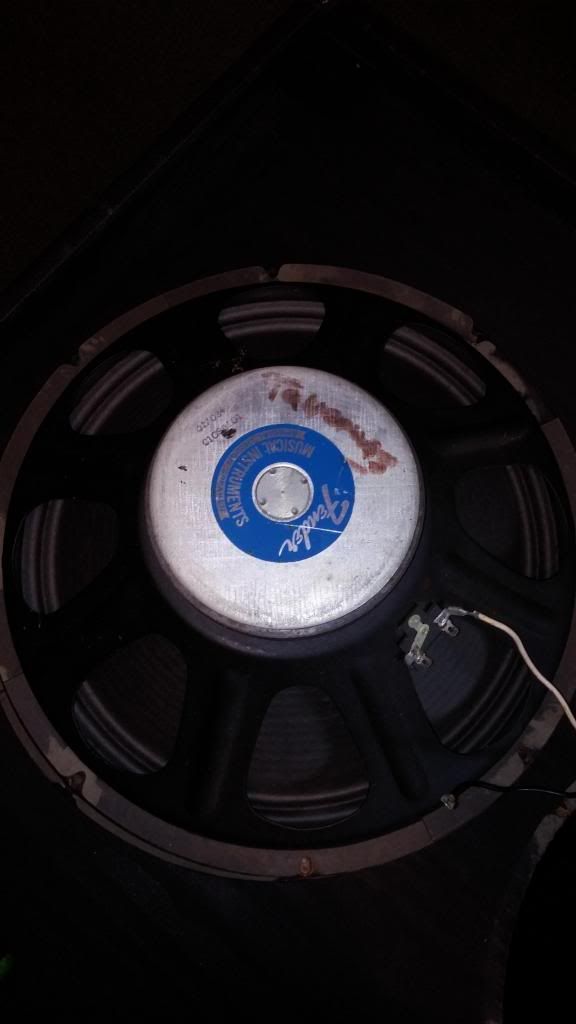

Oxford's made in the 1st week of 1981 -- likely original to the enclosure.

Sonically, you can do a lot better by hook-shotting these into the nearest convenient dumpster and installing something from Weber, WGS, or (if you have the dinero) JBL's. Altec's would also be a worthy option.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sun Jun 15, 2014 2:37 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 13, 2014 11:07 am
Posts: 10
Well I am planning on playing guitar through this thing. I haven't even considered speaker options at this point. I would have to hear some and see what i like i guess. I know the JBL's are expensive my old man was telling me about them. I dont have money like that lol.


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sun Jun 15, 2014 2:58 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Metalfan1185 wrote:
Well I am planning on playing guitar through this thing. I haven't even considered speaker options at this point. I would have to hear some and see what i like i guess. I know the JBL's are expensive my old man was telling me about them. I dont have money like that lol.


Weber and WGS offer some nice-sounding, modestly-priced alternatives. As for the Oxfarts, pry off the magnets and use them as Frisbees. That's about all they're good for.

:lol:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Help with Bassman 70 Silverface
Posted: Sun Jun 15, 2014 3:19 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Retroverbial wrote:
...Oxfarts, ...


:lol: :lol: :lol:

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.
