Post subject: Re: While you were sleeping......(NOAD)
Posted: Thu May 08, 2014 4:39 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Retroverbial wrote:
I think so too.

And once I remove the grill cloth I'll be able to pinpoint the baffle board's original mounting holes for the logo. The current location is incorrect -- too far to the left side and too much vertical angle (yeah......I'm that anal).

:mrgreen:

Arjay


Yes you are...but I would call it more of attention to detail...something you might have picked up during a previous part of your life? Can't get a 7 Level without it!!

The amp is coming along nicely, and getting it's rightful "Blackface Suit" back has got to be very satisfying to you and the amp!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: While you were sleeping......(NOAD)
Posted: Fri May 09, 2014 1:13 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Dec 29, 2012 11:48 pm
Posts: 681
Location: Southern, CA
Retroverbial wrote:
I think so too.

And once I remove the grill cloth I'll be able to pinpoint the baffle board's original mounting holes for the logo. The current location is incorrect -- too far to the left side and too much vertical angle (yeah......I'm that anal).

:mrgreen:

Arjay


When I put new grill cloth on my SFSR I was concerned about getting the logo in the original holes myself. You probably have a neat trick for that.

FWIW. I took general measurements of the screw hole locations on the baffle board before I put the new grill cloth on. After installing the grill cloth, working in the area of the measurements, I started sticking a straight pin through the grill cloth until I found the holes. Only took 3 or 4 attempts before I found the holes. Worked great for me. :wink:

Looking forward to your progress on this amp.

RAWK ON !!

Jerry

_________________
'62 Jazzmaster/'78 Precision Bass/'88 Fender F250 acoustic/'07 Gibson Less Paul Classic Antique/'12 Squier Strat/'14 Squier VM Jaguar/'15 Classic 60s Telecaster/'68 Showman Reverb/'70 Bandmaster Cabinet JBL D140F speakers/'69 Super Reverb/'12 G-DEC 3-30


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Fri May 09, 2014 2:38 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
That's exactly how I do it, Jerry. Locating the first hole is the most difficult but once identified, it's relatively easy to merely extrapolate the other two by using the logo itself as a template.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Fri May 09, 2014 11:24 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Dec 29, 2012 11:48 pm
Posts: 681
Location: Southern, CA
Retroverbial wrote:
That's exactly how I do it, Jerry. Locating the first hole is the most difficult but once identified, it's relatively easy to merely extrapolate the other two by using the logo itself as a template.

Arjay


Yep! That's it. Glad to learn I'm doing something the right way. :wink:

Jerry

_________________
'62 Jazzmaster/'78 Precision Bass/'88 Fender F250 acoustic/'07 Gibson Less Paul Classic Antique/'12 Squier Strat/'14 Squier VM Jaguar/'15 Classic 60s Telecaster/'68 Showman Reverb/'70 Bandmaster Cabinet JBL D140F speakers/'69 Super Reverb/'12 G-DEC 3-30


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Fri May 09, 2014 1:43 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Think of it as "fishing".

:mrgreen:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Thu May 15, 2014 12:12 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory

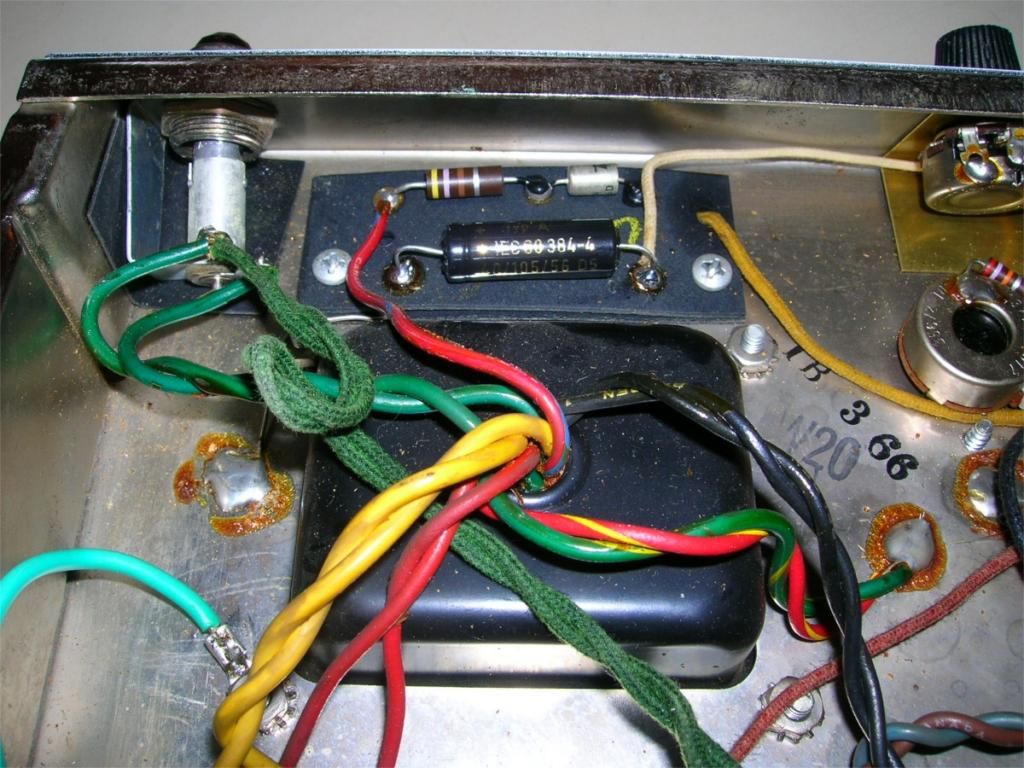

Ready for duty: The original-and-aging Mallory electrolytic caps have all been replaced with new F&T’s and a proper 3-conductor grounded power cable has been installed......




Refurbishing the filter-cap array added a few additional volts to the B+ supply (from the original 414 VDC to 440 now) and a fresh pair of NOS gray-plate GE 6L6GC’s biased to 39.5 mA have been installed. A new JAN/Raytheon 12AT7 replaced the JJ ECC83S in the V3 position which tamed the reverb channel a bit and sounds much smoother with a Fulltone OCD pedal up front.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Thu May 15, 2014 12:31 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Arjay,

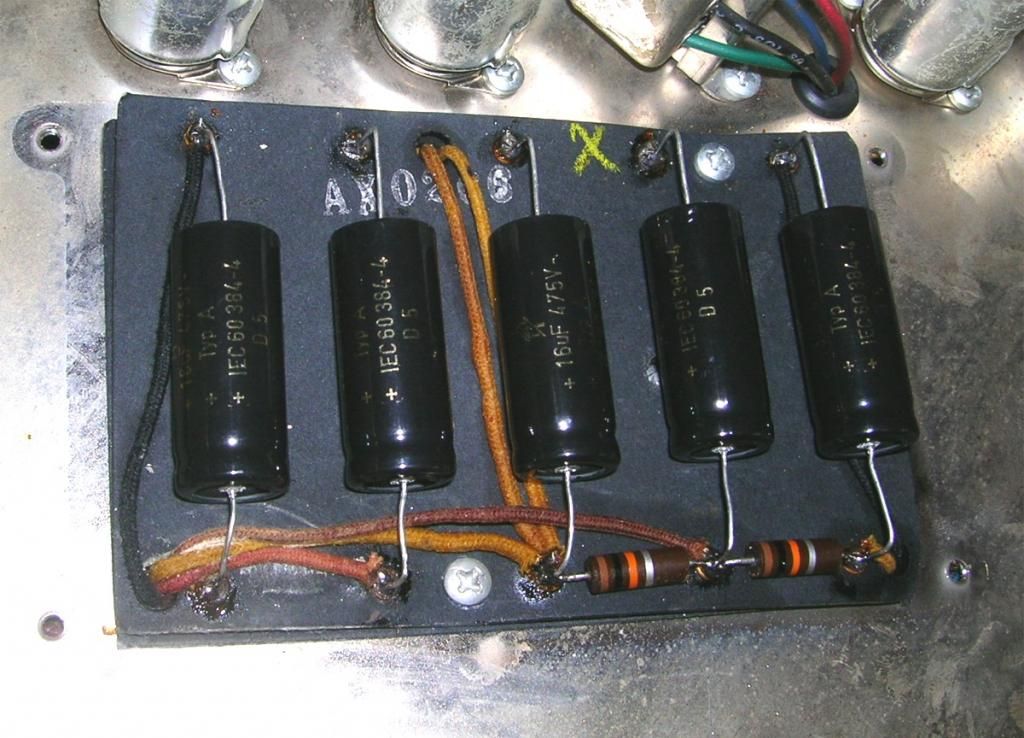

Good job! First time that I've seen the manufacture stamp on the main PSU tagboard. Bet that the amp is pretty quiet, at idle. Now, for a full blast test drive.


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Thu May 15, 2014 1:36 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
I've had it dimed a few times now......sounds like frying bacon smells.

The amp actually sounded a skosh meaner when it had a JJ ECC83S in the V3 position (the configuration it was in when it arrived). But it tended to mush out with any type of OD stompbox used in conjunction with the vibrato channel or with a humbucker-equipped Les Paul. The correct 12AT7 sounds much more "civilized".

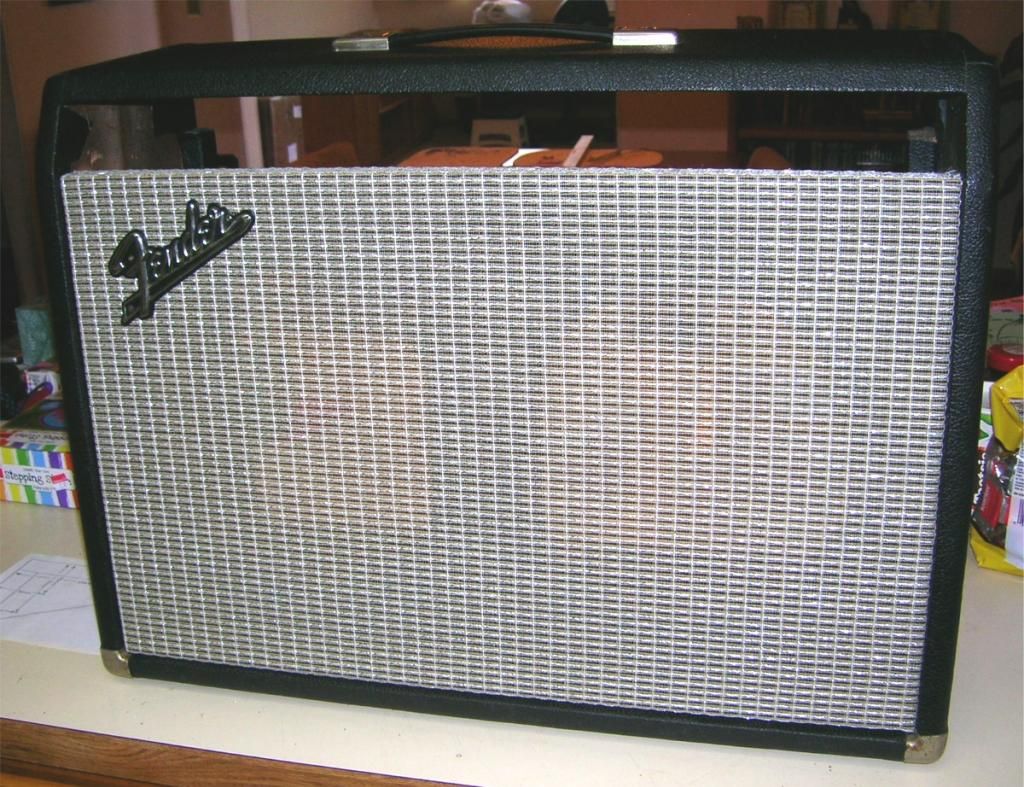

I should have the repro aged-white grill cloth installed shortly.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Thu May 15, 2014 6:43 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
BMW2002Ti wrote:
Arjay,

Good job! First time that I've seen the manufacture stamp on the main PSU tagboard. Bet that the amp is pretty quiet, at idle. Now, for a full blast test drive.


I wonder if this is a '66 thing...my Bassman is stamped the same way.

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Thu May 15, 2014 6:46 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
T2Stratman wrote:
I wonder if this is a '66 thing...my Bassman is stamped the same way.


Possibly -- such markings are not present on my '65 Princeton Reverb nor my '67 Bandmaster.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Thu May 15, 2014 7:27 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Nor my 65 Super Reverb! Either way, can't wait to see your Vibrolux Reverb in fully restored condition!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Mon May 19, 2014 9:40 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
All dressed up and ready for another fifty years of service.

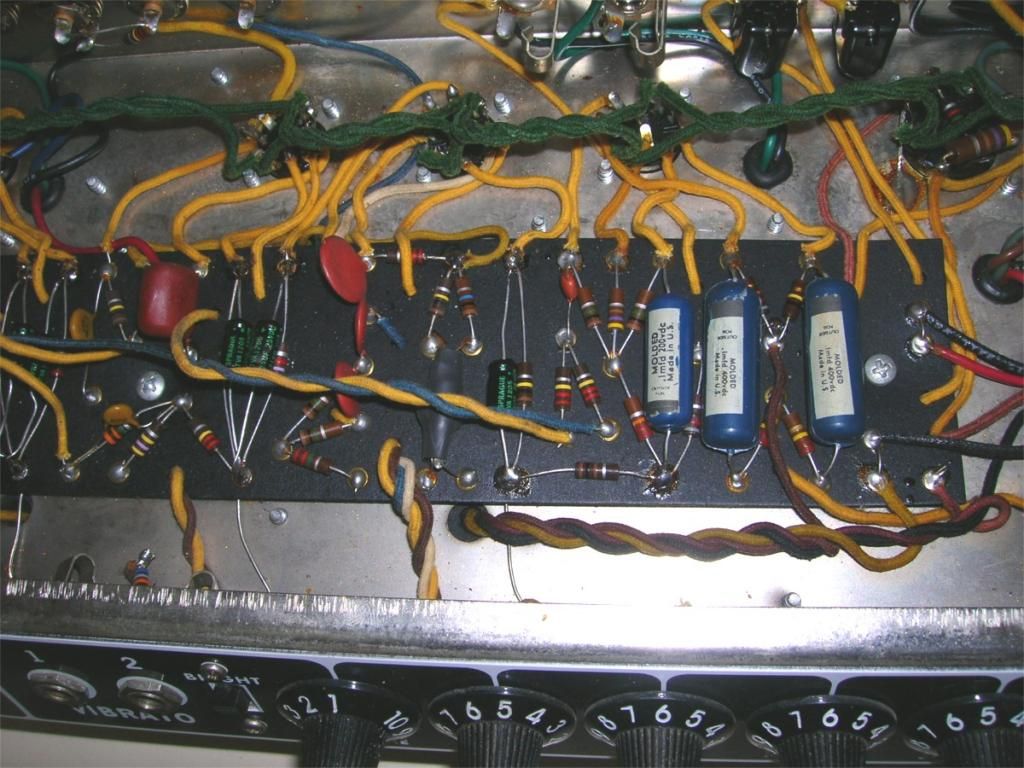

The chassis’s been bench-checked, new electrolytics are installed, a matched pair of NOS gray-plate GE’s now occupy sockets 7 and 8, and the cosmetics have been restored to their rightful blackface glory.




This project was a real pleasure to work on –- aside from the incorrect front panel and grill cloth, the amp was totally unmolested. No missing components to research and track down, no broom-and-dustpan servicing to straighten out somebody else’s maintenance mess, no insidious surprises whatsoever. And it came in well under my budget. Lotta fun!

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Mon May 19, 2014 9:54 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Very nice job! Looks like it came off the assembly line.


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Mon May 19, 2014 9:54 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Excellent work, beautiful job! 8)

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: While you were sleeping......(NOAD)
Posted: Mon May 19, 2014 10:20 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Thanks, guys!

Hopefully in another twenty or thirty years it'll develop the same visual mojo as my Vibroverb.

:lol:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
