Post subject: Re: `57 Champ 5E1
Posted: Sun Mar 30, 2014 7:21 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Feb 10, 2014 6:59 pm
Posts: 67
Boneman, there's a guy near me that does all kinds of speaker reconing, he needs the numbers off it though to see if parts can be gotten for it.

_________________
--Jim


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: `57 Champ 5E1
Posted: Sun Mar 30, 2014 7:45 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Feb 10, 2014 6:59 pm
Posts: 67
I just got a message back from him and he said his supplier DOES list 6" Fender parts.

_________________
--Jim


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sun Mar 30, 2014 7:56 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
Arjay, T2, I hear you. I was repeating what they emailed me about new screw holes. What I would do, if I get a new speaker, is make my own baffle board with some after-market grill cloth, and save the original speaker/baffle board/grill cloth like you're saying. I should have said that originally..

I'm going to first try patching the rips in my cone. I have one big one and two tiny ones. I found some vids on youtube that describe pretty much the same procedure. This one here is really good, especially how he repairs the missing material (starts at ~ 2:05): http://www.youtube.com/watch?v=jW7xuJ2gHOY

Luckily, my rips aren't that bad. I figure I have nothing to lose. If I send it out to re-cone, I won't have an original speaker anymore, because they're going to use paper material with different specifications than in '57 and they are going to replace the voice coil (I guess because it's integral to the cone? I'm going to ask).

If my patchwork doesn't work, I'll see if they can re-cone. If they can't, buy that Sig series speaker that I'm now intrigued about and put my own baffle board in.

But it is odd that he mentioned others rectified the diameter difference by putting in new holes. I didn't pick up on that until you guys mentioned/questioned it. I appreciate it. I'm going to be more cautious. Thanks.


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sun Mar 30, 2014 8:01 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
Thanks, Jim. It's a Fender amp with an Oxford speaker. Oxford was a speaker supplier back in the day for them. The speaker's coding is: 6EV-34 465-651.


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sun Mar 30, 2014 10:35 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
theeboneman wrote:
Arjay, T2, I hear you. I was repeating what they emailed me about new screw holes. What I would do, if I get a new speaker, is make my own baffle board with some after-market grill cloth, and save the original speaker/baffle board/grill cloth like you're saying. I should have said that originally.


A wise decision, TBM. Carefully examine your original baffle board after you pull it and take precise measurements of the mounting holes and how they interface with the front of the cabinet. Tint and/or stain the new plywood to match the aged color of the original part. Photos of your original grill cloth may be helpful in your search for some suitable replacement material. Carefully executed, the repro baffle board (with the new Weber installed) should be nearly indistinguishable from the original.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Mon Mar 31, 2014 7:53 am
Offline
Hobbyist
Hobbyist

Joined: Mon Feb 10, 2014 6:59 pm
Posts: 67
theeboneman wrote:
Thanks, Jim. It's a Fender amp with an Oxford speaker. Oxford was a speaker supplier back in the day for them. The speaker's coding is: 6EV-34 465-651.


I'll pass it on right now.

_________________
--Jim


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Wed Apr 02, 2014 3:47 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Feb 10, 2014 6:59 pm
Posts: 67
Just got a reply from the shop, PM sent.

_________________
--Jim


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Thu Apr 03, 2014 6:21 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
Hey Jim, what did they say?


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Thu Apr 03, 2014 6:46 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Feb 10, 2014 6:59 pm
Posts: 67
You figured it out. :)

Just in case you other guys run into one of these, the shop I contacted said he can re-cone the 6" Oxford. If anyone needs info I'll be glad to send it your way.

_________________
--Jim


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Thu Apr 03, 2014 6:53 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Be sure to post an after-action review once the re-coned Oxford is reinstalled and fully broken in.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Fri Apr 04, 2014 6:47 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Feb 10, 2014 6:59 pm
Posts: 67
How long does it take to break in a new speaker? A guitarist I used to play with told me about that but I've never had to break in a bass speaker so I had nothing to relate to.

_________________
--Jim


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Fri Apr 04, 2014 11:54 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
A minimum of 30 to 40 hours I should think. Hemp cones seem to require more use before they start to loosen up -- usually a 50-hour minimum.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sat Apr 05, 2014 7:13 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

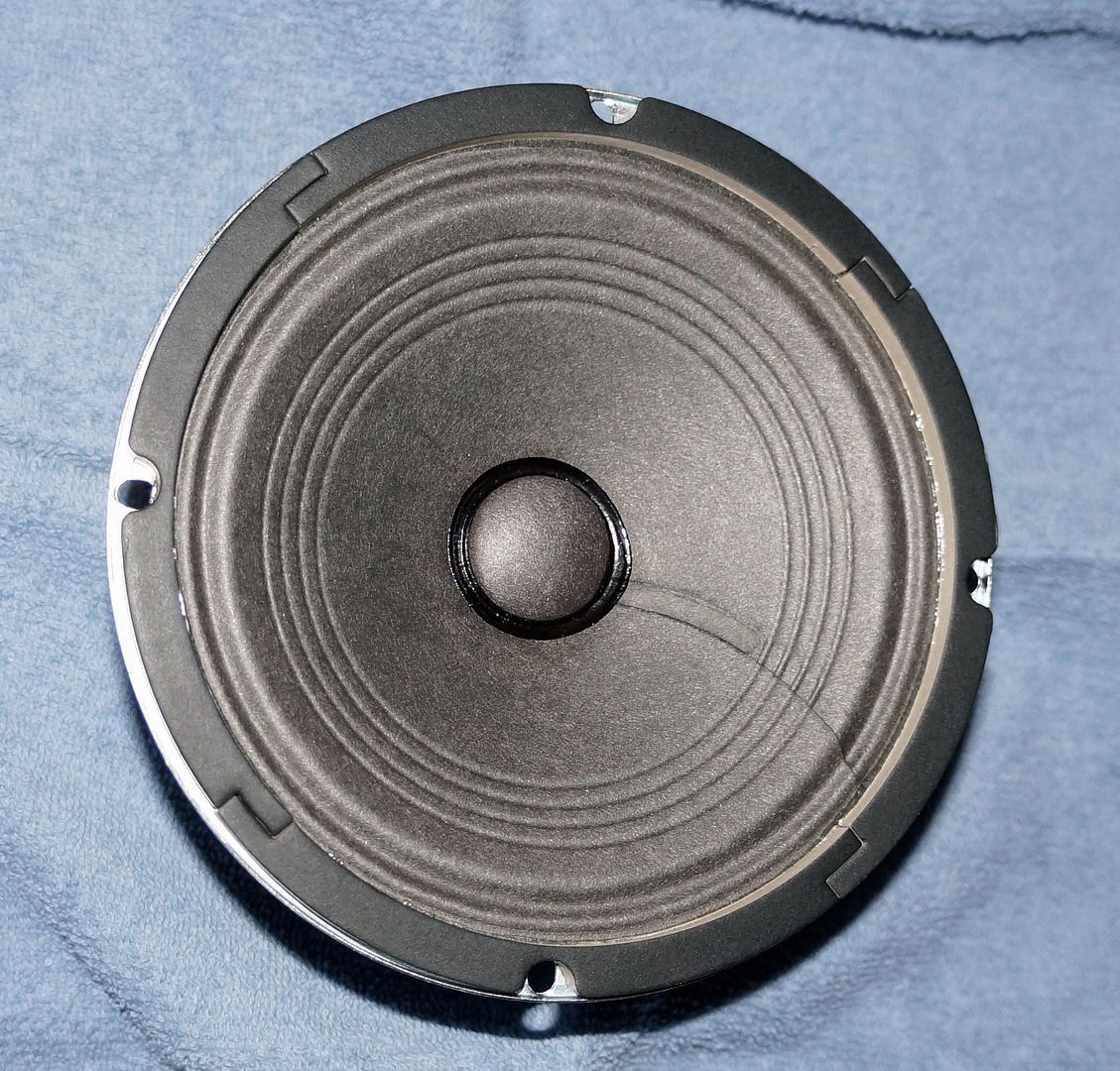

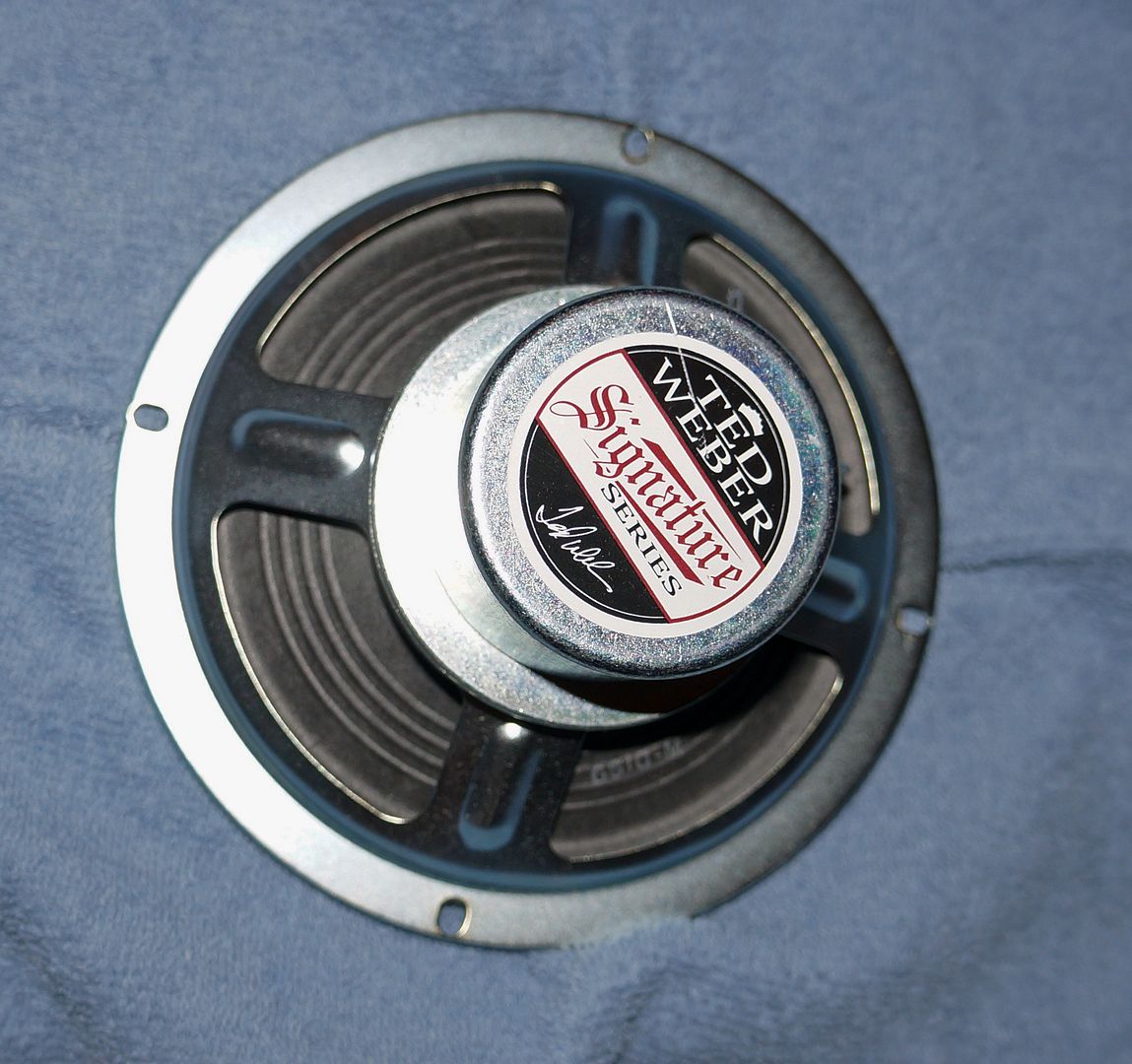

Found a Weber 6-inch Signature alnico, in my stash. I bought it from a guy who was going to install it into a RI Champion 600, but decided to go to a ceramic Weber.

I'll try to place it into my 1947 Champion 600 and tell you how it fits and sounds.







Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sun Apr 06, 2014 10:18 am
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
Hey guys, I just 'mended' the Oxford cone and before I hook it up, does anyone know which terminal on the speaker is Positive and which speaker jack wire is Positive??


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sun Apr 06, 2014 12:46 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
theeboneman wrote:
Hey guys, I just 'mended' the Oxford cone and before I hook it up, does anyone know which terminal on the speaker is Positive and which speaker jack wire is Positive??


Irrelevant for a single speaker amp.

_________________
Bill
