Post subject: `57 Champ 5E1
Posted: Tue Mar 25, 2014 7:24 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
Hello, years ago I bought this amp that needed re-coning. The original speaker is an Oxford 6". I could not find anyone to re-cone it, and I still can't. No one can do anything less than an 8" vintage speaker for some reason. What should I do, replace the speaker (I'll store the original, of course)? If so, what is the best speaker? I cannot tell from the wiring diagram what impedance should I get (I'm not good at reading electrical diagrams). Thank you.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: `57 Champ 5E1
Posted: Tue Mar 25, 2014 10:27 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The single-ended Fender amps were typically designed to drive a 3.2 ohm voice coil. Thus, any 6" speaker (assuming you can find one) of 4Ω impedance should be fine.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Tue Mar 25, 2014 11:27 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
I put one of these into my 1947 Champion 600. Sounds remarkably good.

https://taweber.powweb.com/weber/asig6.htm


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Wed Mar 26, 2014 4:26 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
BMW2002Ti wrote:
I put one of these into my 1947 Champion 600. Sounds remarkably good.

https://taweber.powweb.com/weber/asig6.htm


Good find there Beemer, the OP should be clicking the "Order" button now, especially at that price :!: :!:

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Wed Mar 26, 2014 6:28 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
Thanks guys. I will go with your suggestion Beemer once I confirm it will fit in the cabinet. According to the website, it "Will NOT fit in early tweed Champ (w/6" speaker)."
I'll check and let you know!


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Wed Mar 26, 2014 6:32 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Yeah, the ceramic version has the same caveat.

WTF did they even make the sonofabitch for if not for a tweed Champ?

:evil:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Thu Mar 27, 2014 6:12 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
The ceramic Weber 6-inch works fine in my 1947 Champion 600. I've put several of the alnico 6-inch Webers into ppl's RI Champion 600's. No problem. I may have a spare one lying around. I'll try it in my '47.

The only tweed Champ I have is a 5F1. Which has an 8-inch Weber.








Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Thu Mar 27, 2014 7:47 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
Hey BMW, re: the Weber in your Champ, did you have to do anything to avoid contact between the back of the magnet and the tubes? Can't tell from the pic. Also, what year is it? BTW, I've had email exchange with Weber and I may send them my speaker to see if it is re-conable. They cannot tell if it's re-conable until they've seen it. I've also asked for a recommendation for a replacement speaker. Hope to hear soon..


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Thu Mar 27, 2014 10:41 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Looks tight TBM, but if Steve say's it'll fit then you should be home free. Those Ferromax Weber's are a great upgrade for any Champ -- whether tweed, blackface, or silverface.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Thu Mar 27, 2014 11:02 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Aug 05, 2012 9:50 am
Posts: 1399
BMW2002Ti wrote:
I put one of these into my 1947 Champion 600. Sounds remarkably good.

https://taweber.powweb.com/weber/asig6.htm


+10 :)

_________________
I have some Fender gear.
(Telecaster, Jaguar, Villager 12 String. Mustang l, Bronco, SCX2, Rumble 350, HRDIII, Rumble 2x8 Neo Cab)
http://www.reverbnation.com/modwiz


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Fri Mar 28, 2014 9:12 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
BMW2002Ti wrote:
I put one of these into my 1947 Champion 600. Sounds remarkably good.

https://taweber.powweb.com/weber/asig6.htm



Hey BMW, did you replace it because it isn't as good as the Weber, or did you need to replace it because it was ripped or something? Reason I'm asking is because I may have options; 1) they re-cone it or 2) buy a replacement.

My thoughts now are sending them the original to see if they can re-cone. If not, get the replacement you linked. Or do you think re-coning is a waste of time/$$? Thanks.


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sat Mar 29, 2014 7:00 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

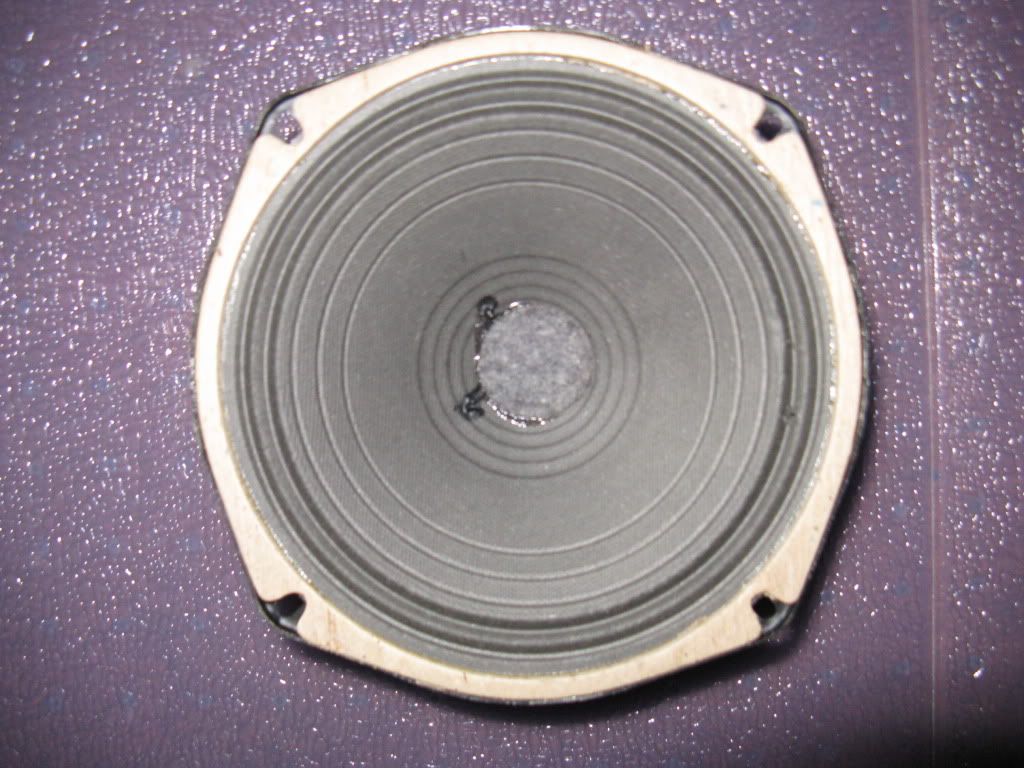

You may want to re-cone it. I replaced it because the original is a Cleveland 6-inch speaker. It's in good shape for 60 years old. So I stored it away. I play the amp about once or twice a month. It's has a great OD tone.





Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sun Mar 30, 2014 3:29 am
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 28, 2014 11:41 am
Posts: 11
Thanks, BMW. From researching this, I'm going to send it in for a re-cone after I try mending of the cone from some youtube videos I found. If that doesn't work, I'll send to Weber. One thing I learned from emails back and forth, plus checking out their website, is that those guys know speakers. Anyway, the reason their Sig series doesn't fit old tweed Champs is their 6" speakers are slightly smaller in diameter than those used by Fender back then. So the bolt holes don't line up. He said you can take out the original screw mounts and still put theirs in with wood screws. He also said they won't know about re-coning mine until they see if the voice coil will fit. I guess they can't use the original. Thanks for the help.


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sun Mar 30, 2014 9:02 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
theeboneman wrote:
He said you can take out the original screw mounts and still put theirs in with wood screws.


That requires drilling additional holes in the baffle board -- not something I would do with an otherwise all-original tweed Fender.

The ideal solution is to have the OEM Oxford re-coned if possible.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: `57 Champ 5E1
Posted: Sun Mar 30, 2014 10:35 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Retroverbial wrote:
theeboneman wrote:
He said you can take out the original screw mounts and still put theirs in with wood screws.


That requires drilling additional holes in the baffle board -- not something I would do with an otherwise all-original tweed Fender.

The ideal solution is to have the OEM Oxford re-coned if possible.

Arjay



+1K...Keeping it as original as possible is the way to go. Reconing would get my first vote, then if not go, with the Weber. If you go with the Weber, keeping the original tucked away for down the road will bring more $$ if and when resale comes

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
