Post subject: Re: 1968 Bassman
Posted: Sat Feb 15, 2014 10:31 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

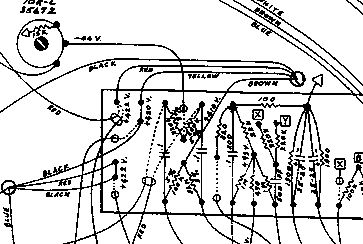

Final fixes on reverted Bassman phase inverter and global feedback circuits.

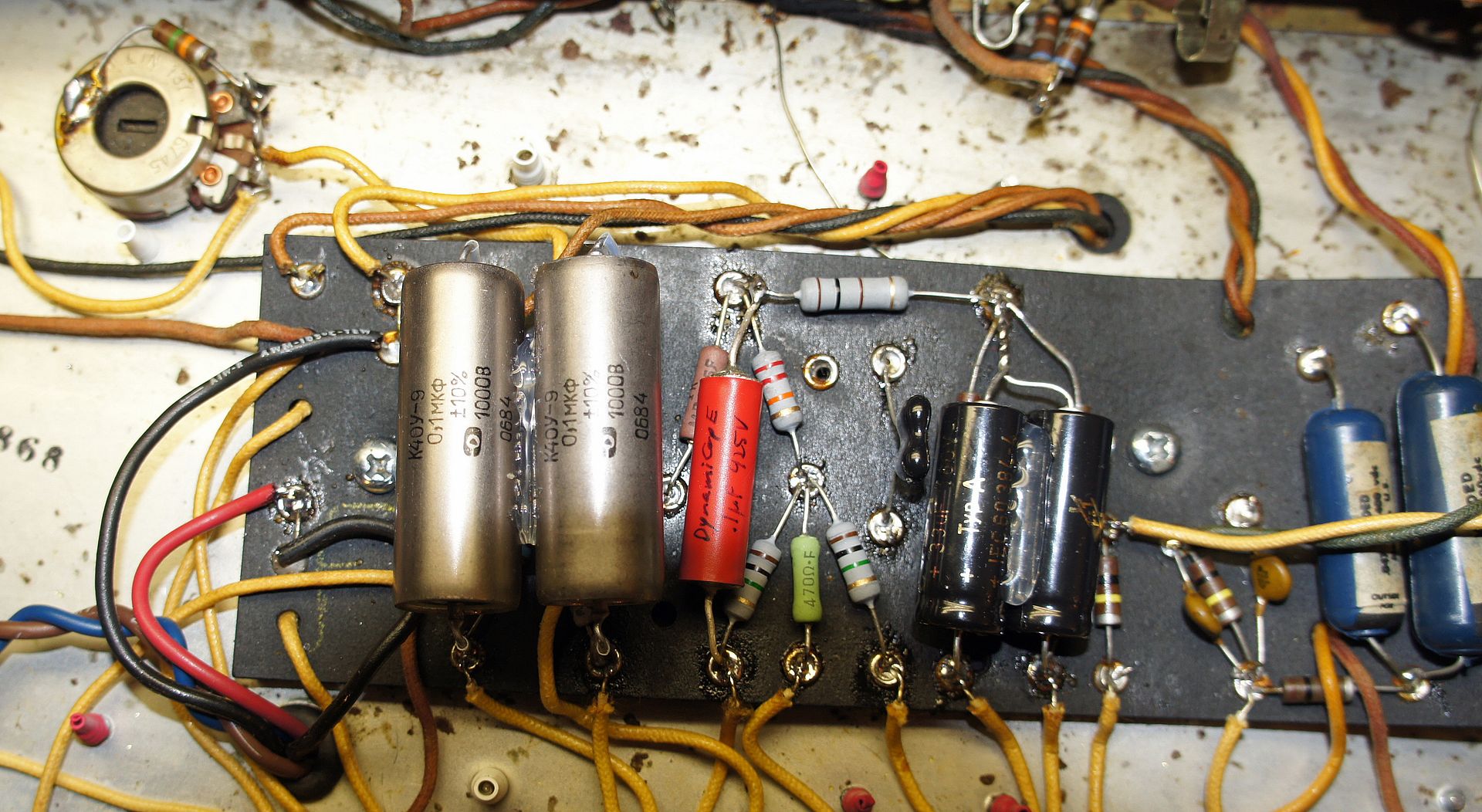

New resistor nework on tail of phase inverter.






Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 1968 Bassman
Posted: Sat Feb 15, 2014 10:35 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

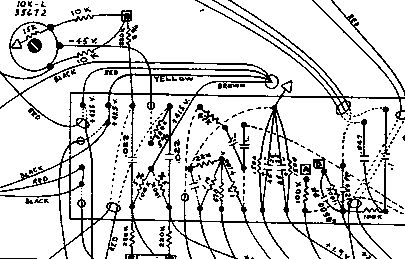

Original AB165 layout for phase inverter and GFNB:





Top
Profile
Post subject: Re: 1968 Bassman
Posted: Sun Feb 16, 2014 1:58 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

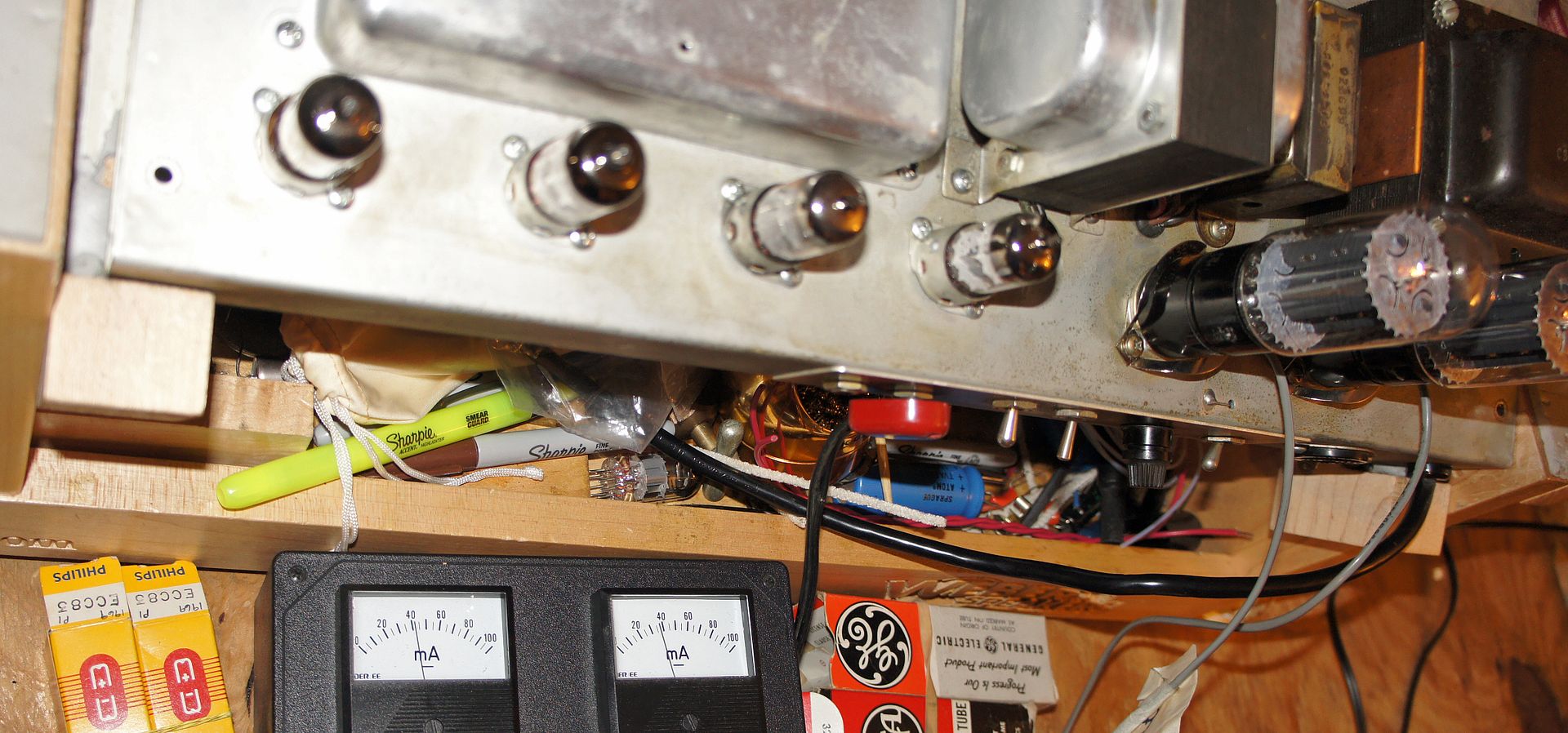

First fire-up. Very quiet amp. Think that those F&T caps with ww resistors in rail & the UF5408 diodes in rectifier bridge does make a difference. Biased RCA BP 6L6GC to 38 and 41mA at 474VDC and 473VDC respective plate voltages.

Now, to button up to cab and try out on Tremolux speaker cab. Will test versus blonde Tremolux head (AB763).



Top
Profile
Post subject: Re: 1968 Bassman
Posted: Sun Feb 16, 2014 2:49 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Ok... I'll try to sneak in some riffs, comparing the two heads (2:00am here). Mods were not exacatly easy. Tone is markedly browner than the stock AB165 --- both BASS and NORMAL channels. Much quieter background than before.

Mini review to follow. :mrgreen: :D :mrgreen:



Top
Profile
Post subject: Re: 1968 Bassman
Posted: Sun Feb 16, 2014 3:24 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

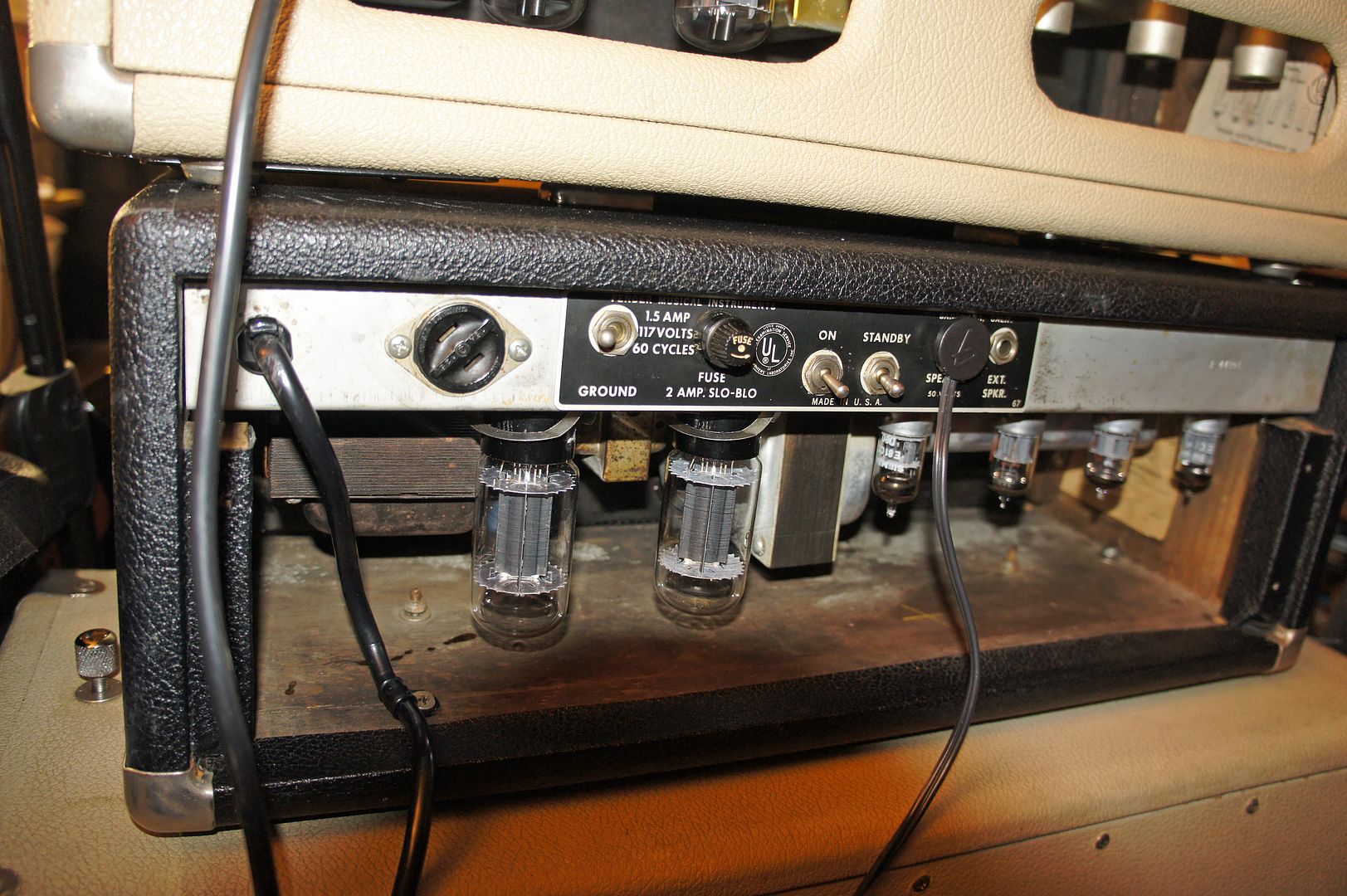

Front and rear views:





Top
Profile
Post subject: Re: 1968 Bassman
Posted: Sun Feb 16, 2014 10:54 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Ok. Put the Bassman and Tremolux through some paces. The Bassman has a big tone. It's NORMAL channel has a more potent attack than the Tremolux's NORMAL channel. BASS channel is pretty crazy. I need to dial back the Les Paul's tone and volume. Can get an overwhelming feedback on command. Will try a 5751 in V1.

The two heads are a nice compliment. Tremolux has that nice tube rectified Bluesy tone and the Bassman has a distinct solid-state rectified attack. I have no bass guitar on hand, but I bet it would sound pretty good through this AA864 circuit.

Going through the 2 X 10-inch cab (two JBL K110) --- the Bassman is very loud. As loud as my SFSR with it's four 10-inchers.


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Sun Feb 16, 2014 11:36 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Great job there Beemer! Thanks for giving us the tone reference too! 2:00AM testing? Man you are driven! Hope you kept those Blue Molded Tone Caps though!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Sun Feb 16, 2014 1:12 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Have you tried jumpering the channels on the modded Bassman yet?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Sun Feb 16, 2014 9:42 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Excellent, Beemer!!! I agree, those guys are very punchy with humbuckers. Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Sun Feb 23, 2014 8:02 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Steve, how's that bad-boy doin' ? Have you tried the 5751 in the V1 slot ? What about running it through a couple of 12's ? I've tried the 5751 in the V2 slot(not bad) and you know I tried 12AY7's in the V1 slot, until you told me I needed to adjust the surrounding components to accommodate that tube(yeah, toasted two of them, prior to your advice). But I really liked the 12AY7 input. I'll have to overcome my laziness and fix up that circuit!! Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Mon Feb 24, 2014 12:08 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Art, the amp seems to be loosening up. Kinda tight sounding, at first. Lot more relaxed tone. Not to the level of the Tremolux. But closer. Still have awesome bass and bass-midrange. Best of any dual 6L6GC amp that I've tried. Very clean high notes.

Feedback is this crazy really slow, slow, SLOW winding-up like process. Like you can delay the complete onset by 30 seconds, just by moving the guitar back and forth from the amp. Something none of my other Fender amps seem to possess. I remember a vintage Bluesbreaker with KT-66's that had that kind of controlled feedback.

Gonna have that 2 X 12-inch cab made. Prolly one Vintage 30 and one 1962 Jensen P12N. We see how the amp sounds with that cab.

12AY7's are dead sensitive to plate voltages and cathode current parameters. You want them down in their linear range. Then, you get the full effect of tone, headroom, OD. Fender tied the cathodes together, in their early tweed iterations. Some ppl say that this has a lot to do with the channel interaction and overall tone of the famous Bassman 5F6-A.

http://www.webphix.com/schematic%20heav ... _schem.pdf


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Thu Mar 06, 2014 2:35 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Steve...make sure we get some pics of the head and cab together once you get the 2x12 built. You know how we love amp porn!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Thu Mar 06, 2014 7:50 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Will do! :D


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Fri Mar 21, 2014 5:33 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Mar 21, 2014 5:11 pm
Posts: 10
No ill will by posting in a present thread to hijack it, but I have a 68' Bassman that I would like to know what the particular circuit in it is.

I bought it without the cabinet so I had to make my own. I made it as a non standard Bassman box and I hope I don't piss someone off with the looks of it.


The inside:






Thank you in advance.


Top
Profile
Post subject: Re: 1968 Bassman
Posted: Fri Mar 21, 2014 6:05 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Your amp began life as an AC568 but it looks like someone took it back to the AB165 revision, or at least partially so.

Why not start a new Bassman thread to avoid confusion?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
