Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Wed Feb 05, 2014 2:01 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 29, 2014 10:19 am
Posts: 16
OK:

Took chassis out of cabinet and tapped away and here's what I found:

There is a definite microphonic effect when I tap on pins 6&7 on preamp tubes #2 and #4 (looking from the right hand side of the tube chart and counting left).
The microphonic effect continues strongly if you tap the wires leading away from the tube pins, and even if you tap the phenolic above where the wires run, and also if I tap the large flat .02 MFd Mustard-colored capacitor...

Couldn't get any other strange sounds to emanate elsewhere, and I tapped everything except for under the cover where the main power electrolytics are located.)

Are we on to something here, or is this normal? Waiting in great anticipation!

Thanks in advance.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Wed Feb 05, 2014 2:15 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Pictures of the wiring may help ;


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Wed Feb 05, 2014 6:27 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
westeagle wrote:
OK:

if I tap the large flat .02 MFd Mustard-colored capacitor...

Thanks in advance.


Try this trick. Put a little dab of silicon sealer or glue gun goop on top of this cap. Now, listen to the amp. Has the frequency of the noise changed? Lower register? If so, it's the cap. Replace it.


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Wed Feb 05, 2014 8:14 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 29, 2014 10:19 am
Posts: 16

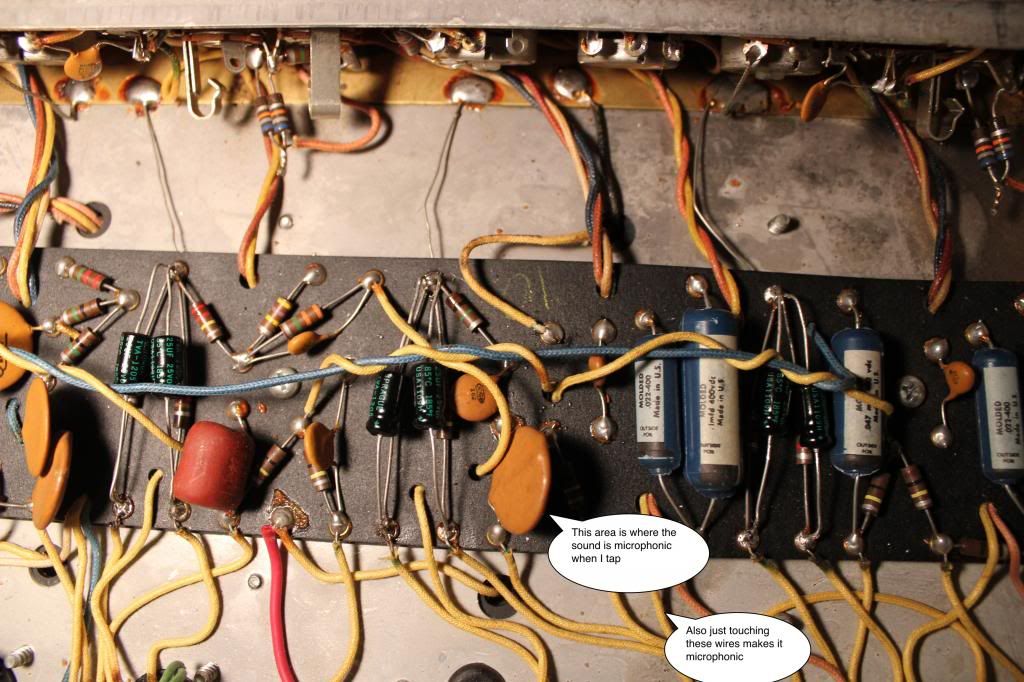

Above is a link to a photo. I will also try the hot glue gun experiment. Thanks


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Wed Feb 05, 2014 8:26 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 29, 2014 10:19 am
Posts: 16
http://i31.photobucket.com/albums/c385/ ... 893424.jpg

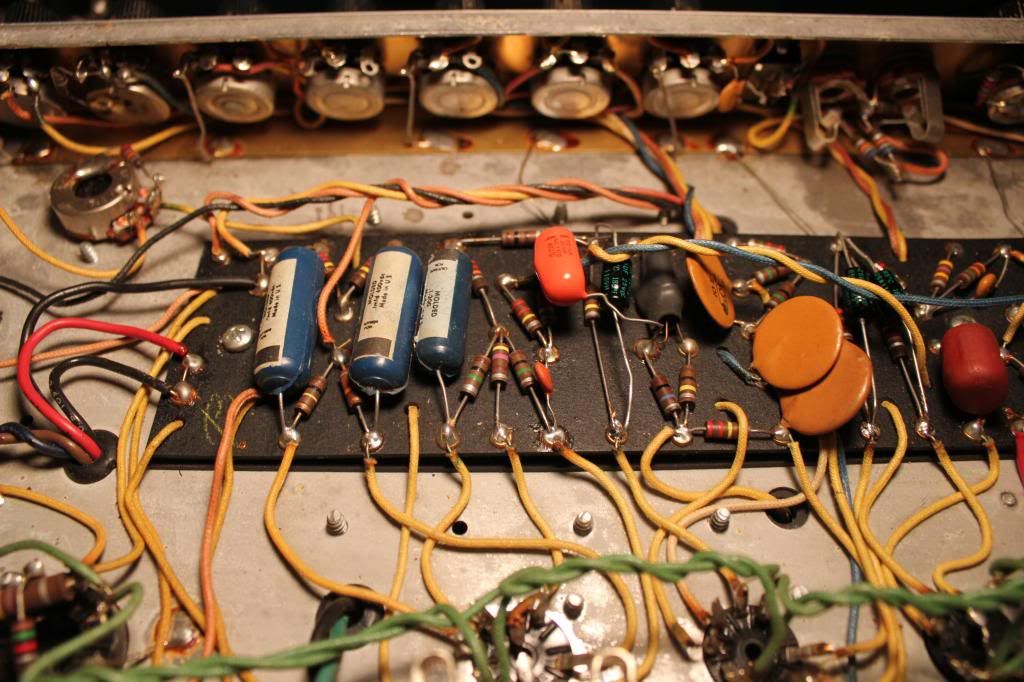

Here's another photo


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Thu Feb 06, 2014 2:31 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
I'll do some wiring ,lead dress . I see a lots of bad wiring dress. I do that often in apms and you can hear it after the job.

1- Wires must cross over other at 90 degree and never be in parallel.
2- Wire must be as close $@! possible to the chassis.
3- Never run 2 wires close together.

. All this could induce some capacitance,


Look the pictures here to know what to do ;


viewtopic.php?f=12&t=92057&p=1038777#p1038777


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Fri Feb 07, 2014 7:24 am
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 29, 2014 10:19 am
Posts: 16
To clarify, is it normal to hear some of the microphonic effect of tapping the wires and phenolic coming through the speakers?


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Fri Feb 07, 2014 11:37 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
westeagle wrote:
To clarify, is it normal to hear some of the microphonic effect of tapping the wires and phenolic coming through the speakers?


Yes on many wires or tubes it is normal . In some other no . Tapping will not help very much if you do not have any know how in electonic . Fix an amp by a amp forum , not easy .

Have you read my answer Feb 6 ?


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Fri Feb 07, 2014 11:47 am
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 29, 2014 10:19 am
Posts: 16
Thanks

Yes I read your info on the wire specifics. Thank you. I will clean up that when I next have the amp apart.
-Just was wondering if I had a glaring problem because of the micro phonics.


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Fri Feb 07, 2014 11:55 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
westeagle wrote:
Thanks

-Just was wondering if I had a glaring problem because of the micro phonics.



A qualified tech will know


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Sat Mar 15, 2014 6:14 am
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 29, 2014 10:19 am
Posts: 16
FOUND THE PROBLEM!

Early on in the trouble shooting process I tried an external speaker cabinet and it appeared that the problem didn't change. After spending $$ chasing this problem, and visiting a tech who said the amp sounded normal to him, I started from scratch again and tried a different external speaker, and voila, I noticed no killer "ice pick" resonance!
I then disconnected the original speakers in the amp and listened to them one by one: they all had the ice pick peak, when listened to individually.
I then ordered 2 new speakers: the Warehouse G10cs and G10C: to my surprise they actually sound fantastic -and no more icepick!!!! (I can now say I'm truly happy!!!)

Thanks to all who came up with suggestions earlier.


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Sat Mar 15, 2014 8:15 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
What type of speakers did you remove from the amp?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Sat Mar 15, 2014 10:35 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
stratele52 wrote:
westeagle wrote:
Thanks

-Just was wondering if I had a glaring problem because of the micro phonics.



A qualified tech will know



He was not qualifed or your amp sound/ speaker is a matter of taste ?


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Wed Mar 19, 2014 8:48 am
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 29, 2014 10:19 am
Posts: 16
The Tech was certainly qualified (also a custom amp builder) with a very good reputation; but the sound my amp produces is apparently a matter of taste. To him it was the normal "bell" like tone of a blackface Super Reverb and he didn't find it annoying: To me that one frequency drilled right into my brain! Some people describe it as the "ice pick" sound, and it is really annoying to me.

The original code for all 4 speakers is "F412 67" I can't find a definite reference to which manufacturer it is though...


Top
Profile
Post subject: Re: 1967 Super Reverb: Ringing at about 3kHz when D chord pl
Posted: Wed Mar 19, 2014 9:12 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
westeagle wrote:
The original code for all 4 speakers is "F412 67" I can't find a definite reference to which manufacturer it is though...


Not ringing any bells with me either.

Can you post a pic of one?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
