Post subject: Re: HELP!! my Fender Dual Showman Red knob wont turn on? Ide
Posted: Mon Sep 16, 2013 5:49 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
To post photos, upload your image file to a photo-sharing site like PhotoBucket. Then copy the IMG link. Paste to this site.

So that:

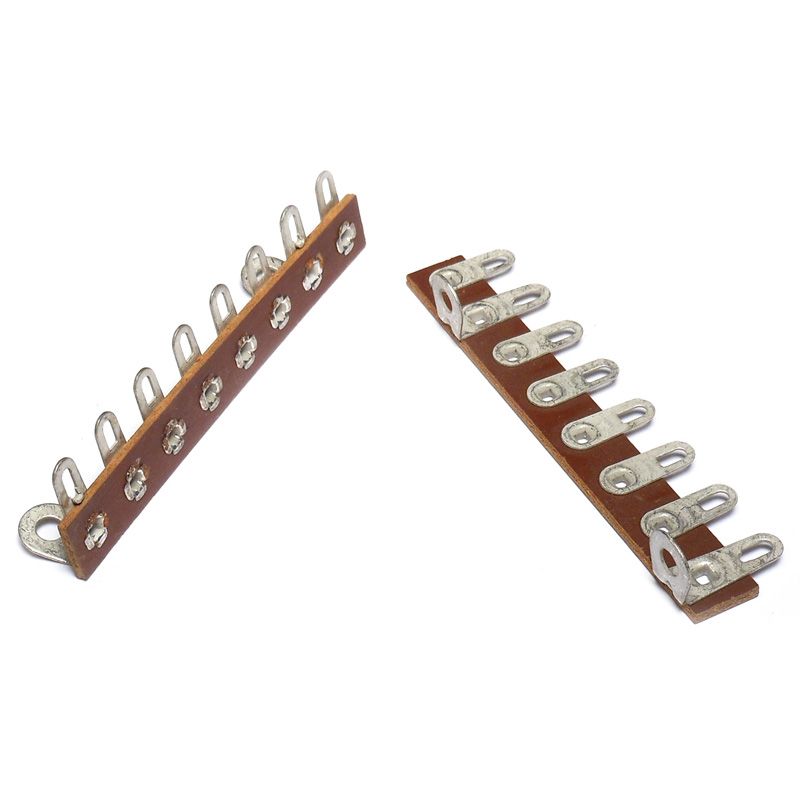

{URL=http://s1191.photobucket.com/user/BMW2002Ti/media/terminalstrip_zps956a7599.jpg.html]{IMG}http://i1191.photobucket.com/albums/z461/BMW2002Ti/terminalstrip_zps956a7599.jpg[/IMG]{/URL}

Becomes:


When [img] replaces {img}


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: HELP!! my Fender Dual Showman Red knob wont turn on? Ide
Posted: Mon Sep 16, 2013 7:28 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Nov 06, 2007 11:50 am
Posts: 61
Location: Santa Cruz California
ok i am on it..thanks!! :D


Top
Profile
Post subject: Re: HELP!! my Fender Dual Showman Red knob wont turn on? Ide
Posted: Tue Sep 17, 2013 10:07 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Nov 06, 2007 11:50 am
Posts: 61
Location: Santa Cruz California
hi..i lifted one leg off each R301 and D307 both check out ok...one thing that is kinda wierd is on the schematic it says there is a D308 ?? but i cant find it? double checked heater line from tube to tube all seems to be connected ? I am having trouble with my site and will post pix once that is straightened out


Top
Profile
Post subject: Re: HELP!! my Fender Dual Showman Red knob wont turn on? Ide
Posted: Tue Sep 17, 2013 2:05 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Rather that all of that unnecessary work, un-soldering, lifting, re-soldering, etc, why not first check your voltages and compare to the schematic. For example, do you have heater voltage, all power supply voltages, Plate voltage to each tube, etc. Much easier and informative to start with voltage checks. It is not always necessary to lift one leg of any components, if you know what you are looking for.

The two resistors that blew indicate a tube problem, likely an output tube shorted. You can certainly check voltages with tubes removed, although the voltages will be higher than indicated on the schematic, which is normal.

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: HELP!! my Fender Dual Showman Red knob wont turn on? Ide
Posted: Tue Sep 17, 2013 2:14 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Nov 06, 2007 11:50 am
Posts: 61
Location: Santa Cruz California
i just sold the amp for $120 as is to a repair guy ...he is going to figure it out then let me know..I am not sure how to do all those measurements? is there a article or video somewhere you know of thats pretty straight forward with pictures?.I will post info for follow up...thanks all.. JL


Top
Profile
Post subject: Re: HELP!! my Fender Dual Showman Red knob wont turn on? Ide
Posted: Tue Sep 17, 2013 2:55 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Reading a schematic, and checking voltages with a meter. Are you familiar with both/either? Do you even have a meter? But, since you don't have the amp anymore, not much point in trying to troubleshoot nothing.

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.
