Post subject: How to date vintage Fender amp and circuit revision?
Posted: Thu Aug 15, 2013 6:05 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
As per title, I'm sure many of forum members would like to know what information is needed to accurately date a vintage Fender amp. There are knowledgeable people on this forum, but also the majority (like myself) are players without extensive knowledge in the field. (This is a call for the educated ones!!).

It is obvious that the chassis serial number is of a great help however there are other elements to determine/confirm the month/year of manufacture.

Looking at the codes on transformers is another way of confirming the originality (age) of an amp as well. I presume the pots are also dated. Where else in the amp should one look at to make sure all the parts are original and correspond with the chassis number?!

Stickers such the one below are not of a great help, especially if there are no stamps indicating month/year of production. (Besides, those stickers are widely available on ebay for cheap ...)

As for circuit, how is this to be determined? Again, stickers can be swapped, so how do we know if, say 1968 DLR drip edge has AB763 or AB868 circuit?

If we can get some photos to support the discussion that would be great.

Thanks for your help ... :)

[url][URL=http://s559.photobucket.com/user/draganc_photos/media/st1.jpg.html]Image[/url][/url]


Last edited by Nikola Tesla on Thu Aug 15, 2013 8:00 pm, edited 2 times in total.

Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: How to date vintage Fender amp and circuit?
Posted: Thu Aug 15, 2013 6:43 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Nikola Tesla wrote:
(Besides, those stickers are widely available on ebay for cheap ...)


+1

Then there are nefarious villains (like myself) who print their own......


:lol:

Most Fender amps built up through the 1969 model year will have a date ink-stamped within the chassis, adjacent the tag board containing the components for the bias supply or near the power transformer. Later editions lacking this ID info can be documented by noting the EIA codes on all of the amp's original components (pots, trannies, speakers, electrolytic caps) and creating a logical composite date from that data. This latter method is less accurate but is reliable enough to render a judgement within a four to six month period. Older cabinets themselves are also date-stamped, usually on the inside at the bottom or in the case of a speaker-only enclosure, on one of the interior cleats. Once a date is firmly established, the circuit revision can be reliably determined.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: How to date vintage Fender amp and circuit?
Posted: Thu Aug 15, 2013 7:21 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia

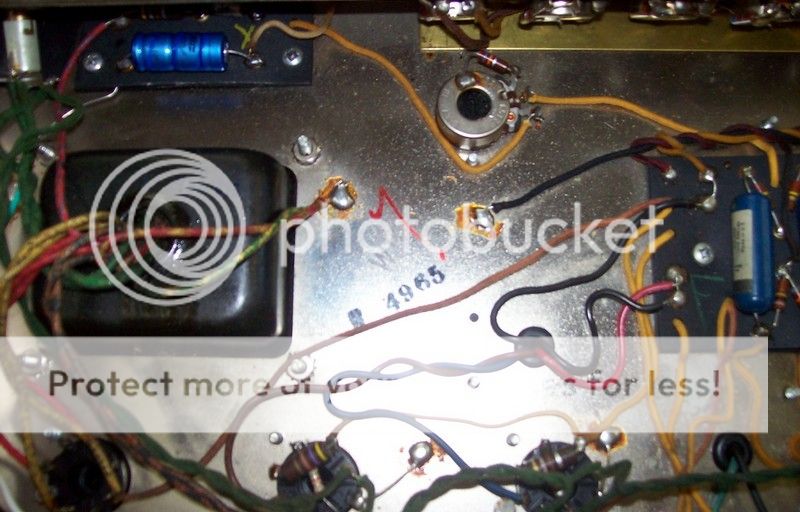

Regarding the ink stamp on the chassis, is the one from the photo how it should look like or does this number has a different meaning .. (4965 .. maybe 49th week of 1965?!?)
