Post subject: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Thu Jun 06, 2013 9:17 am
Offline
Roadie
Roadie

Joined: Sat Mar 09, 2013 12:27 pm
Posts: 207
I replaced the ecaps in my Princeton a while ago and the schematic called for a 25@50 bias board cap. I installed a Sprague Atom 25@100. On another site, they said those amps came with 50@50. WhenI bought the amp for $150 after someone hacked it, there was a Xicon 47@100 in there. Thoughts. BTW, can somebody take their Princeton apart and take pictures so I can make sure everything is wired correctly? HaHaHaHa. It's a running joke.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Thu Jun 06, 2013 9:37 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory

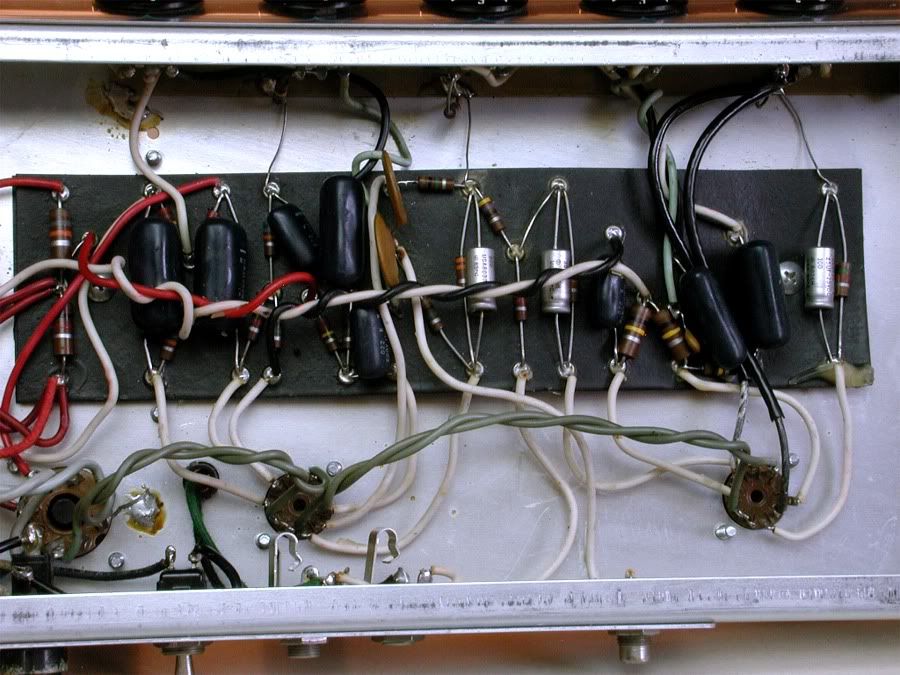

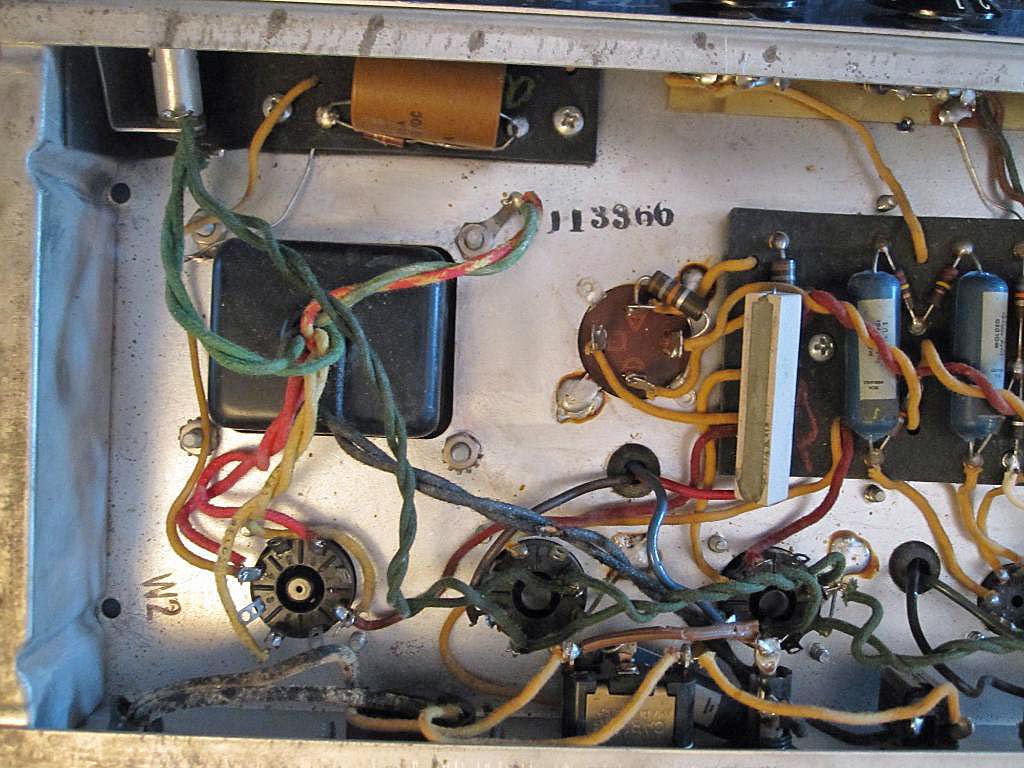

Here you go......


This chassis dates to 1980.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Thu Jun 06, 2013 9:42 am
Offline
Roadie
Roadie

Joined: Sat Mar 09, 2013 12:27 pm
Posts: 207
Thanks Arjay. Actually, I was kidding about the pic-referring to the guy with the red knob evil twin. :lol: What is the value of the bias cap on the board. 25uf or 50?


Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Thu Jun 06, 2013 11:16 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Most PR's I've seen had either 25mfd/50VDC or 50mfd/50VDC OEM caps in the bias supply.



I like using Sprague ATOM 50mfd/150VDC caps to replace the OEM ones. Higher voltage rating makes for longer lasting, more consistent filtering.




Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Thu Jun 06, 2013 3:40 pm
Offline
Roadie
Roadie

Joined: Sat Mar 09, 2013 12:27 pm
Posts: 207
Thanks. I think I'll change the Sprague to 50uf. I have a very slight hum with the 25uf. Thanks for the pics as well. Chris


Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Fri Jun 07, 2013 9:55 am
Offline
Roadie
Roadie

Joined: Sat Mar 09, 2013 12:27 pm
Posts: 207
I had a sprague atom 50@100. Replaced the 25@100 and the amp sounds great. Thanks once again. I love you guys :cry:


Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Tue Jul 02, 2013 1:55 pm
Offline
Roadie
Roadie

Joined: Sat Mar 09, 2013 12:27 pm
Posts: 207
Here she is. Simply wonderful. Thanks for all the help.



Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Tue Jul 02, 2013 2:01 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
There is no "image".

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Sat Jul 06, 2013 1:32 pm
Offline
Roadie
Roadie

Joined: Sat Mar 09, 2013 12:27 pm
Posts: 207
Forgive me. I just got a new cell phone and didn't get a chance to take pics of the chassis.



Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Fri Aug 23, 2013 10:50 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Apr 08, 2012 7:06 am
Posts: 6
50uf/100


Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Sat Aug 24, 2013 6:36 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sun Dec 21, 2008 8:29 am
Posts: 4238
Location: Pgh Pa
These are just fantastic little amps. I used my 64 princton last night at practice and was floored at how it preformed. I'll never get rid of mine


Top
Profile
Post subject: Re: Bias Board Cap Value for 69' Princeton (non-verb)
Posted: Sat Aug 24, 2013 9:44 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
tbazzone wrote:
I'll never get rid of mine


+1

El mizmo aquí.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY
