Post subject: Bandmaster cap values
Posted: Sat May 18, 2013 10:17 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Aug 21, 2009 1:45 pm
Posts: 852
Location: SoCal323

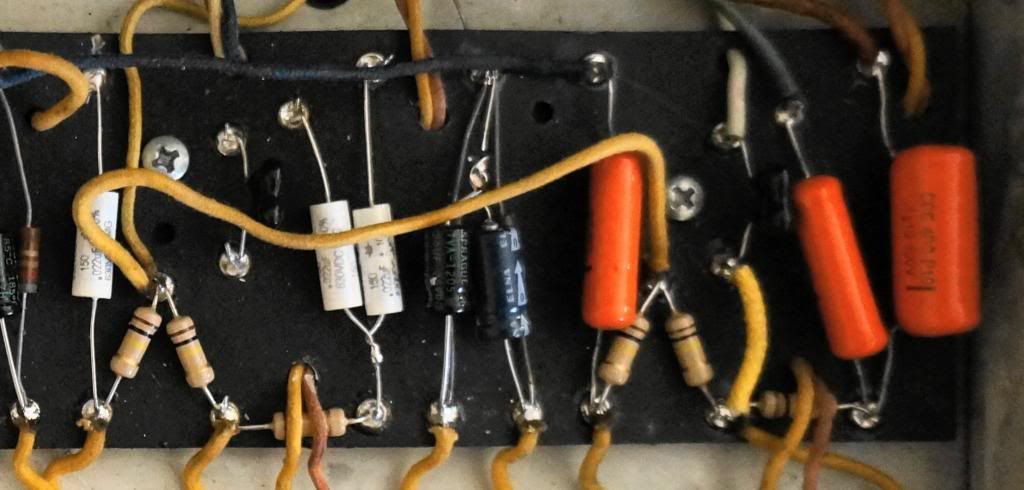

So I was going over my '67 bandmaster because I noticed a significant difference in tone from the normal channel to the vibrato channel. For some reason the normal channel sounded fuller and warmer with more bass, the vibrato channel sounded brighter with less bass. At first I thought it was the pre amp tubes but after swapping V1 and V2 I found that it didn't make a difference. I proceeded to take the chassis out and take a look at the internal components and found that the vibrato channel had .022uf caps for both the bass and treble tone circuit as well as the coupling cap. I'm thinking that this is why the two channels are voiced differently. Is it possible that this was done intentionally to get different voicings for each channel? Or maybe this was what the tech had lying around when it was worked on. Luckily I have a few old stock paktrons that I'm going to throw in there for the time being. I really do prefer the original values as the normal channel sounds better to me.


_________________
Its a lifestyle.....



Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Bandmaster cap values
Posted: Sun May 19, 2013 2:36 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Original amp are here , second page ;

www.el34world.com/charts/Schematics/fil ... _aa763.pdf


Top
Profile
Post subject: Re: Bandmaster cap values
Posted: Sun May 19, 2013 7:46 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
So Cal, the .02's in the tone stack is a Ken Fischer suggestion, to achieve a more balanced- guitar friendly tone. The basic Fender .1-.047 stack can seem like a high low tone, to some folks. It's a subtle difference and very subjective!!! I use PIO .022's in both channels of my '67 Band Master, with great results. In my Bogus Bassman, I run PIO .022's in the Bass channel and PIO .1-.047 in the normal channel. It's just a personal preference. Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: Bandmaster cap values
Posted: Mon May 20, 2013 7:06 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
So Cal, just to let you know; The B' Master is not stock. It has Victoria '59 Bassman X-Formers and a tube rectifier. The normal channel has a 250uf-820 ohm bypass cap and resistor for a little more depth. The PI feed cap is also a .022uf.Together with a RCA 7025(V1), an early iteration(balanced) GE 12AT7 phase inverter, Black Plate 6L6GC power tubes, and a Lindy Fralin vintage pup Strat- the sound can just about approach an acoustic dimension. Great for certain applications! Guess I'm gettin' at the possibilties with a two channel amp. Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: Bandmaster cap values
Posted: Mon May 20, 2013 7:28 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Aug 21, 2009 1:45 pm
Posts: 852
Location: SoCal323
Art,
Thanks for the heads up. I wasn't aware of the Ken Fisher mods, I think I'll look into that.
I agree with you about tone being subjective 100%. For me, at least, I prefer a slightly fatter warmer tone and the vibrato channel isn't doing it for me. I'm gonna have to think about this for a while now. Leave it alone or revert to original values? I guess for now I can just use the normal channel since I have reverb and trem coverd on my pedal board.
Thanks again,
Abe

_________________
Its a lifestyle.....



Top
Profile
Post subject: Re: Bandmaster cap values
Posted: Mon May 27, 2013 8:18 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Aug 21, 2009 1:45 pm
Posts: 852
Location: SoCal323
~~~Update~~~

So I went ahead swapped out the .022's with stock values. I'm much happier now. It wasn't a huge difference but one none the less. Thanks to all who contributed with their knowledge.

_________________
Its a lifestyle.....



Top
Profile
Post subject: Re: Bandmaster cap values
Posted: Tue Jun 04, 2013 10:27 am
Offline
Roadie
Roadie

Joined: Sat Mar 09, 2013 12:27 pm
Posts: 207
Jupiter yellow caps are the best. They're around $6 bucks, but well worth it. I've rebuilt two amps-69' Princeton and 73' Twin that both had mallory 150 and Sprague 715's installed as upgrades to the Paktrons. What some techs will do?!

http://jupitercondenser.com/vintage-ton ... itors.html


Top
Profile
Post subject: Re: Bandmaster cap values
Posted: Tue Jun 04, 2013 5:48 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Aug 21, 2009 1:45 pm
Posts: 852
Location: SoCal323
I had been looking at the jupiters, in particular the red one. Do you have any experience with the reds? How do they compare to the Yellows?
Thanks.
