Post subject: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 11:53 am
Offline
Amateur
Amateur
User avatar

Joined: Fri Aug 31, 2012 10:24 am
Posts: 163
Hey guys this is an Deluxe Reverb I am thinking about buying can anyone tell me how original this looks by this picture.
Thanks :?: 8)


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 12:47 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
What I can see

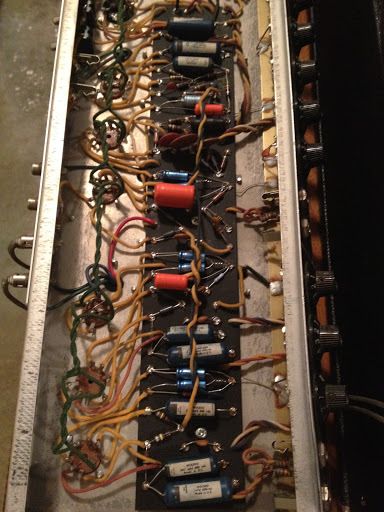

Almost original except the 3 orange capacitor and 5 or 6 (? ) bypass electrolytics capacitors. Thesr are metalic blue.

Lytic capacitor like bypass cap and filter caps need to be replaced after so many years.

Filter cap under the "dog house " need to be replace too . Are they ? Dog house is a steel box with 4 screw other side of the chassis, transformer and tubes side.

If you can have some more picture it will help .

A new 3 prong power cord is a must too.


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 1:13 pm
Offline
Amateur
Amateur
User avatar

Joined: Fri Aug 31, 2012 10:24 am
Posts: 163
heres a couple of more shots, thanks for the help.
8)


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 2:32 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada

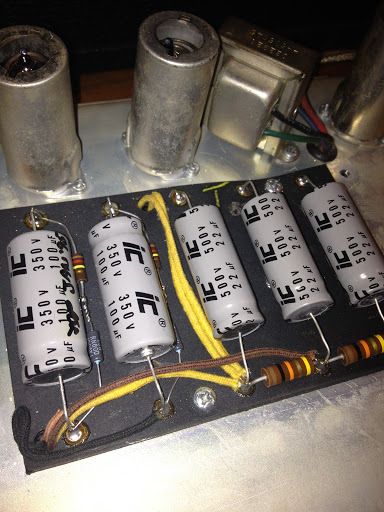

Those five filter cap are a replacement , not good as original but they do the job. The two 100 mfd are not original values but many amp tech says this help if you play loud.

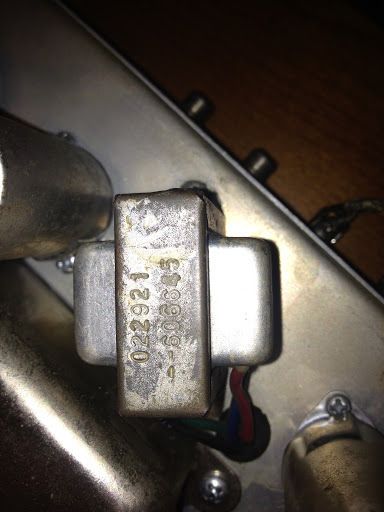

Transformer is a 1966 , 45 the week

606645 , forget 606

645 , 6=1966 , 45 = 45 the week


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 5:04 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Looks like the first filter resevoir is setup like the larger amps. With 220K bleed resistors and (2) small noise reduction capacitors. Not to say it's a bad idea, just non original. Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 6:54 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
aclempoppi wrote:
Looks like the first filter resevoir is setup like the larger amps. With 220K bleed resistors and (2) small noise reduction capacitors. Not to say it's a bad idea, just non original. Art


+1

Those two 100-mike's in the first stage reservoir are a bit of "overkill" but if nothing else, they will help deliver a solid bottom-end bass response. As stratele mentioned, the IC brand is not precisely "milspec" as with the amp's original Mallory's. If/when the time comes to re-cap, recommend Sprague Atom's or F&T's (also suitable for use in the bias-supply circuit).

Overall, the amp seems pretty sound.

Got any pics of the exterior?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 7:03 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
One thing about running the two 100mfd/350VDC caps in the first stage is the rectifier. Total capacitance is 50mfd, which is about the upper limit of a GOOD GZ34/5AR4. If you have issues with the rectifier going bad early --- you can try a nice ml spec 5U4GB. Not slow-start --- but a lot less succeptible to flash-over.

If you get the amp --- hope you have years of good luck with it!


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 7:45 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
BMW2002Ti wrote:
If you have issues with the rectifier going bad early --- you can try a nice ml spec 5U4GB. Not slow-start --- but a lot less succeptible to flash-over.


+1

And as it's a vintage amp, the PT's heater-supply winding should have ample reserve current capacity available for a directly-heated recto.

Rawk on!

8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Mon Mar 04, 2013 11:48 pm
Offline
Amateur
Amateur
User avatar

Joined: Fri Aug 31, 2012 10:24 am
Posts: 163
Thanks gentleman for all the information. Now to see if I can get it.
Again 8) Thanks


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Tue Mar 05, 2013 12:10 am
Offline
Amateur
Amateur
User avatar

Joined: Fri Aug 31, 2012 10:24 am
Posts: 163
Well guys I lost the 67 Deluxe Reverb didnot act fast enough, so what are your thoughts on an original 1970 Deluxe Reverb pros and cons?
Thanks :?:


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Tue Mar 05, 2013 2:24 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
If I didn't already own a '68, a '78, and a '94 re-issue, I'd definitely take a look-see.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Tue Mar 05, 2013 2:43 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
knotanother1 wrote:
Well guys I lost the 67 Deluxe Reverb didnot act fast enough, so what are your thoughts on an original 1970 Deluxe Reverb pros and cons?
Thanks :?:



To bad.
Those amp sell very fast if in good shape. You should know by yourself if it is a good deal and buy it right now. Asking some question to a forum take too much time .
Keep these informations and photos, you could use it for another Fender amp. There are all built the same .


Top
Profile
Post subject: Re: 67 Deluxe reverb
Posted: Tue Mar 05, 2013 6:23 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Anyone notice the resistor and diode(?) arrangement on those 100mfd/350VDC caps?
