Post subject: If I had the money ...
Posted: Mon Feb 04, 2013 9:01 am
Offline
Amateur
Amateur

Joined: Thu Jan 20, 2011 2:02 am
Posts: 145
Location: Cambridge, MA
http://www.ebay.com/itm/1963-FENDER-VIB ... 35c40d9544

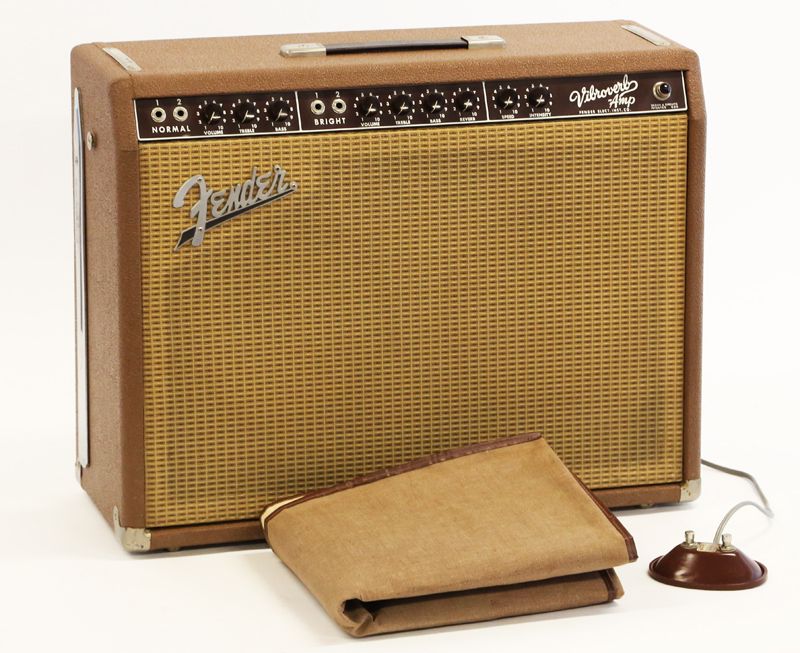

Its cool to see a few examples of even the rarest vintage amps exist in such nice shape. The OT and choke are the same as in my 62 Super. Its also running 6 preamp tubes. Does anyone know how they added the reverb if they are using the harmonic tremolo too? Seems like they would have to add another 12ax7 to power the reverb. Also, anyone know why there are little AB1963 markings in various photos (speakers, bottom of cab, underside of chassis)? I've never seen them before.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: If I had the money ...
Posted: Mon Feb 04, 2013 9:11 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
Then there is this one for sale in my local Craigs list
Kinda pricey for what it is if ya ask me.

http://southbend.craigslist.org/msg/3577286028.html

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Post subject: Re: If I had the money ...
Posted: Mon Feb 04, 2013 12:30 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
s3mamill wrote:
Its also running 6 preamp tubes. Does anyone know how they added the reverb if they are using the harmonic tremolo too?


No harmonic trem on the '63 Vibroverb -- it utilizes the bias-modulated type as used in the Vibro Champ and Princeton Reverb.

HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: If I had the money ...
Posted: Mon Feb 04, 2013 1:35 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Arjay, I kinda remember that all Fender amps with the three 12AX7 stage "vibrato" section had presence controls. Two 12AX7 or bias wiggles amps did not.


Top
Profile
Post subject: Re: If I had the money ...
Posted: Mon Feb 04, 2013 3:51 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The 6G4 Super, 6G5 Pro, 6G7 Bandmaster, 6G8 Twin, 6G12 Concert, 6G13 Vibrasonic, and 6G14 Showman (all, brownfaces) were the only amps Leo designed with the harmonic trem circuit. All featured the presence control tied to the NFB loop.

HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: If I had the money ...
Posted: Mon Feb 04, 2013 4:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Arjay,

Thanks for the clarification.

I had this mixed up with the "-A" designation in these Brownface Fenders. Mixed the use of two or three 12AX7 in the vibrato section. And the presence pot --- which is present (sorry, for pun) in all Pros, Bandmasters, Twins, Concerts, and Vibrasonics in this era.


Top
Profile
Post subject: Re: If I had the money ...
Posted: Mon Feb 04, 2013 7:27 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
If I'm not mistaken the early examples of each amp (no "-A" in the designation) used a five-tube pre-amp layout, with two dedicated for the tremolo. Leo later added a third tube to provide stabilization and buffering to remedy some unintended oscillation within the tremolo circuit and thus, the "-A" was added to to denote this alteration.

HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: If I had the money ...
Posted: Mon Feb 04, 2013 10:12 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Retroverbial wrote:
If I'm not mistaken the early examples of each amp (no "-A" in the designation) used a five-tube pre-amp layout, with two dedicated for the tremolo. Leo later added a third tube to provide stabilization and buffering to remedy some unintended oscillation within the tremolo circuit and thus, the "-A" was added to to denote this alteration.

HTH

Arjay


5 tubes including PI:

http://ampwares.com/schematics/super_6g4.pdf

http://ampwares.com/schematics/pro_6g5.pdf

http://ampwares.com/schematics/bandmaster_6g7.pdf

http://ampwares.com/schematics/concert_6g12.pdf

6 tubes including PI:

http://ampwares.com/schematics/twin_6g8.pdf

http://ampwares.com/schematics/showman_6g14.pdf

Couldn't find a schematic for a 6G13 Vibrasonic.

_________________
Bill



Top
Profile
Post subject: Re: If I had the money ...
Posted: Tue Feb 05, 2013 10:51 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Bill,

I found a link to the Vibrasonic 6G13-A circuit.

http://www.webphix.com/schematic%20heav ... _schem.pdf

Interesting how many of these Brownface and earlier tweed amps ran 12AX7 (7025) PI sections. Lot of gain. But, little current push.


Top
Profile
Post subject: Re: If I had the money ...
Posted: Tue Feb 05, 2013 1:32 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Wed Nov 14, 2007 1:29 pm
Posts: 614
Location: SW Ohio
There's a '63 Brownface Princeton on the local CL. Looks like it needs some cleaning and the handle doesn't look original. I think the seller is doing everything he can to sabotage his own sale...... He says it works great then adds "Due to the age of this amp and that it appears to be all original - it could very well blow up when you plug it in at your house/practice space. No returns - sorry. " :lol:


Top
Profile
Post subject: Re: If I had the money ...
Posted: Tue Feb 05, 2013 4:41 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
BMW2002Ti wrote:
Bill,

I found a link to the Vibrasonic 6G13-A circuit.

http://www.webphix.com/schematic%20heav ... _schem.pdf

Interesting how many of these Brownface and earlier tweed amps ran 12AX7 (7025) PI sections. Lot of gain. But, little current push.


Yes, I found a 6G13-A on Ampwares also, but no 6G13.

_________________
Bill



Top
Profile
Post subject: Re: If I had the money ...
Posted: Sat Feb 09, 2013 4:41 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Dec 22, 2012 8:51 am
Posts: 46
i like vibroverb with the one 15 inch speaker oh if only humana humana :(


Top
Profile
Post subject: Re: If I had the money ...
Posted: Mon Feb 11, 2013 2:46 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Dude, check this one out!

:lol: :lol: :lol:

http://www.ebay.com/itm/1964-FENDER-VIB ... _316wt_913


Top
Profile
