Post subject: All original 72 champ with original rca tubes too! with pics
Posted: Tue Dec 04, 2012 9:35 pm
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 08, 2008 9:50 am
Posts: 51

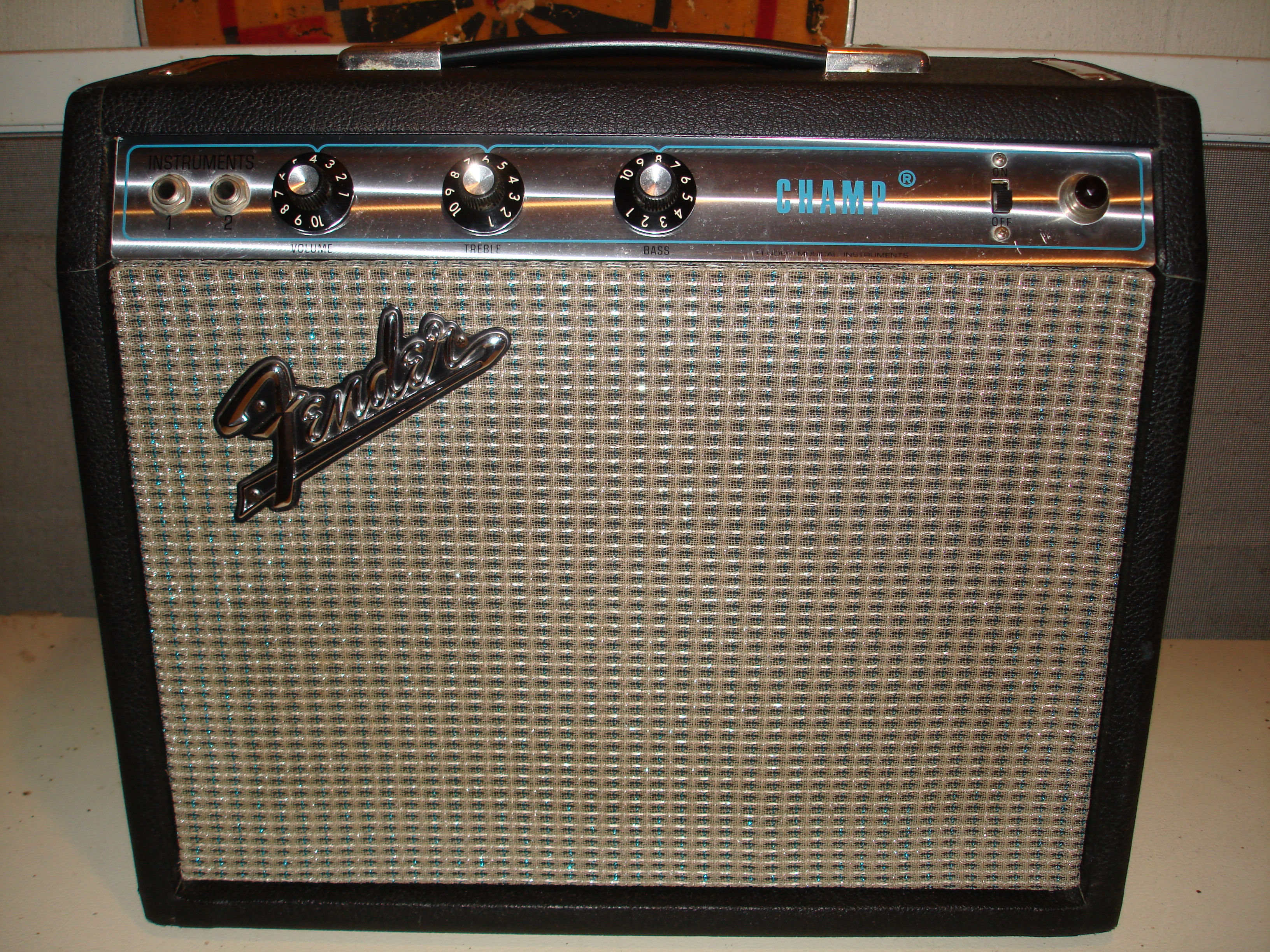

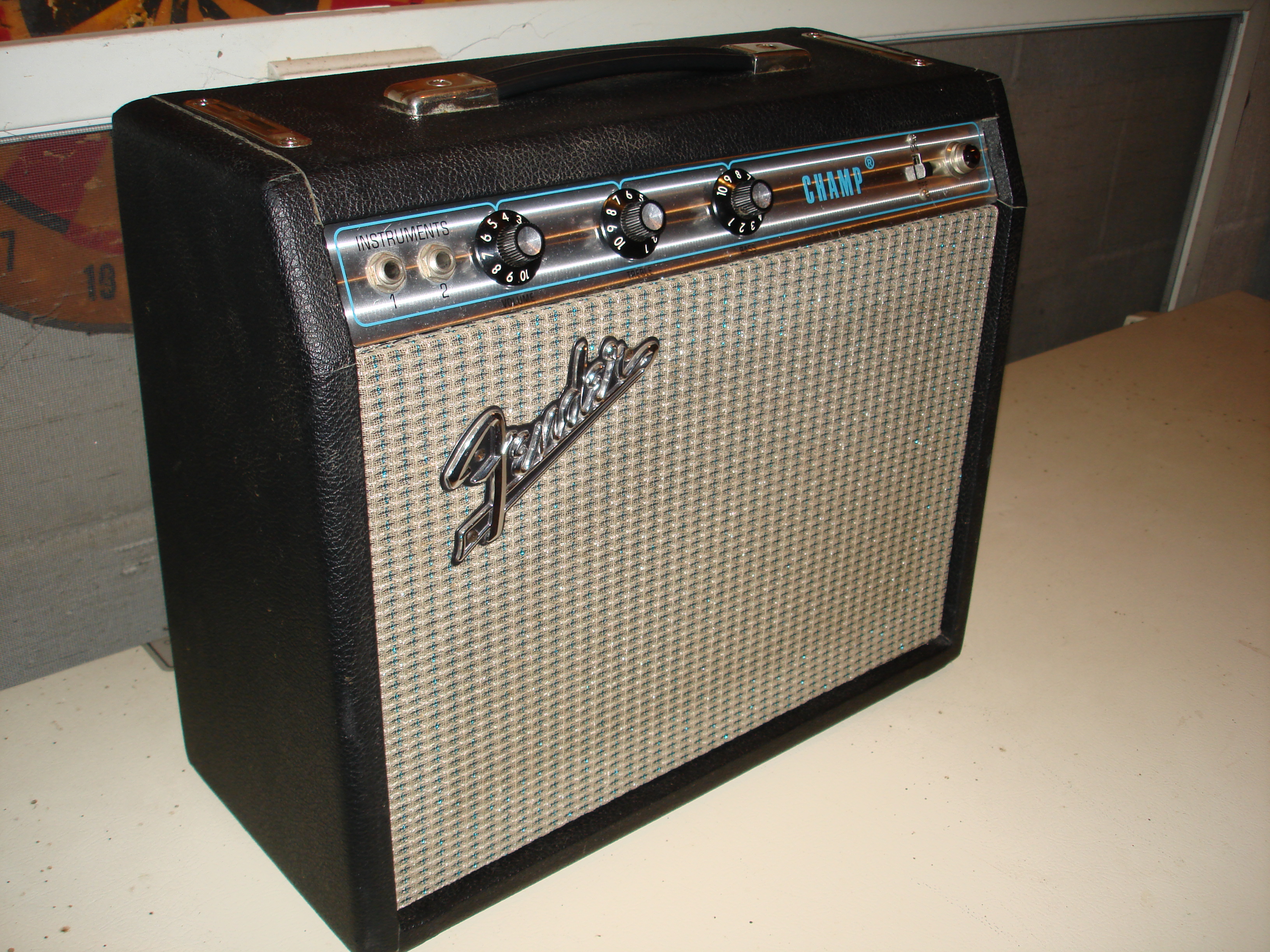

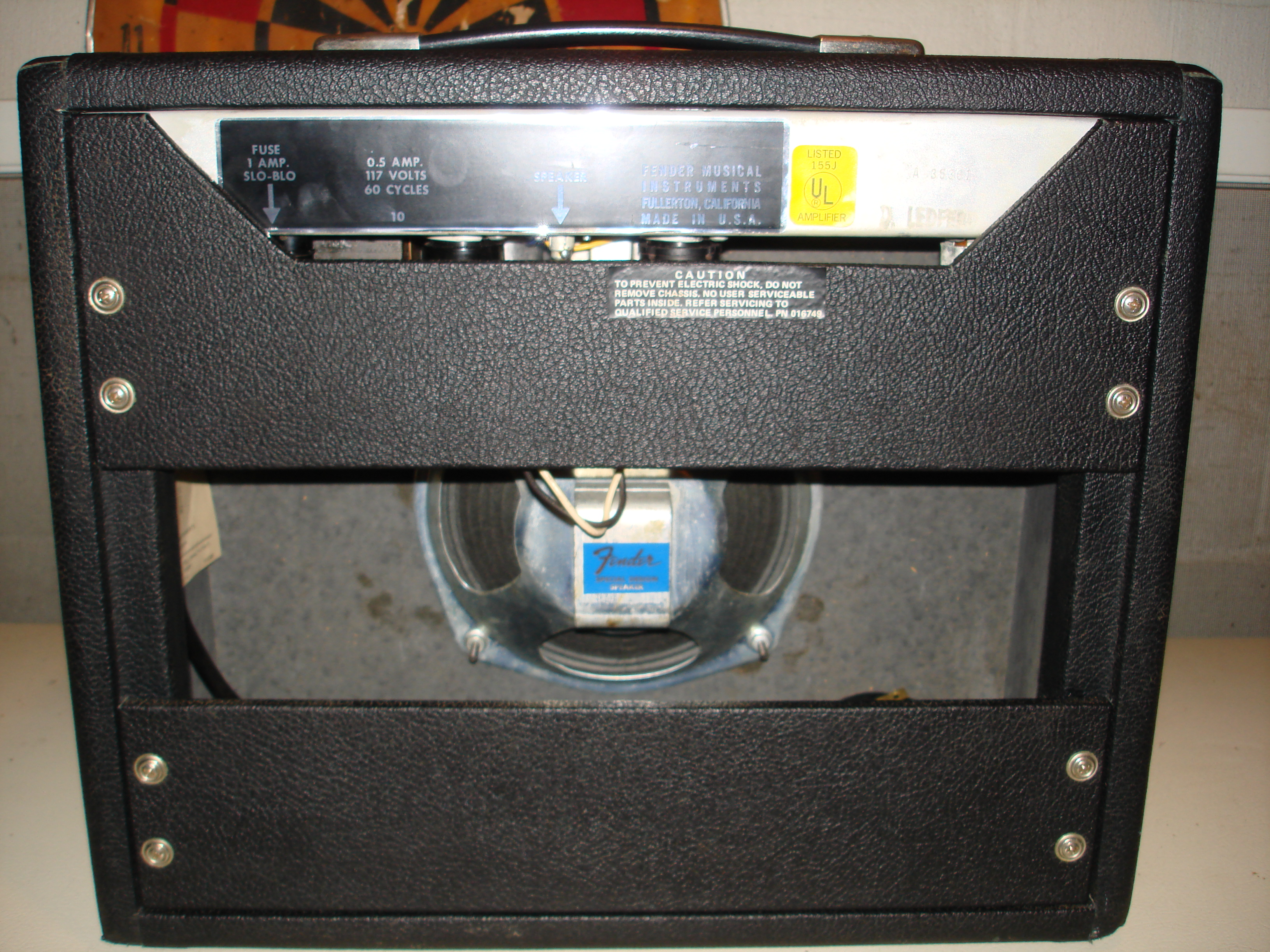

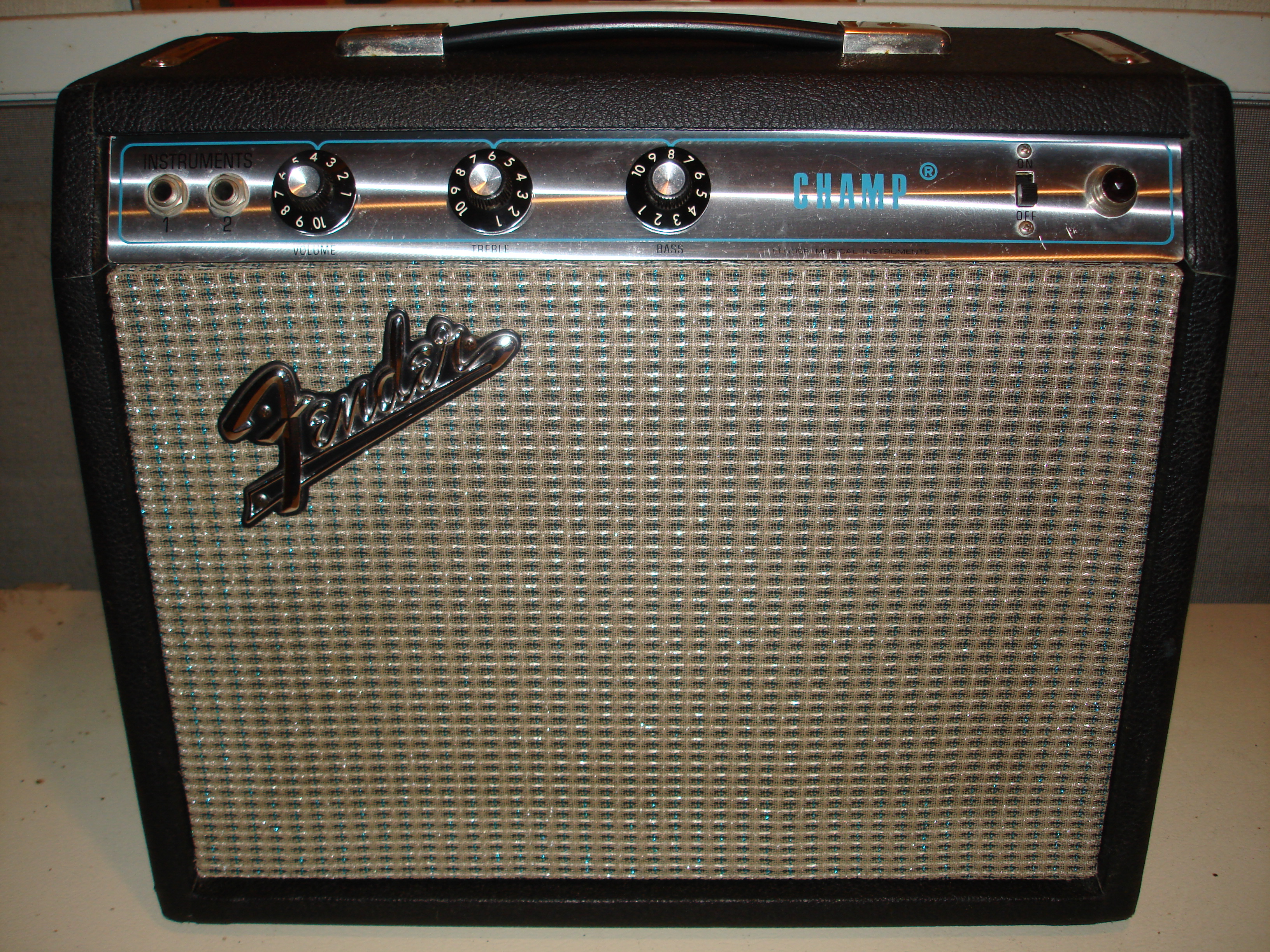

An all original late 72 to first couple of weeks of 73 champ with original rca tubes!!!! How much would it be worth since it is completely 100% original with the stock oxford blue label speaker??? And its in close to prefect shape but you be the judge and tell me what you think? :D Image


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: All original 72 champ with original rca tubes too! with
Posted: Tue Dec 04, 2012 11:17 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

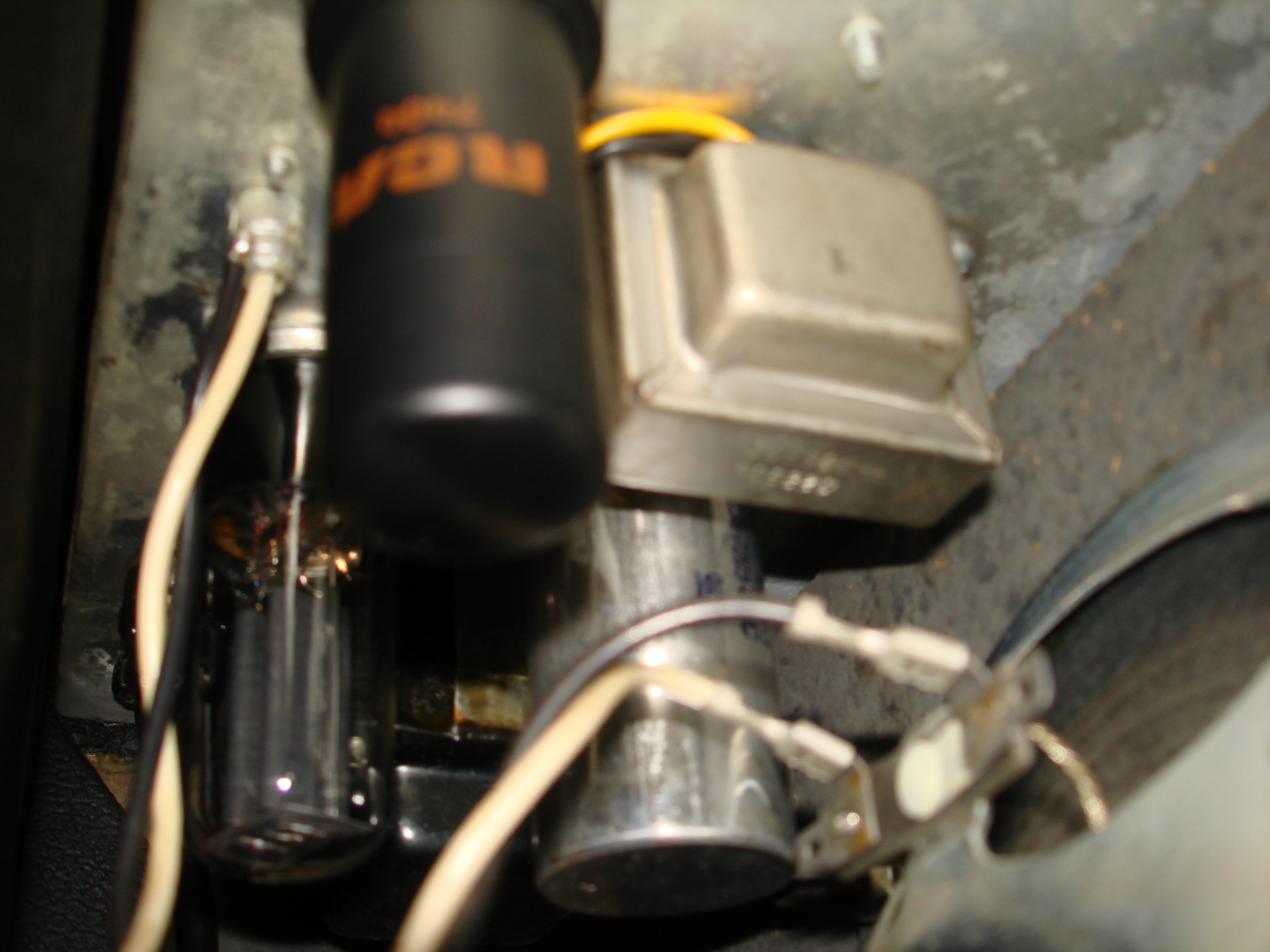

Wow! Metal RCA tubes. Have a good photo of those 5Y3 and 6V6?

thanks!


Top
Profile
Post subject: Re: All original 72 champ with original rca tubes too! with
Posted: Wed Dec 05, 2012 10:53 am
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 08, 2008 9:50 am
Posts: 51
no I don't its really hard to get a good pic in such a small area though lol but Ill try to get some more though. I am new to puting on pics on here and I sorry they are so big and I know now to down size them. But if you want to see them better just click on the pic and you will be able to see to hole thing. :D


Top
Profile
Post subject: Re: All original 72 champ with original rca tubes too! with
Posted: Thu Dec 06, 2012 9:04 am
Offline
Hobbyist
Hobbyist

Joined: Thu Oct 04, 2012 5:43 am
Posts: 6
Metal tubes were not used by Fender in their amps in the 70's. I'd have to say they are not original and are probably much older than the amp itself. I have a 69 champ that came with the original tubes when I bought it a few years back. They were glass RCA's.


Top
Profile
Post subject: Re: All original 72 champ with original rca tubes too! with
Posted: Thu Dec 06, 2012 12:09 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Dave, I have seen a few 1960-70's amps with original metal tubes. Rare in guitar amps. But, RCA did produce some metal types, mostly for TV and RF transmitter use, Check the RCA logo on the tube, in photo above. That is mid-1960s and later style.

And the 5Y3 and 6V6 were used a lot in TVs. Up until mid 1970s.

Anyhow & in general, they tend to give the amp a much brighter tone than their glass bottle brothers. So, some folks actually seek these types. Esp for use in amps with octal tubes in the pre-amp stage. The 5693 (6SJ7) pentode has a very good reputation for tone FWIW.

Metal tubes are more susceptible to microphony. So, selection is important.

http://natubes.com/data/images/product/large_120.gif
